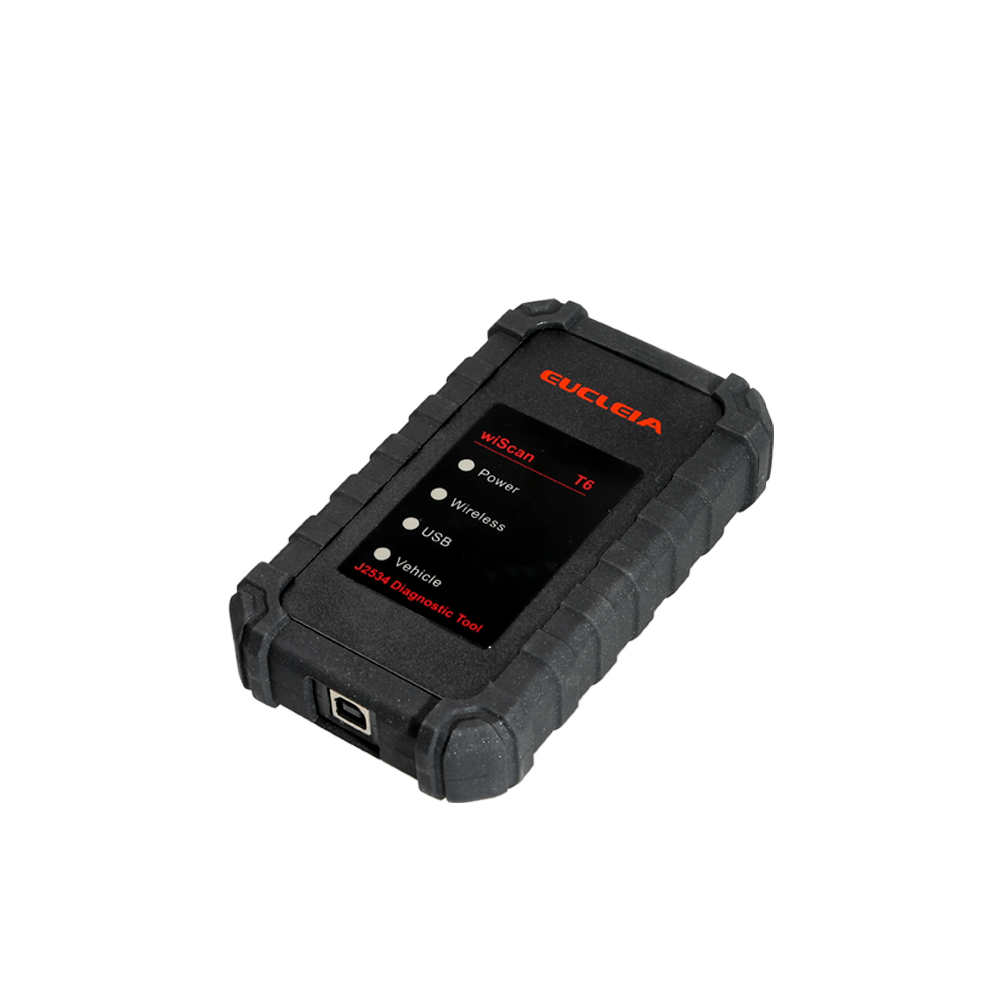

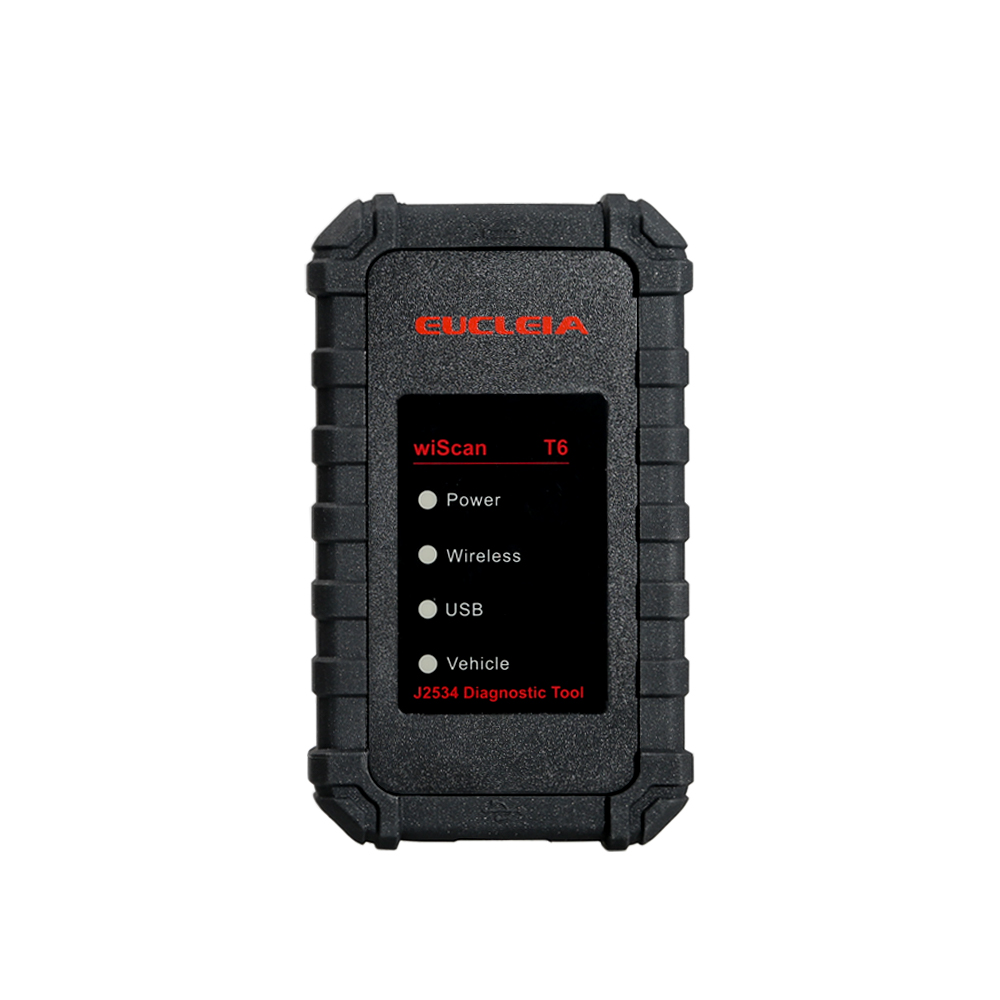

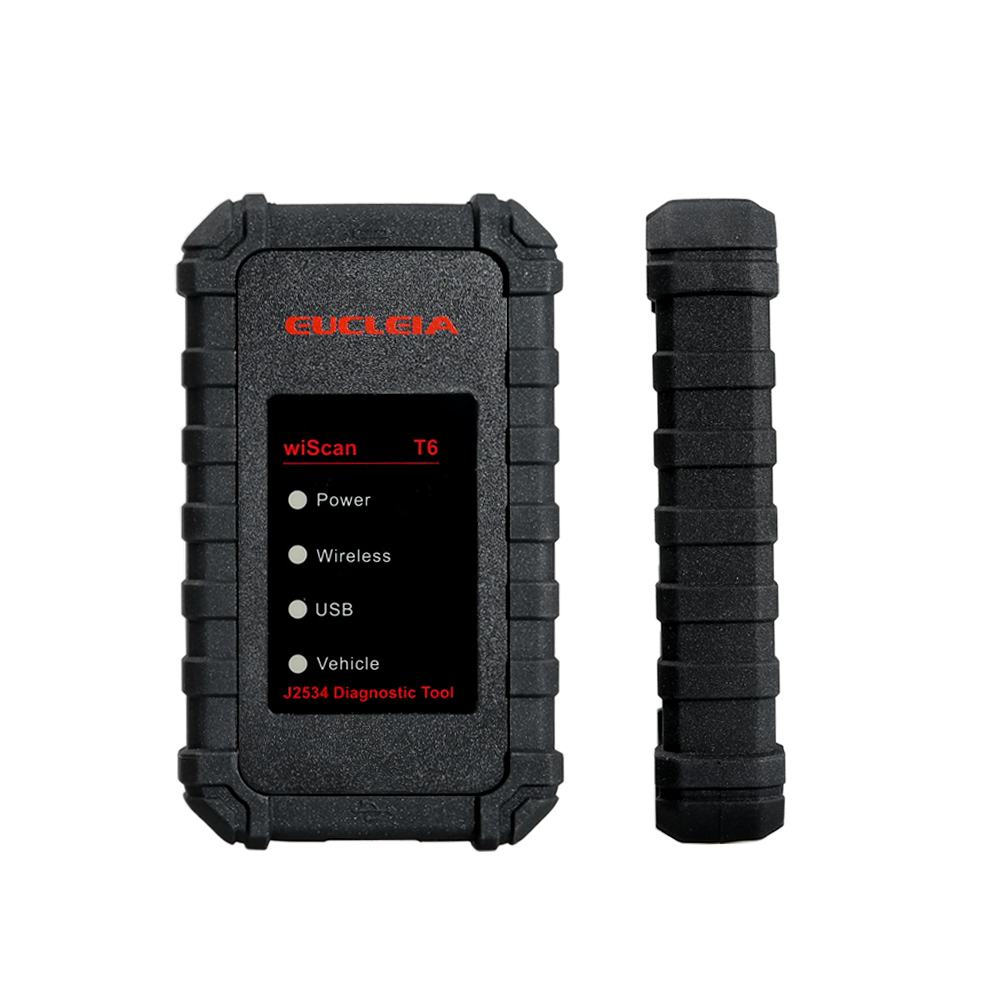

EUCLEIA wiScan T6 J2534 Diagnostic Tool Wireless VCI for TabScan S7W/ TabScan S8

EUCLEIA wiScan T6 J2534 Diagnostic Tool Wireless VCI for TabScan S7W/ TabScan S8

wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major,original manufacturer diagnosis software and function. wiScan T6 is a professional,reliable, fast, flexible and with wide adaptation diagnostic device.

Note: 24V model is not supported.
Operating system.: Windows Xp,  Win7,  Win8, Win10 and follow-up version of the 32 bit or 64 bit

EUCLEIA  wiScan T6 J2534 Diagnostic Tool
wiScan T6 is a car diagnostic tool which supports J2534 standard interface and major
original manufacturer diagnosis software and function. wiScan T6 is a professional,
reliable, fast, flexible and with wide adaptation diagnostic device.
SAE J2534 is a standard devised of two independent parts: subscription software and a
J2534 compliant Pass Thru vehicle interface. The subscription software comes directly from
the automaker, runs on your shop PC or laptop, and can either be web-based or CD-based.
The subscription fees are charged differently for each automaker.

wiScan T6 Features
Compatible with J2534 standard interfaces
T6 Supports numerous OEM diagnostic software such as Volkswagen, Jaguar Land Rover,
Volvo, Honda, Toyota, Ford, Mazda, GM, etc.
Equipped with high performance processor and perfectly compatible with the original
diagnosis function
Network upgrades support
Rugged design can be used in a variety of harsh environments

wiScan T6 Function
Supports OEM diagnostic software and diagnostic function

Car model and software support

Brand	Models	Software
Toyota	Toyota, Lexus, Scion	Techstream
Honda	Honda,Acura	HDS
Volvo	Volvo	VIDA
VW	Volkswagen, Audi, Seat, Skoda,Bentley, Lamborghini	ODIS
GM	GM	GDS2
Mazda	Mazda	Mazda IDS
Ford	Ford	Ford IDS
JLR	Jaguar, Land Rover	SDD

wiScan T6 Specifications

Processor	ARM 32bit Cortex M3
Flash	512KB
RAM	128KB

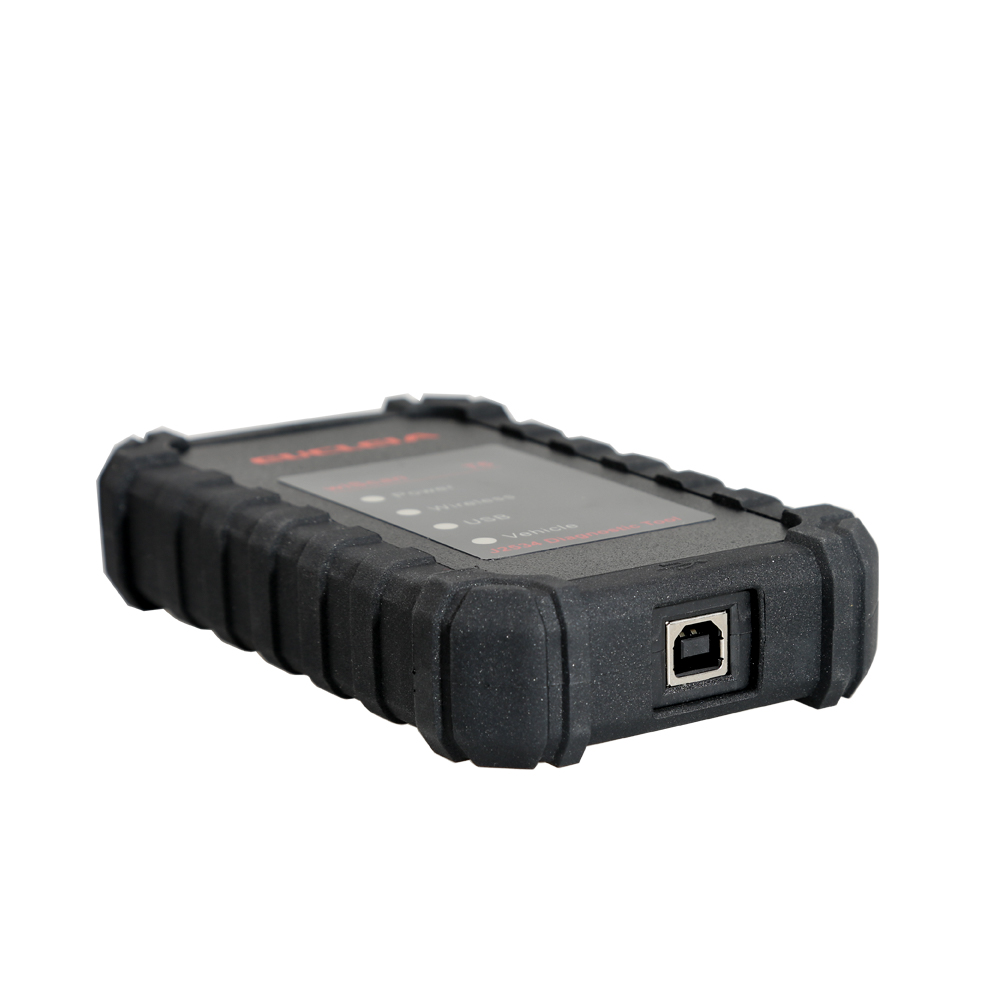

Connectivity	USB Type-B,USB 2.0

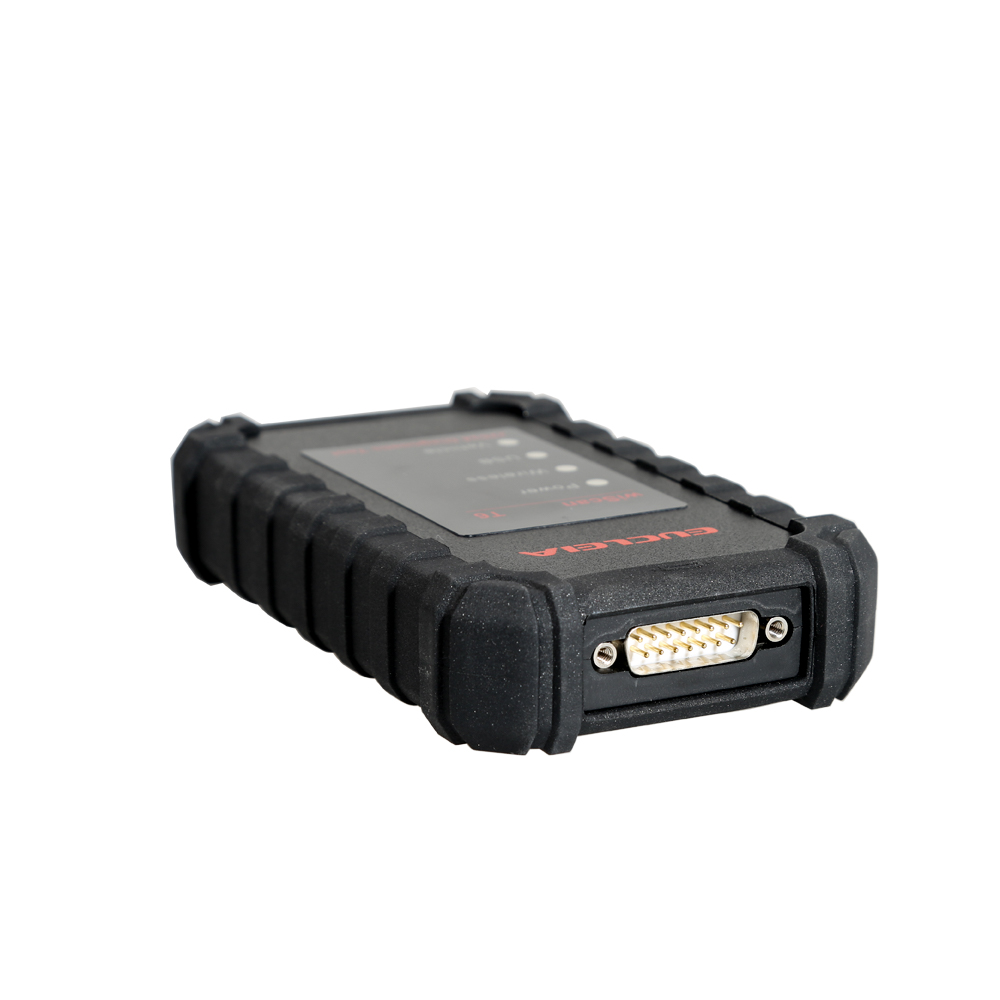

Interface	DB15， Double row joint

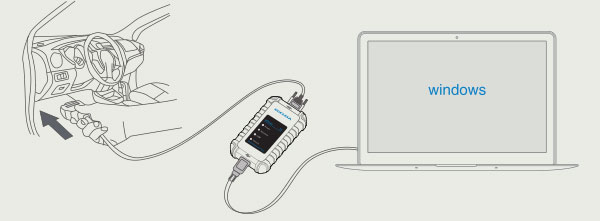

Connection mode	The main test line connected with the car, and USB connected with PC
Standard	*Fully compatible with SAEJ2534-1 and SAE J2534-2 *Supports OEM Diagnostics software
Support protocols	ISO9141(K-Line) ISO14230-2 (K-Line) ISO15765 (CAN) SAE-J1850 PWM (Ford SCP) SAE-J1850 VPW (GM Class2) Single line CAN(GMLAN)
Packing size ( mm)	292mm*205mm*80mm
Product dimension ( mm)	145mm*85mm*29mm
Net Weight	200g
Gross weight	1100g


Working environment
Input voltage: 7~18V DC
Working current:  <300mA@DC 12V
Working temperature: -20~70 degrees Celsius
Storage humidity: <80%
Storage temperature:  -40 to 80°C (-4 to 158 °F)
Housing: Rubberized external and rugged internal protection

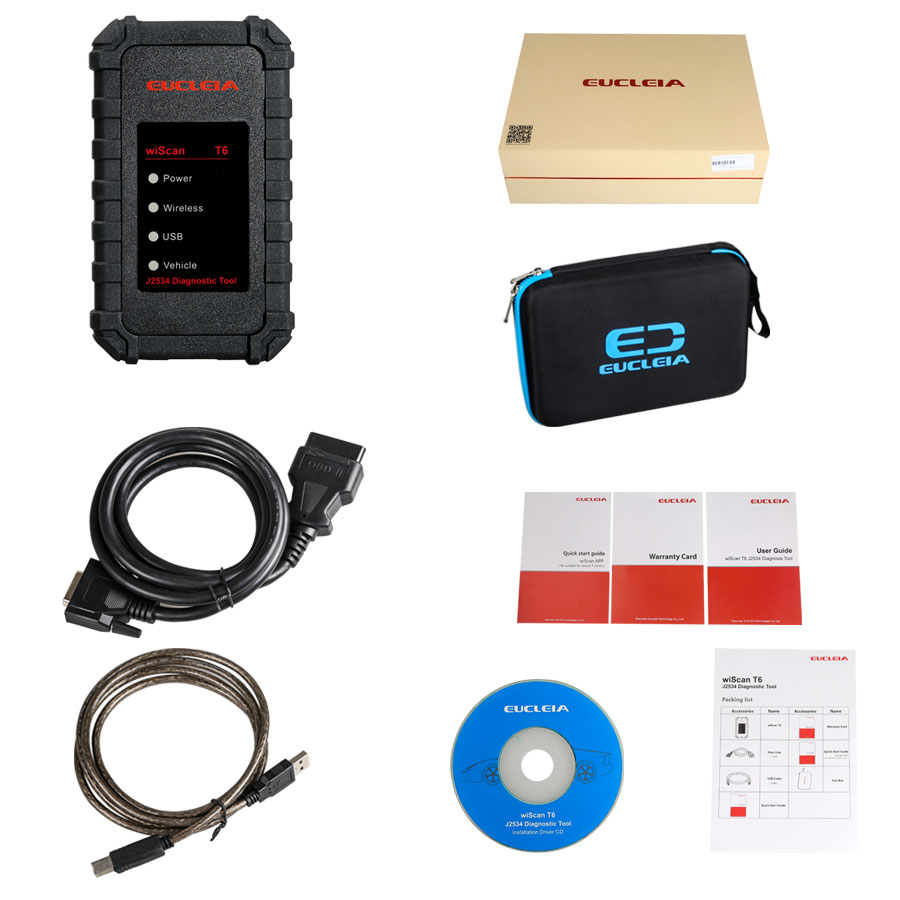

Package Includes:
1pc x  wiScan T6
1pc x USB cable
1pc x CD driver
1pc x Quick start guide
1pc x Main line
1pc x Tool box
1pc x Warranty card

Tabscan VCI wiScan T6 vs. T6+ vs. T6 Pro

Item	Model	wiScan T6	wiScan T6+	wiScan T6 Pro
Connection	Bluetooth	High-speed	High-speed	High-speed
Protocol	ISO & SAE	High-speed	Yes	High-speed
	J2534	Yes	Yes	Yes
	PDU	Yes	Yes	Yes
	RJ45			Yes
	DoIP			Yes
	VOLTAGE Programming	Yes	Yes	Yes
Compatible Vehicles	Honda HDS	Yes	Yes	Yes
	Volvo VIDA	Yes	Yes	Yes
	VW Audi ODIS	Yes	Yes	Yes
	Toyota TIS	Yes	Yes	Yes
	Jaguar Land rover SDD	Yes	Yes	Yes
	Ford Mazda IDS	Yes	Yes	Yes
	BMW ISTA-D/-P	Yes	Yes	Yes
	GM GDS2	Yes	Yes	Yes
	Benz Xentry Passthru	Yes	Yes	Yes
	Jaguar Land rover Pathfinder			Yes
	Porsche PIWIS-2	Developing	Developing	Yes
	Land Rover VIDA DoIP			Yes
	New software	Developing	Developing
Function and other	OEM diagnosis	Yes	Yes	Yes
	OEM Programming	Yes	Yes	Yes
	Update	WiFi by cable	WiFi by cable	WiFi by cable
	Driver compatible	All	Single	All
	Mobile phone app	Yes	Yes	Yes
	Dual-mode	Yes	Yes	Yes
