Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator

  • Item No.  CZ239
  • History: 12  sold
  • Market Price: US$106.80
    Shop Price: US$89.00
    Quantity
    Total
    Shipping:
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
    continue
  • Stock  200
  • Weight:  1.5KG
  • Rate:  comment rank 50 () Write a Review
  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video

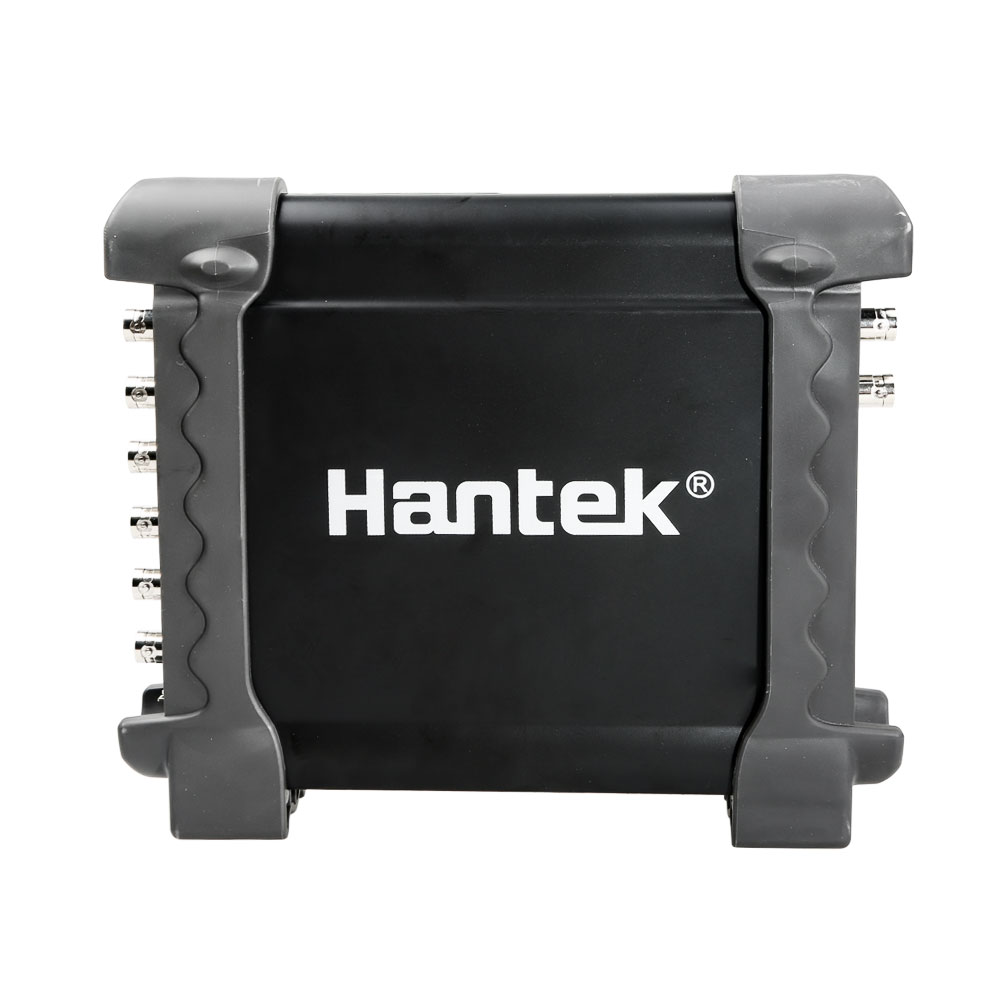

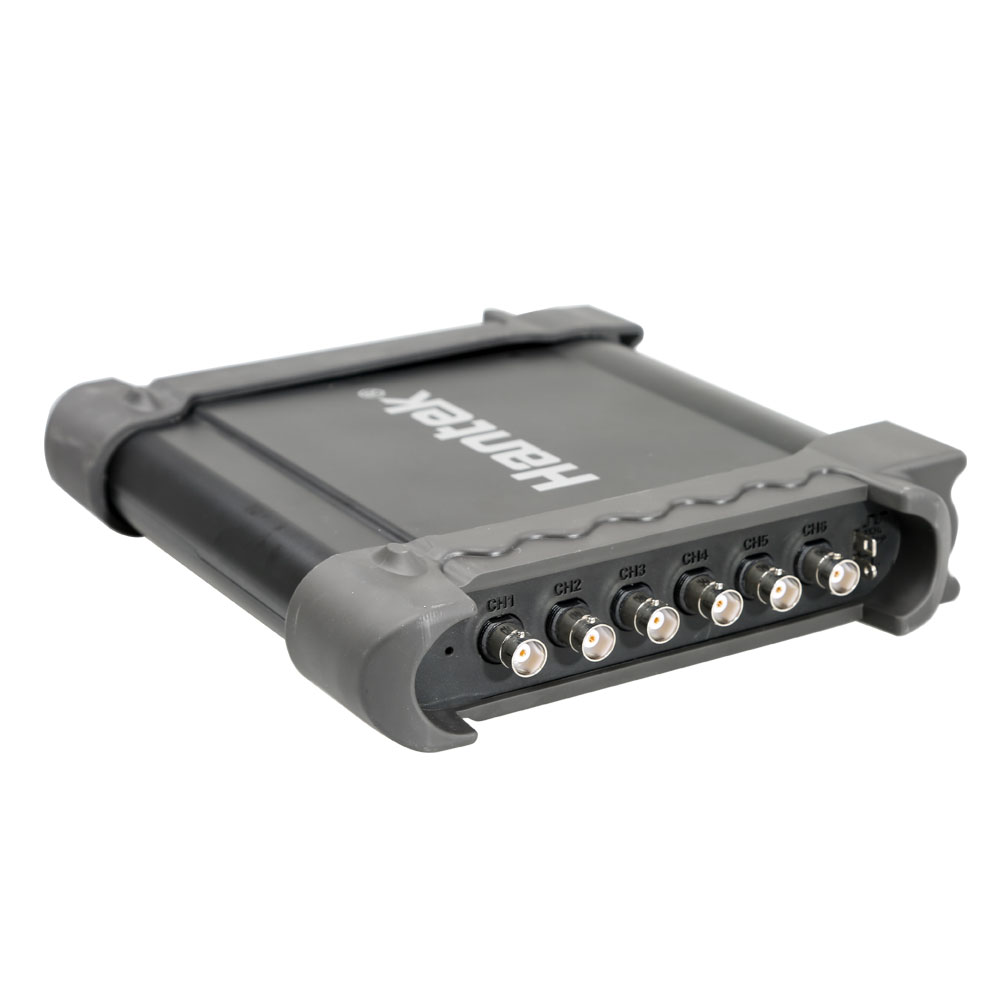

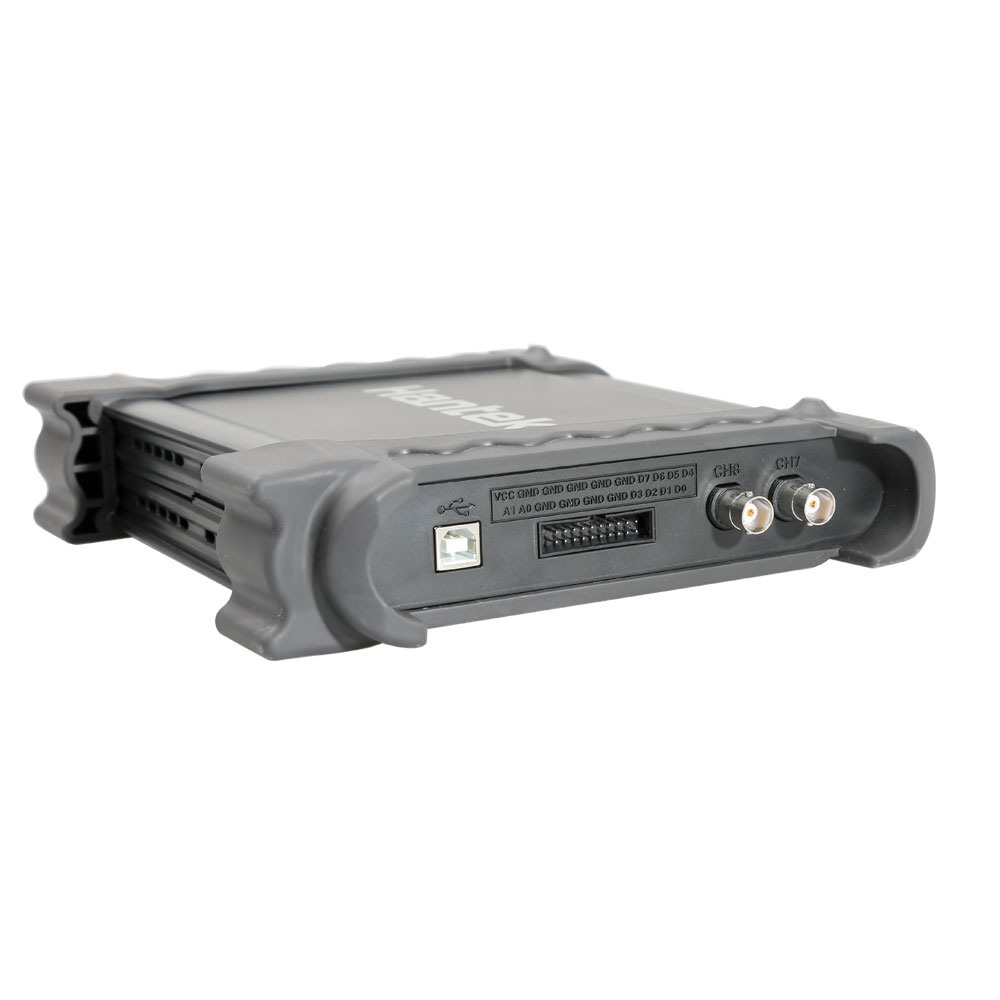

Hantek 1008B 8 Channel PC Oscilloscope/DAQ/8CH Generator

Hantek 1008B 8CH PC Oscilloscope/DAQ/8CH Generator:
1. Highly efficient and cost-effective; 8 channels oscilloscope for vehicle testing
2. 2.4MSa/s real time sampling rate, 12bit vertical resolution; DAQ card function
3. 8 channels programmable generator which can analog signals of crankshaft, camshaft etc.

1) Oscilloscope
8 channels oscilloscope, 2.4MSa/s real time sampling rate
12 bits vertical resolution, spectrum analysis function

2) Programmable Generator
8 channels programmable generator
Can analog signals of crankshaft, camshaft etc.

3) Others
USB 2.0 interface plug and play, and no need extra power supply;
More than 20 types of automatic testing function, a similar interface with benchtop oscilloscope, easy to use;
Software support: Windows NT, Window 2000, Windows XP, VISTA, Windows 7, Windows 8.

Hantek 1008B Oscilloscope Functions List:
Set Oscilloscope
Set Vertical System
Set Horizontal System
Set Trigger System
Save/Load
Utility Function
Measure Signal
Display System
Waveform Generator
Zoom In/Out Waveforms
Acquisition
Print
Generate Square Waveform

Model

Hantek1008

Oscilloscope Mode

Vertical System

Analog Channel

8

Input Impedance

Resistance: 1MΩ

Input Sensitivity

10mV/div to 5V/div

Input Coupling

DC

Resolution

12 bits

Horizontal System

Memory Depth

4K

Max. Input

400V (DC+AC Peak)

Real-Time Sampling Rate

2.4MSa/s

Time BaseRange

1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision

±50ppm

Trigger System

Time Base Range

1ns/div to 20000s/div(1-2-5sequences)

Time Base Precision

±50ppm

Trigger Source

CH1, CH2,CH3,CH4, CH5, CH6,CH7,CH8

Trigger Mode

Edge

X-Y Mode

X-Axis Input

CH1

Y-Axis Input

CH2

Cursors and Measurement

Voltage Measurement

Vpp, Vamp, Vmax, Vmin, Vtop, Vmid, Vbase,Vavg, Vrms, Vcrms, Preshoot, Overshoot

Time Measurement

Frequency, Period, Rise Time, Fall Time, Positive Width, Negative Width, Duty Cycle

Cursors Measurement

Horizontal ,Vertical, Track, Auto Measure Modes

Waveform Signal Process

+,- , x,÷, FFT, Invert

Voltage Range

10mV to 5V/div @ x 1 probe
100mV to 50V/div @ x 10 probe
10V to 5000V/div @ x 1000 probe
100V to 50000V/div @ x 10000 probe
200mV to 100V/div @ 20:1

Current Range

100mA to50.0A/div @ CC65(20A)
1000mA to500.0A/div @ CC65(65A)
1A to100.0A/div @ CC650(60A)
1A to200.0A/div @CC1100(100A)
10A to2000.0A/div @CC1100(1100A)

FFT

Rectangular, Hanning, Hamming, Blackman Window

Math

Addition, subtraction, multiplication, division

Programmable Generator

Channel

8

Output Level

LVTTL

Frequency Range

0-250kHz

Interface

USB  2.0

Power

No need extra power supply

Size & Weight

185 x 150 x 27 (mm); 0.35kg

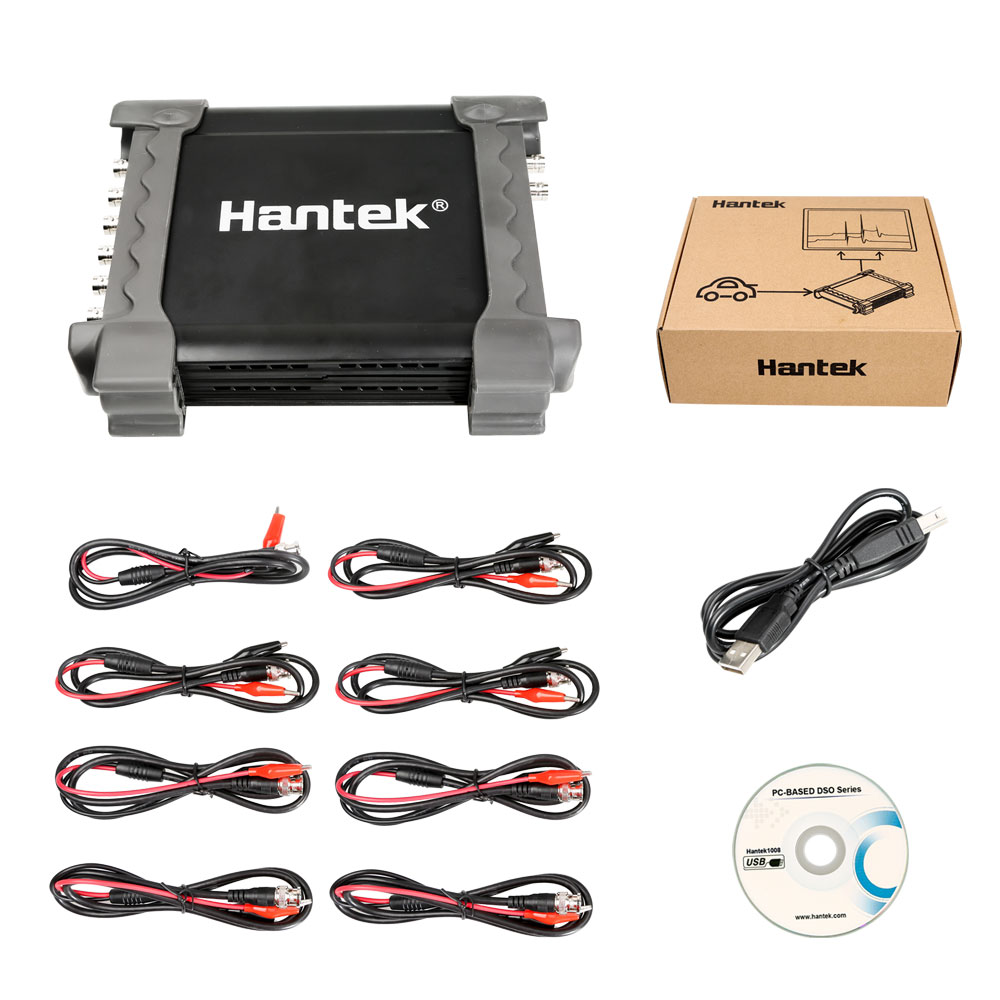

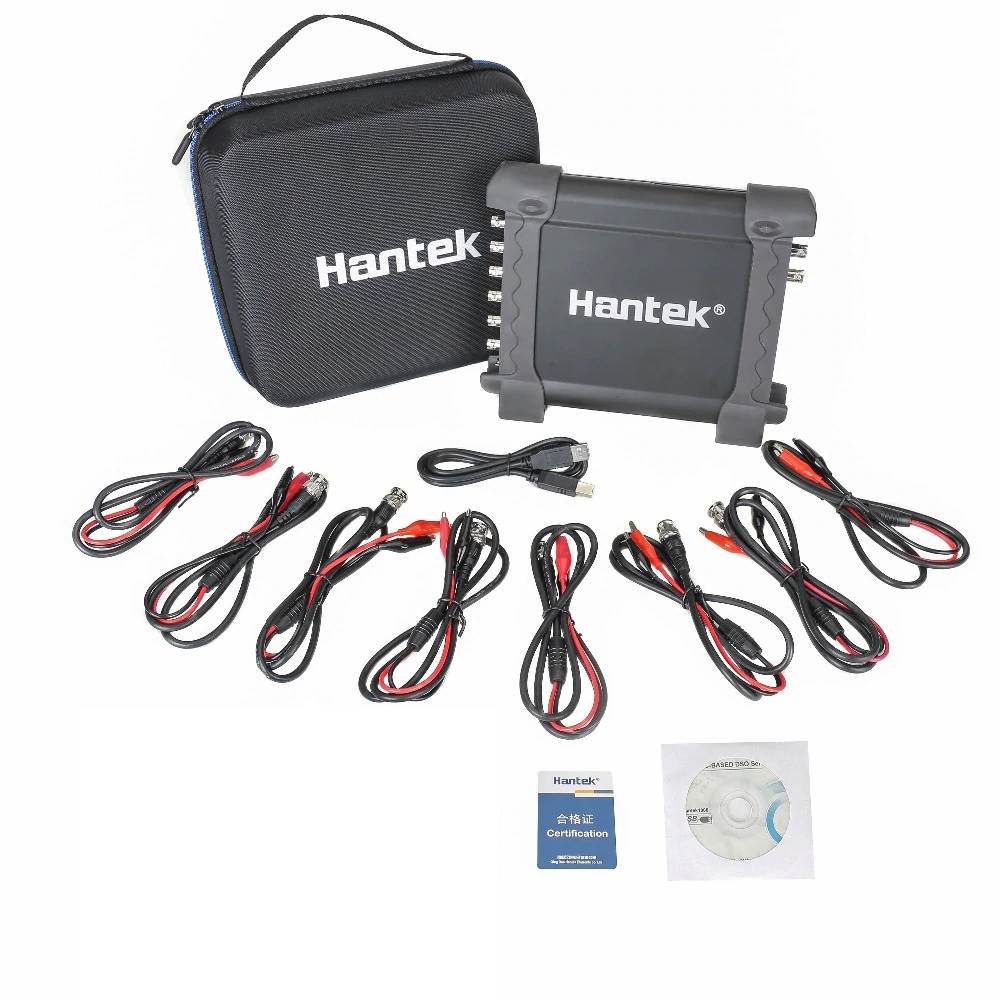

Package including

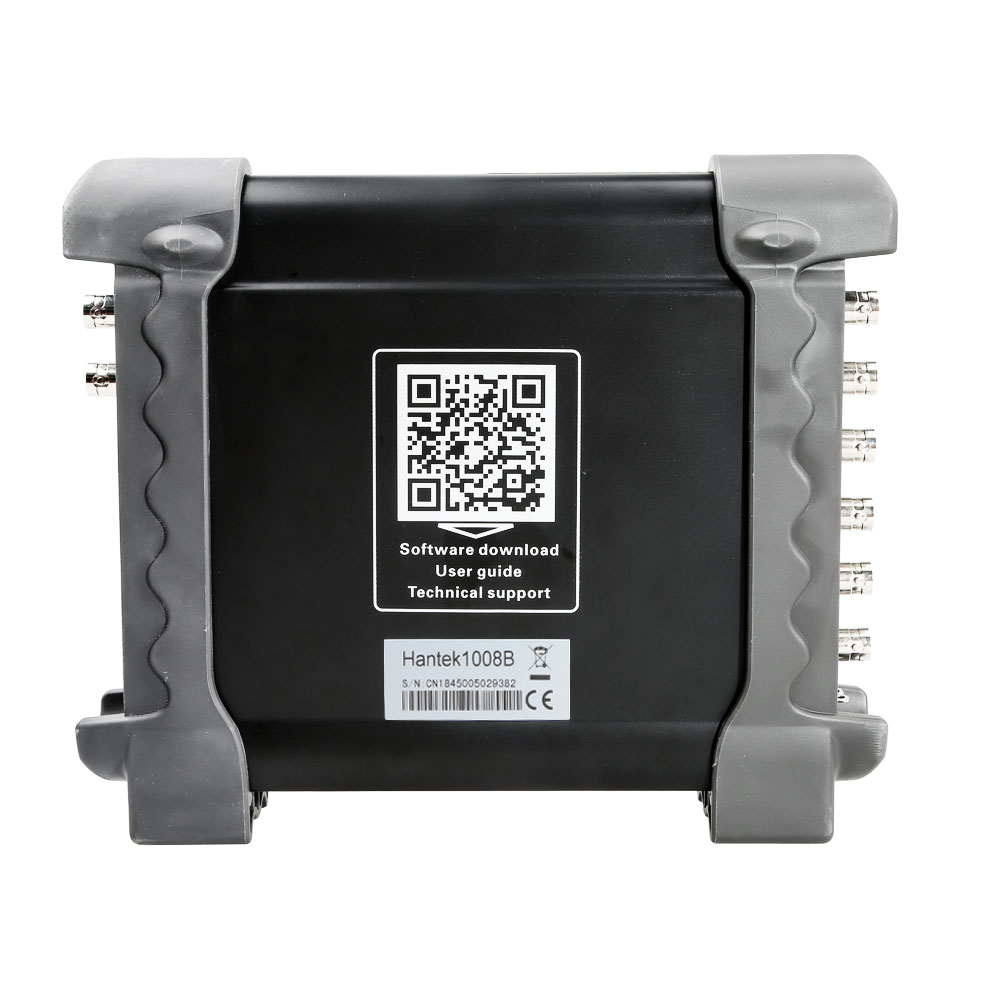

1 x 1008B oscilloscope

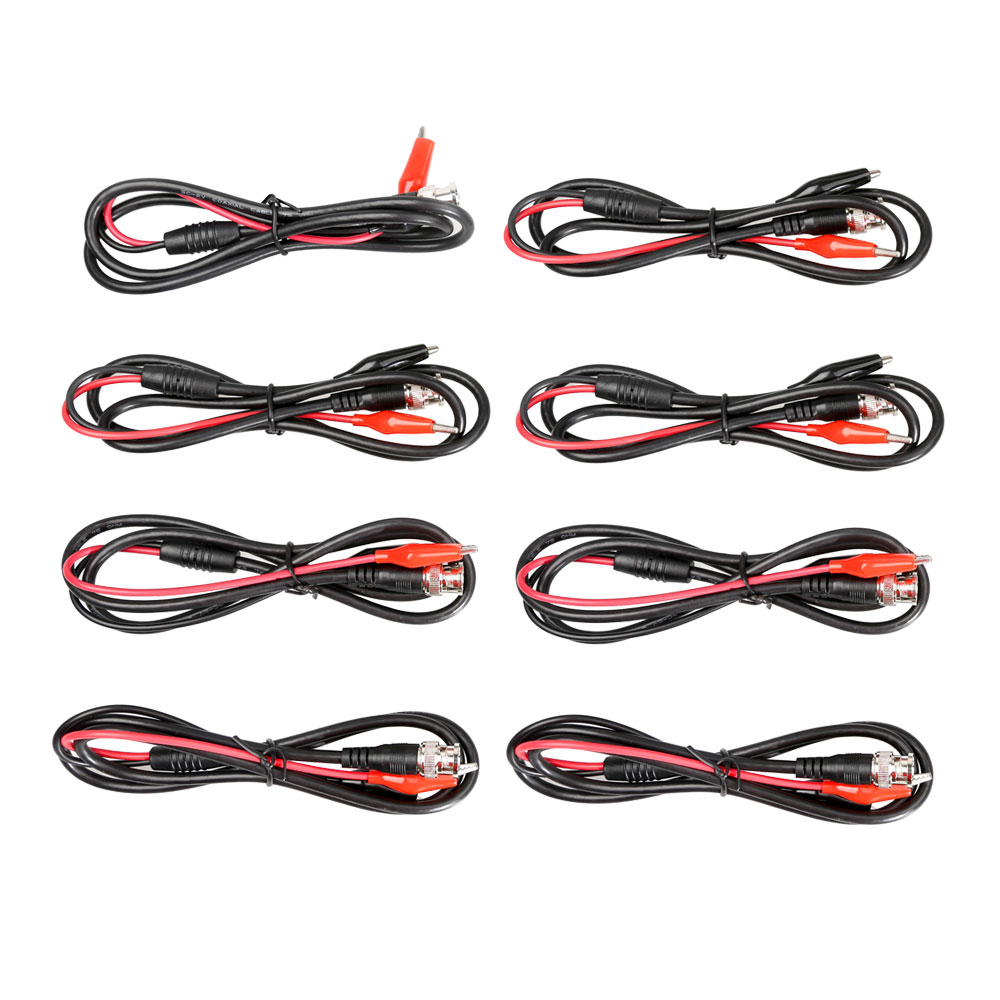

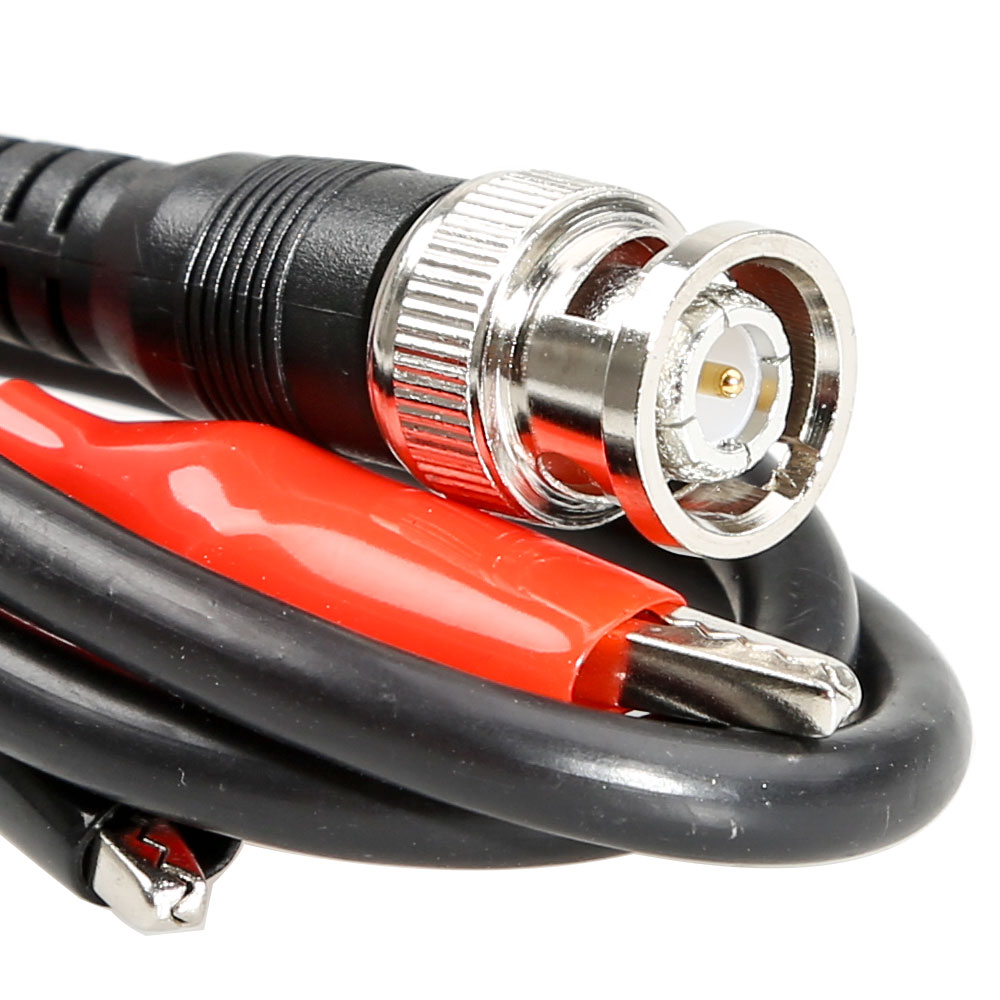

1x Crocodile probes/cable

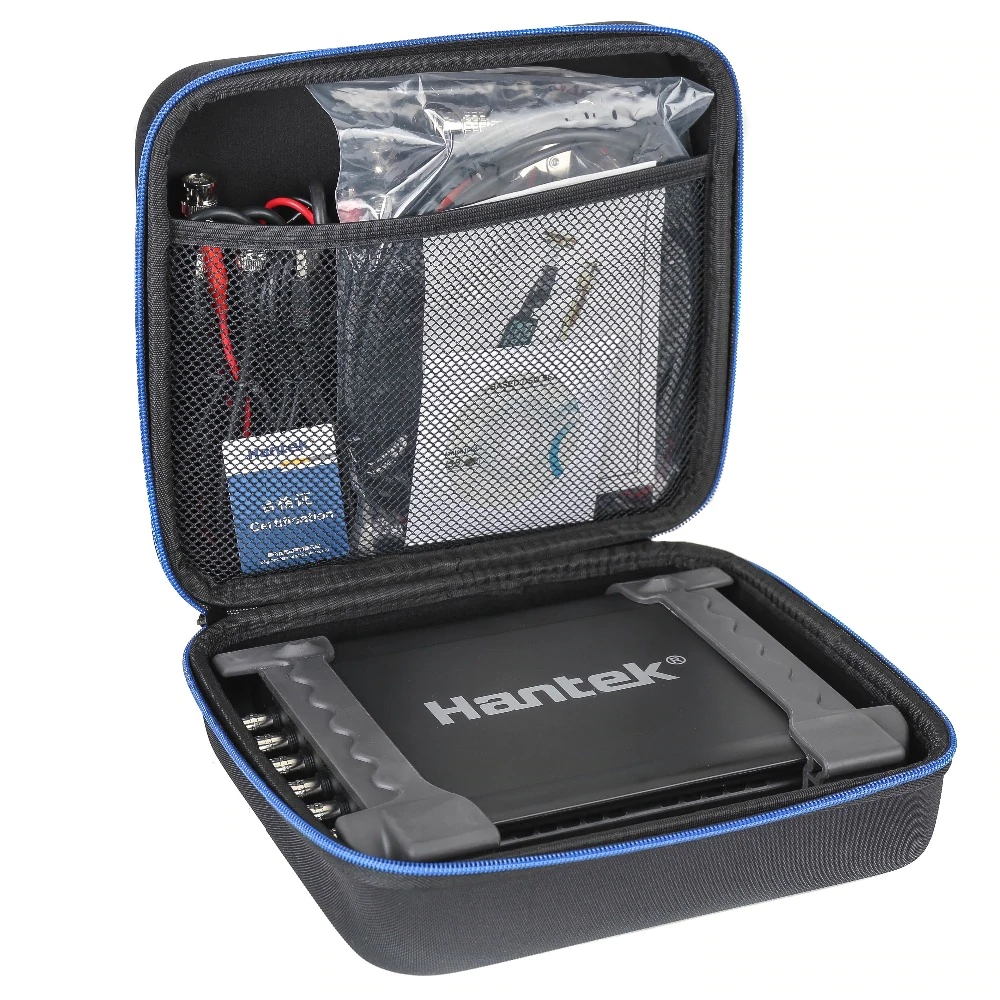

1 x Carring Bag

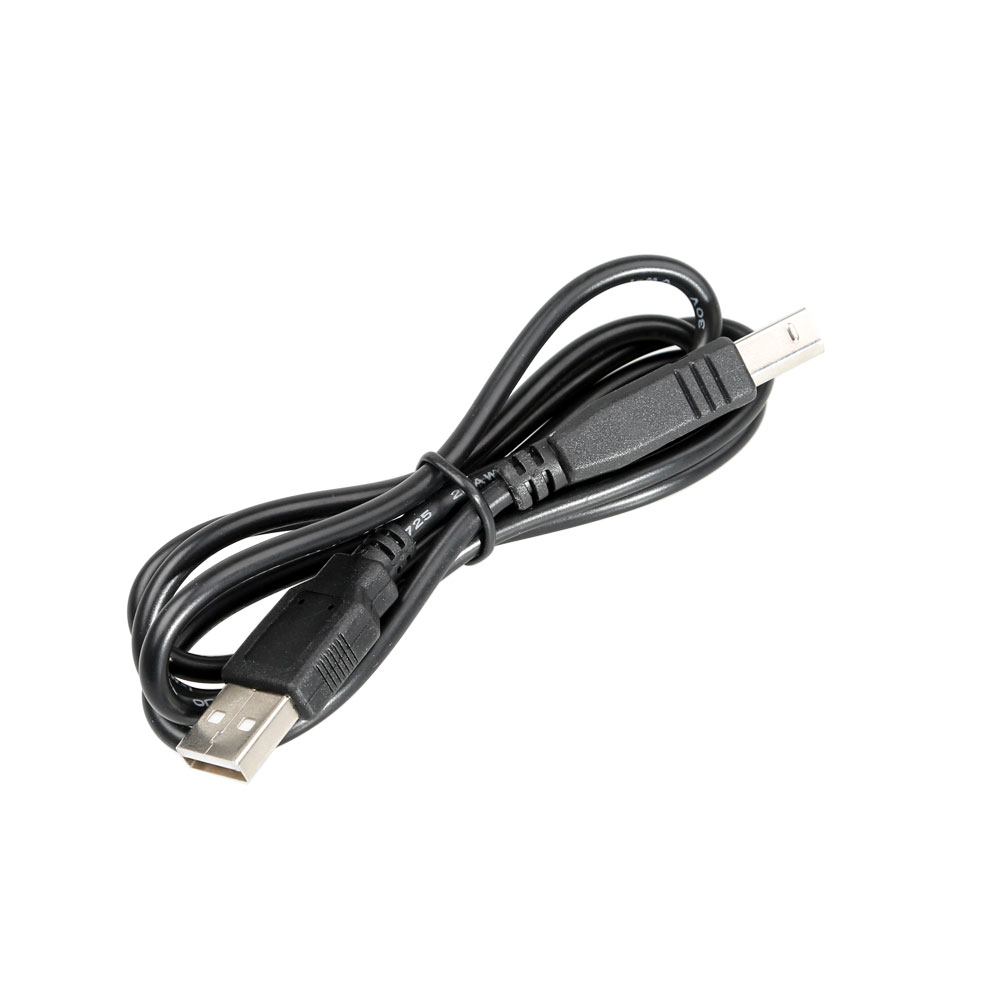

1 x USB Cable
1 x CD (driver etc.)
