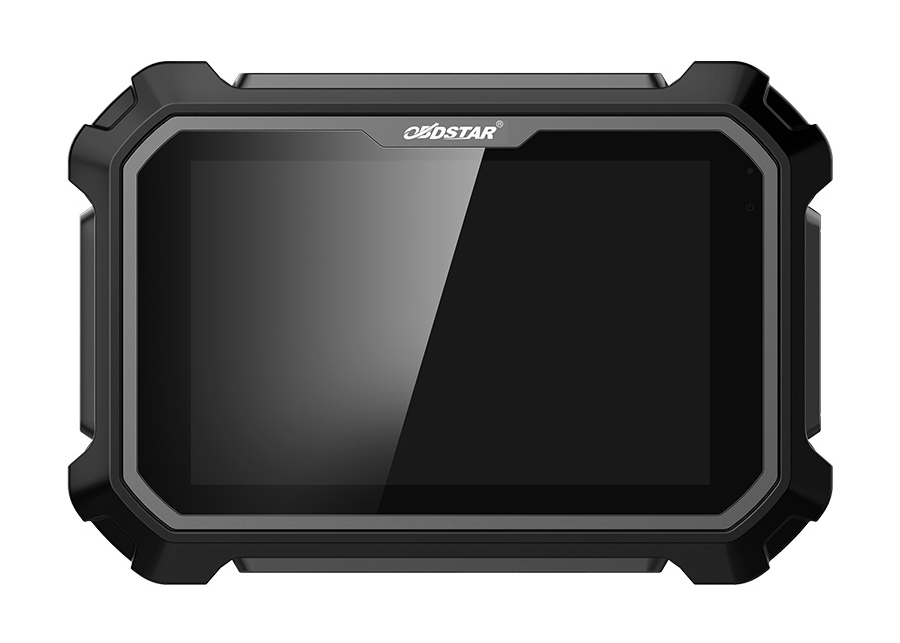

Obdstar MS80 Motorcycle Scanner Diagnostic Scan Tool for Motorcycle/PWC/ATV/UTV/Snow Mobile

Obdstar MS80 Motorcycle Scanner Diagnostic Scan Tool for Motorcycle/PWC/ATV/UTV/Snow Mobile

MS80 has professional-level intelligent diagnosis, providing an unprecedented intelligent diagnosis and maintenance experience-the first fault guidance, technical bulletin, data flow assistance, diag socket, and other functions to help you diagnose accurately and efficiently; exclusive interactive circuit diagram and electrical query system, easy troubleshooting Failure, so you have no worries about the car diagnosis!

Obdstar MS80 Functions:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support the fault diagnosis of most of the world's luxury locomotives and tens of thousands of models.

Obdstar MS80 Advantage function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Exclusive interactive circuit diagram and electrical description query function, so that you can have a worry-free diagnosis;
3. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
4. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/snowmobile/ATV/UTV diagnostic function support car series:
Asia:
Honda、Hondamontesa、Kawasaki、Kymco、Suzuki、SYM、Yamaha

Europe:
Aprilia、Benelli、BMW、Derbi、Ducati、Gasgas、Gilera、KTM、Malaguti、Moto Guzzi、MV Agusta、Peugeot、Piaggio、Triumph、Vespa

Americas:
BRP、Harley Davison、Indian、Victory

Motorcycle key programming support car series:
Gilera、Harley Davison、Peugeot、Piaggio、Triumph、Vespa

PWC support car series:
BRP、Honda、Kawsaki、Yamaha

More functions under developing...

Function Display:

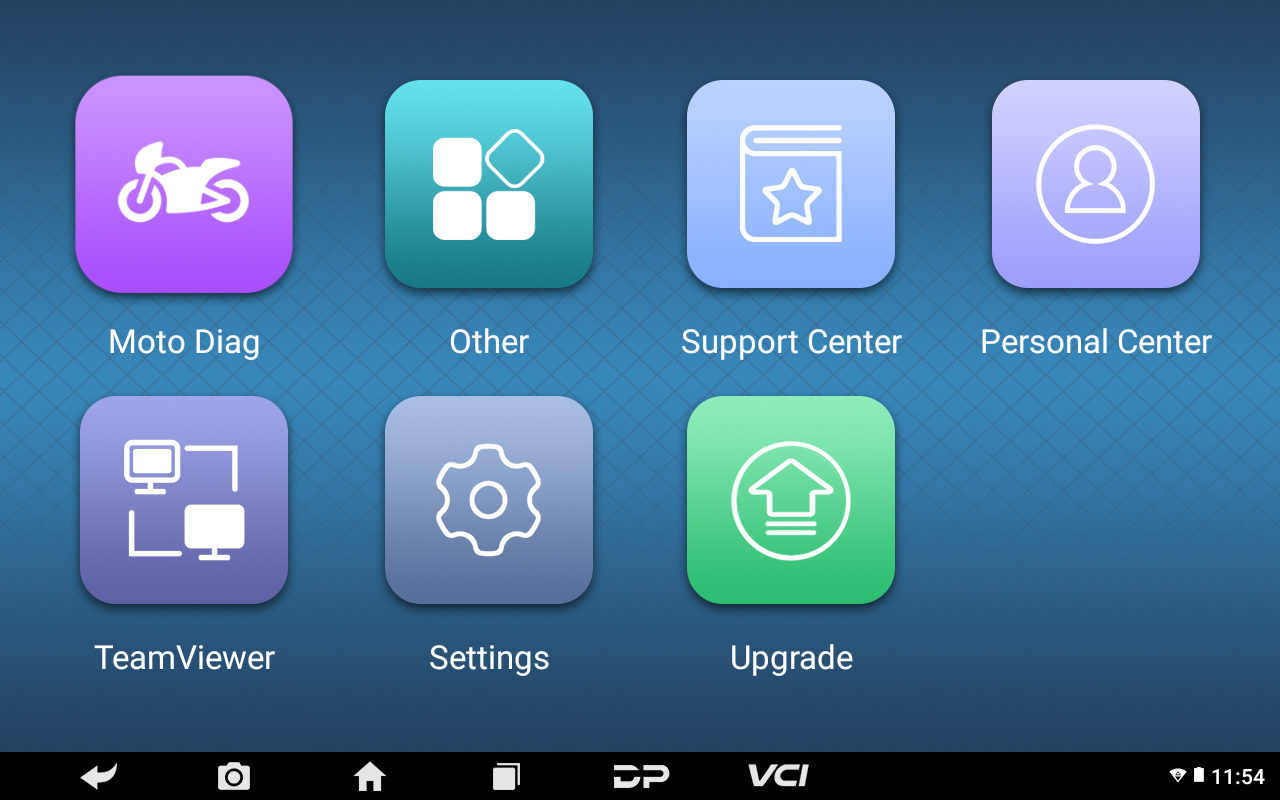

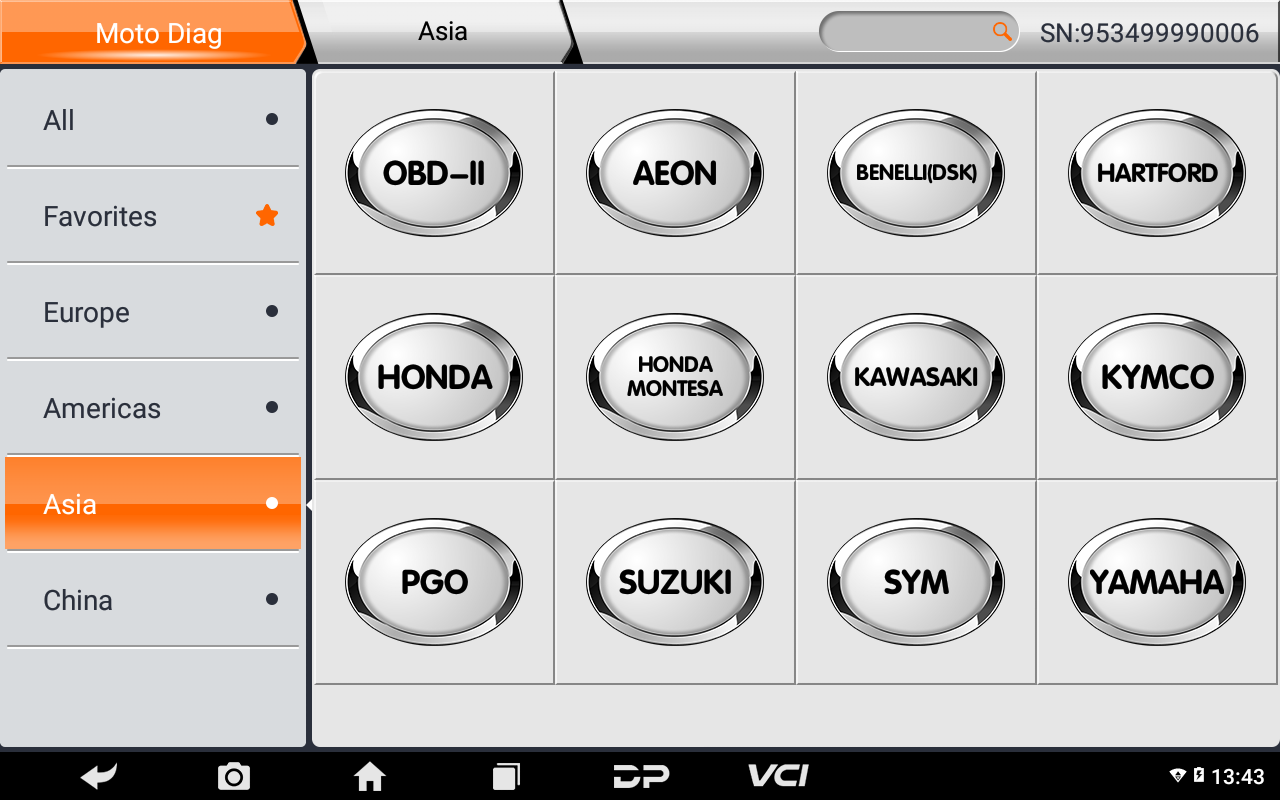

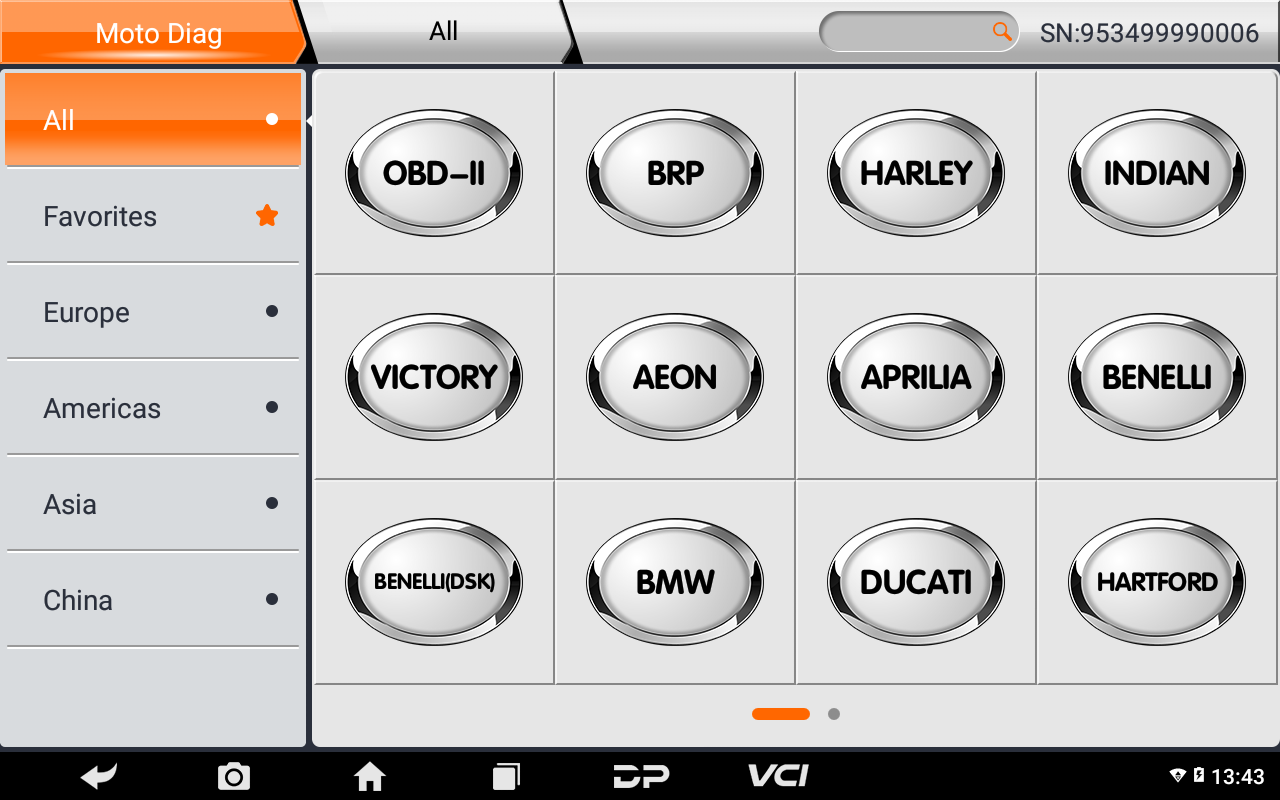

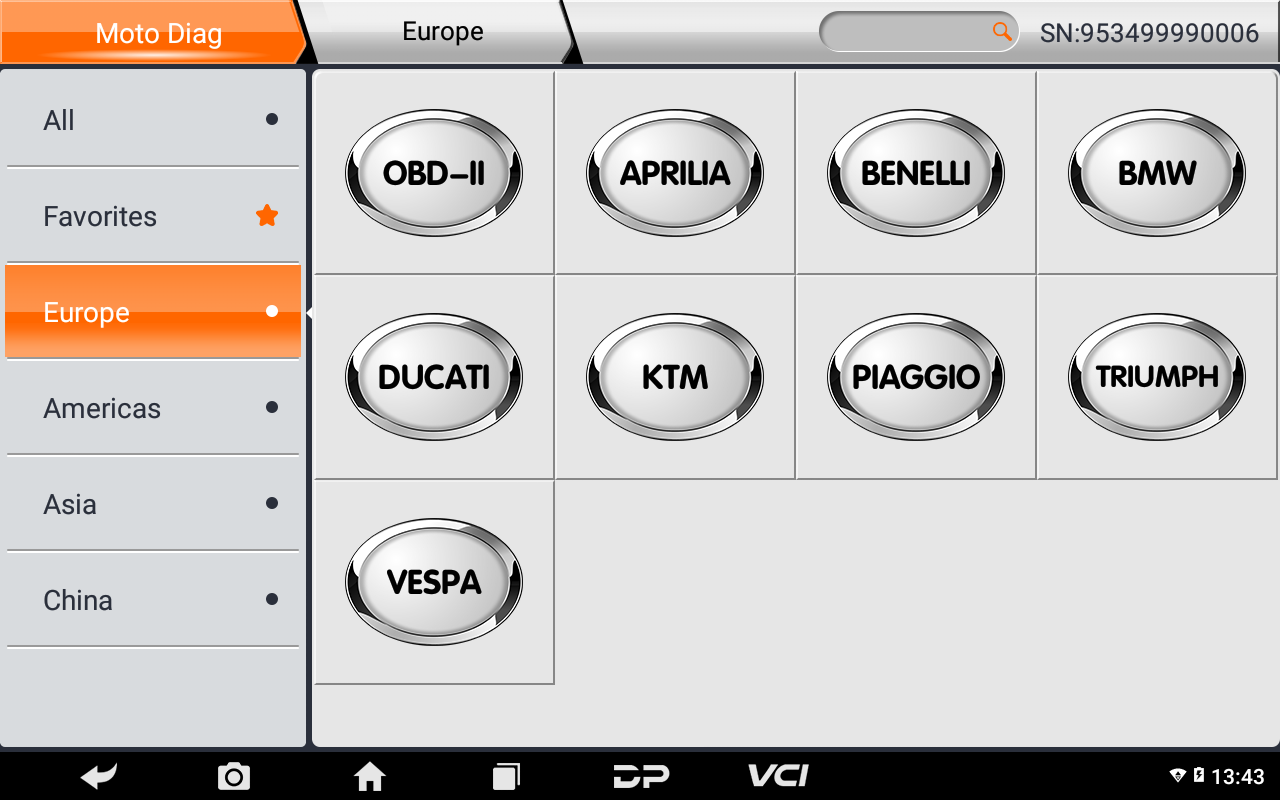

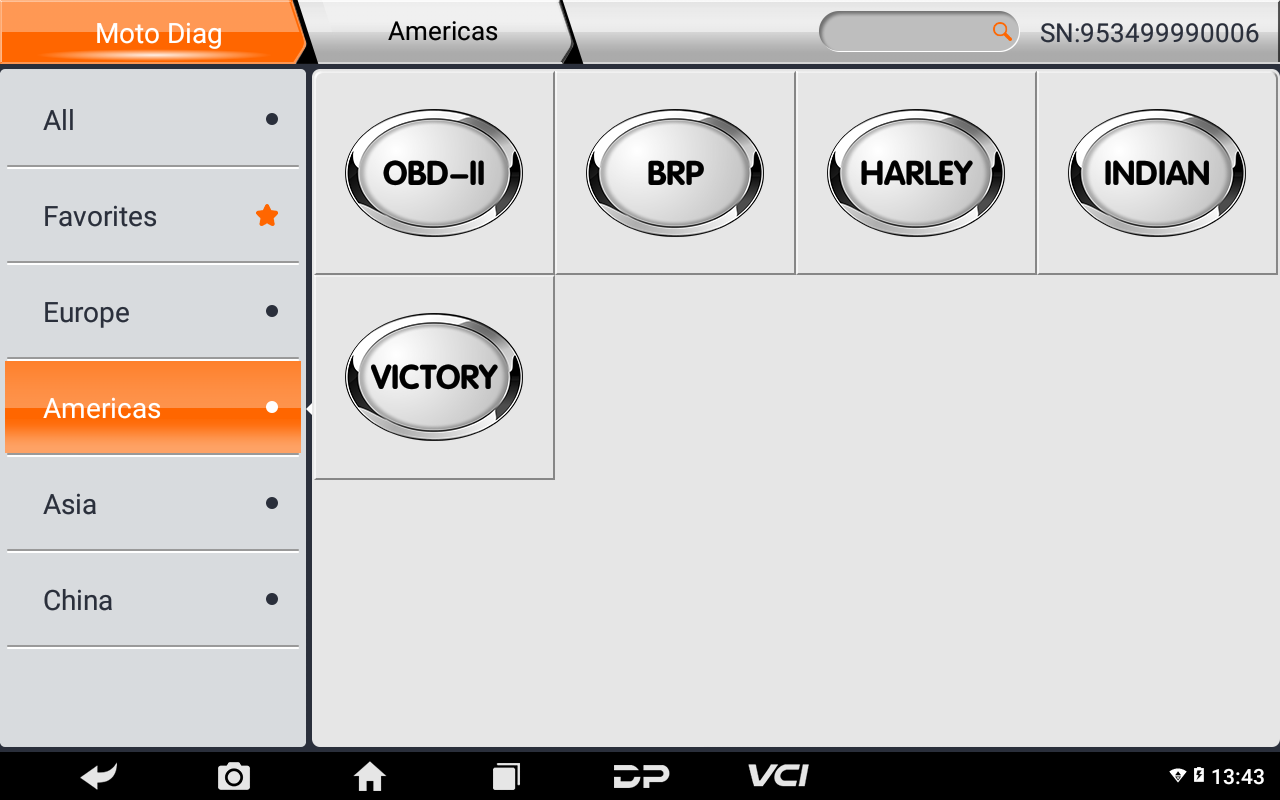

1)Main Page/Brand Supported

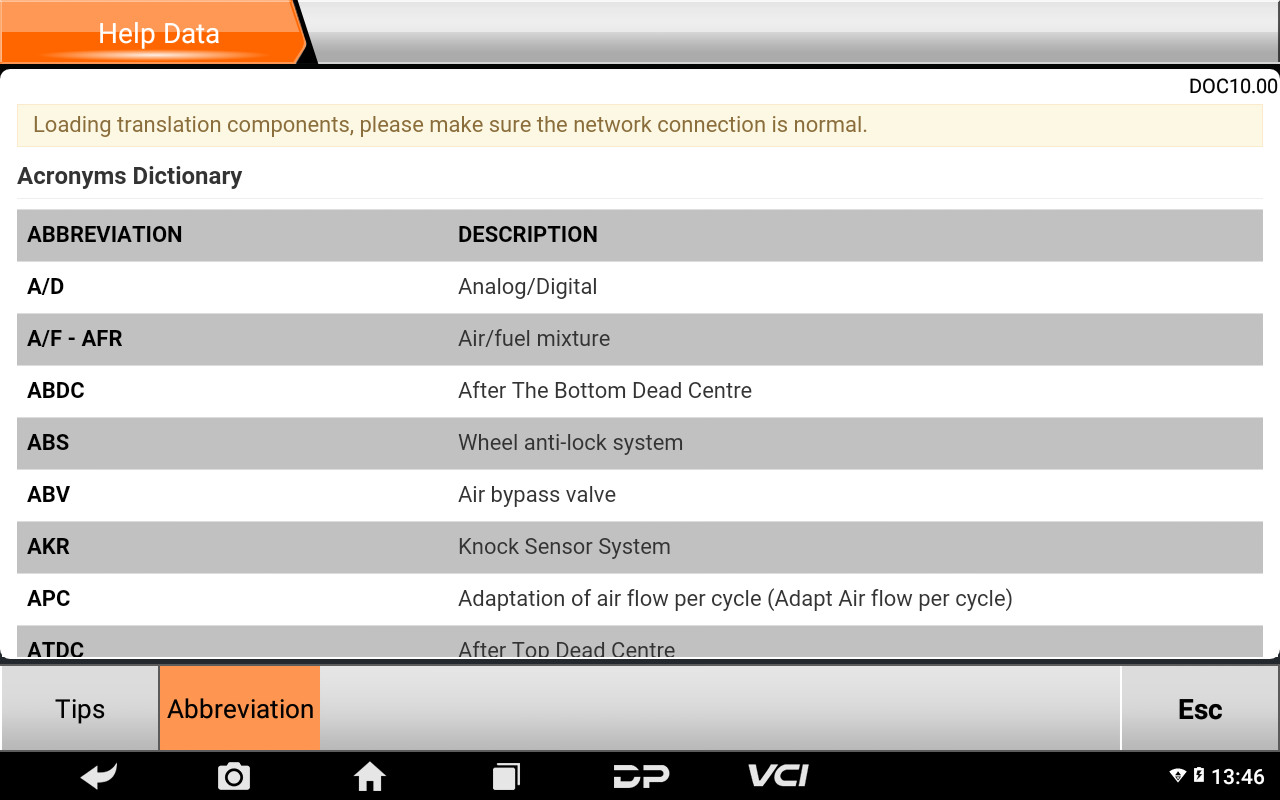

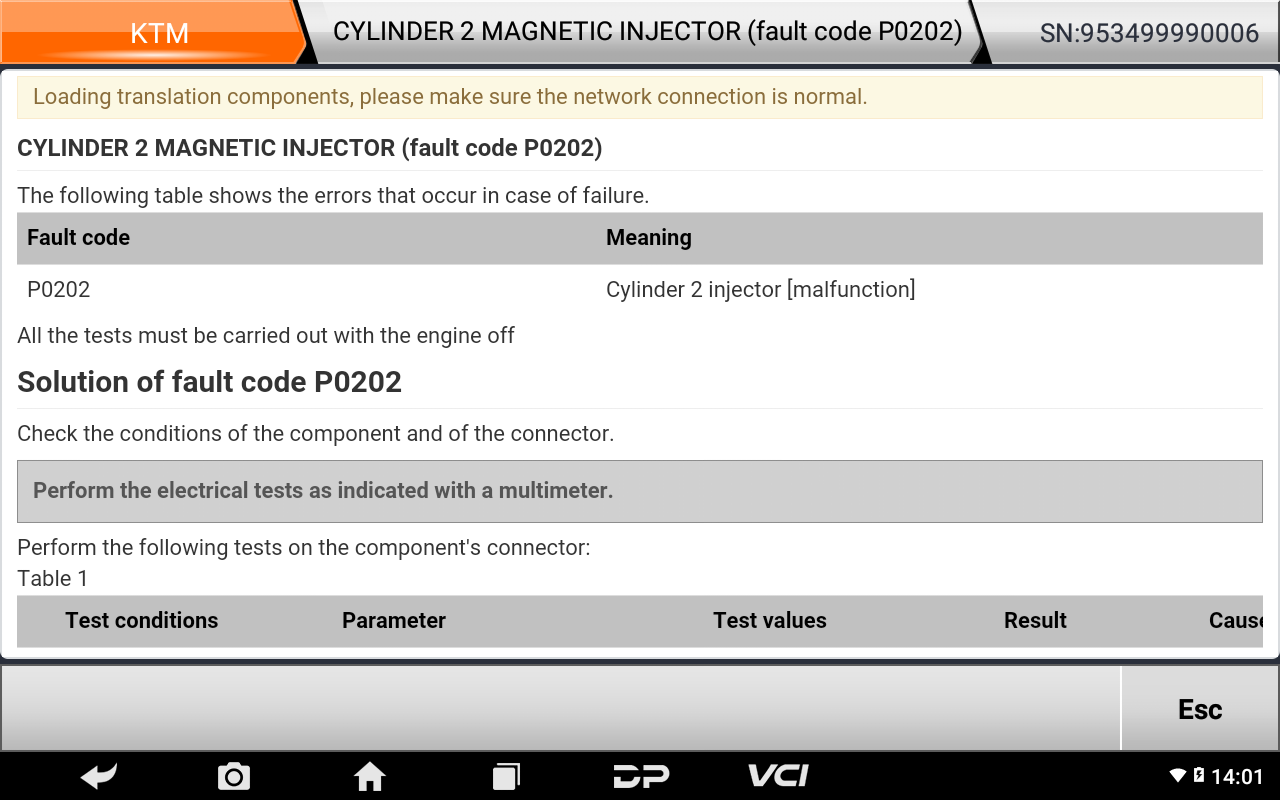

2) Help Data/Technical Bulletin/Fault Guidance

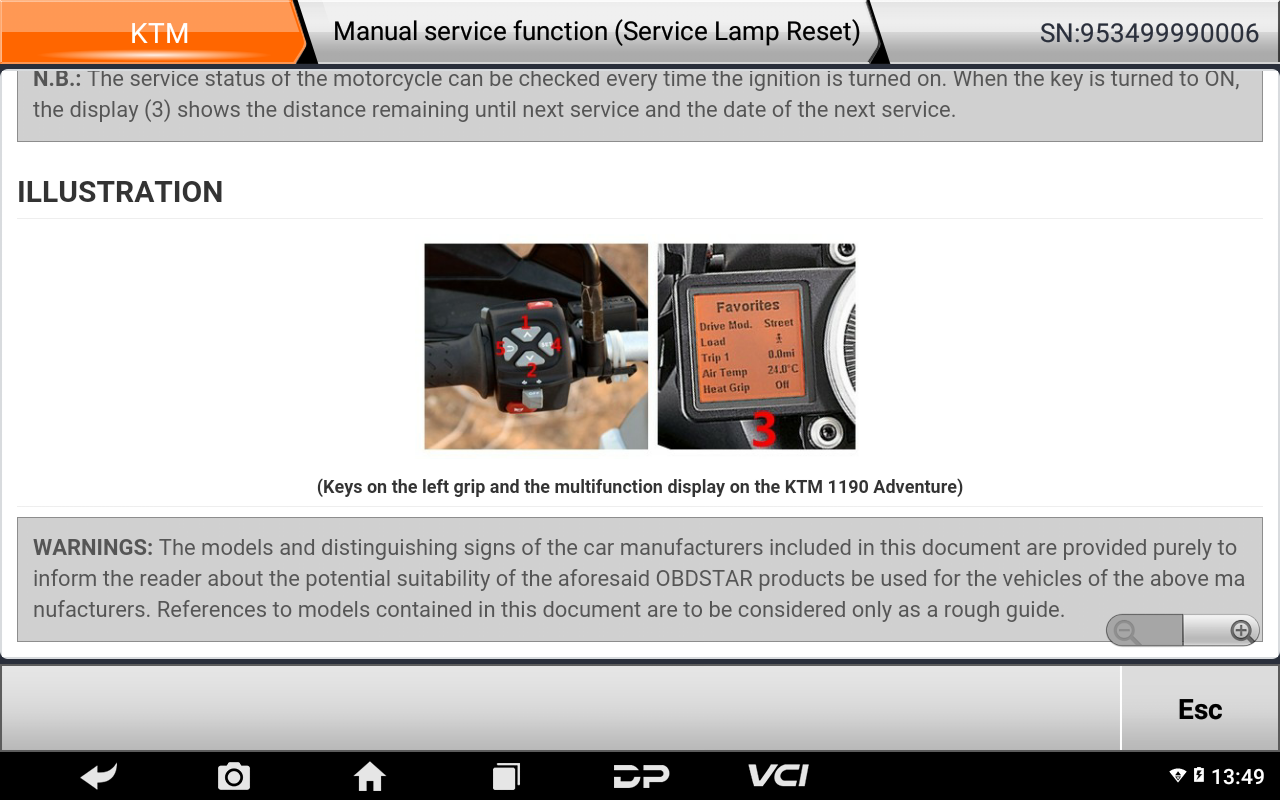

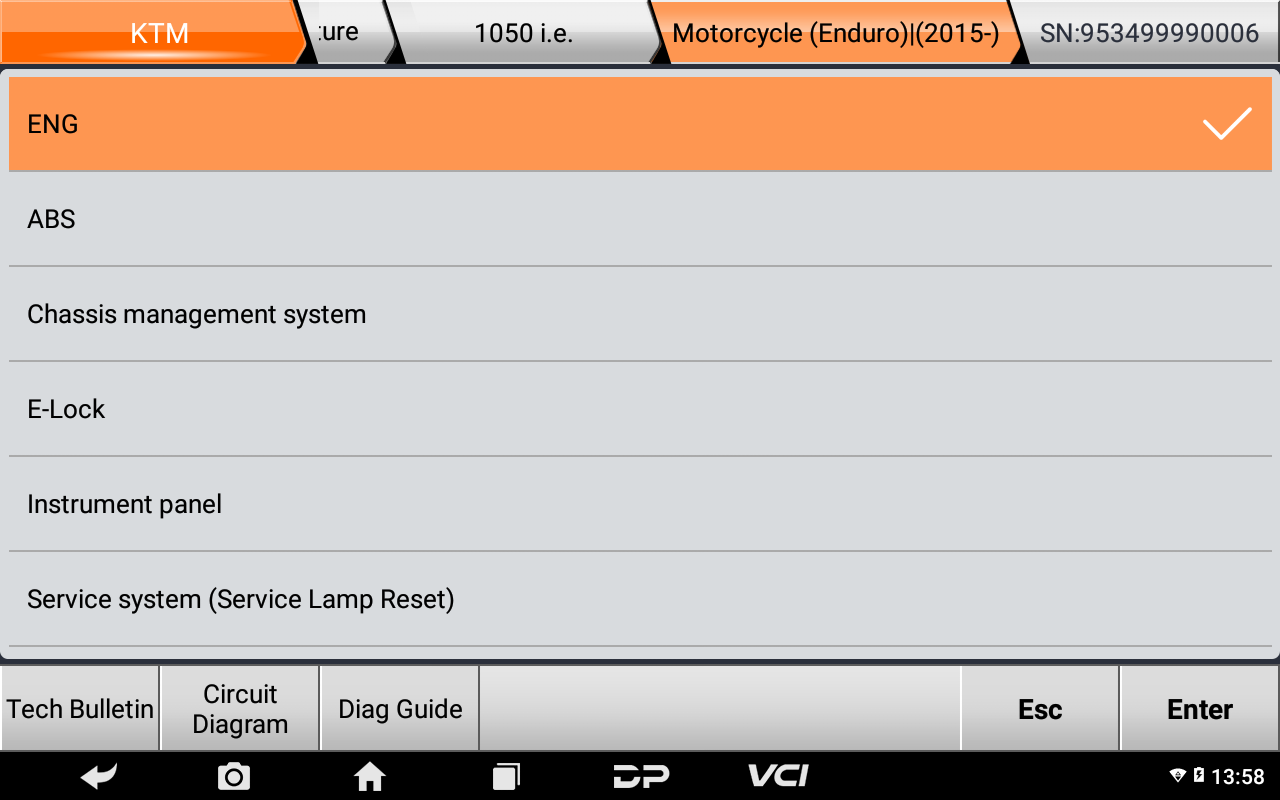

3）Supported System List/ Manual Service Function

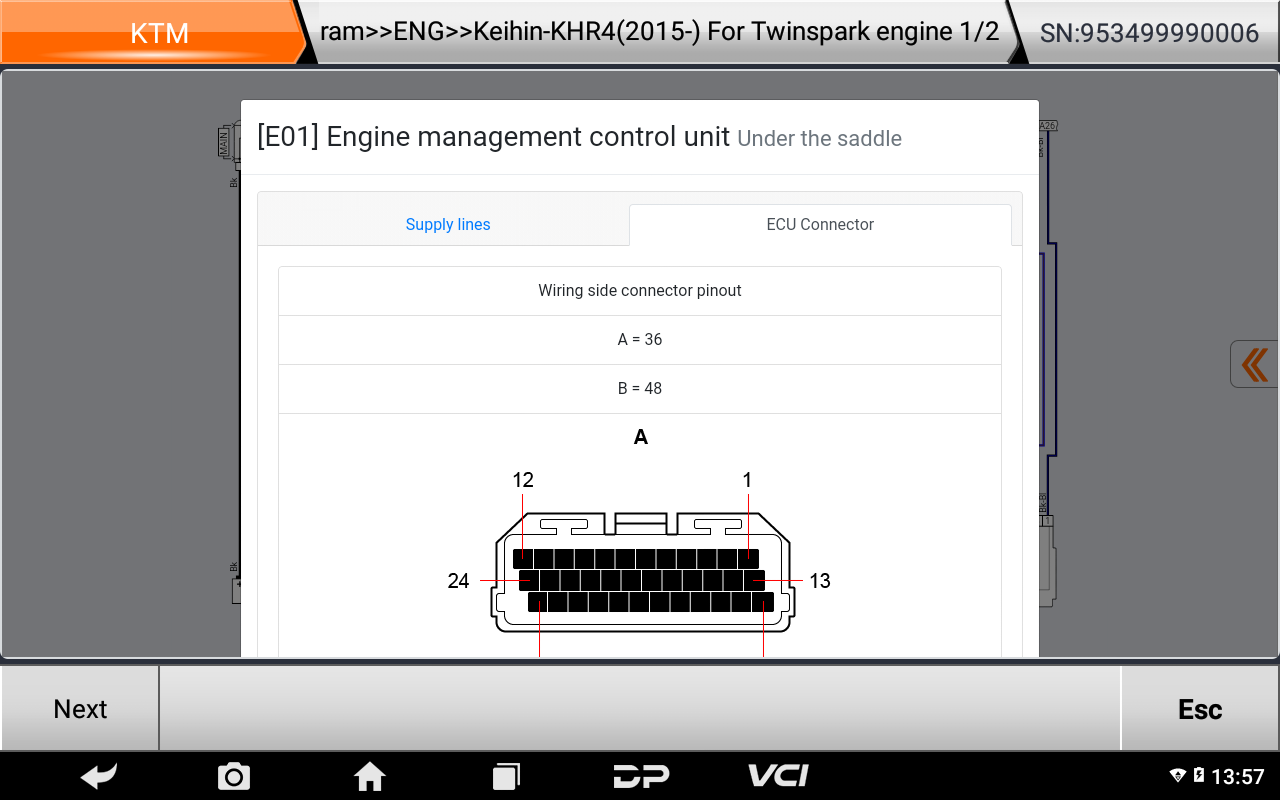

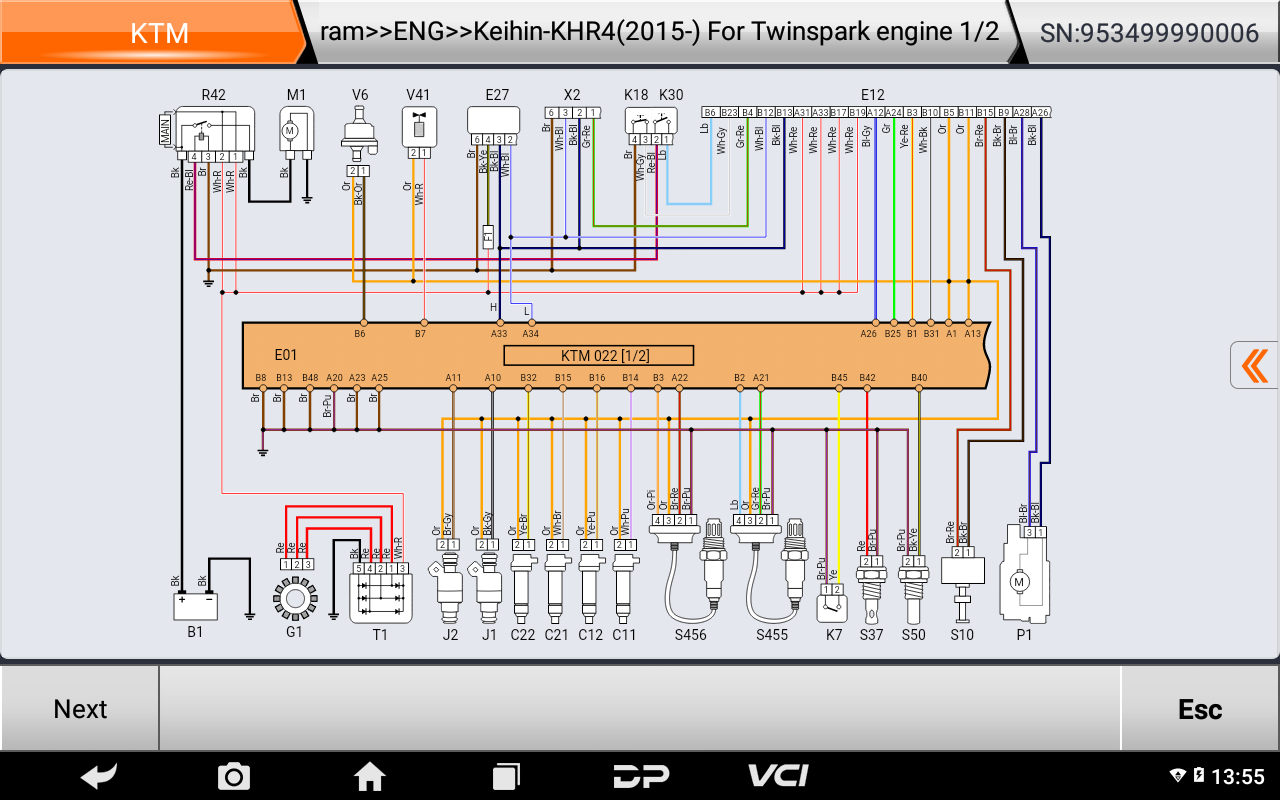

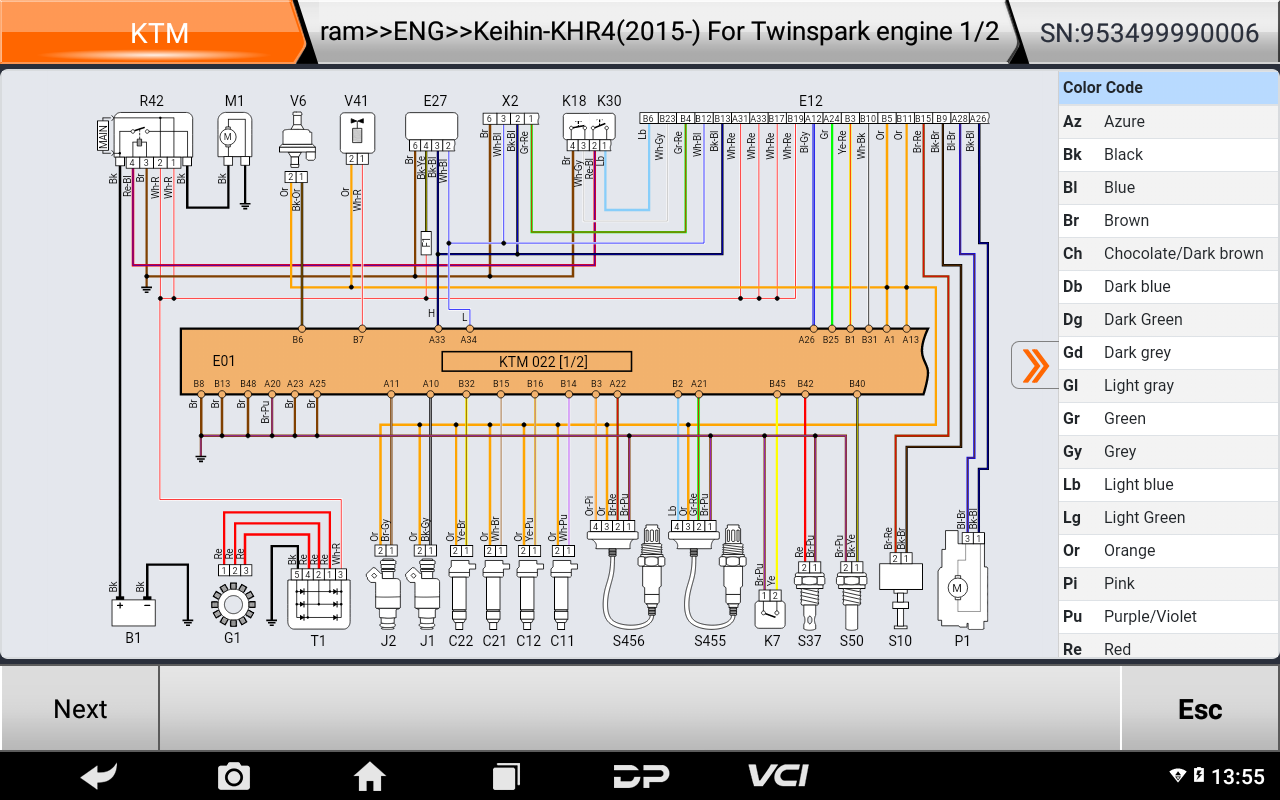

4) Interactive Circuit Diagram

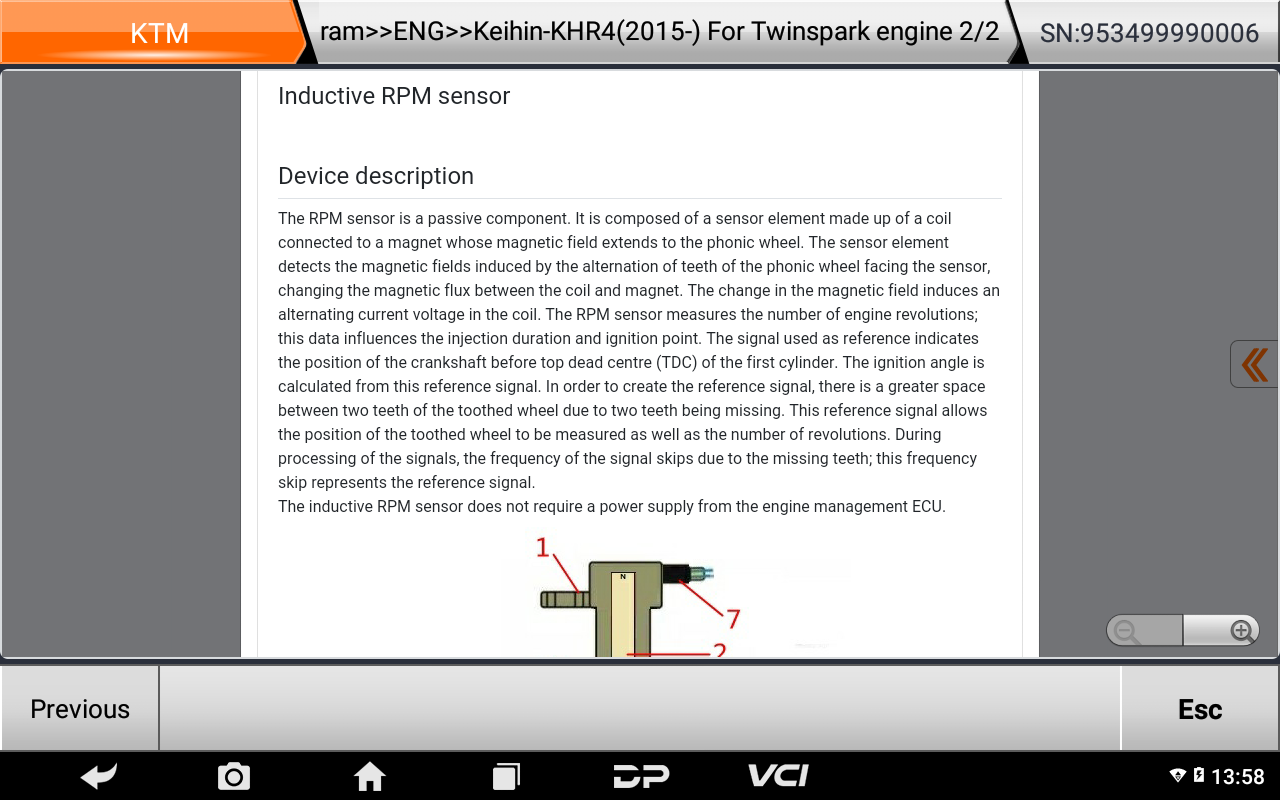

5) Components Description

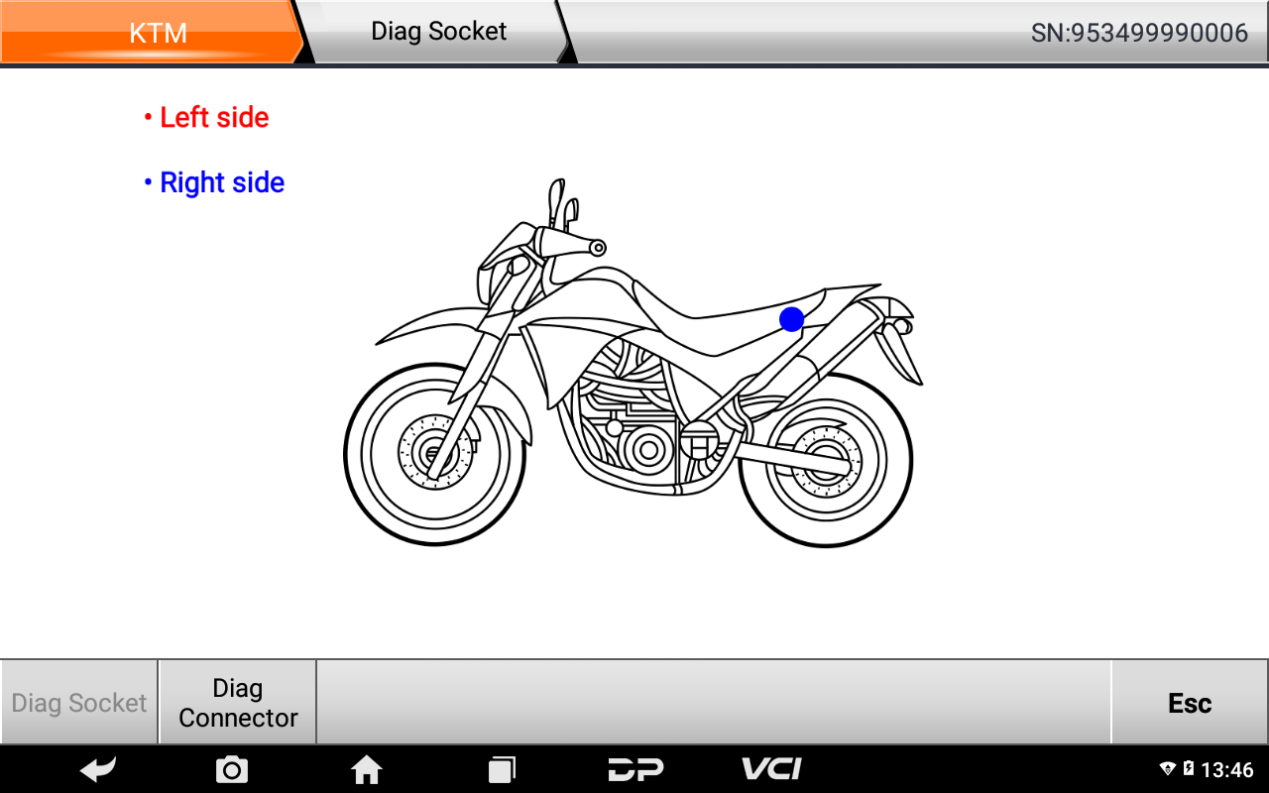

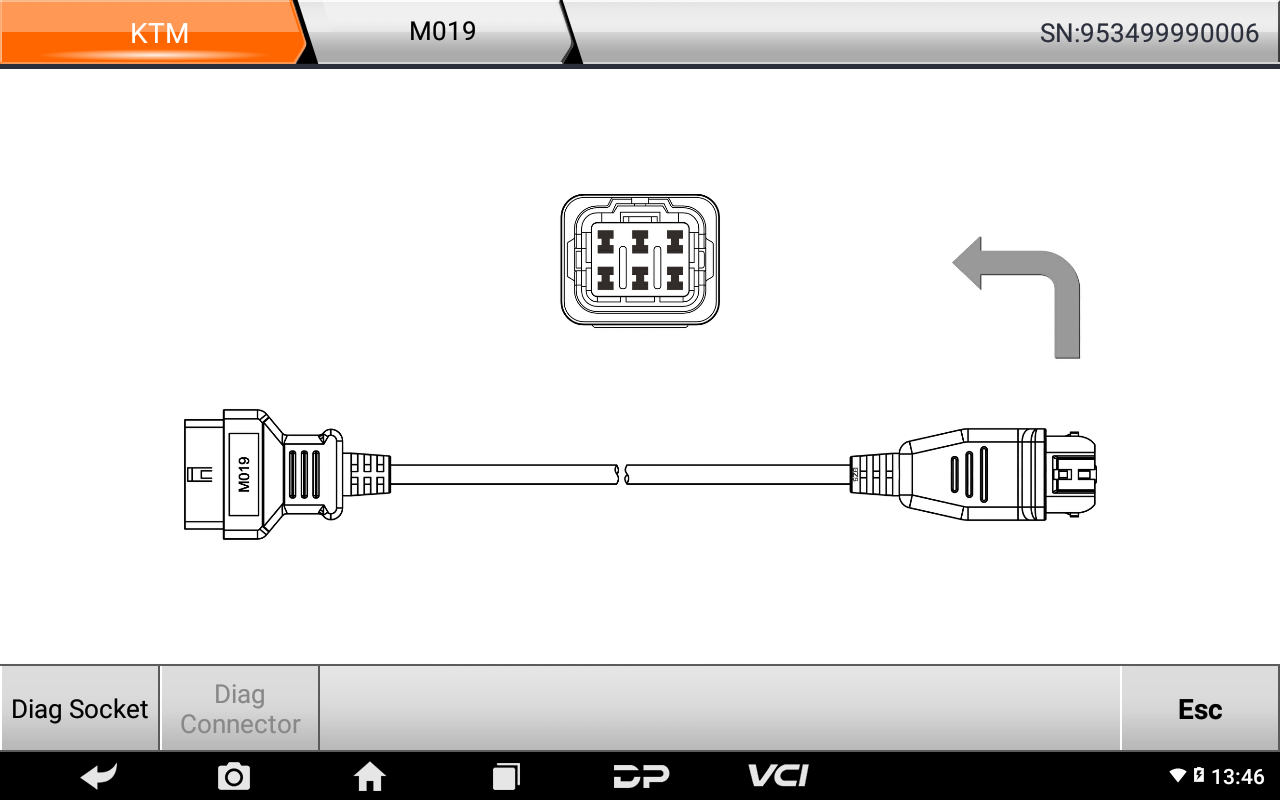

6) Diag socket/Diag Connector Location

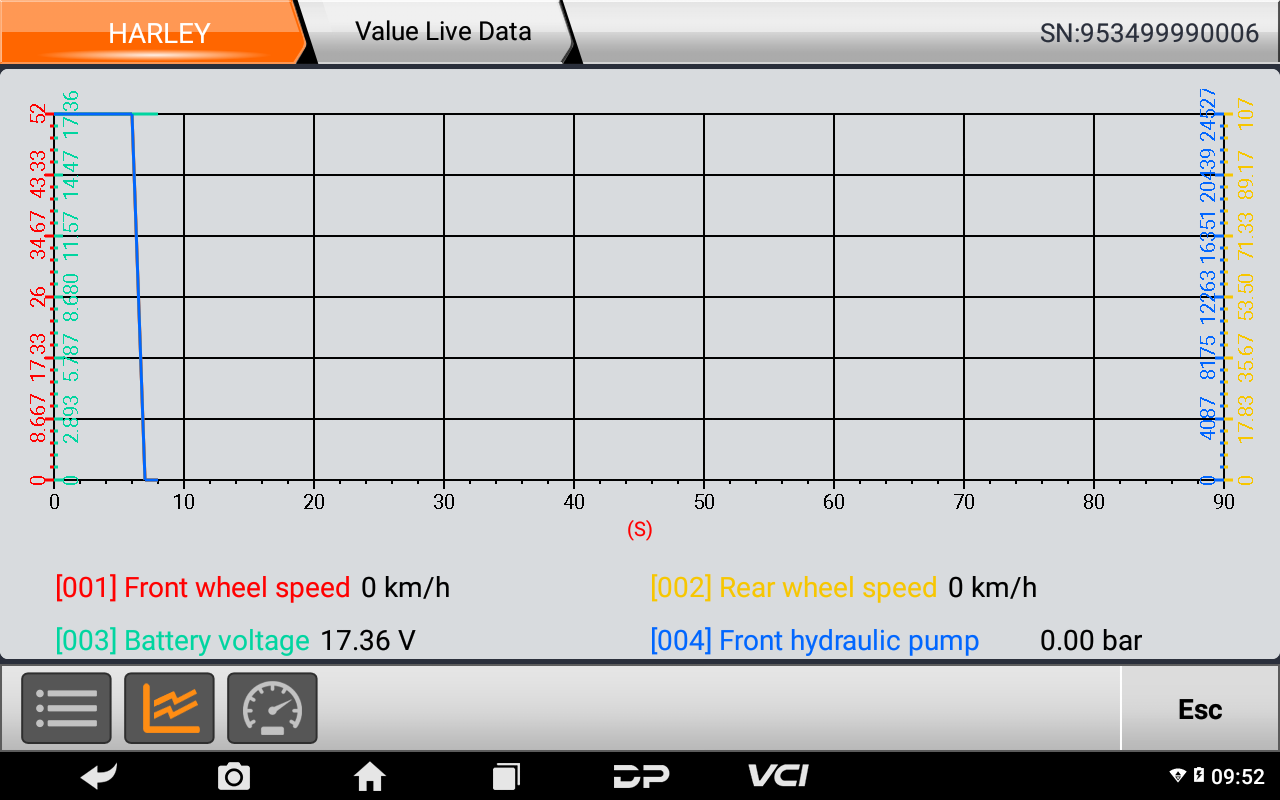

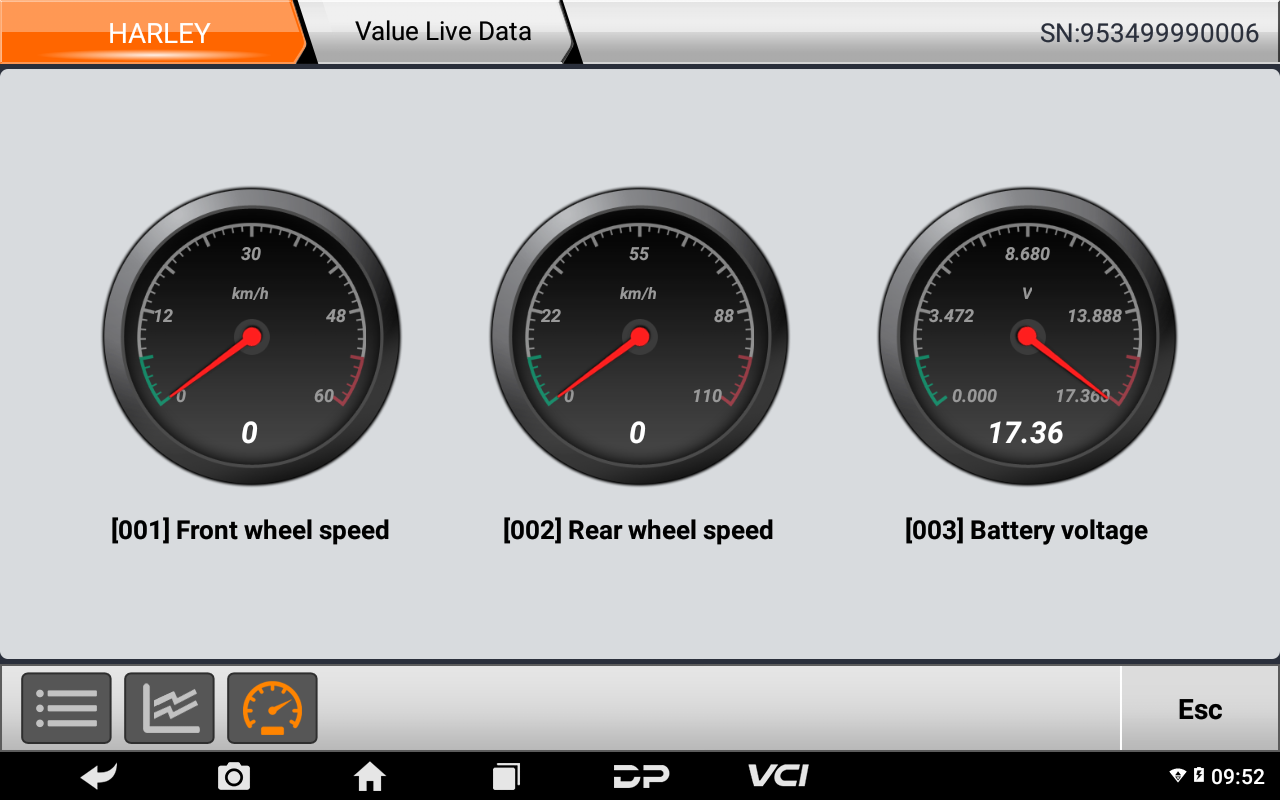

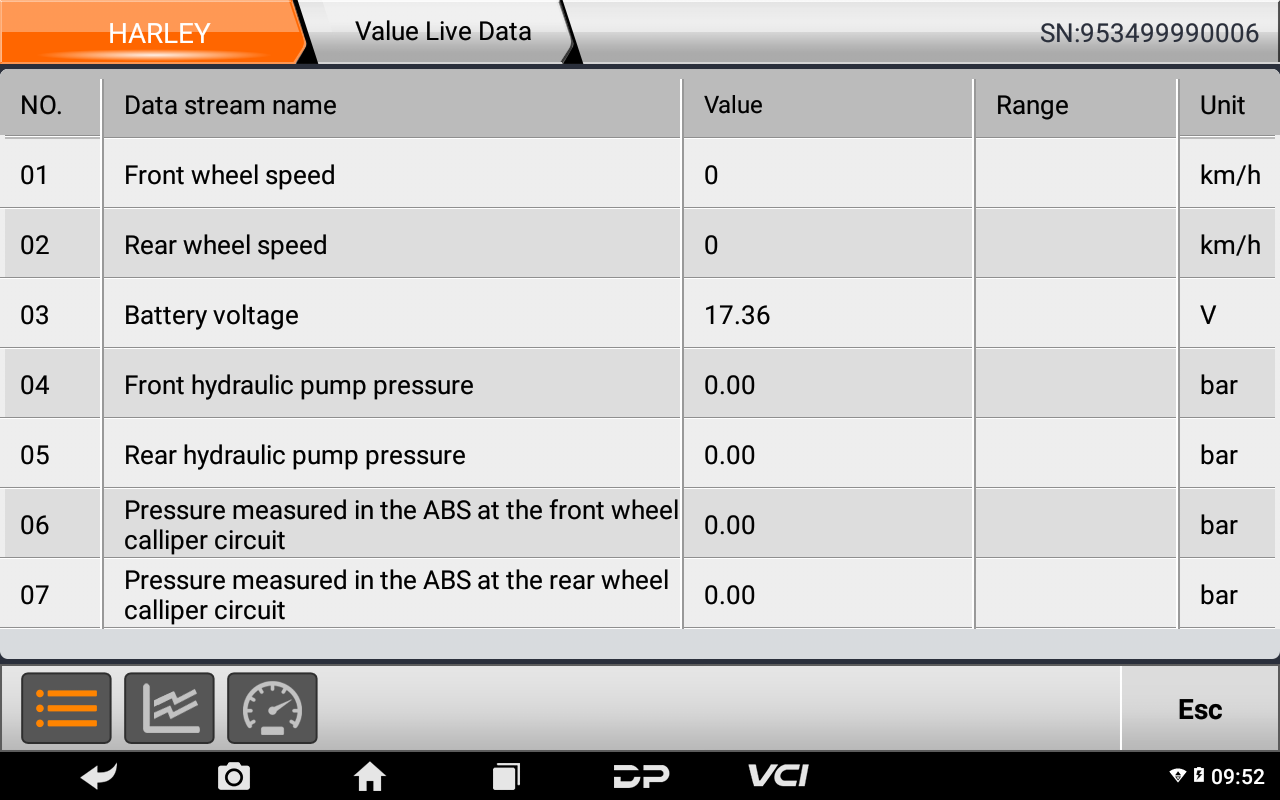

7) Data Flow Text/ Waveform Diagram/Instrument Diagram

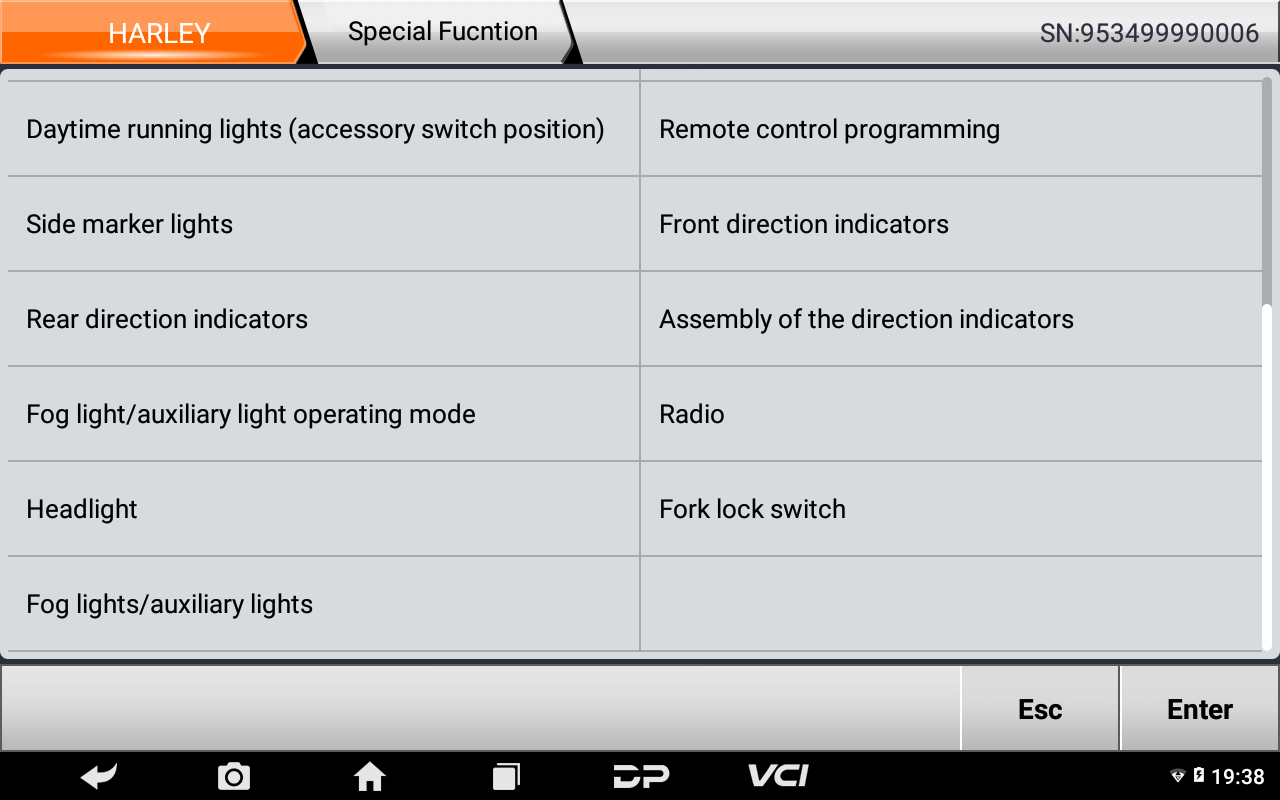

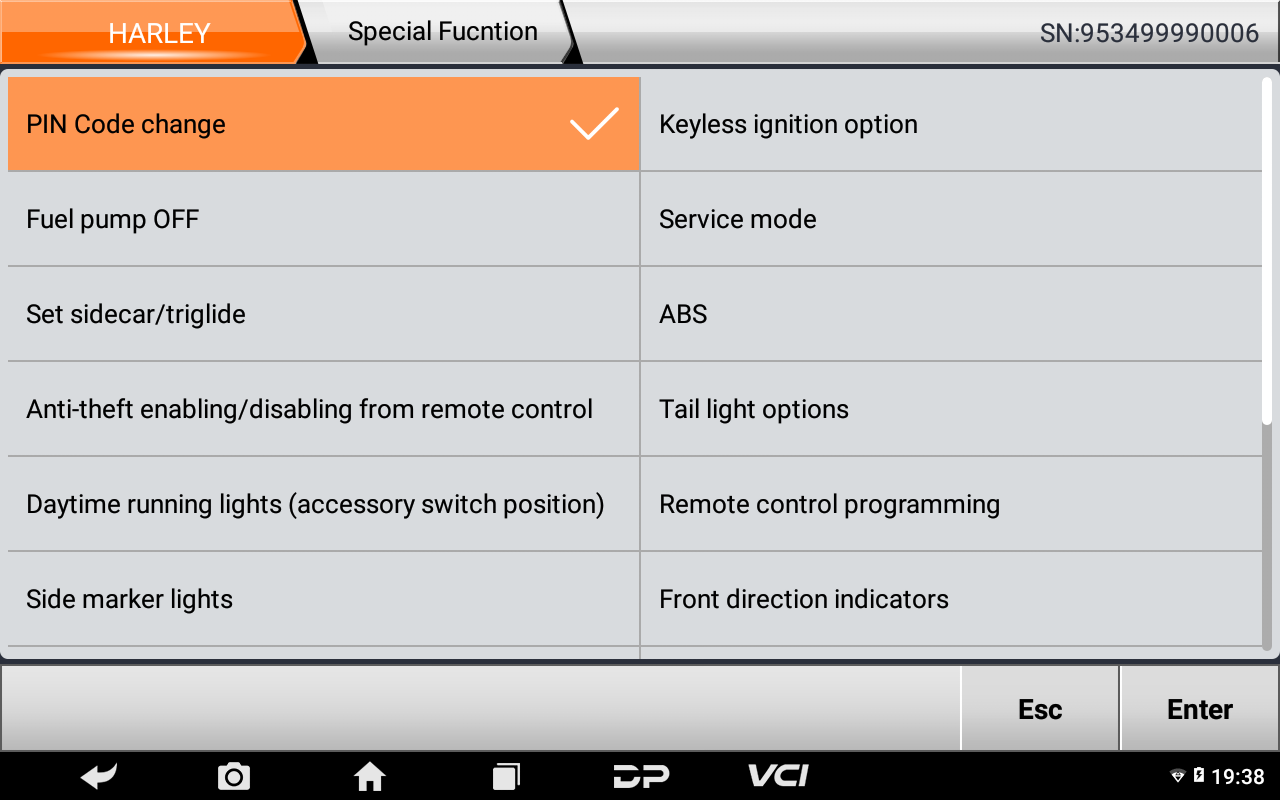

8) Special Function-Harley

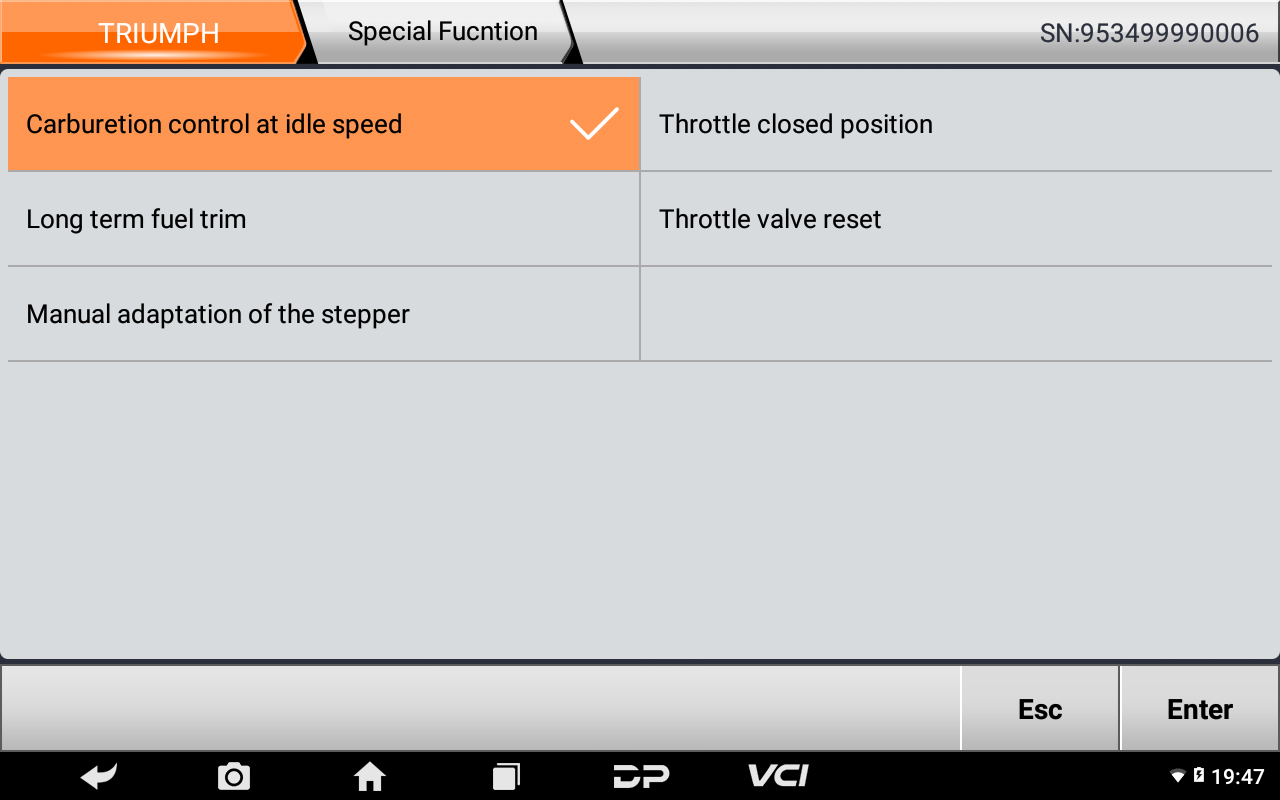

9) Special Function-Triumph

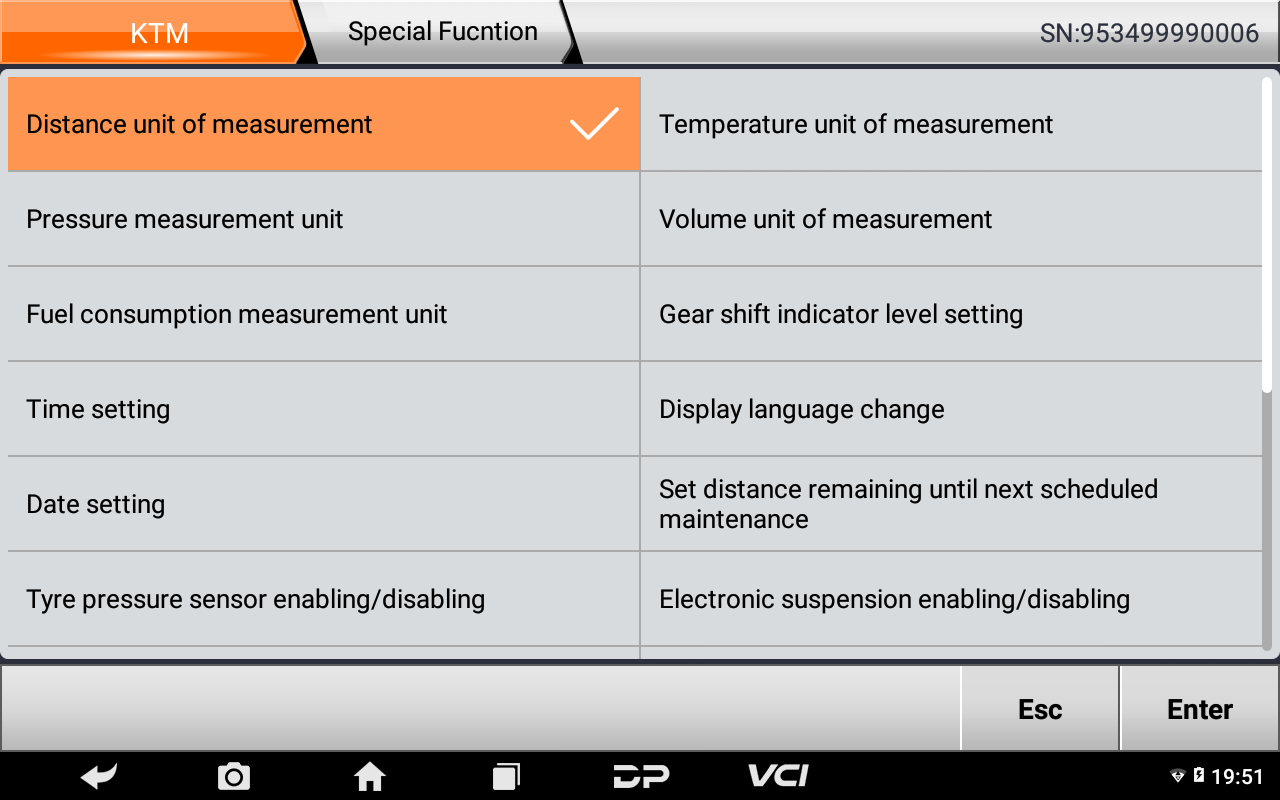

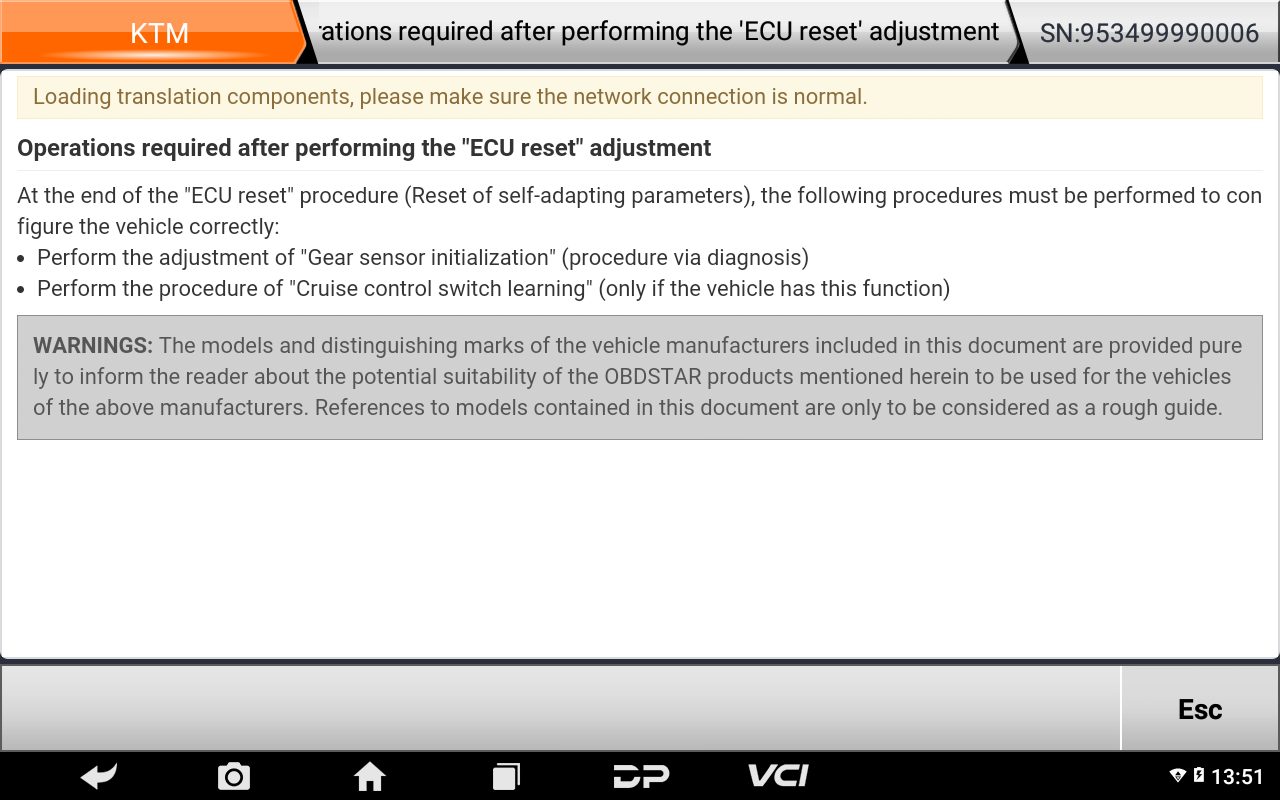

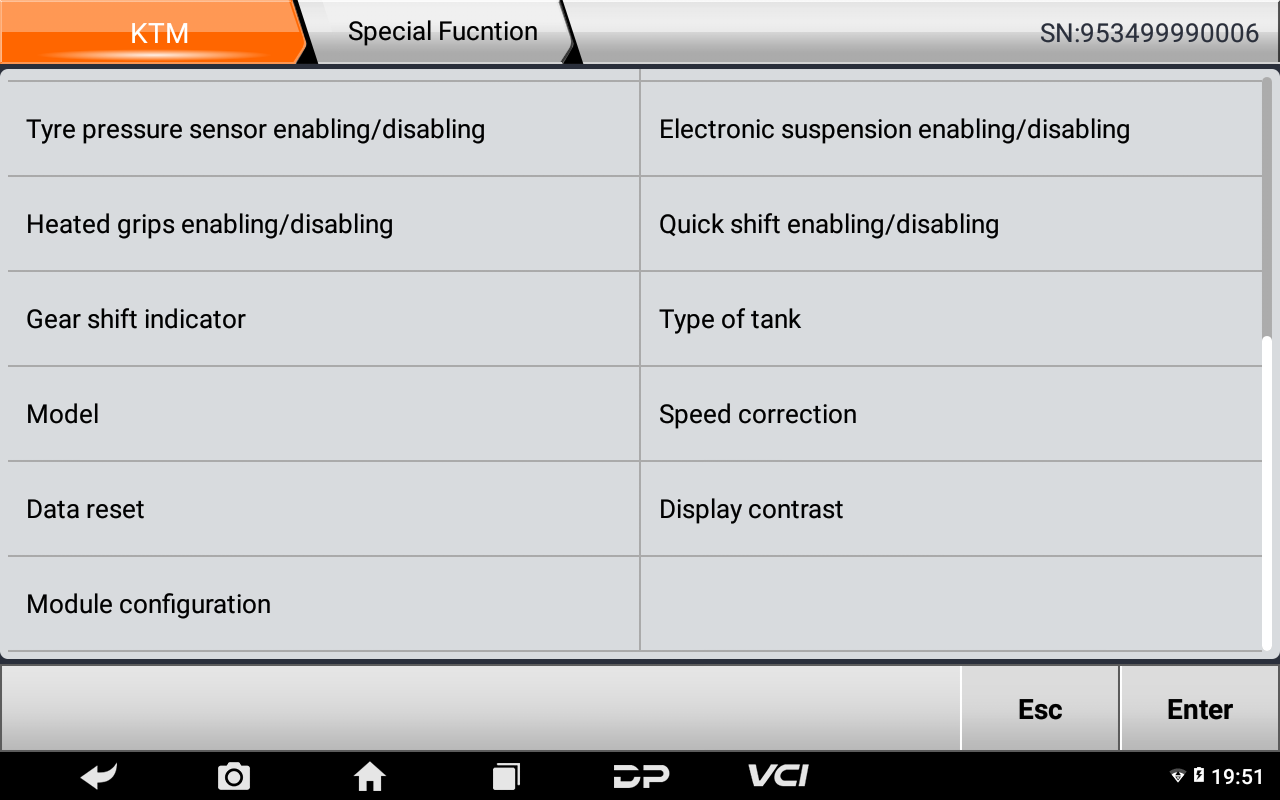

10) Special Function-KTM

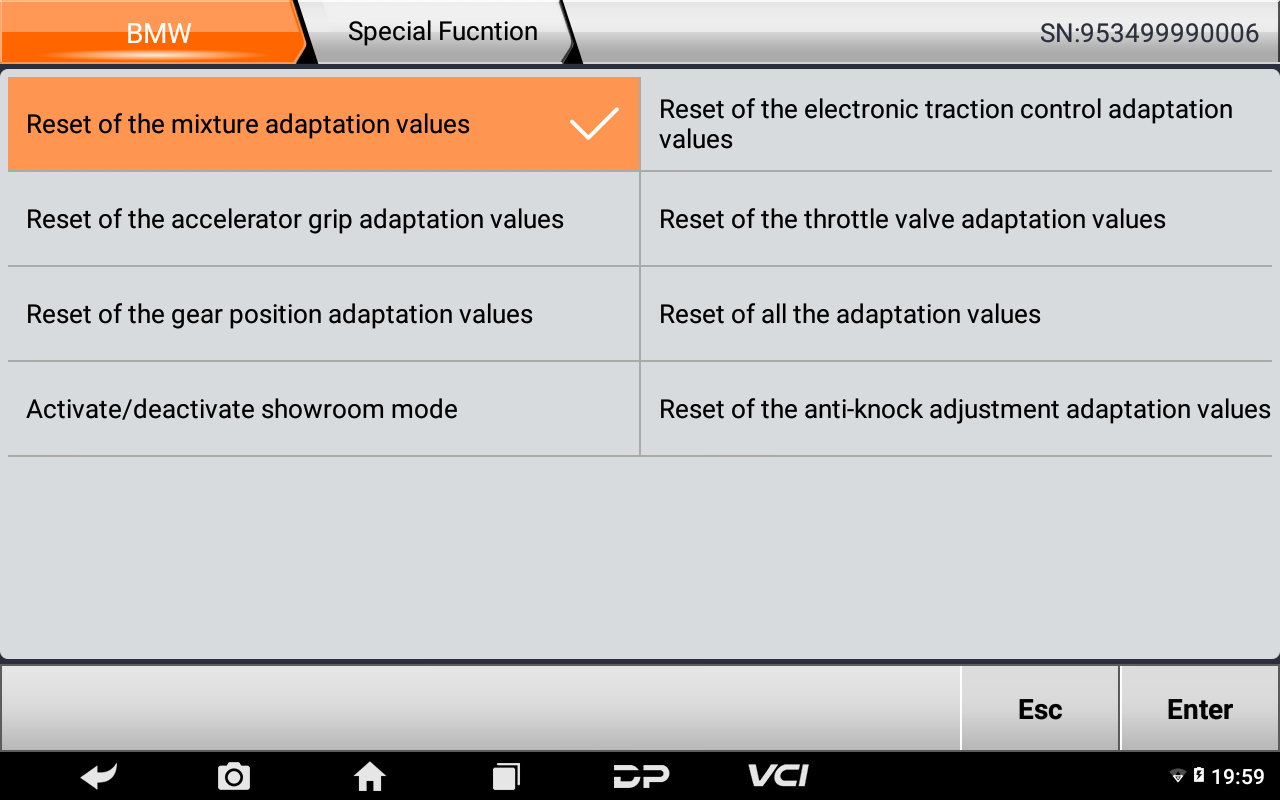

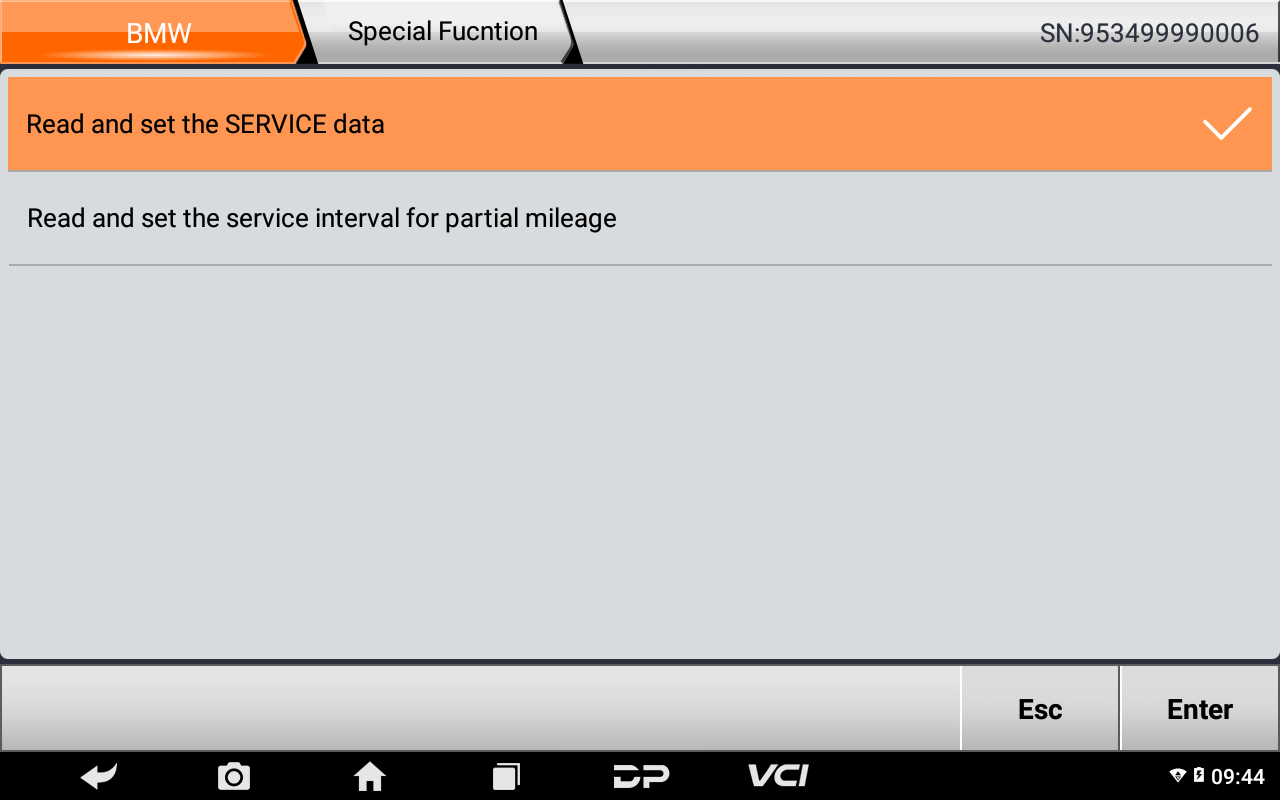

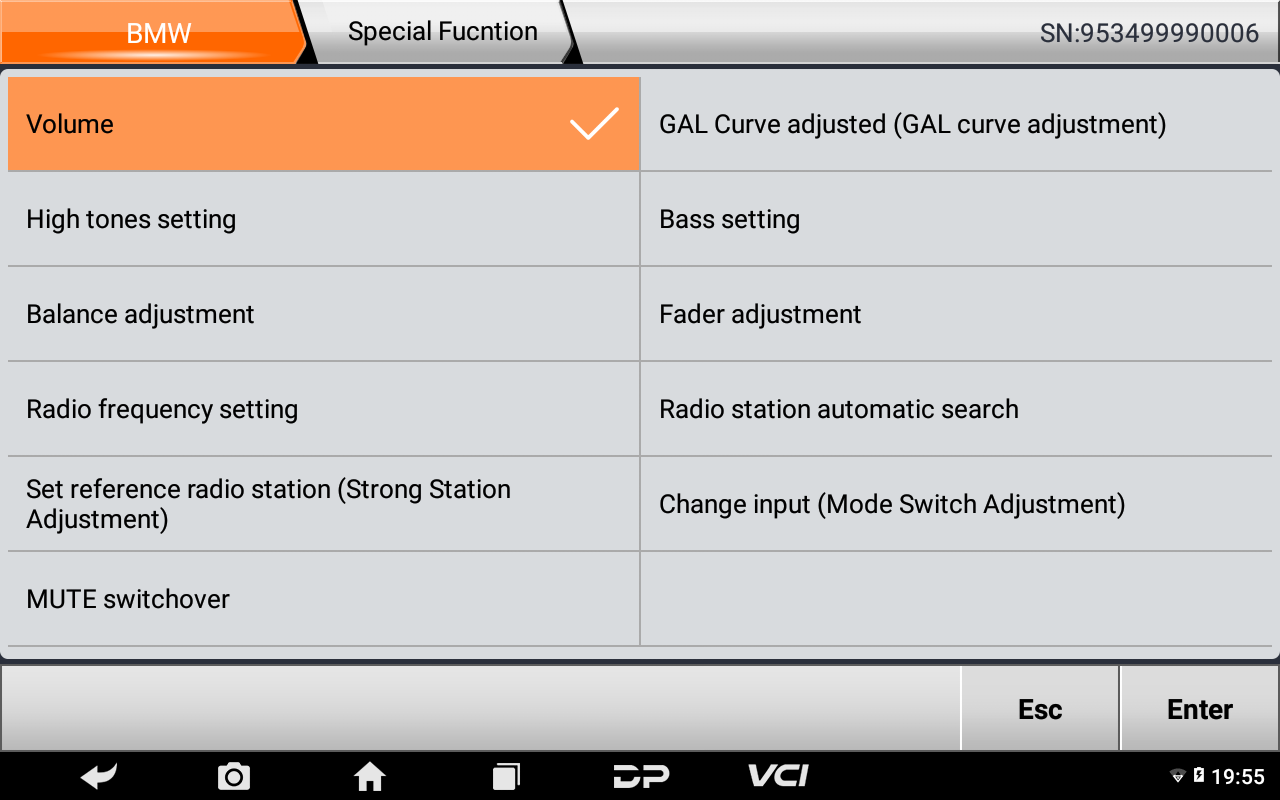

11) Special Function-BMW

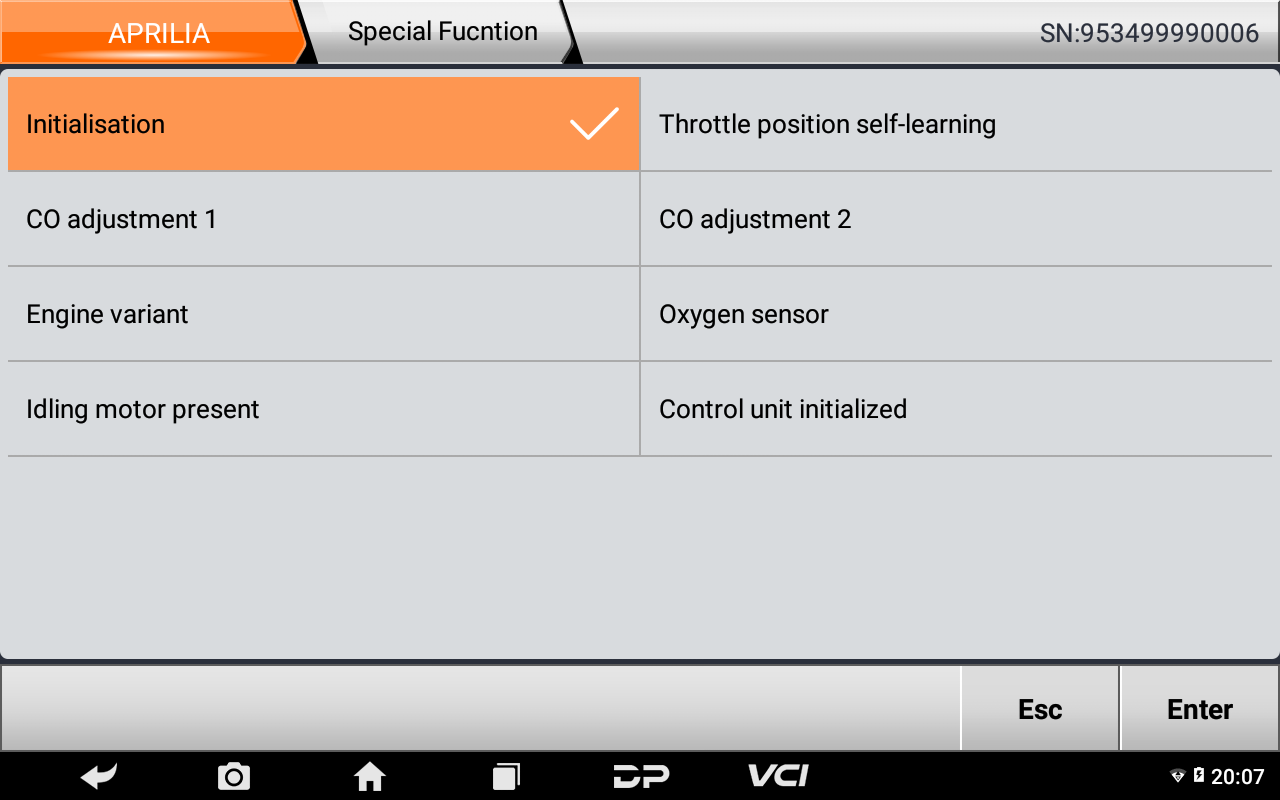

12) Special Function-Aprilia

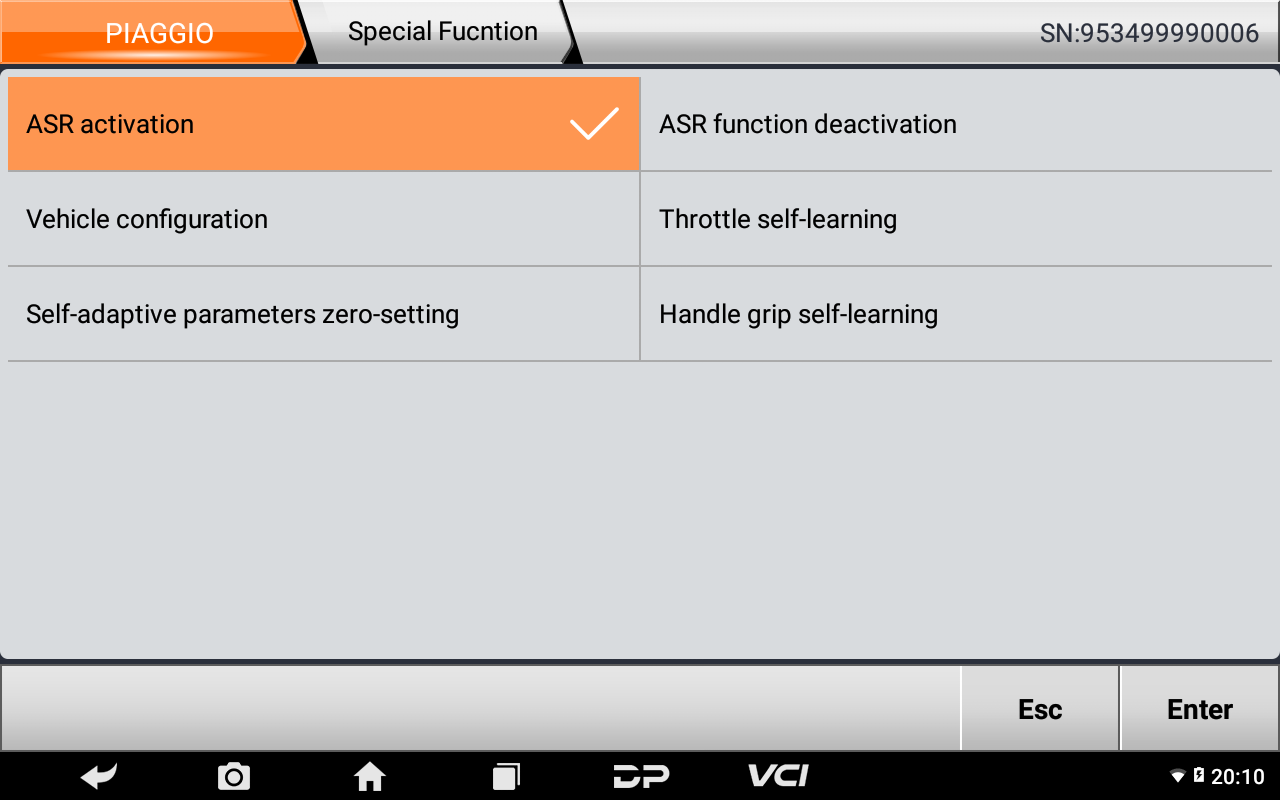

13) Special Function-Piaggio

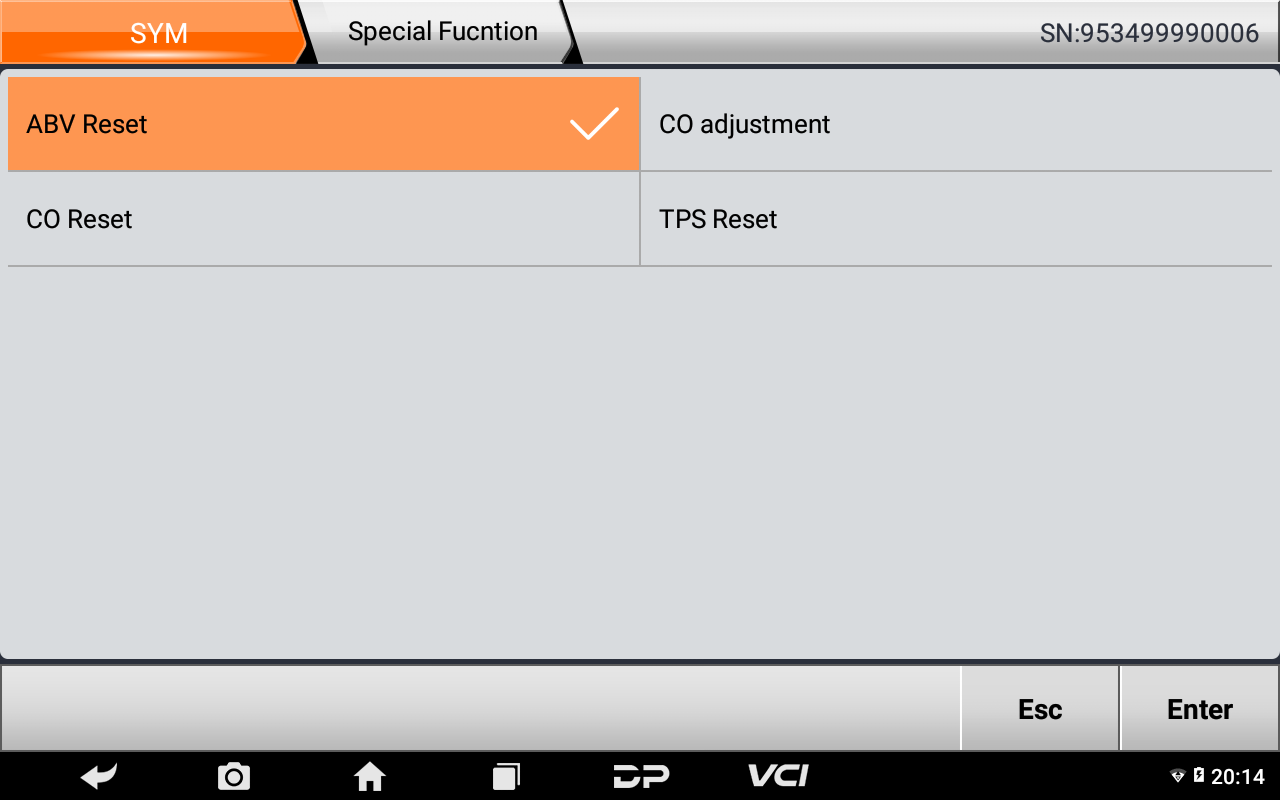

14) Special Function-SYM

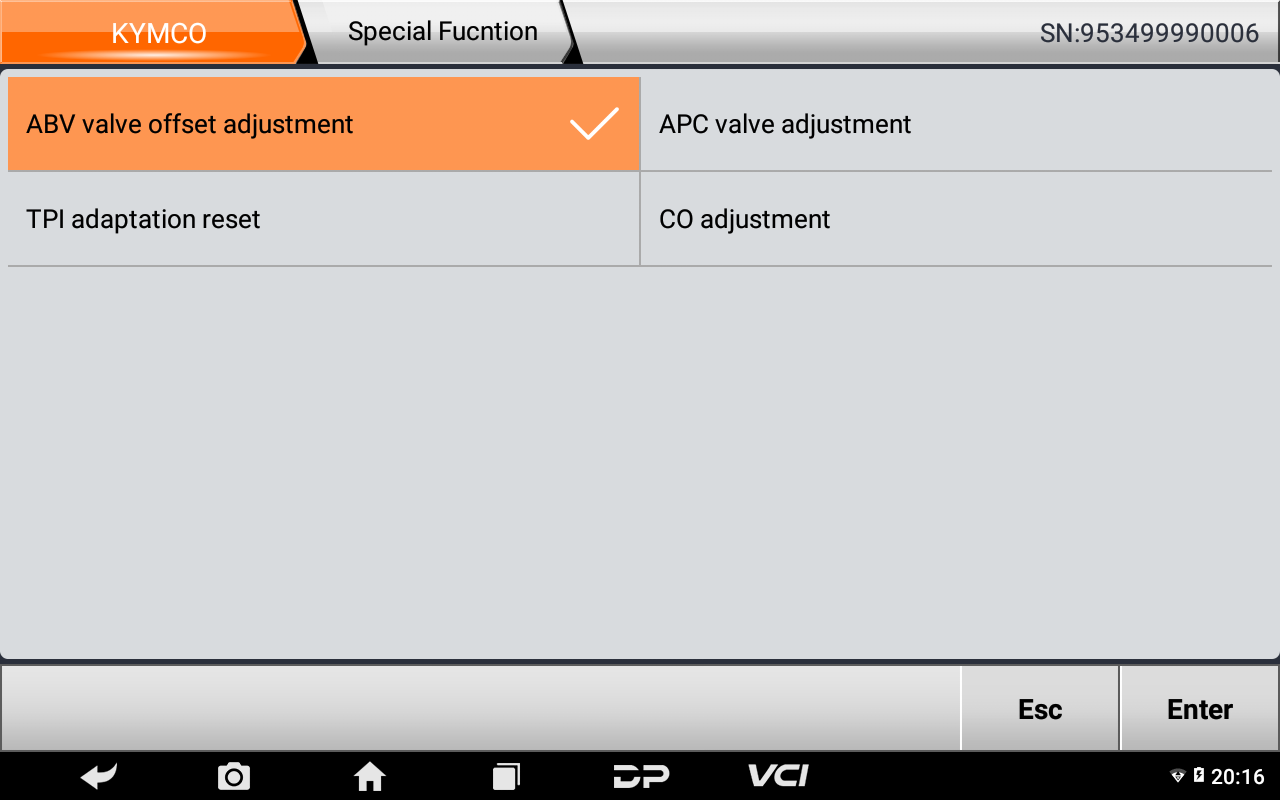

15) Special Function-KYMCO

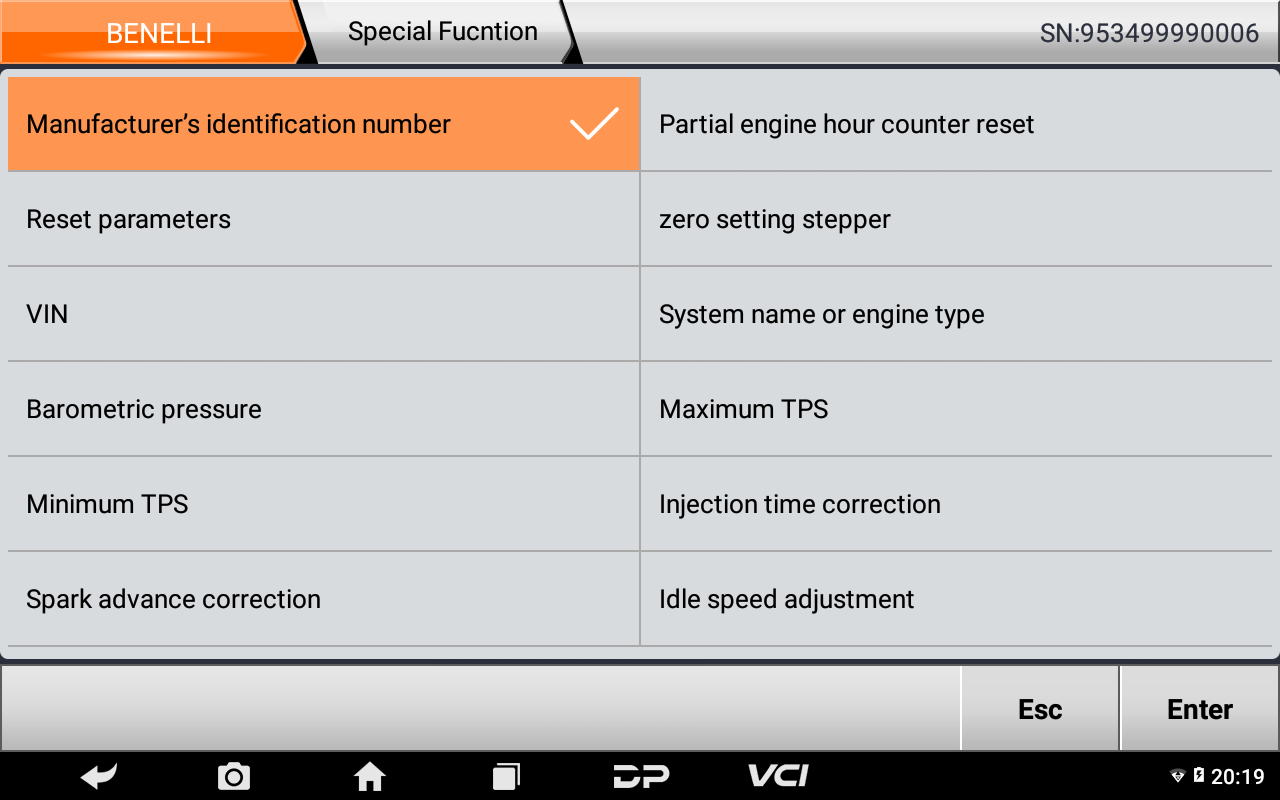

16) Special Function-BENELLI

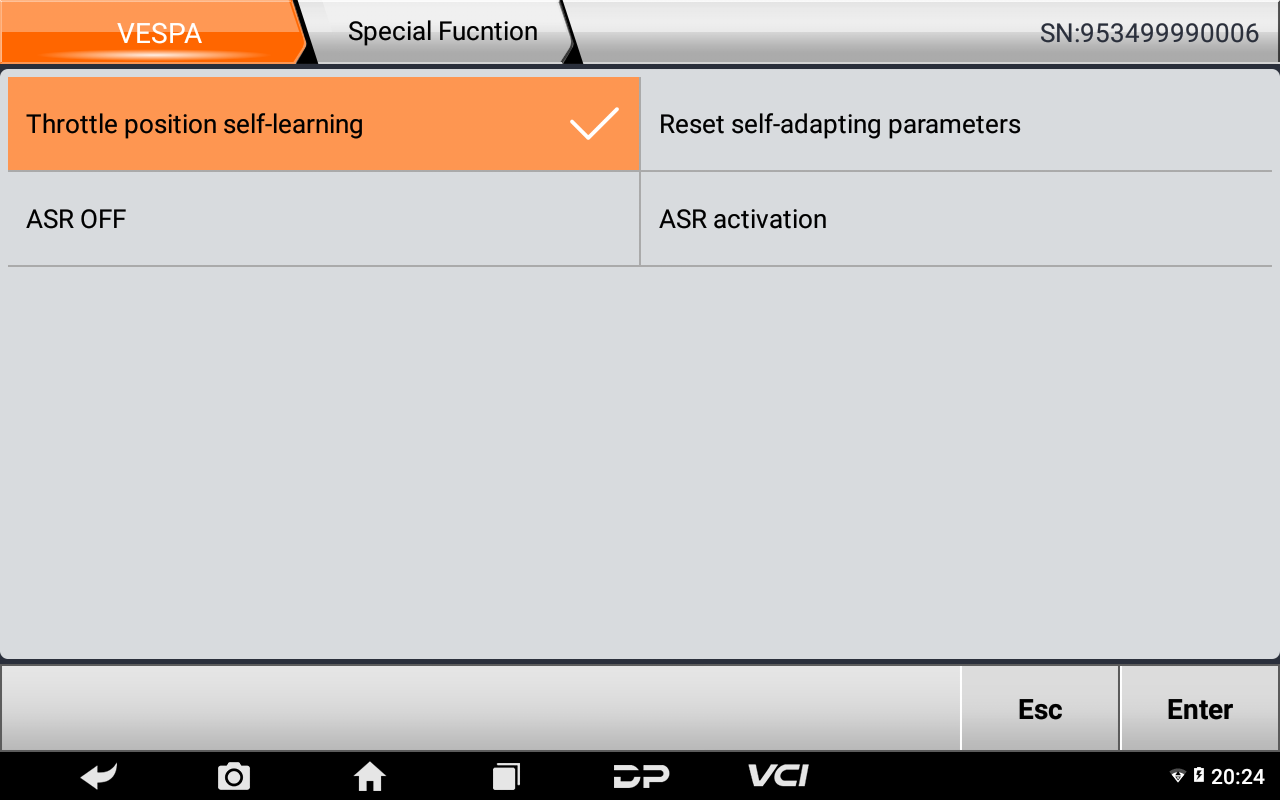

17) Special Function-VESPA

18) Special Function-SUZUKI

19) Special Function-KAWASAKI

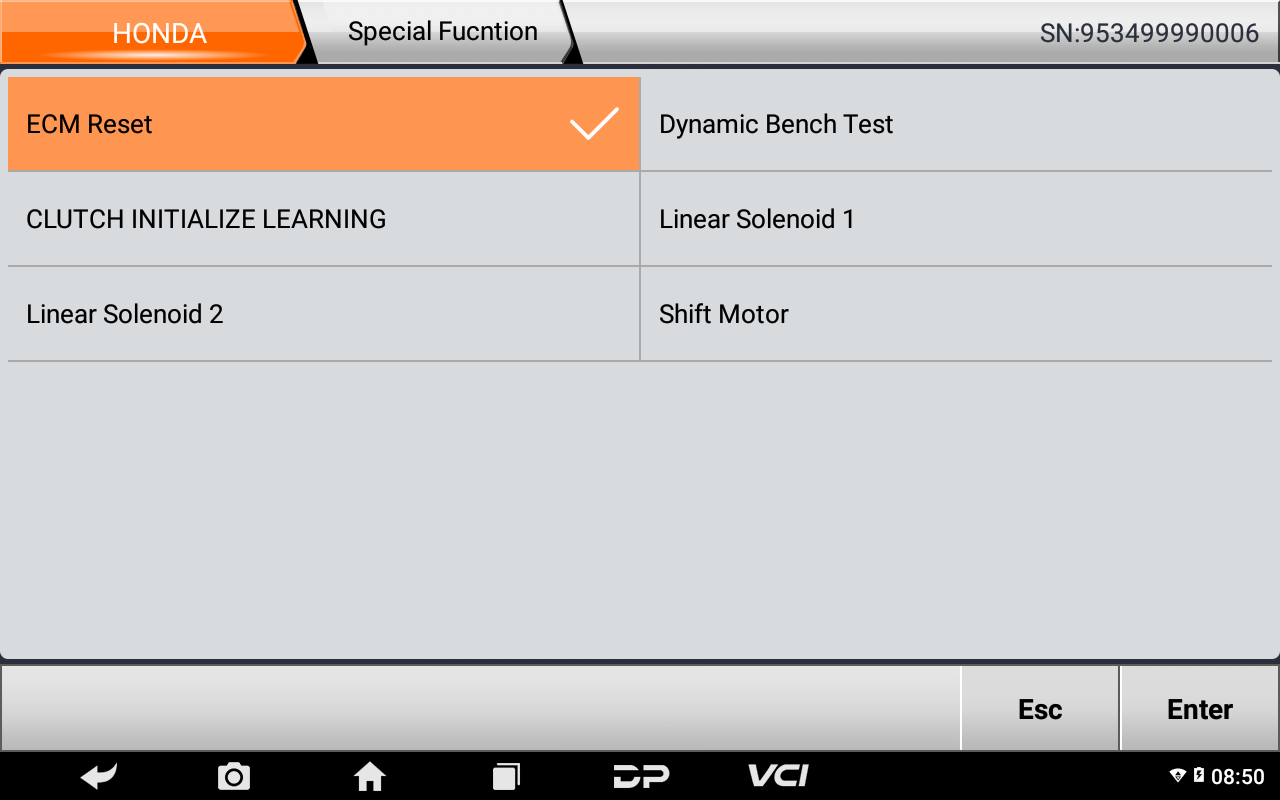

20) Special Function-HONDA

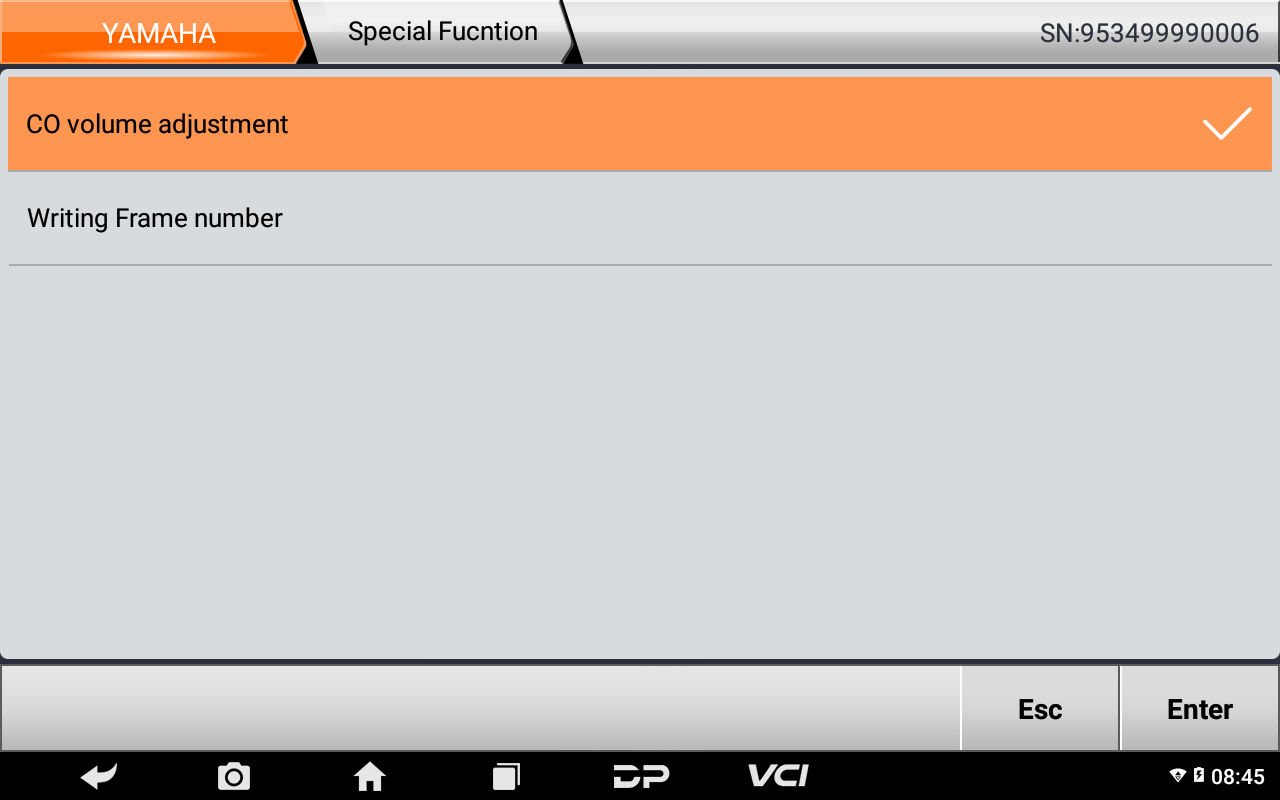

21) Special Function-YAMAHA

Specifcations:
Operation system Android 5.1.1
CPU Exynos4418  Dual Core ARM Cortex A9
Battery 3700mA, rechargeable polymer lithium battery
Extension memory card 32G Micro SD (TF) card supported
Storage capacity 32GB
LCD 8.0 inch
LCD resolution 1280*800
Touch screen capacitive touch screen
Wifi supported
Camera 5 mega rear view camera
Working temperature -10℃～55℃（14℉～131℉）
Storage temperature -20℃～70℃（-4℉～158℉）
Weight 1kg（Main Unit)
Dimension 254mm*174*mm*35mm


Product video：
http://www.obdstar.com/Products_217.html

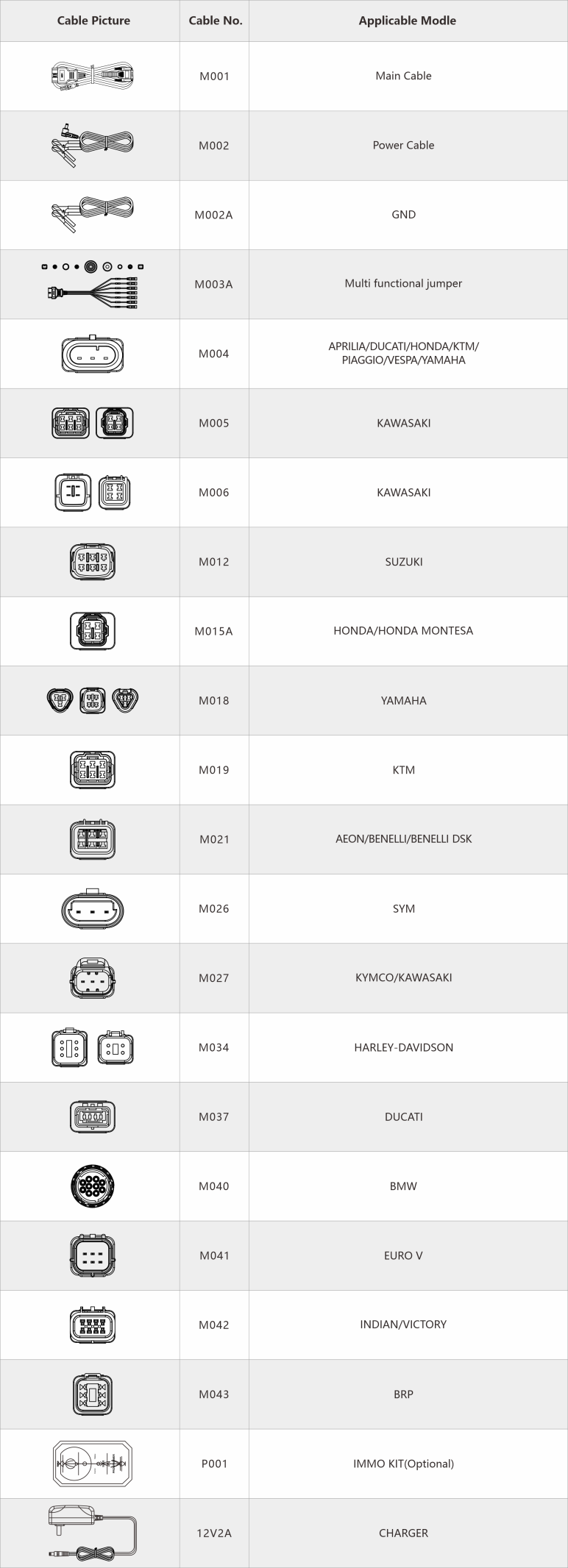

Accessories：
1pc x M001         Main Cable
1pc x M002         Power Cable
1pc xM002A         GND
1pc x M003A        Multi functional jumper
1pc x M004         APRILIA/ DUCATI/ HONDA/ KTM/ PIAGGIO/ VESPA/ YAMAHA
1pc x M005         KAWASAKI
1pc x M006         KAWASAKI
1pc x M012         SUZUKI
1pc x M015A        HONDA/HONDA MONTESA
1pc x M018        YAMAHA
1pc x M019        KTM
1pc x M021        AEON/BENELLI/BENELLI DSK
1pc x M026        SYM
1pc x M027        KYMCO/KAWASAKI
1pc x M034        HARLEY-DAVIDSON
1pc x M037        DUCATI
1pc x M040        BMW
1pc x M041        EURO V
1pc x M042        INDIAN/VICTORY
1pc x M043        BRP
1pc x P001         IMMO KIT(Optional)
1pc x 12V2A        CHARGER




MS80 FUNCTION

MS80 FUNCTION
Immobilizer	Europe	TRIUMPH	√
		GILERA	√
		PEUGEOT	√
		PIAAGIO	√
		DUCATI	√
		VESPA	√
	America	HARLEY	√
Motorcycle diagnosis	Asia	HONDA	√
		KAWASAKI	√
		KYMCO	√
		SUZUKI	√
		SYM	√
		YAMAHA	√
		MONTESA	√
		PGO	√
		HARTFORD	√
		AEON	√
		BENELLIDSK	√
	Europe	APRILIA	√
		BENELLI	√
		BMW	√
		DUCATI	√
		KTM	√
		PIAGGIO	√
		TRIUMPH	√
		VESPA	√
		MALAGUTI	√
		GASGAS	√
		GILERA	√
		GUZZI	√
		AGUSTA	√
		DERBI	√
	Ameria	HARLEY	√
		INDIAN	√
		VICTORY	√
		BRP	√
	OBD	OBD	√
Motorboat	Asia	HONDABOAT	√
