OBDSTAR MS50 Motorcyecle Scanner Motorcycle Diagnostic Scan Tool

OBDSTAR MS50 Motorcyecle Scanner Motorcycle Diagnostic Scan Tool

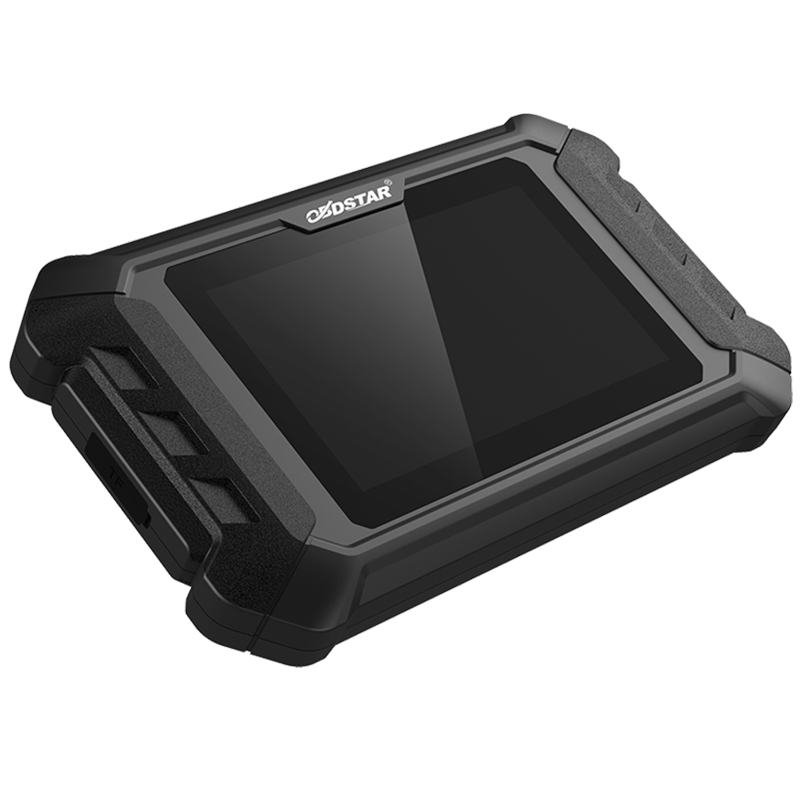

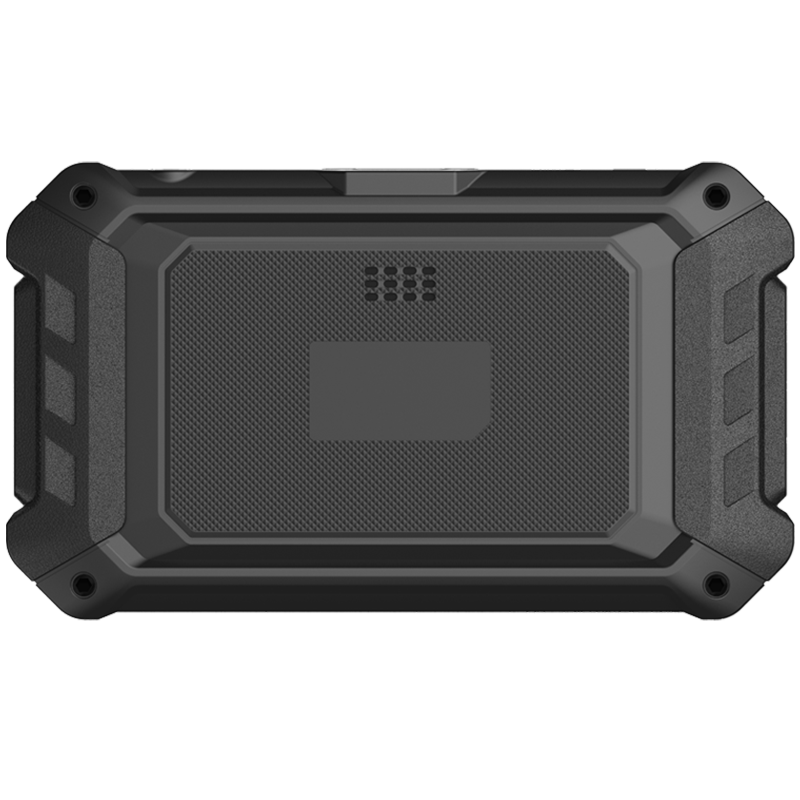

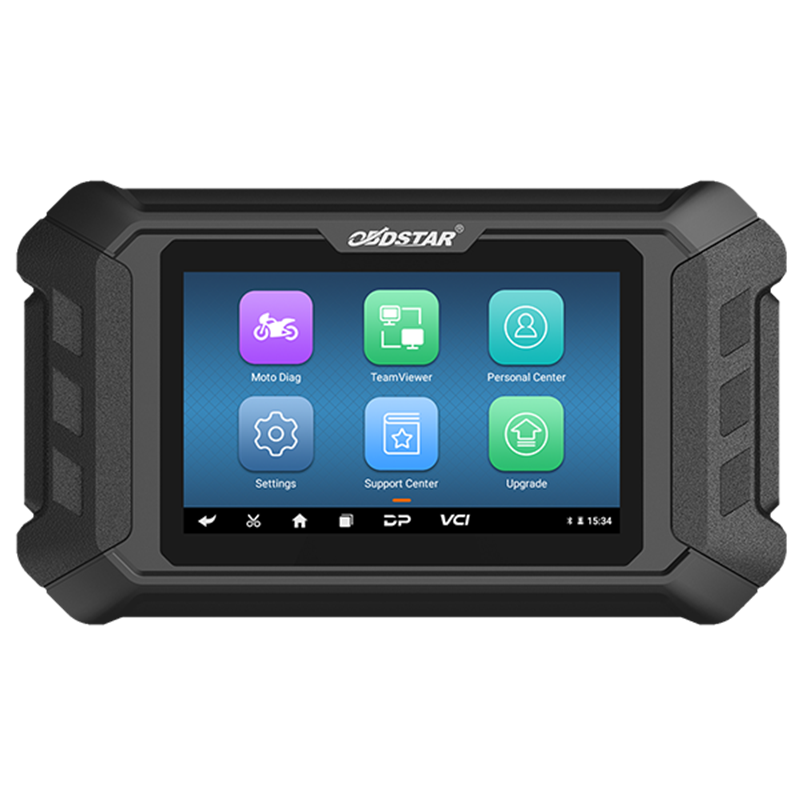

MS50 is a portable tablet which has super performance and industrial appearance design. It is a new generation of intelligent  motorcycle diagnostic equipment tailored for customers. Based on RK3128 Quad-Core processor and equipped with a 5.0-inch capacitive touch screen, brings customer professional diagnosis experience;

OBDSTAR MS50 Functions:
1. New Android 5.1.1 operation system
2. Simple and intuitive menu guidance allows you to quickly master the equipment operation;
3. Provide complete diagnostic functions including code reading, code clearing, data flow, action test, setting, coding, etc.;
4. Menu Arbitrary selection is more convenient and quick;
5. Record and play back real-time data streams, quickly and accurately locate sensor and component faults;
6. Wi-Fi connection to the Internet, one-click software upgrade;
7. One-Click remote function, OBDSTAR technical staff remote assistance;
8. Support  most of the Asia and Europe models;

OBDSTAR MS50 Advanced function:
1. The first fault guidance, Help data, technical bulletin, diag socket, etc. help you diagnose accurately and efficiently;
2. Diversified data stream display modes such as text, waveform diagram and instrument diagram, allowing you to easily analyze faults;
3. Automatic scanning, automatic VIN recognition, control module programming and coding, ECU setting, instrument coding, tire pressure monitoring system, maintenance light reset, CO adjustment, idle speed adjustment, A/F value reset, ABS control unit setting , EOL mode, transmission memory reset, clear computer memory, etc.

Motorcycle/snowmobile/ATV/UTV support car series:
Asia:
Honda、Kawasaki、Kymco、Suzuki、SYM、Yamaha、PGO、Hardford、AEON；

Europe:
Benelli、KTM、Piaggio、Vespa

More functions under developing...

Different configurations include different software. For details, please contact OBDSTAR.

OBDSTAR MS50 Function Display:

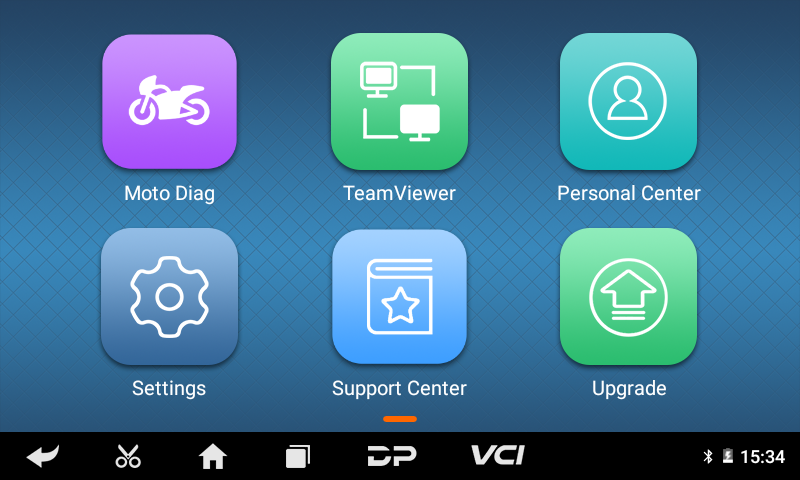

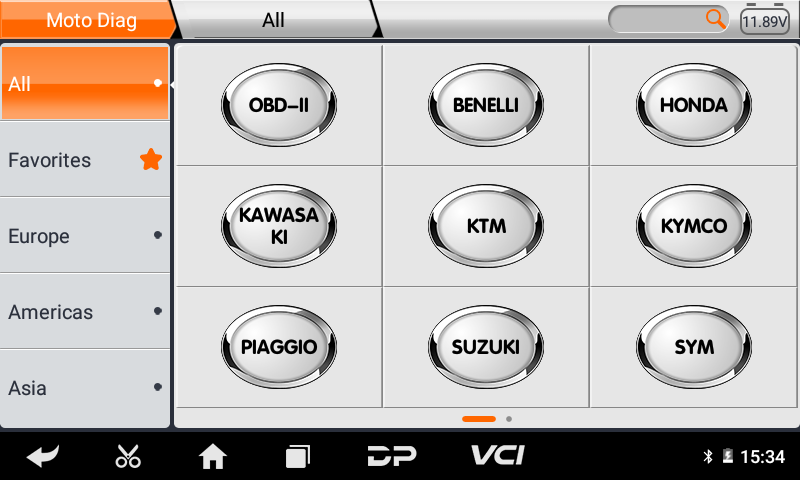

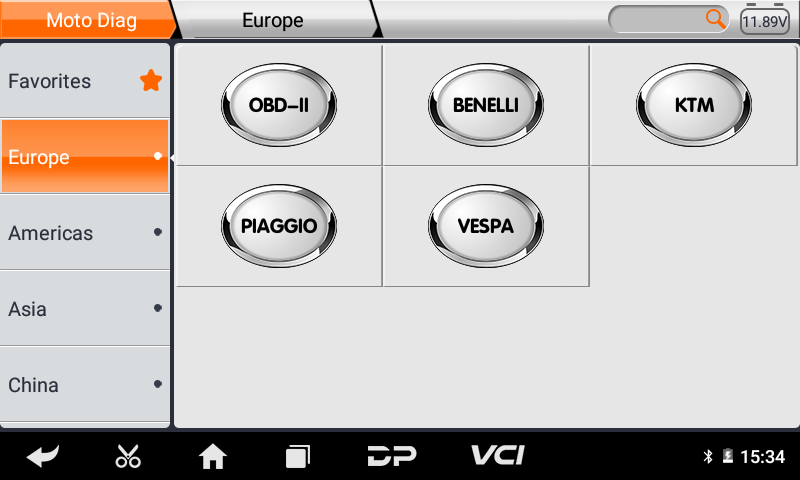

1) Main Page/Brand Supported

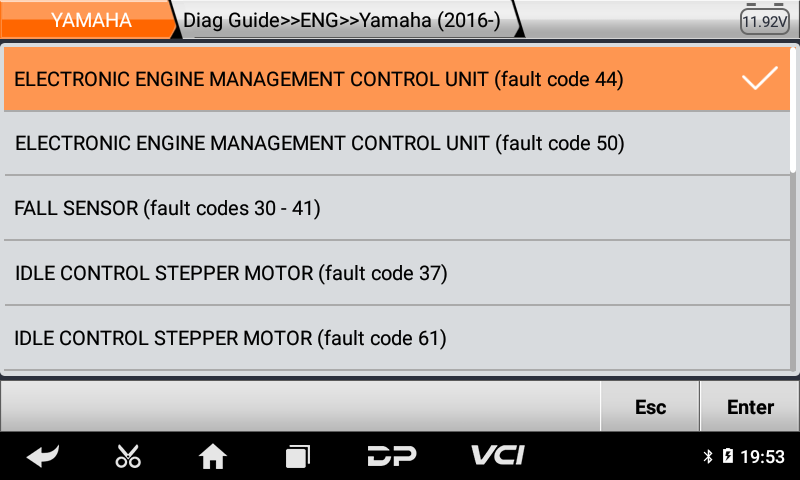

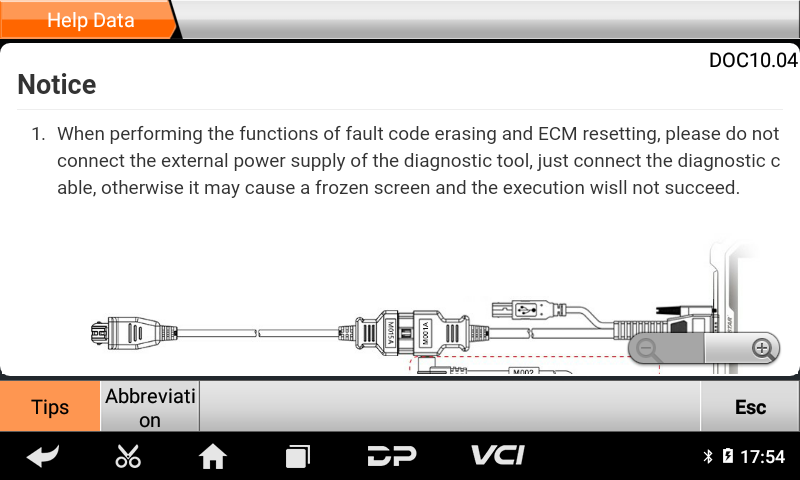

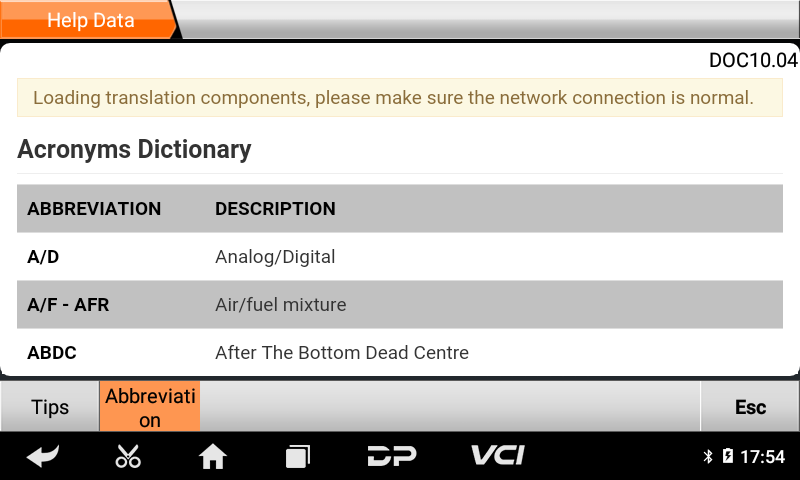

2) Help Data/Technical Bulletin/Fault Guidance

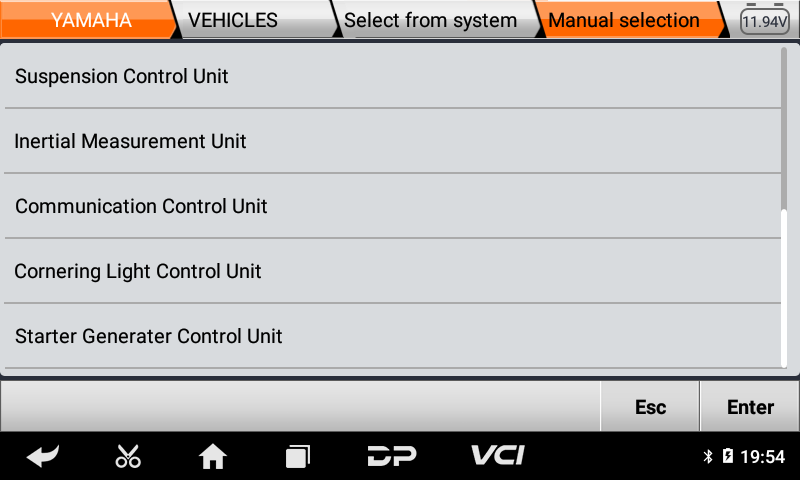

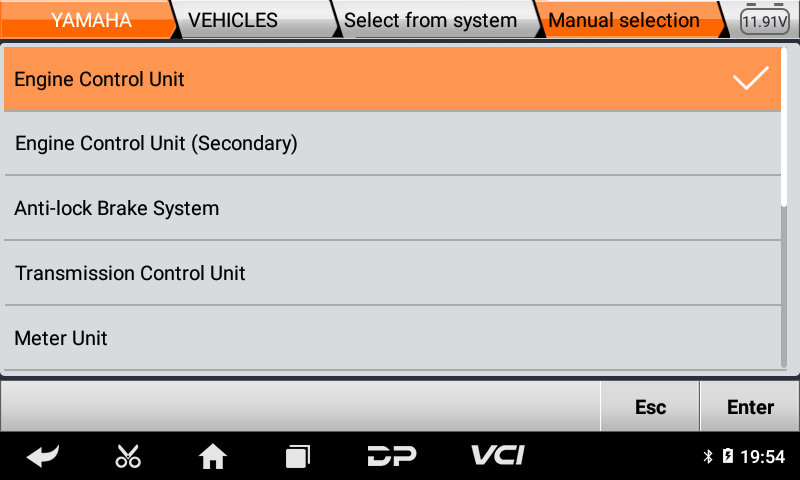

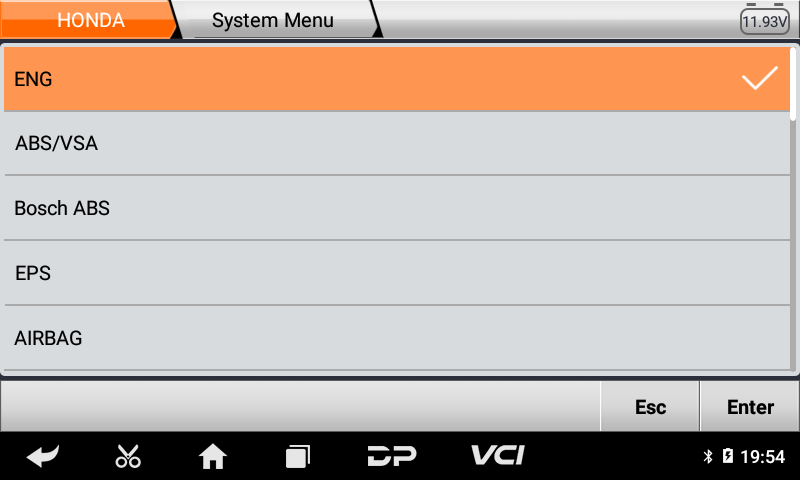

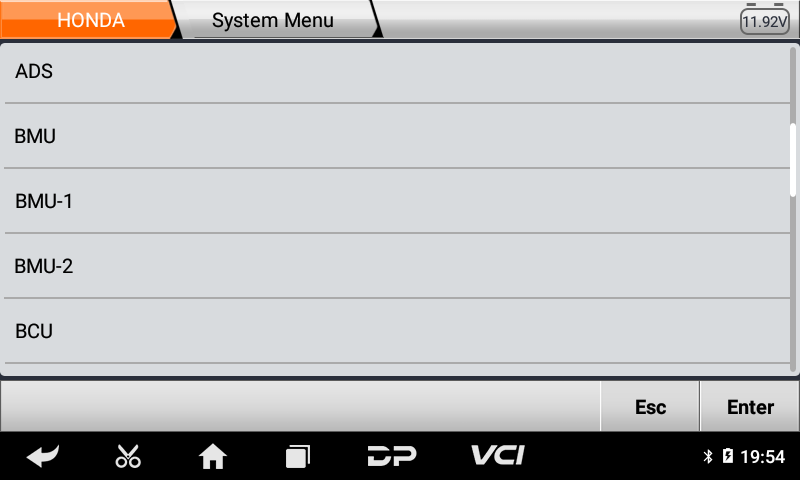

3）Supported System List/ Manual Service Function

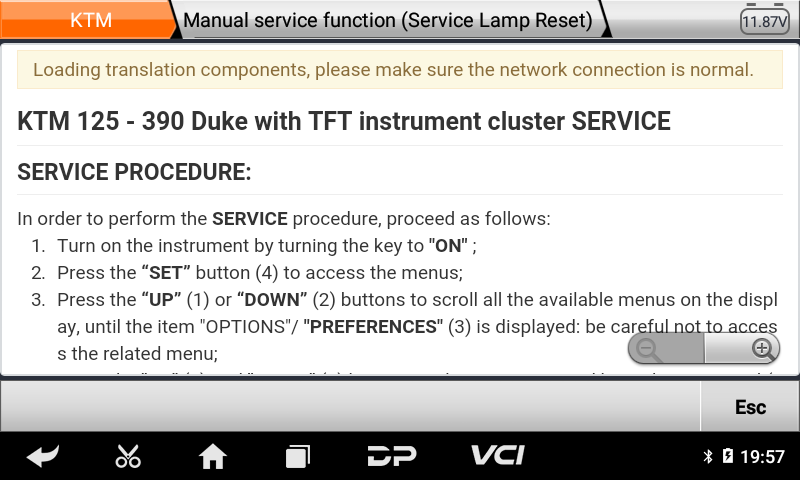

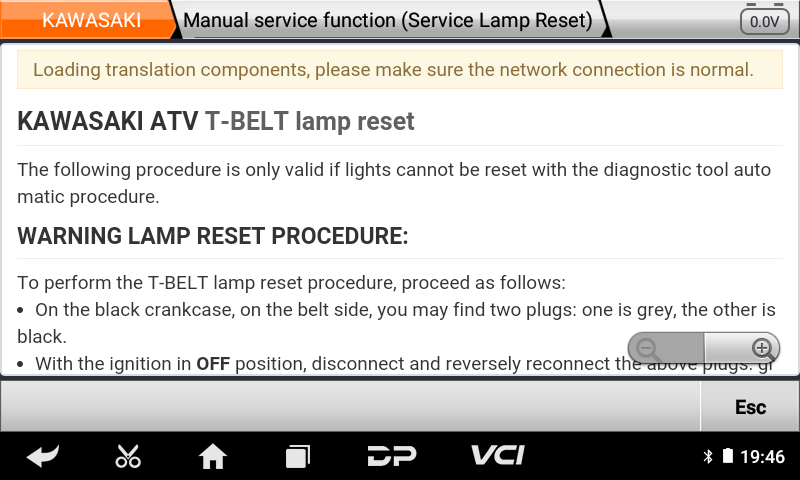

4) Manual maintenance reset

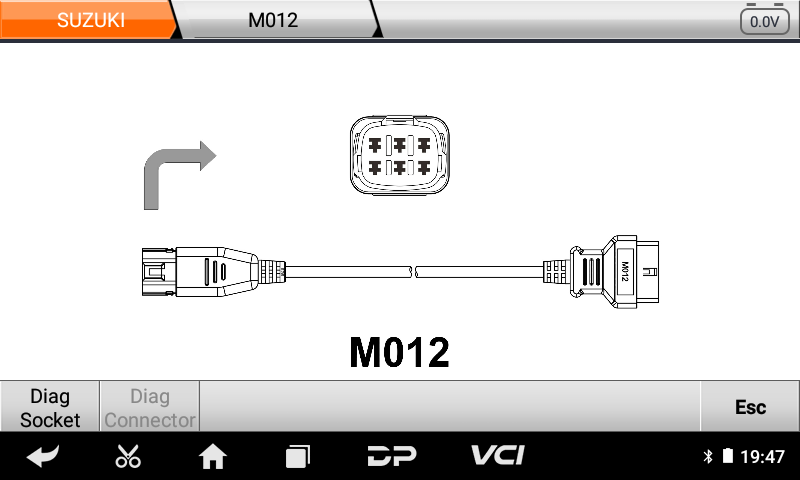

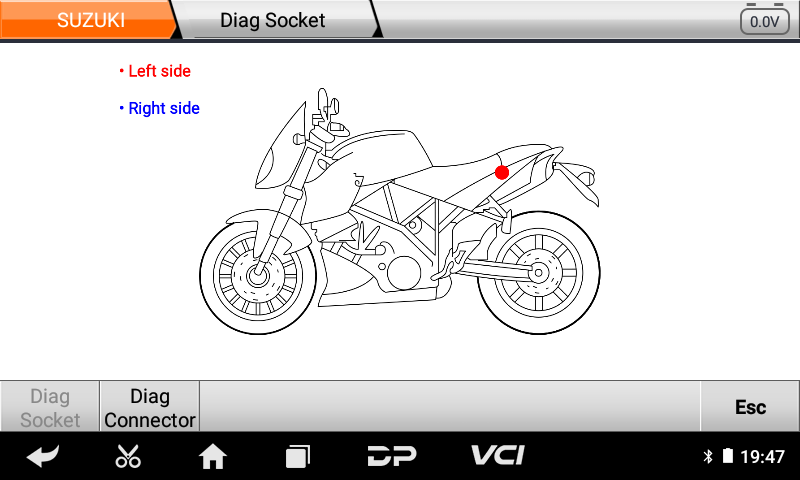

5) Diag socket/Diag Connector Location

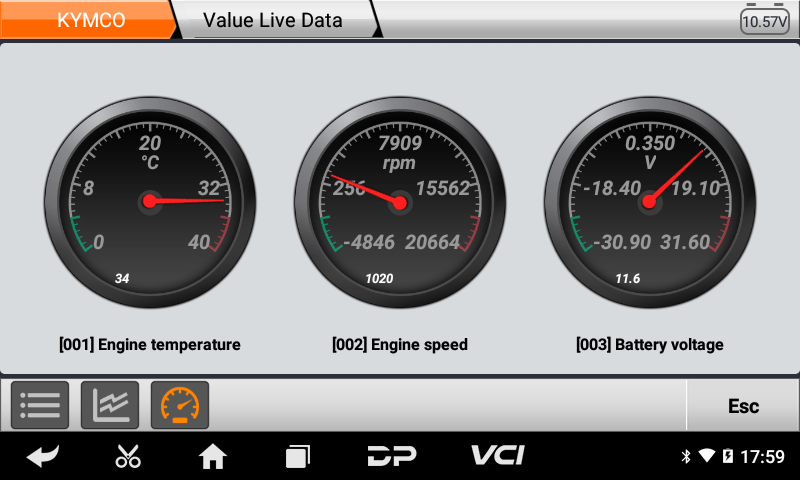

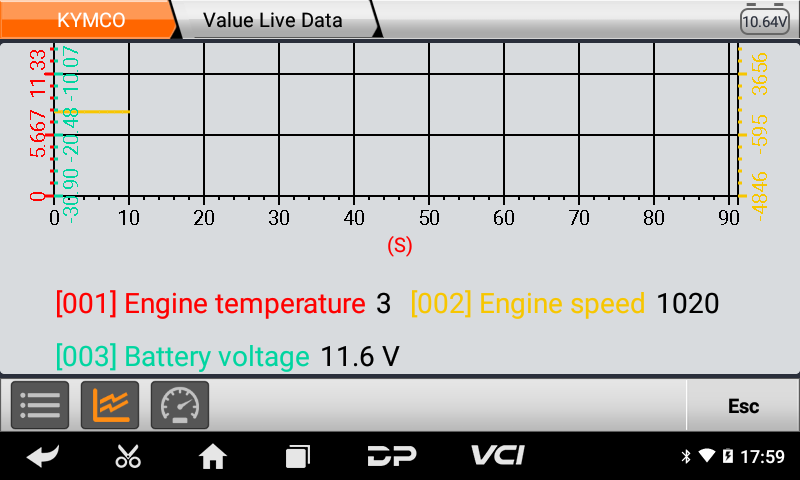

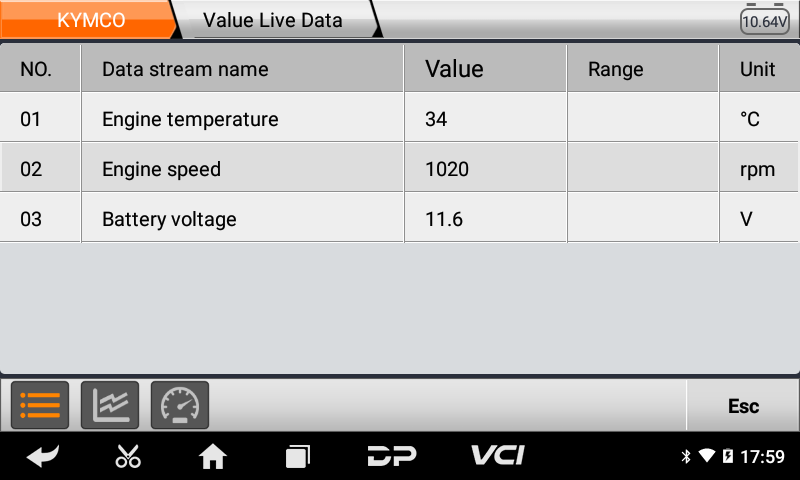

6) Data Flow Text/ Waveform Diagram/Instrument Diagram

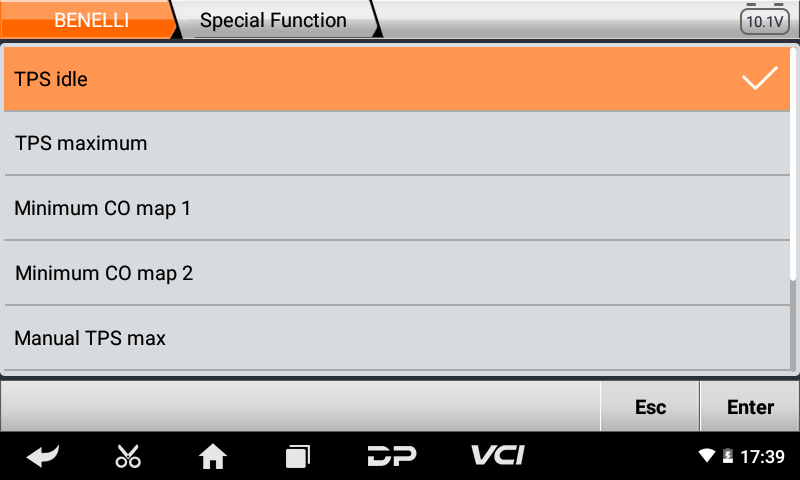

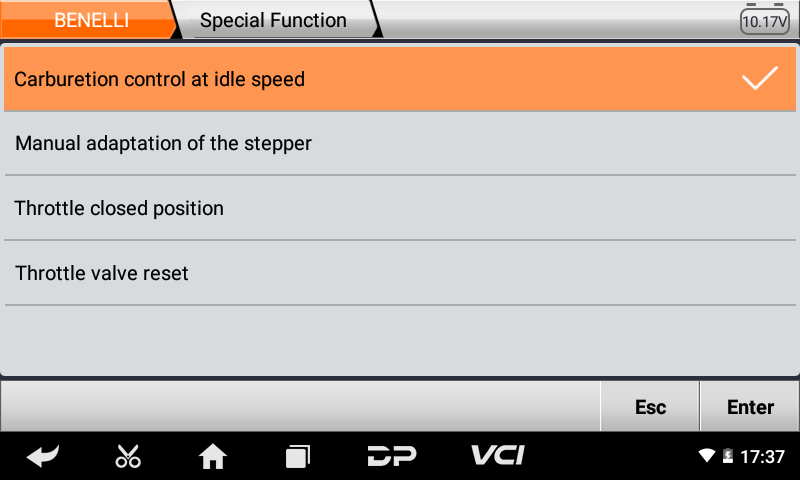

7)Special Function-Benelli

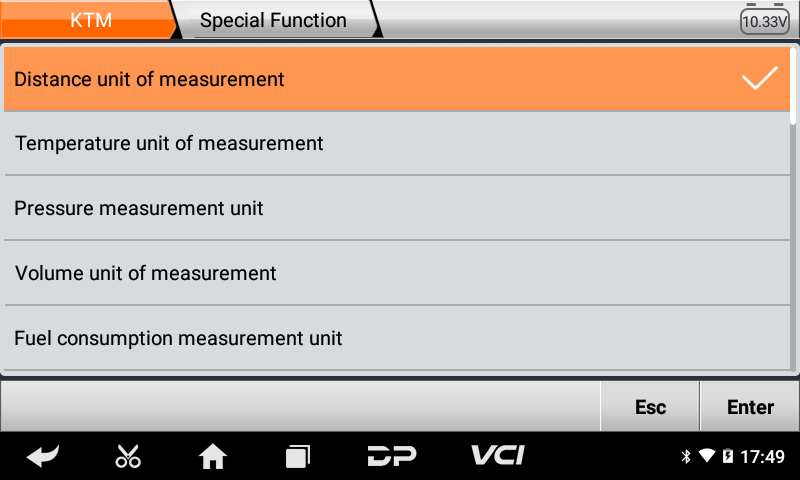

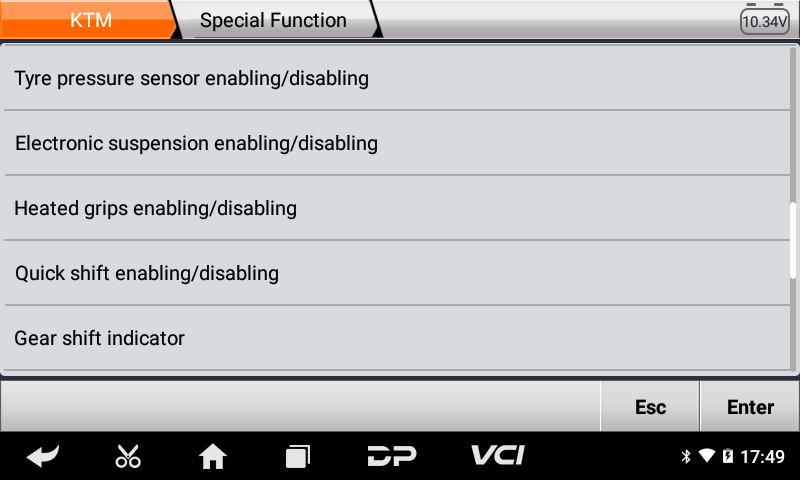

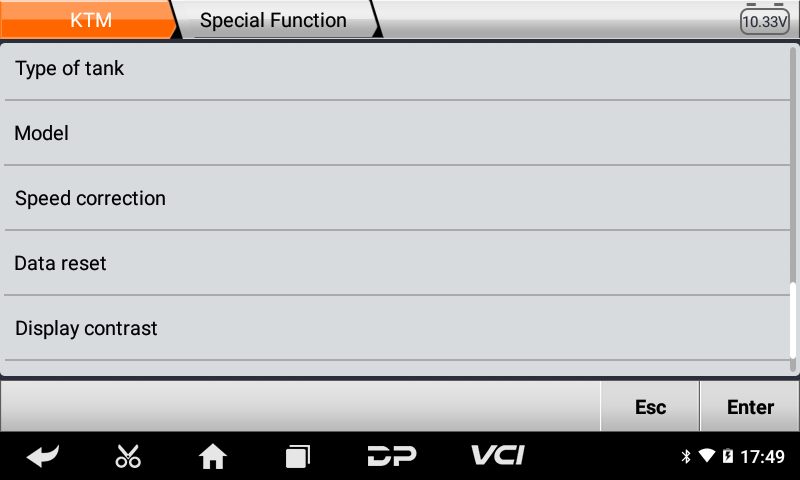

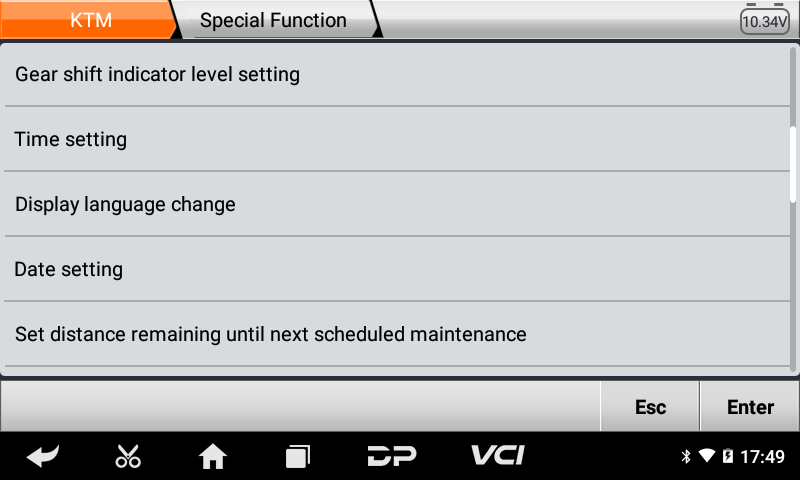

8) Special Function-KTM

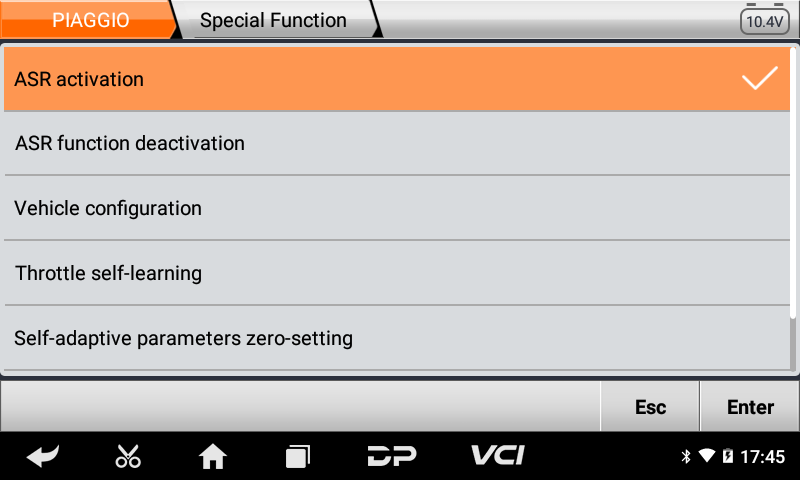

9) Special Function-Piaggio

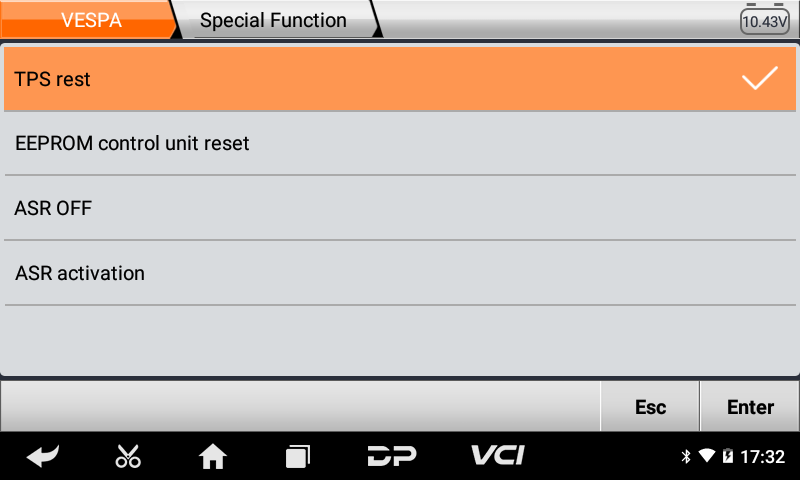

10) Special Function-Vespa


OBDSTAR MS50 Specifcations:

Operation system	Android 5.1.1
CPU	RK3128 Quad-Core ARM Cortex A7
Battery	2500mA, rechargeable polymer lithium battery
Extension memory card	32G Micro SD (TF) card supported
Storage capacity	16GB
LCD	5.0 inch
LCD resolution	800*600
Touch screen	capacitive touch screen
Wifi	supported
Working temperature	-20℃  ~  55℃（14℉  ~  131℉ ）
Storage temperature	-20℃  ~  70℃（-4℉  ~ 158℉ ）
Weight	about 700g
Dimension	140mm*89mm*18mm

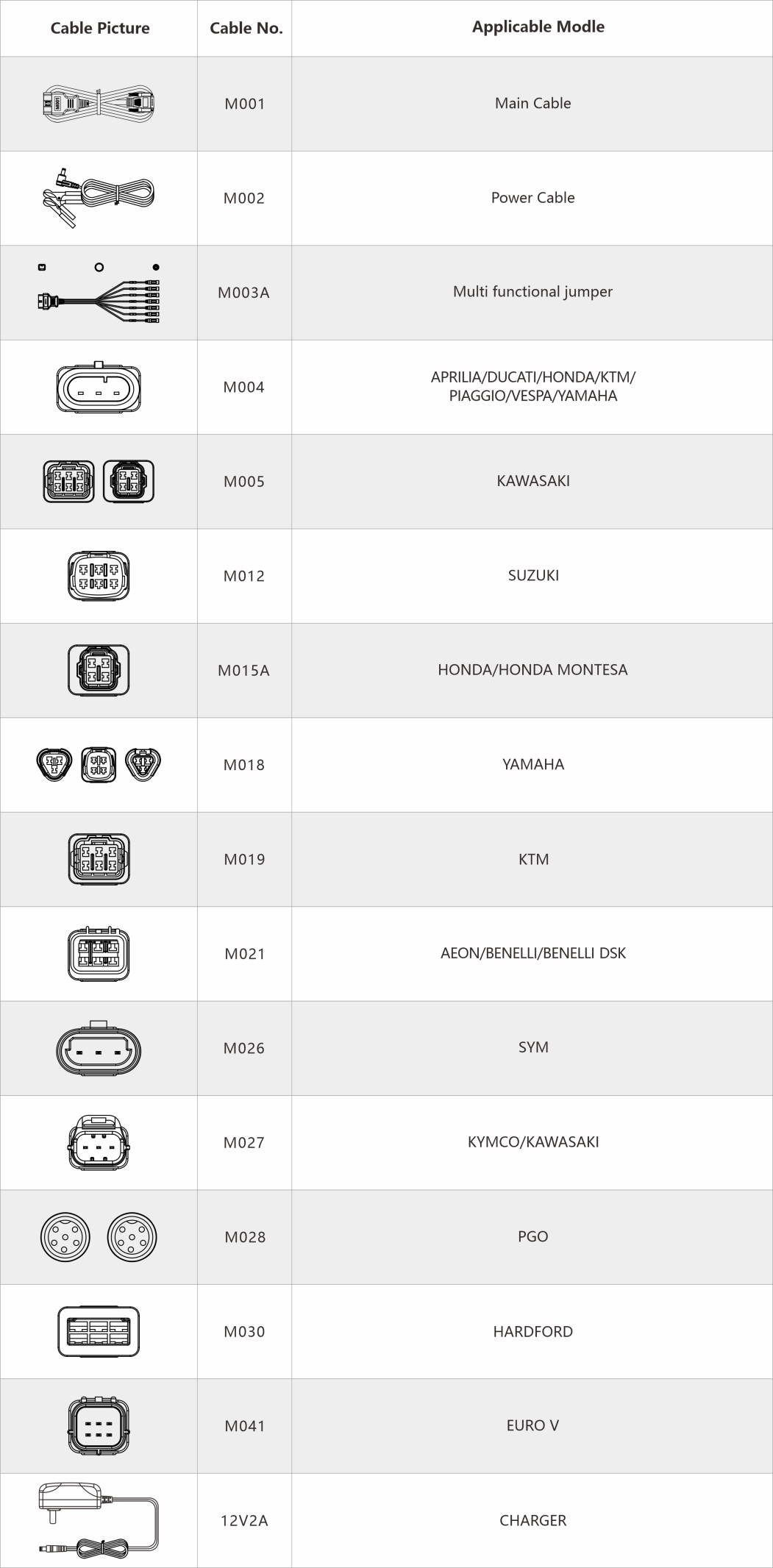

OBDSTAR MS50 Accessories:
