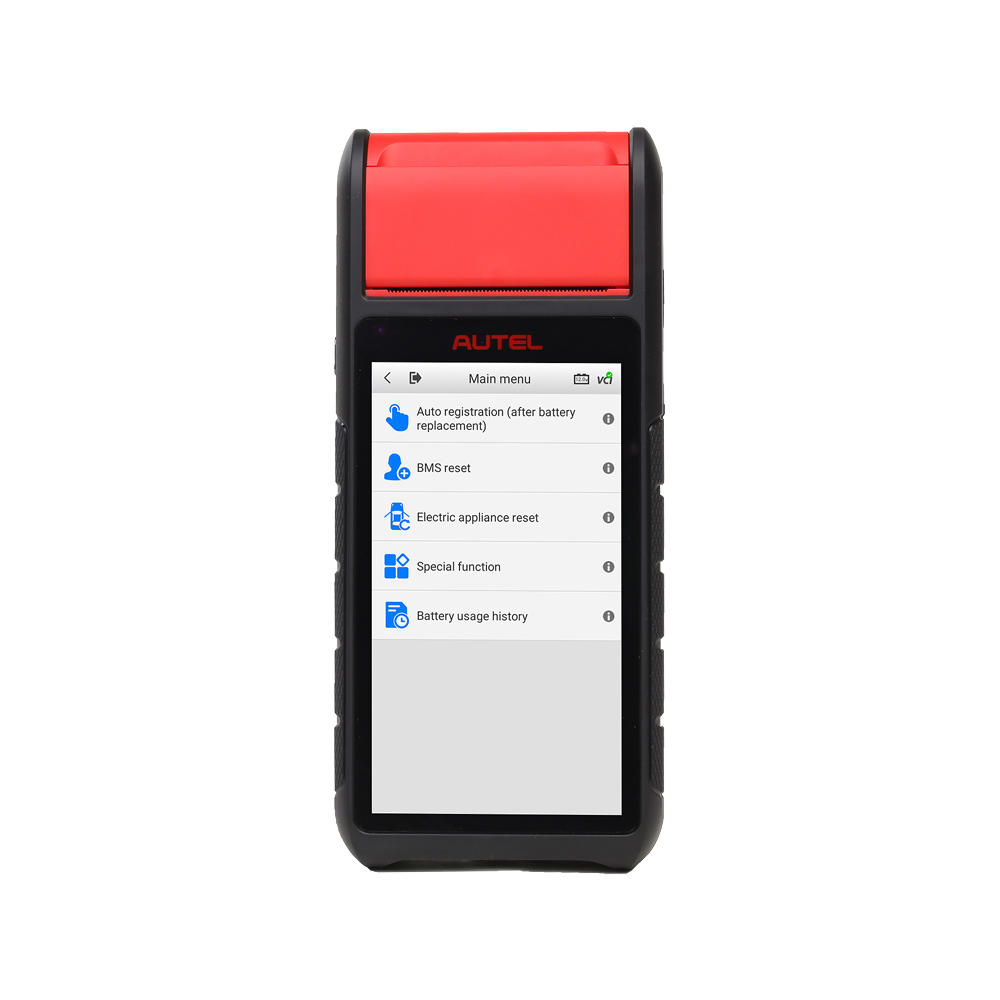

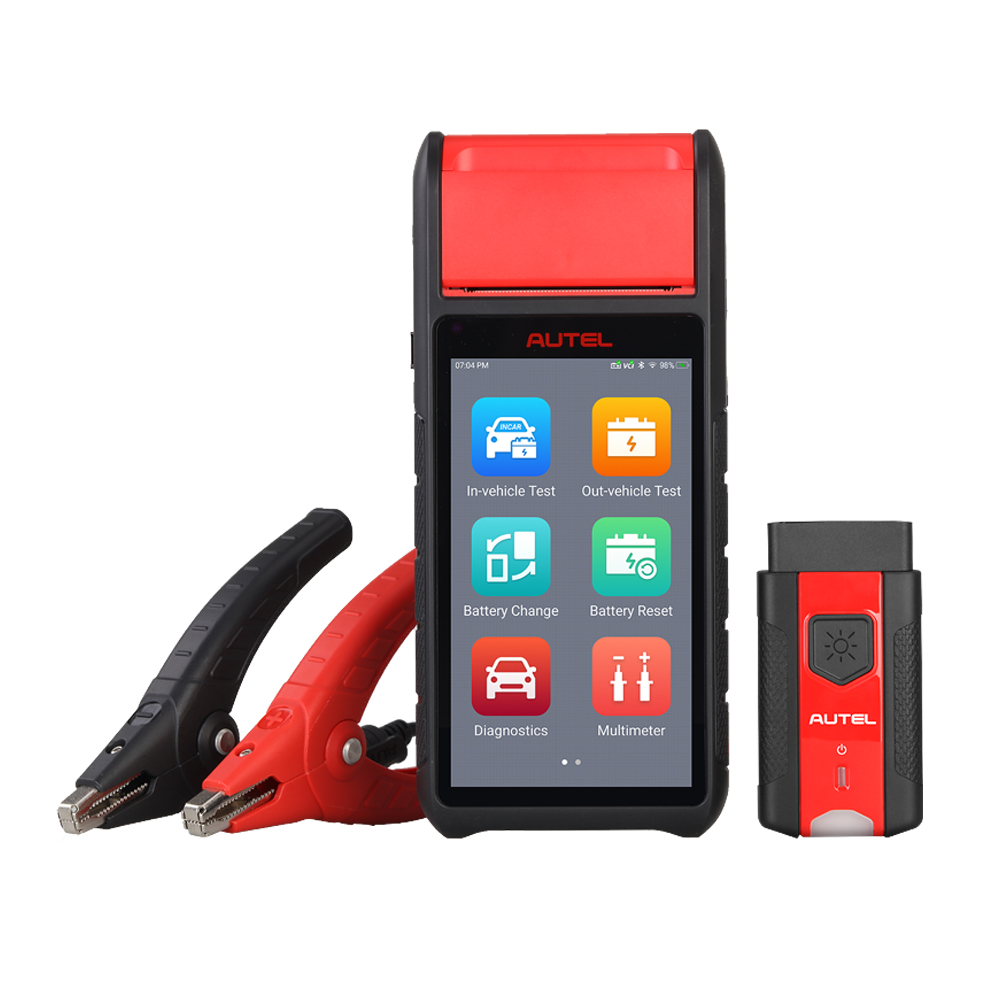

Autel MaxiBAS BT608 Automotive Battery & Electrical System Analyzer Circuit Tester Diagnostic Tool

Download

BT608-Quick-Start-Guide.pdf

BT608-Sales-Flyer.pdf

Autel MaxiBAS BT608 Automotive Battery & Electrical System Analyzer Circuit Tester Diagnostic Tool

Autel MaxiBAS BT608 Video ：
https://www.youtube.com/watch?v=gS6iJARP5JQ&feature=emb_rel_end

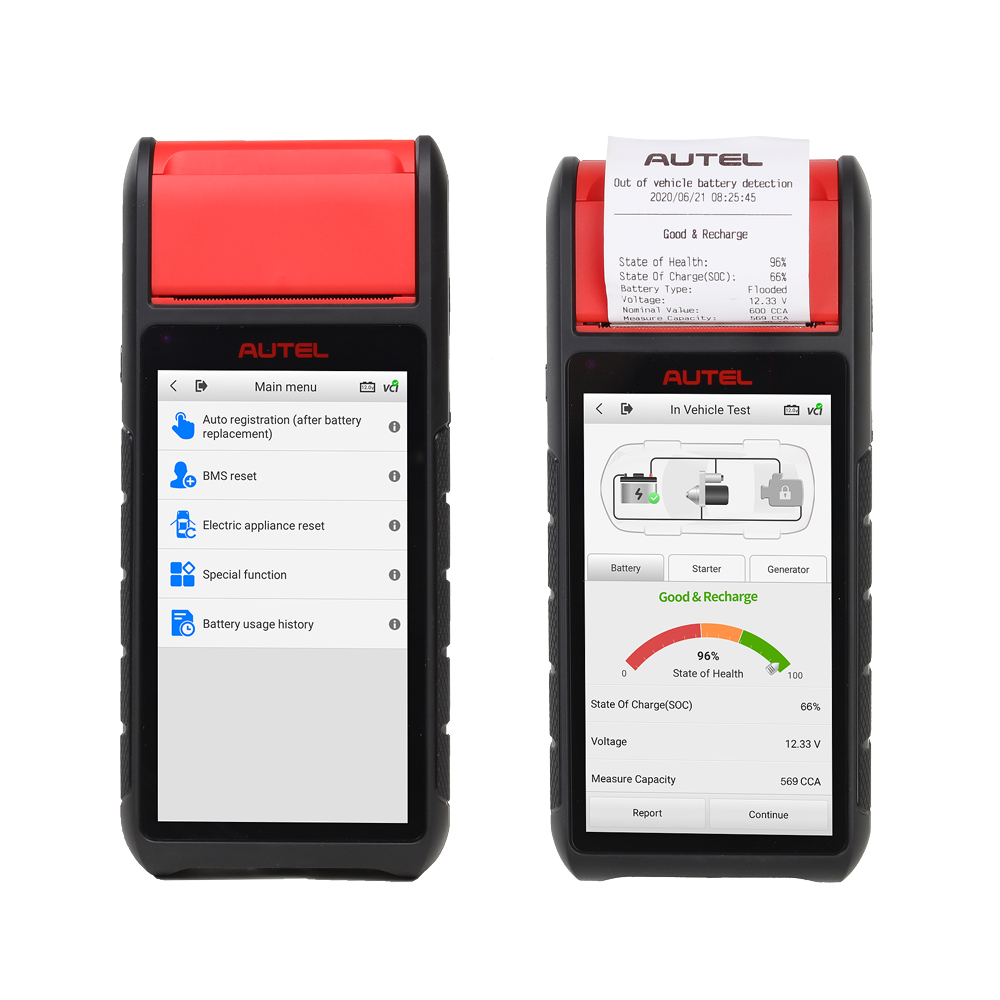

The BT608 is a touchscreen Battery & Electrical System analyzer that applies Adaptive Conductance, an advanced battery analysis method that produces a more accurate examination of the battery’s cold cranking ability and reserve capacity, vital to determining a battery’s true health. The BT608 can display a quick health status of the existing battery, register a new battery and perform advanced battery and electrical system diagnostics. The BT608’s VINscan function enables quick identification of the vehicle and battery specifications. Read/Clear codes on all available vehicles systems. Print or share customized reports via Wi-Fi or print test reports via the built-in thermal printer.

Autel MaxiBAS BT608 Description：
1. Support in-vehicle and out-of-vehicle testing of passenger vehicle batteries
2. Test 6- and 12-volt batteries: 100 - 3000 CCA
3. Test 12- and 24-volt cranking/charging systems
4. Test Flooded, AGM, AGM Spiral, EFB and GEL batteries
5. Compatible with CCA, CA, SAE, EN, IEC, DIN, JIS and MCA
6. One-touch Battery registration
7. Quick display of battery specifications through battery barcode scan, Auto and manual VIN entry
8. Illustration instruction guides for battery positioning and testing
9. Print test reports via built-in thermal printer
10. Read and erase codes of all available systems

Autel BT608 Specifications:
Operating System: Android 9.0
Screen Display: 5.5'' LCD touch screen with 720*1280 resolution
Storage: 32GB
Connectivity: Wi-Fi (802.11 a/b/g/n/ac), USB 2.0 Type C, BT5.0+EDR
Camera: 8 Megapixel
Input Voltage: SV DC
Working Current: < 450 mA at 7.7 V DC
Internal Battery: 7.7 V, 3000 mAh
CCA Range: 100 to 3000 A
Voltage Range: 1.5 to 36 V
Working Temperature: 0° to 50° C (32° to 122° F)
Storage Temperature: -10° to 60° C (14° to 140° F )
Dimension (L x W x H): 204 mm (8.03”) x 90 mm (3.54”) x 32 mm (1.25”)
Weight: 510 g (1.12 lb.)

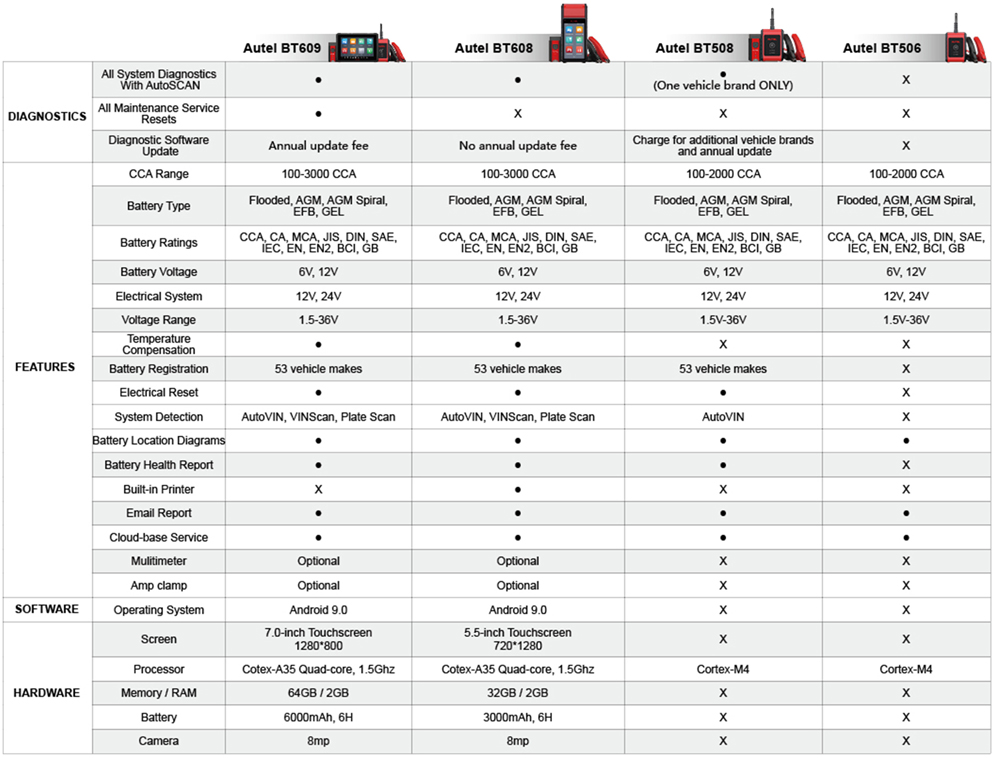

Autel BT608 Comparison:

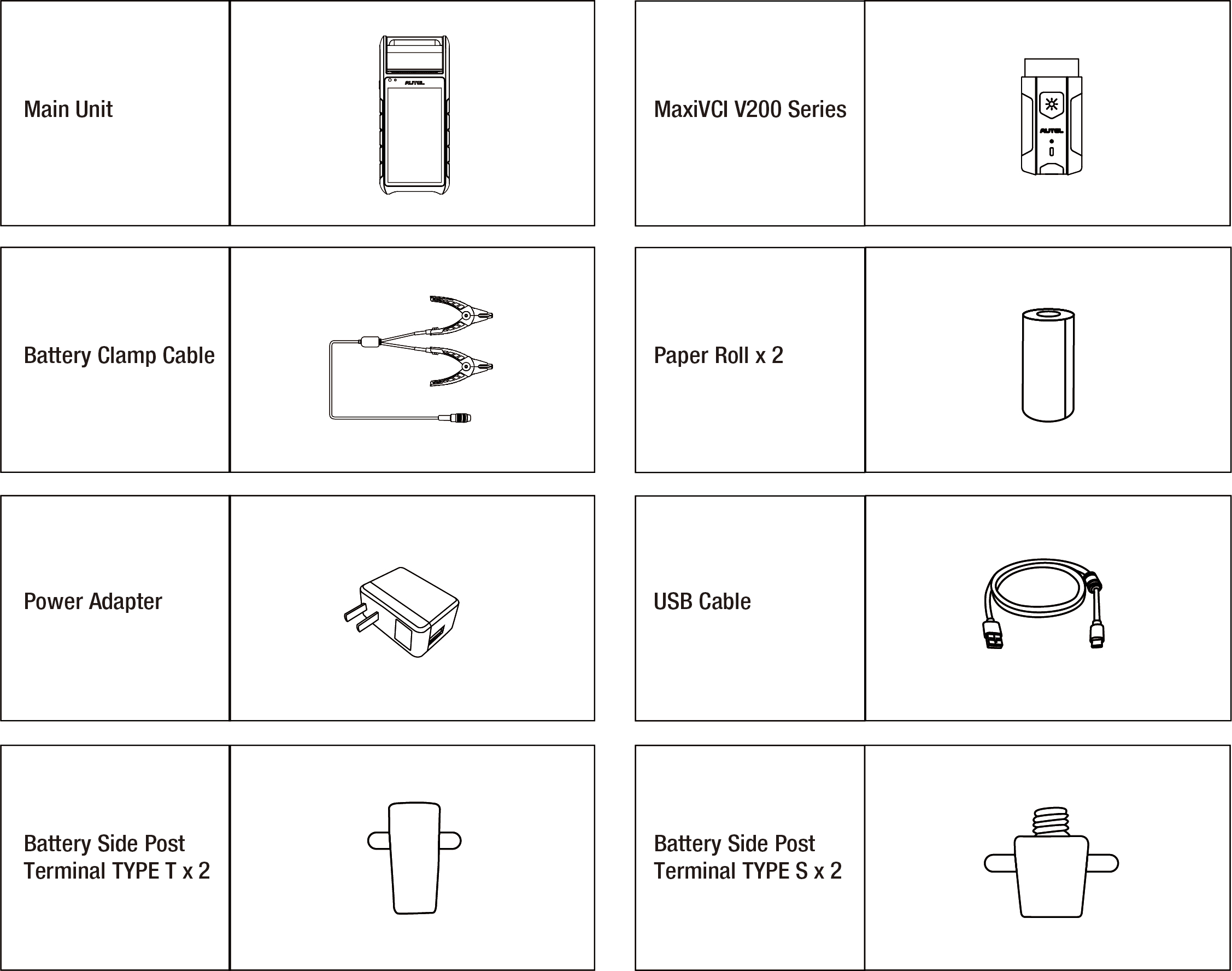

Autel BT608 Package:
1x BT608 Main Unit
1x MaxiCVI MV200 Series

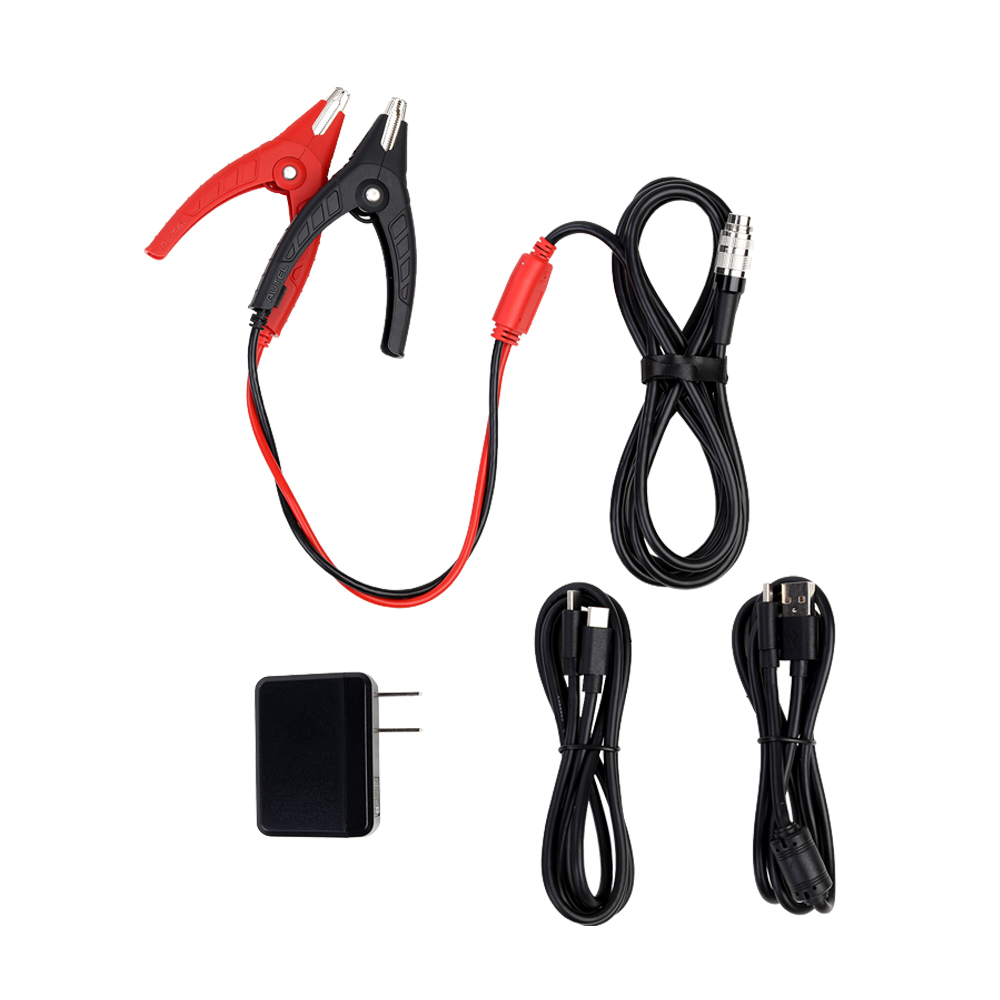

1x Battery Clamp Cable
2x Paper Roll
2x Battery Side Post Terminal TYPE T
2x Battery Side Post Terminal TYPE S
1x Power Adapter
1x USB Cable
