VAS6154A VAG Original Diagnostic Tool for VW Audi Skoda Seat With Latest ODIS V25.03 and Engineering V19.0 Software

VAS6154A VAG Original Diagnostic Tool for VW Audi Skoda Seat With Latest ODIS V25.03 and Engineering V19.0 Software

VAS 6154A is the latest for full system diagnostic and programming interface, which can read and clear code, dynamic data flow, programming, coding, and personalized settings, including maintenance information systems, technical briefings, circuit diagrams, component drawings, diagnostic guidelines, etc.  It can support WIFI and USB Connection, support multi-language, and also can work with 6150 and 6160A.6154 works perfectly with partial win10 models, but not for all.

Note：
1.If you choose option 1,the 6154A does not come with software, customers need to match by their own, as long as the original software, you can use it directly after activation.   But can not use third-party software, such as vxdiag, etc., must be the original factory!

2.If you choose option 2:VAS6154A With Latest Software. pls contact us install the ODIS V25.03 and Engineering V19.0 Software for you remotely, only install one time on one laptop.

Highlights:
1. VAS 6154A Work with original driver, Don't need driver manager
2. With base station/hotspot mode switching button.
3. No third-party device manager software is required
4. VAS 6154A can supports DOIP dignosis
5. Support win 10 pro/ultimat

Support service v9.10/v10.0/v11.0/V23.01/V24.1.1/V24.3+, Support Engineer v14.1/v15.0/v16.0/v17.0.1/18.0/V18.2+

Function:
– Estimated remaining times are shown for ECU flash operations.
– Diagnostic protocol contains interruptions of GFF sessions, extended measurement values, improved ECU communication view,used diagnostic hardware, connection type of diagnostic hardware, operating system, the hotfix used and submissions of support requests
– The measured value display has been improved.
– Documents in GFF are displayed in separate windows.
– One message box will be shown at the beginning of the test drive mode.
– GFF hotfixes can be integrated during diagnostic sessions.
– Danger messages have been revised.
– Stopping of diagnostic sessions may be interrupted.
– Automatic deletion of autosave diagnostic protocols after successful transmission.
– Selection of PassThru diagnostic hardware has been improved.
– Service Software update has been stabilized.

The Following Vehicle Bus Systems are Supported
K line (ISO9141-2)
High-speed CAN (ISO 11898-2)
Low-speed CAN (ISO 11898-3)
J1850 (SAE)

Latest ODIS V25.03 Software:

Latest Engineering ODIS V19.0 Software:

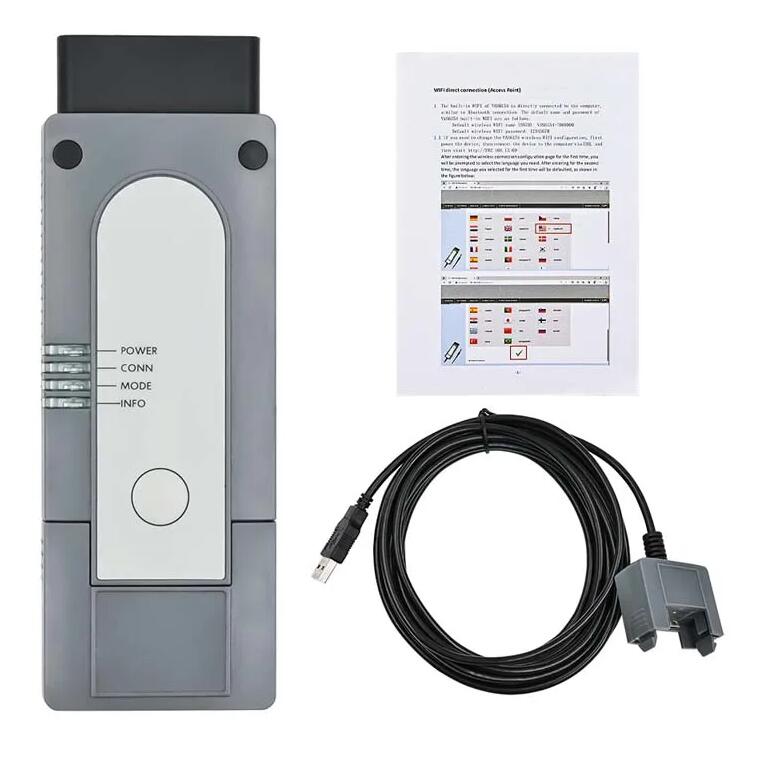

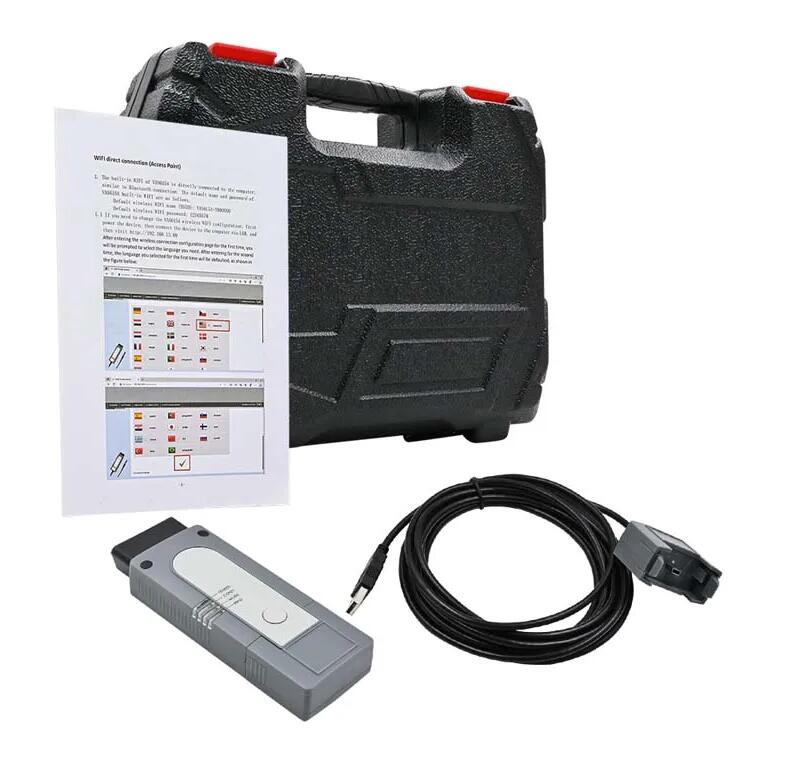

Packing List:
1.VAS6154A + U disk
2.VAS6154A + software installation remotely once (Optional)

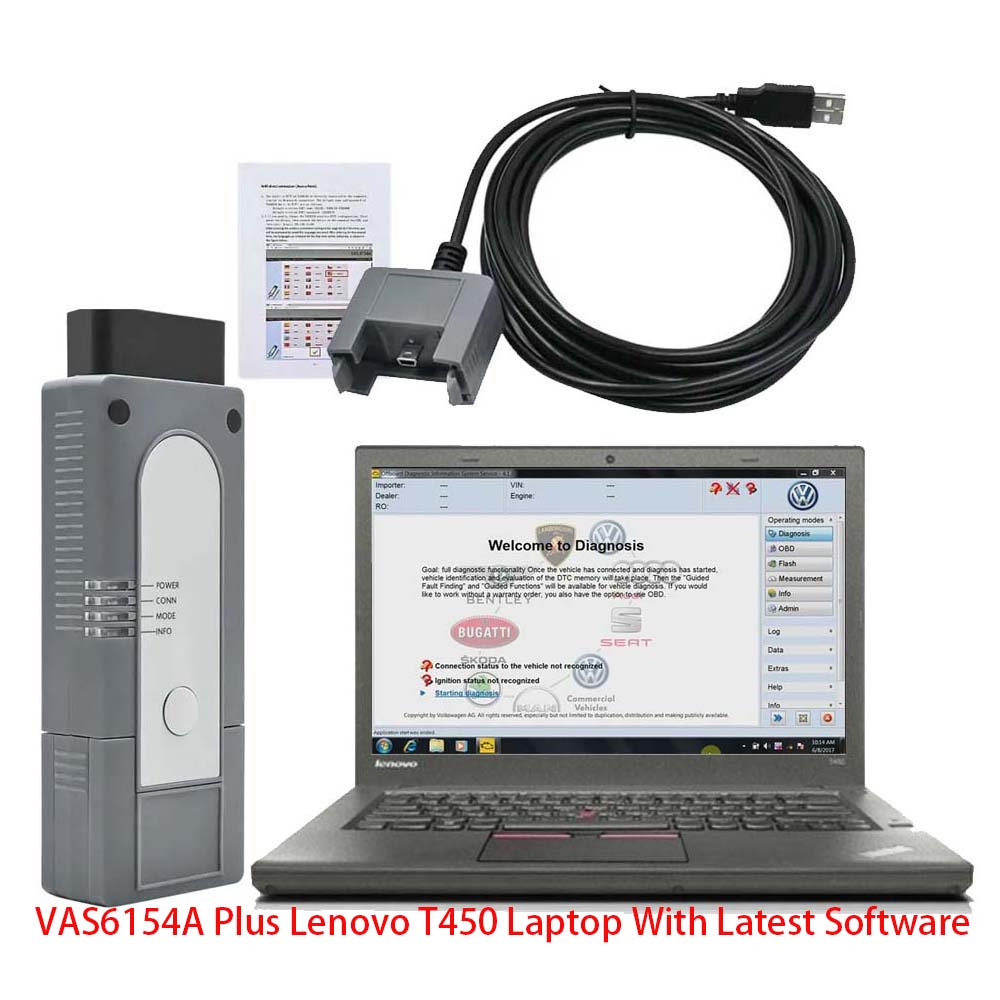

3.The Second hand Lenovo T450 Laptop With Latest Software  (Optional)

Second Hand Laptop Lenovo T450 Laptop with latest software:
Brand:Lenovo
Condition:Used
Type:Laptop/Notebook
Screen Size:14 inch
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory:8GB
256G SSD
