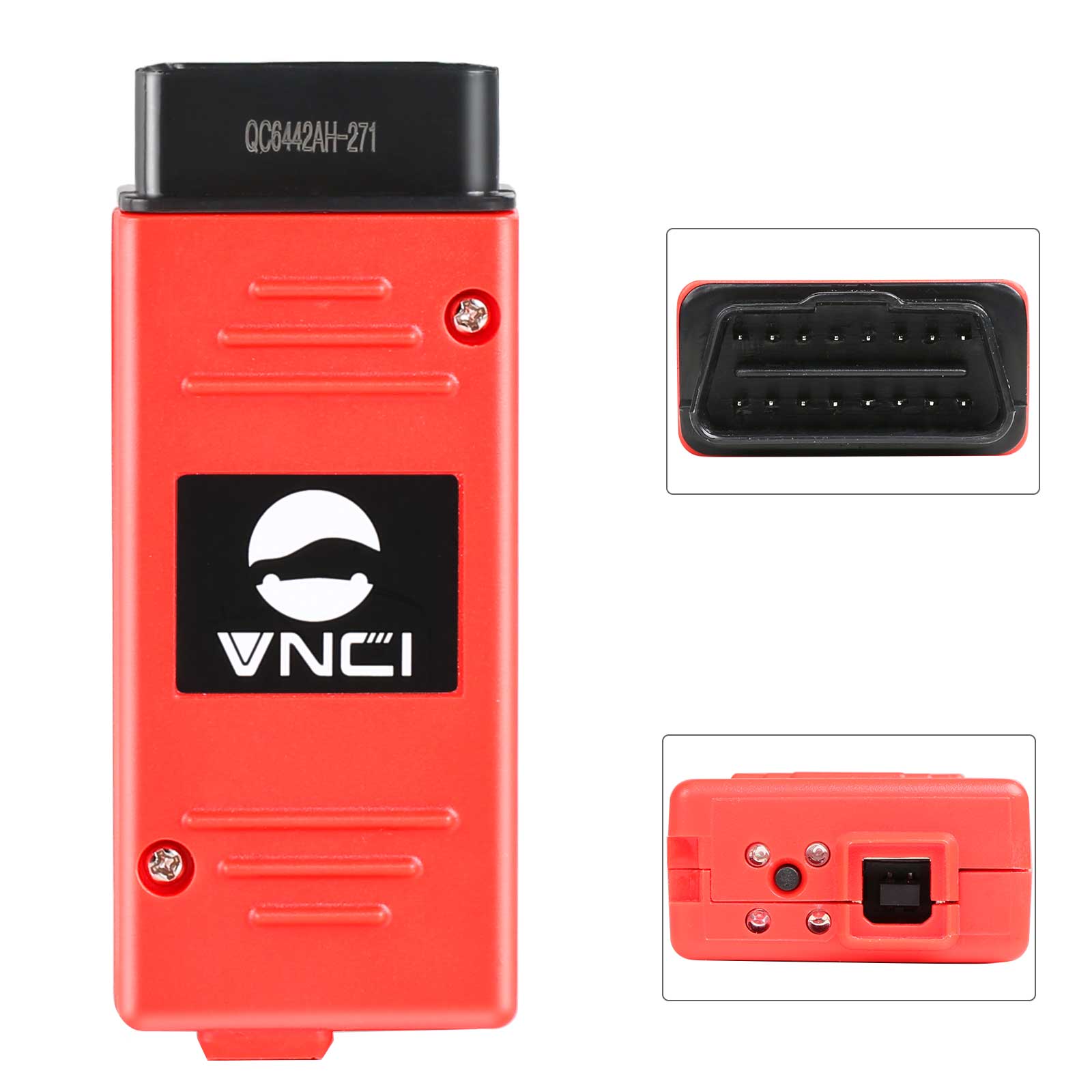

VNCI 6154A VAG Diagnostic Tool with Latest ODIS V25.03 and Engineering V19.0 Software for VW Audi Skoda Seat Support

VNCI 6154A VAG Diagnostic Tool with Latest ODIS V25.03 and Engineering V19.0 Software
 for VW Audi Skoda Seat Support CAN FD/ DoIP

VNCI 6154A Description:

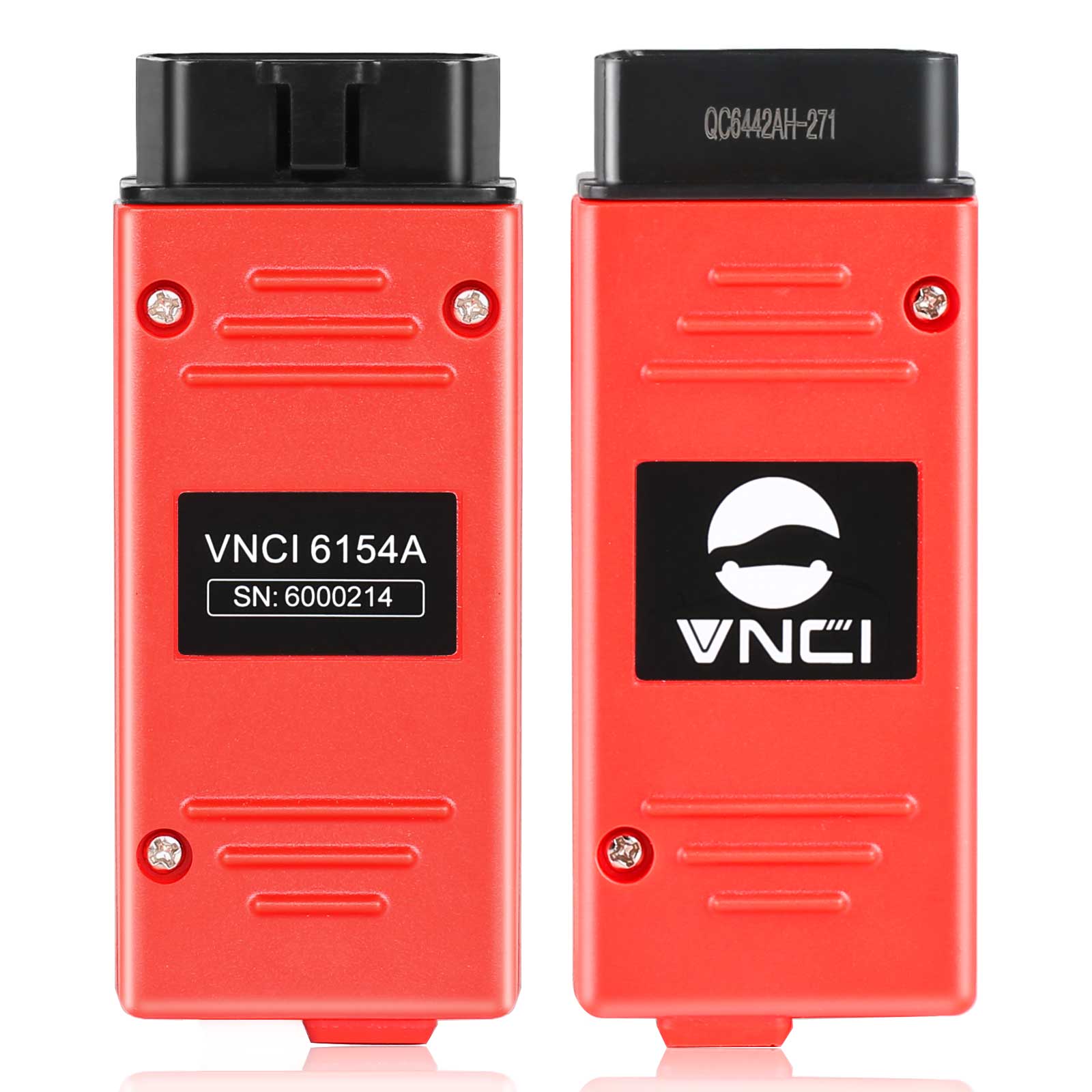

VNCI 6154A is the OEM 6154A Diagnostic Adapter that is compatible with latest ODIS and original drivers of different versions, so you can switch freely without modifying any files. It perfectly replaces VAS 5054A and added CANFD DOIP Protocol. VNCI 6154A is a universal diagnostic interface for the vehicles of the Volkswagen Group including VW, AUDI, SKODA, SEAT, Bentley, and Lamborghini.

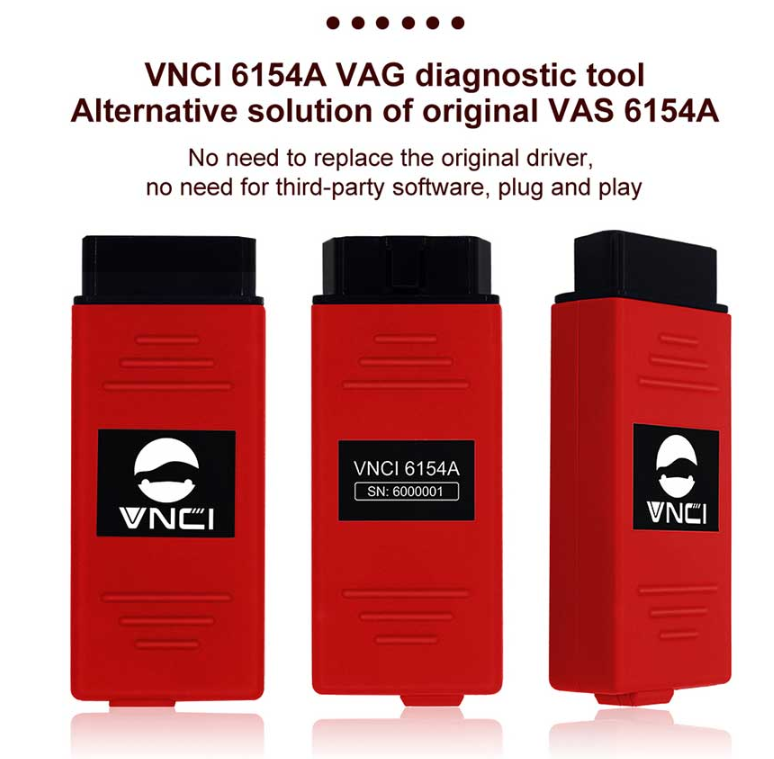

1.VNCI 6154A VAG Diagnostic Tool is the alternative solution of original VAS 6154A
2.Works with original driver, Don't need driver manager.
3.No need for third-party software, plug and play
4.Supports CAN FD and DoIP protocol, works for all VAG Brands from 1995 to 2025
5.Latest Version: ODIS V25.03 and compatiable with ODIS Engineer V19.0

Highlights:
1.  VNCI 6154A Work with original driver, don't need driver manager, no need for third-party software, plug and play
2.  100% support for all original factory function.
3.  With base station/hotspot mode switching button
4.  Software Version: ODIS V25.03 , Compatiable with ODIS Engineer: V19.0
Hardware Version: 1.1.2.8.  Newly add the CAN trace function and more stable for USB connection
5.  Support DoIP, CAN FD protocol
6.  Free license till year 2030
7.  Covering all Volkswagen Group models from 1995 to 2024 and beyond
8.  Full Multilanguage edition covered 22 languages:  English (GB), English (US), French (FR), German (DE), Spanish (ES), Russian (RU), Greek (GR), Danish (DK), Croatian (HR), Italian (I), Hungarian (HU), Netherlands (NL), Polish (PL), Portugal (PT), Romanian (RO), Slovenian (SLO), Finish (FI), Swedish (SW), Turkish (TR), Czech (CZ), Japanese (JP), Chinese (CN), Korean (KO).

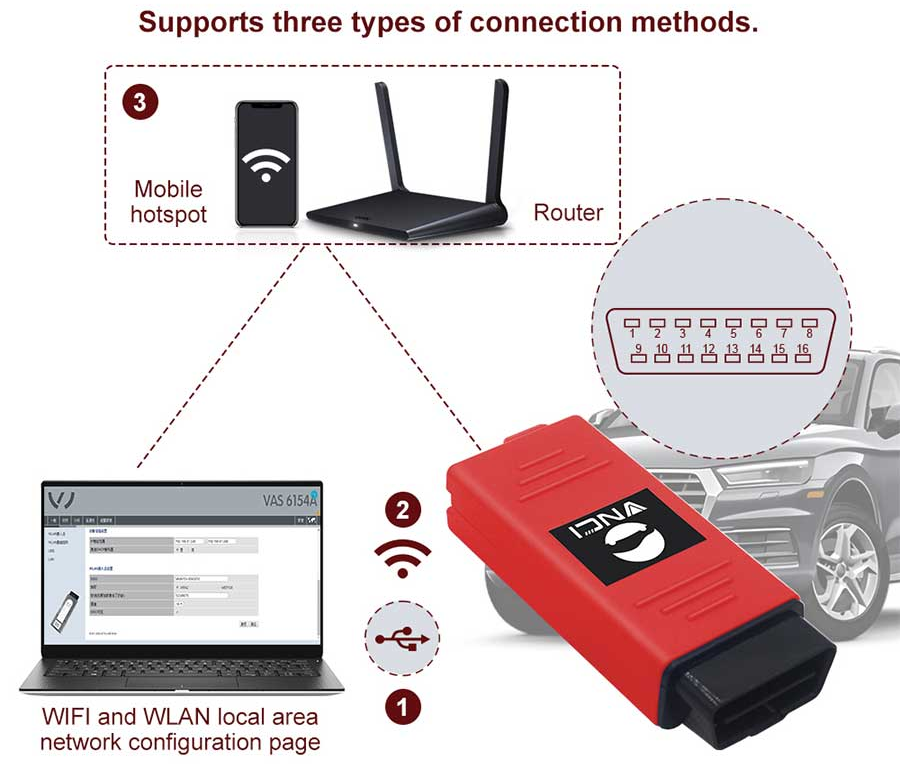

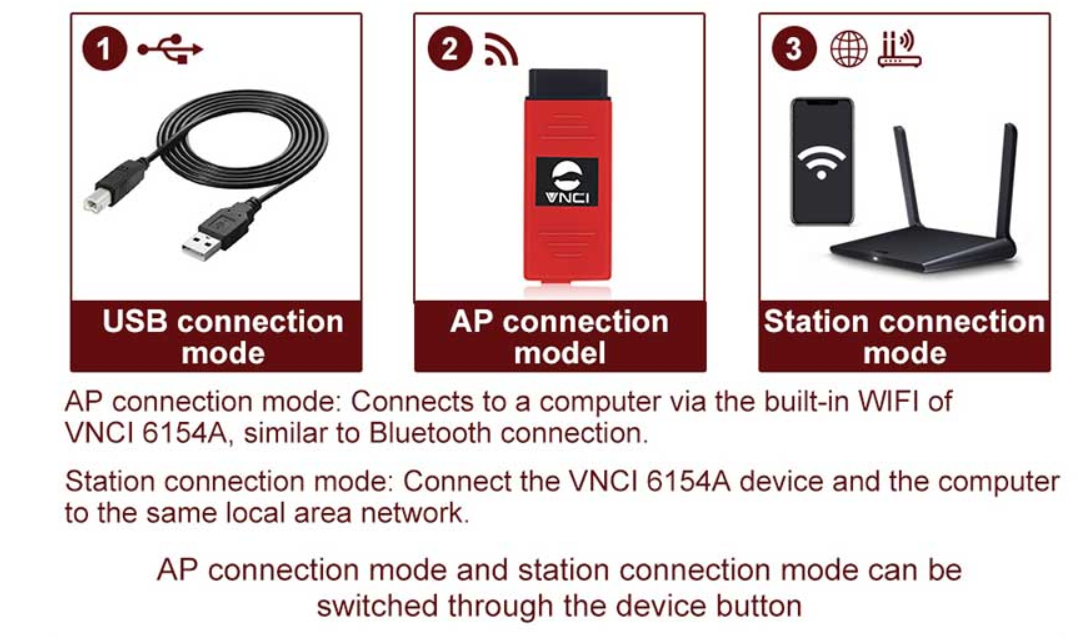

9.  Three connection methods to adapt to various scenarios
USB Connection Mode: Connect via the USB cable.
AP Direct Connection Mode: Connects to a computer via the built-in WIFI of VNCI 6154A, similar to Bluetooth connection.
Base station Connection Mode: Connect the VNCI 6154A device and the computer to the same local area network.
AP connection mode and station connection mode can be switched through the device button.

Notice:
1. Please install on Windows 10(64 bit), 4GB of memory or above, and make sure your C:/ Driver has 50GB space.
2. VNCI 6154A is not a J2534 Passthru because it is loaded with newer version Firmware.
3.Free Software Download:
VNCI 6154A Driver Download Password: 3333
4. Default Wifi Password: 12345678

Product	Vehicle tested	ECU model	Protocol	ODIS S 11	ODIS S 23.0.1	ODIS E 17.01
VNCI 6154A	2007 AUDI A6	MED9.1	KWP2000	√	√	√
	2005 VW Caddy	EDC16U1	KWP2000	√	√	√
	2007 VW Passat		CAN BUS	√	√	√
	2017 VW Passat	SIMOS 18.3	CAN BUS	√	√	√
	2008 Audi A6	SIMOS 6.22A	CAN BUS	√	√	√
	2008 VW Passat	MED17.5	CAN BUS	√	X (Support OBD Scan)	√
	2008 AUDI A6	SIMOS 8.10	CAN BUS	X	X	√

Product Functions:
Online function
Clear fault codes
Flashing of hidden features
Coding and programming
Covering most of the models under Volkswagen Group's automotive brands
Support ODIS service V9.10/V10.0/V11.0+/V23.0.1/V24.1.1
Support ODIS Engineer V14.1/V15.0/V16/V17.01+/V18
100% Support DoIP protocol
100% Support CAN FD protocol
Support KWP2000/UDS/CAN/K-Line......etc protocol
100% support all protocols
Vehicle diagnosis
Online/Offline programming
Flashing of hidden features
Support all ODIS service and ODIS engineer function
etc......

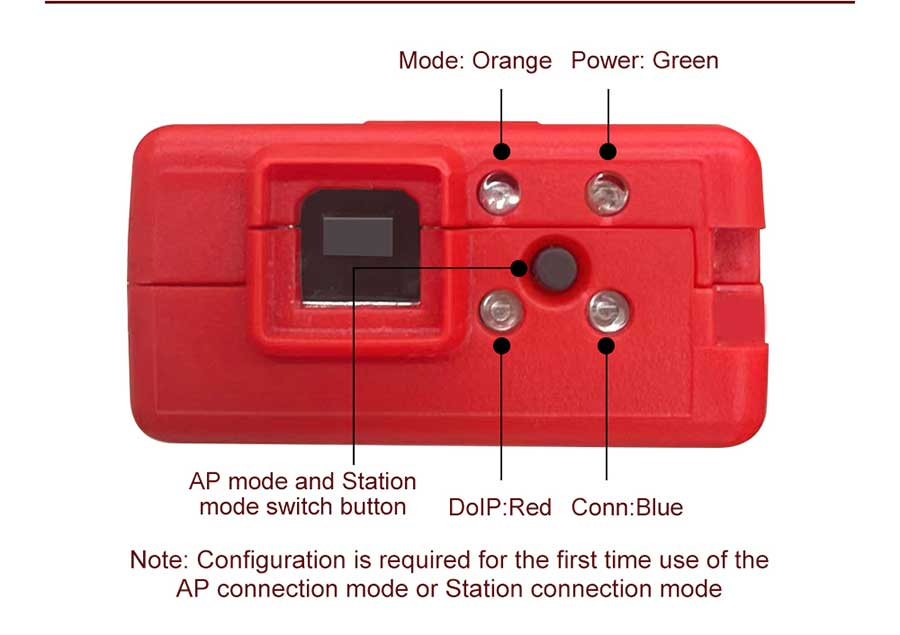

LED light instructions:
Orange: Mode
Green: Power
Red: DoIP communication
Blue: Connection status
Button: AP connect mode and Station connect mode switch button

New Type SVCI 6154A (Red VNCI 6154A) Fixed some bugs:
1.Fixed that Interface heats up after long time use (lost firmware)
2.Fully Supported CAN FD and Doip protocols
3.Compatible with Oiginal ODIS all versions driver(Old 6154 only compatible with Original V25 ODIS Driver)
4.Upgrade to support ODIS-S v9.10/v10.0/v11.0/V23.01/V24.1.1/V24.3+ and ODIS-E v14.1/v15.0/v16.0/v17.0.1/18.0/V18.2+
5.Directly use with ODIS and no need Driver Manager

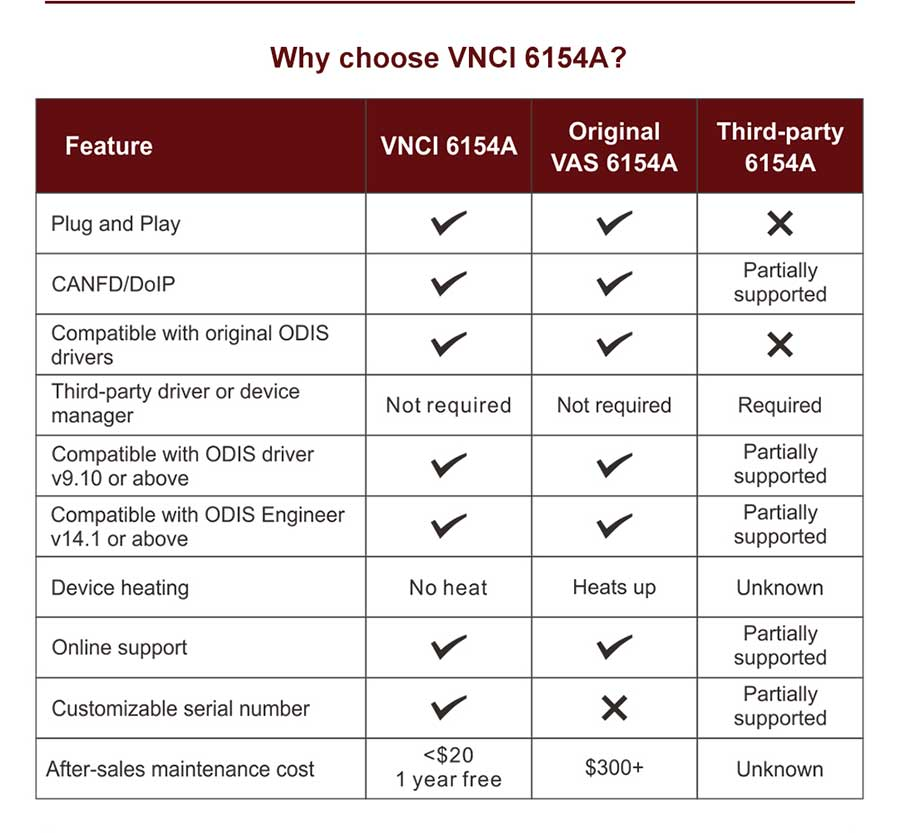

Why should we choose VNCI 6154A ?
1. DOIP 6154 can supports DOIP diagnosis, especially it can do 2018 to 2024 new cars,
2. DOIP 6154 supports more protocols than the old 6154.

Usage Recommendation:
The original ODIS service or ODIS engineer software must be installed original software
The original driver can not be replaced, and third-party ODIS driver can not be installed

VNCI 6154A Power Supply Methods:
OBD port 12 power supply
USB port 5v power supply

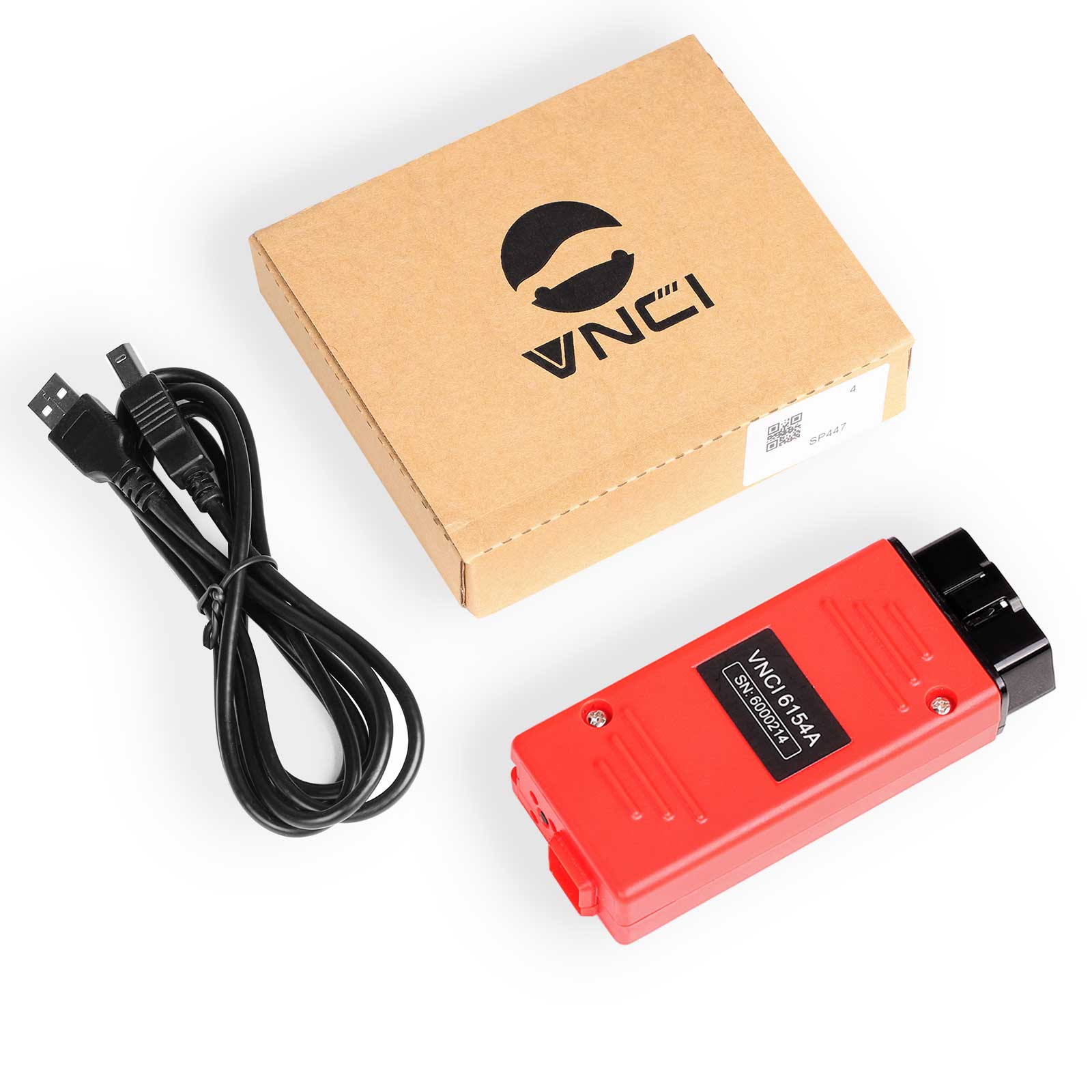

Package Includes:
1pc x VNCI 6154A
1pc x USB Cable
1pc x Paper Box
