VCP VAG CAN PRO V5.5.1 Professional Diagnostic Interface For VW/Audi/Seat/Skoda

VCP VAG CAN PRO V5.5.1 Professional Diagnostic Interface For VW/Audi/Seat/Skoda

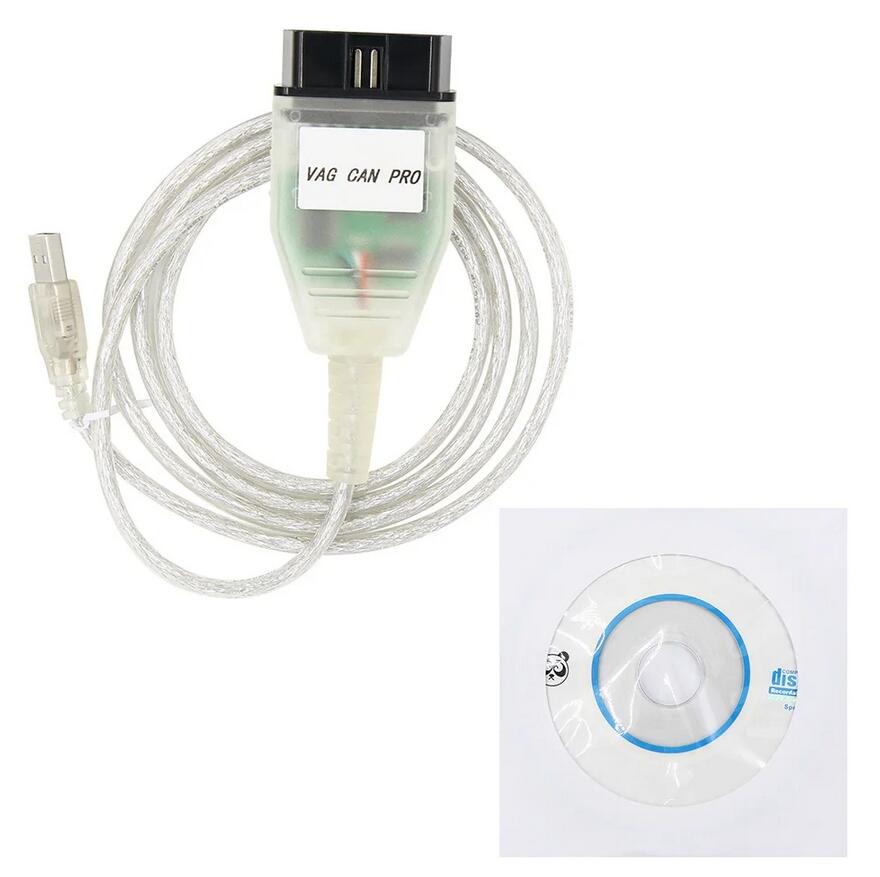

New VAG CAN PRO V5.5.1 with FTDI FT245RL VCP VAG CAN PRO OBD2 Diagnostic Interface USB Cable Support CAN BUS UDS K Line Works for AUDI/VW/SEAT/SKODA

Warm Tips:

Operating system: Windows 7 32bits/10 64bits/11 64 bits

1.  There are two types of our products, one with a Encryption Dog and one without.  Please choose to purchase according to your needs.

2.  VAG PRO support CAN BUS + UDS + K-Line for diagnostics and programming of electronic components used in vehicles for VW, for Audi, for Seat, for Skoda, made from 1990 to 2015.

3.  New in Version 5.5.1, V5.5.1 is the correct version, if the version you downloaded is V6.2, you will not be able to use the software.

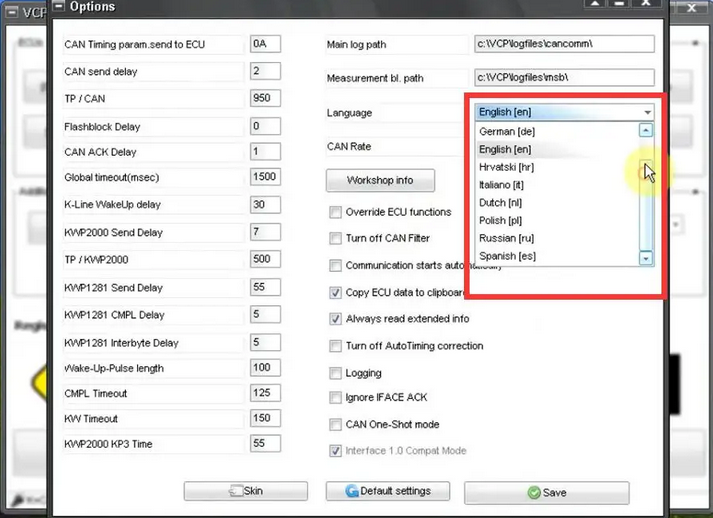

4.  Language: English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish, Chinese.

5.  The software contains plug-ins, so the computer anti-virus software will prompt that the software contains viruses, please close the anti-virus software before installation.

6.  VAG CAN PRO do not support for VAG other software!!!

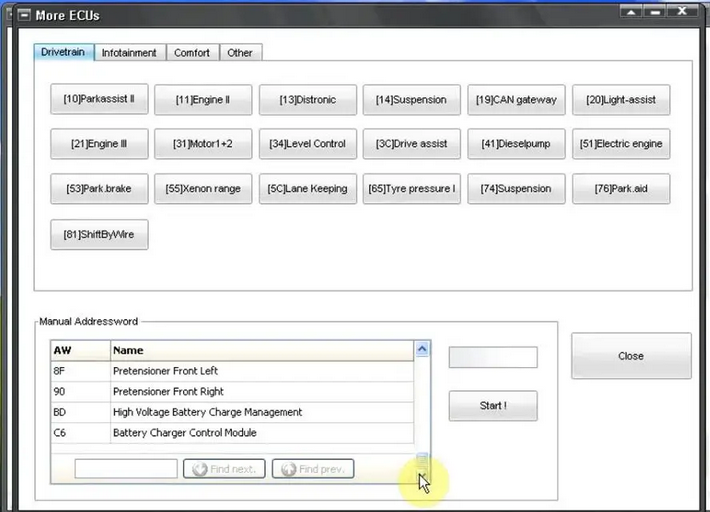

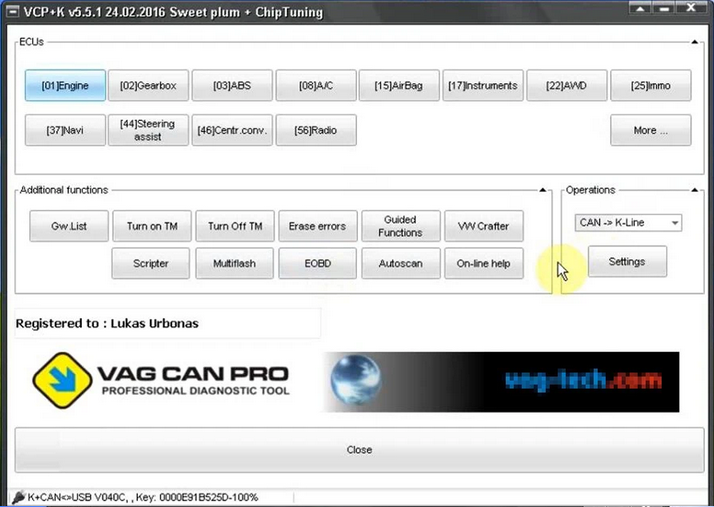

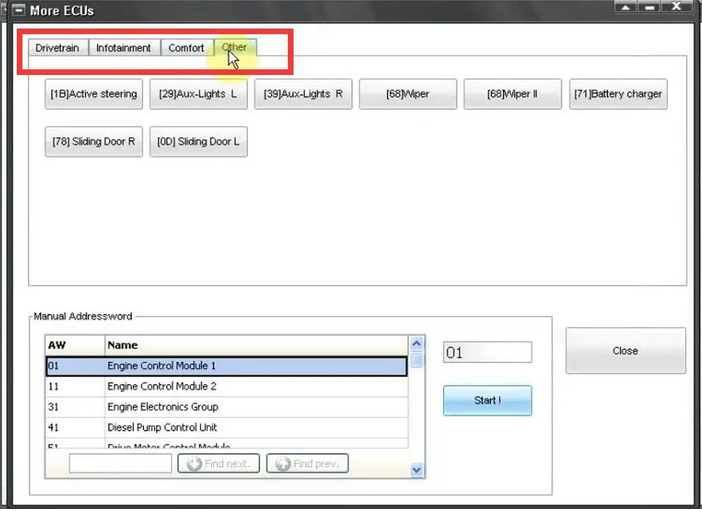

Vag Can Pro V5.5.1 Diagnostic Cable Software Display:

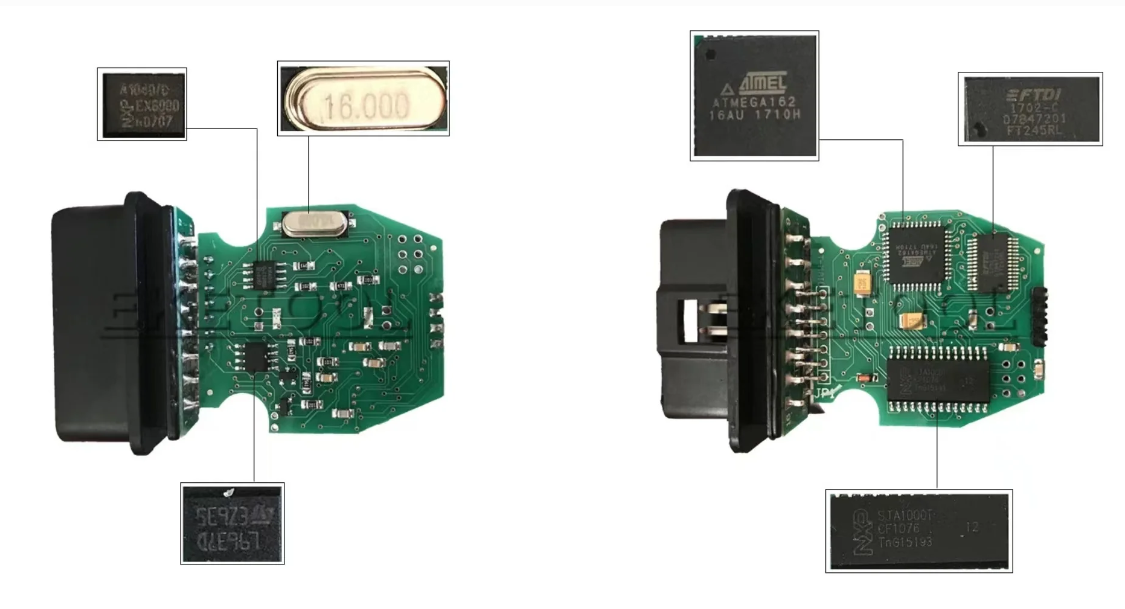

VAG CAN VCP PRO V5.5.1 with FTDI FT245RL Chip:

VAG PRO support CAN BUS + UDS + K-Line for diagnostics and programming of electronic components used in vehicles for Volkswagen, for Audi, for Seat, for Skoda, made from 1990 to 2015.

Main Features of VAG PRO:

* Unique features OCLF service procedures (One-Click-Function);

* inexpensive flasher for VAG;

* inexpensive flasher with support UDS controllers;

* ZDC-loading containers in the electronic components;

* Unlock video in motion (VIM)

* Coding controllers for PR-codes;

* "Login finder" - allows you to scan and logins in the CAN controllers UDS;

* Support for the new Polo in 2014 Facelift;

* Support for the new Passat B8;

* Full support of Audi TT-3 on the platform of the IBC;

* Full support for Skoda Fabia III



New in Version 5.5.1:

Support for new addresses entered in the MLB-Evo platform

Update database-ODX (support for all models 2015)



Major Changes in the PR encoder:

1.   Now it is possible to keep PR codes of a file

2.   PR-self-sustaining encoder may select codes known as PR-analysis of current data stored in the ECU

3.   You can compare the data stored in the ECU against the calculated data, and choose what you want to download.

3.   OCF "Activating automatic folding mirrors", the problem is illuminated space around the machine solved - Thanks Ciamardo / vcp-forum.de

4.   The new team in the Scripter: GetCardSerial, returns the current smart card number.   You can 6.   Updated database DTC- Fixed problems with parameterization 7N0 cameras

7.   Fixed problems with parameterization 5M0 ......   F AFS modules

8.   OCF new section called "Apps", which is: Download the parameter data, coding for PR-code, programmer Wabco, BCM, and so forth programmer..

9.   The new procedure OCF "FlashFile Dumper" - can extract content from Flash files (* .SGO, * .FRF, * .ODX) in a binary dump.   Note: The source data format is not changed, * so that if a Flash file kriptovat and compressed, the binary file will be the same.

10.   Fixed an issue in the Gateway Sheet MLB-EVO (B7 II, A4 B9) - not all ECU were available
11.   Updated database of error codes (added more than 200 new codes, including the MQB / MLB-EVO platform)

12.   New Firmware v.1.1 for interfaces (04.0D / 02.04) v.2.0 (0A.  04 / 0B.04) to support new protocols (TCP-IP) used on the MLB-EVO platform

13.   Fixed a connection problem with the address 46 (room unit) on the MLB-EVO (B9 A4 / Q7 4M) platform

14.   OCF Disable Start-Stop system is now supported PQ26 platform (Polo 6C, Fabia III, etc.)

15.   Reduced time delays during the loading of large data blocks in the non-flash modes.

This contributes to a more stable connection when connected directly to the ECU (Direct Connect), popular among fans VAG.



Supported Cars:

1.  For Audi

A2 2009-

A3 8P 2003-

A3 - platform MQB-

A4 model 8E wariant B7 (Engine, transmission, airbags, ABS, park) 2005-

A4 model 8K wariant B8 (UDS + TP2.0) 2008-

A5 model 8K (UDS) 2007-

A6 model 4F 2004-

A8 model 4E 2003-

Q3 (UDS) 2010-

Q5 (UDS) 2008-

Q7 (TP2.0 + UDS) 2006-

S5 model 8K

(R)S6 model 4F

R8 (UDS)

TT model 8J 2007-



2.  For Mercedes

For Sprinter (VW Crafter) - - Only the engine and immobilizer



3.  For Seat

For Altea

For Leon MQB 2013-

For Leon model 1P 2005-

For Toledo model 5P 2004-

For Exeo 2008- (Engine, transmission, airbags, ABS, park)



4.  For Skoda

octavia model 1Z 2004 -

octavia platform MQB -

superb II B6 2008-

fabia model 5J 2007-

yeti 2009-



5.  For Volkswagen

For Crafter (immobilizer, engine)

For Caddy model 2K 2005-

For Eos

For Golf V model 1K

For Golf VI model 5K

For Golf VII platform MQB

For Golf Plus

For Jetta II model 1K

Transporter / Multivan (Only after the CAN-BUS drive for storing data)

Multivan/Transporter GP model 7E (UDS) 2009-

For Passat B6 model 3C 2005-

For Passat CC-

For Phaeton GP 2007-

For Polo model 6R 2009-

For Polo FL MQB 2014-

For Scirocco III-

For Touran-

For Tiguan-

For Touareg GP 2007-

For Touareg NF 2010



6. K-line ( KWP1281, TP/KWP2000)

For VW Golf III, IV

For VW Passat 3B

For VW Bora

For VW Transporter T5

For VW New Beetle

For VW Polo II,III,IV

For Skoda Octavia I

For Skoda Fabia i i II

For Seat Leon I

For Seat Toledo II

For Seat Alhambra

For Seat Ibiza II, III, IV

For Audi A2,A3,A4,A6 K-Line



Notes for Audi A4:

1. Option A4 8E B6 model

This model has a can-bus (TP1.6), but it is not connected to the diagnostic socket. The car is fully diagnosed on the K-line (VCP required interface + K). Used protocols KWP2000 and KWP1281 it.



2 .Model A4 8E, B7 option

This model has a CAN BUS TP2.0, but the diagnostic socket is only connected to the so- called CAN-Antrieb, i.e. Engine, transmission, airbags, ABS, Quattro drive.

In addition, a standard K-line. In other words, VCP fully supports the diagnosis B7 models, but only in the CAN-Antrieb. Other controllers are available through the K-Line and KWP2000 KWP1281 protocols.



How to install the program of cable without USB dongle?

1. copy files from disk to your computer.

2. extract the zip files.

3. plug cable into computer , you will see the cable light , and install driver.

if you use win xp system, the driver will be automatically installed.

if you use win 7 32 bits system, please install this driver

if you use win 7 64 bits system, please install this driver"

4. after installed driver, run

5. wait a few seconds, it will appear software Interface. Then you can choose the function you want to diagnose.



Question&Answer:

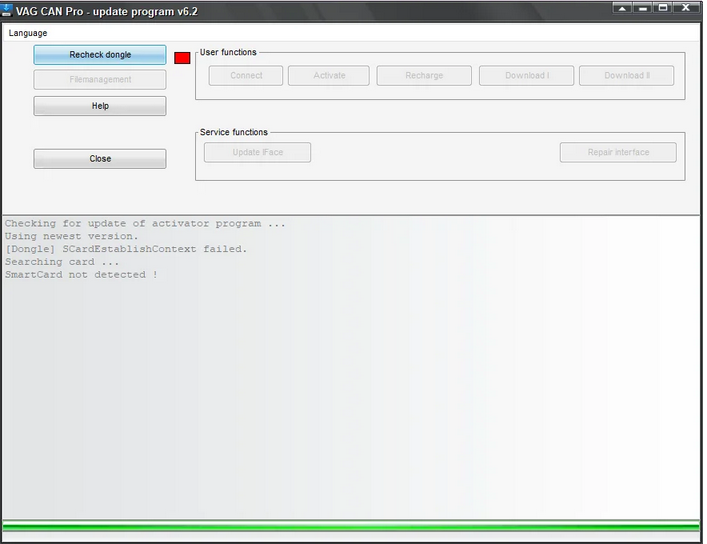

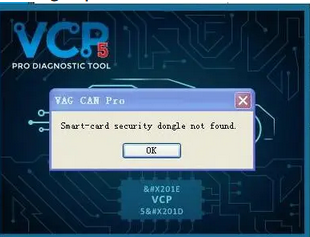

Q1. I bought the cable without USB dongle, after I install the program, then run program, Why it has such tips?

A1: please check whether you have install the driver or not. if finish to install the driver, please directly run "vagcanpro.exe" this file.

Q2:the programmer is not working,why?

A2:It is VCP 5.5.1,not VCP 6.2,please contact with us to get video about how to install.

What's the Difference Between VCP VAG CAN Pro and VCDS Cables?

VCP VAG CAN PRO VS. VCDS
Item name	VCP VAG CAN PRO	V*CDS HEX-V2
Software version	V5.5.1	Latest version
Supports Language	English, Czech, Danish, German, Hrvatski, Italian, Dutch, Polish, Russian, Spanish, Chinese	English, French, German, Chinese, Russian, Italian, Czech, Hungary, Spain, Portugal, Sweden, Netherlands,(Need to use loader to run other languages except English)
Supports System	Windows XP and Windows 7	Windows 7 or Newer
Supports Vehicle	V-W, A-udi, for Seat, for Skoda	V-W, A-udi, for Seat, for Skoda etc.
Car Year	1990-2015	1999-The lastest
Feature	with USB Dongle/without USB Dongle	support update online lifetime no need activation need loader
Functions	1. ESP MK60EC1 decision coding blocks 2. Diagnosis MQB platform 3. Unlock video in motion (VIM) on the MQB platform (Discover Pro and MMI-MQB) 4. Coding controllers for PR codes; 5. Scan and logins in to the CAN controllers UDS 6. Support for the new Polo in 2014 Facelift 7. Support new Passat B8 8. Full support of A-udi TT-3 on the platform of the IBC 9.Full support for Skoda Febia III	1. Gain factory-level access to all systems in cars 2. Scan for and clear DTCs with 19,000+fault codes decoded into plain text. 3. Alter settings through module coding accessible only by factory-level tools 4. Perform various country-specific modifications to your car 5. Reset service reminder 6. Perform built in tests and calibrations normally reserved for factory-level tools 7. Diagnose real failures instead of swapping parts!

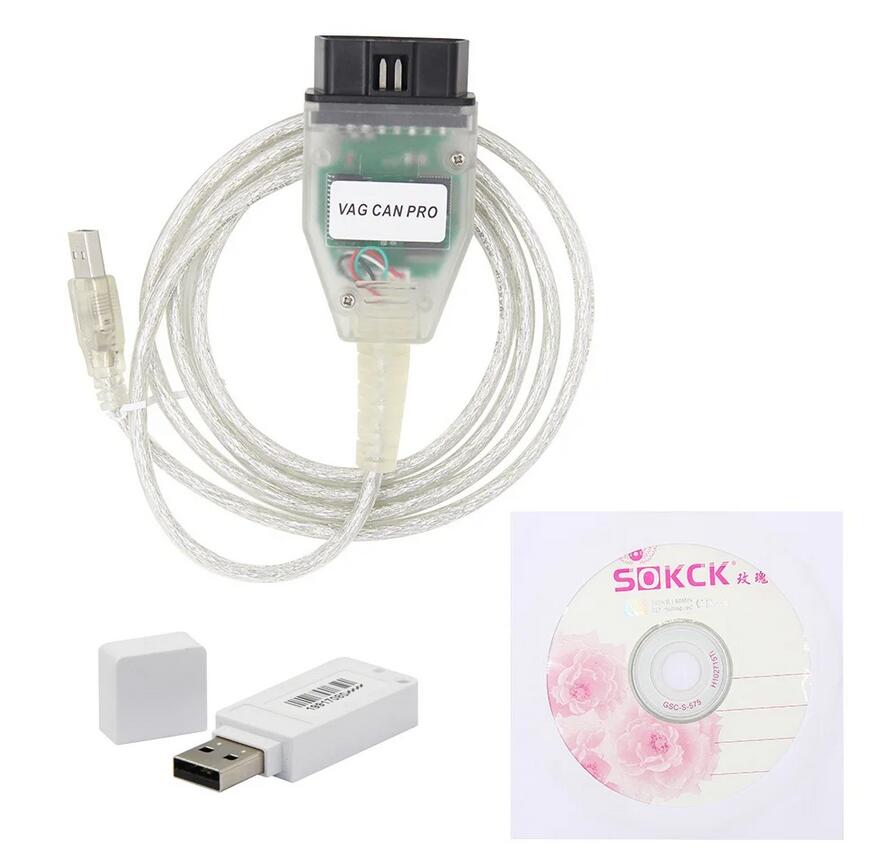

Packing List

1pc x VAG PRO

1pc x Encryption Dog

1pc x CD
