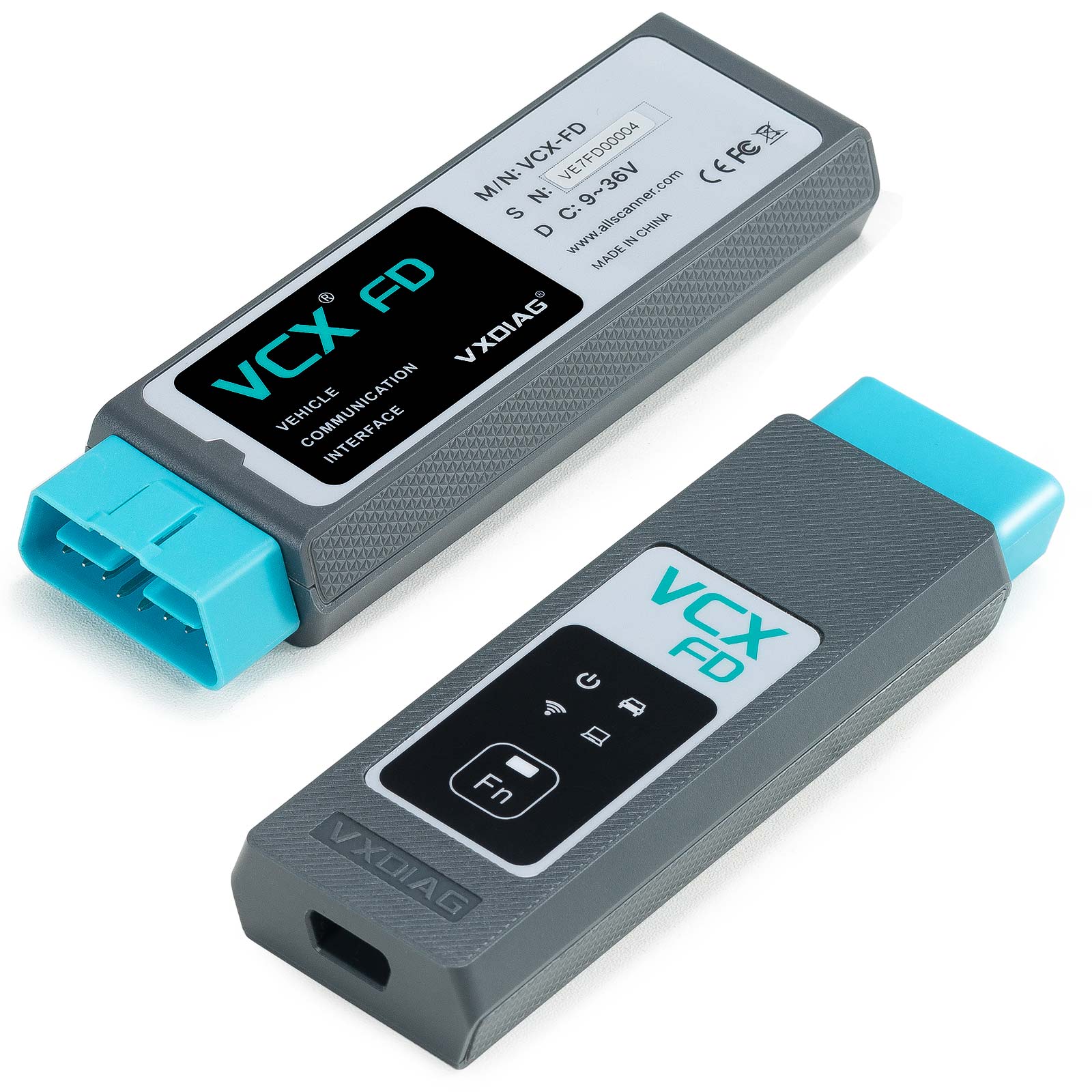

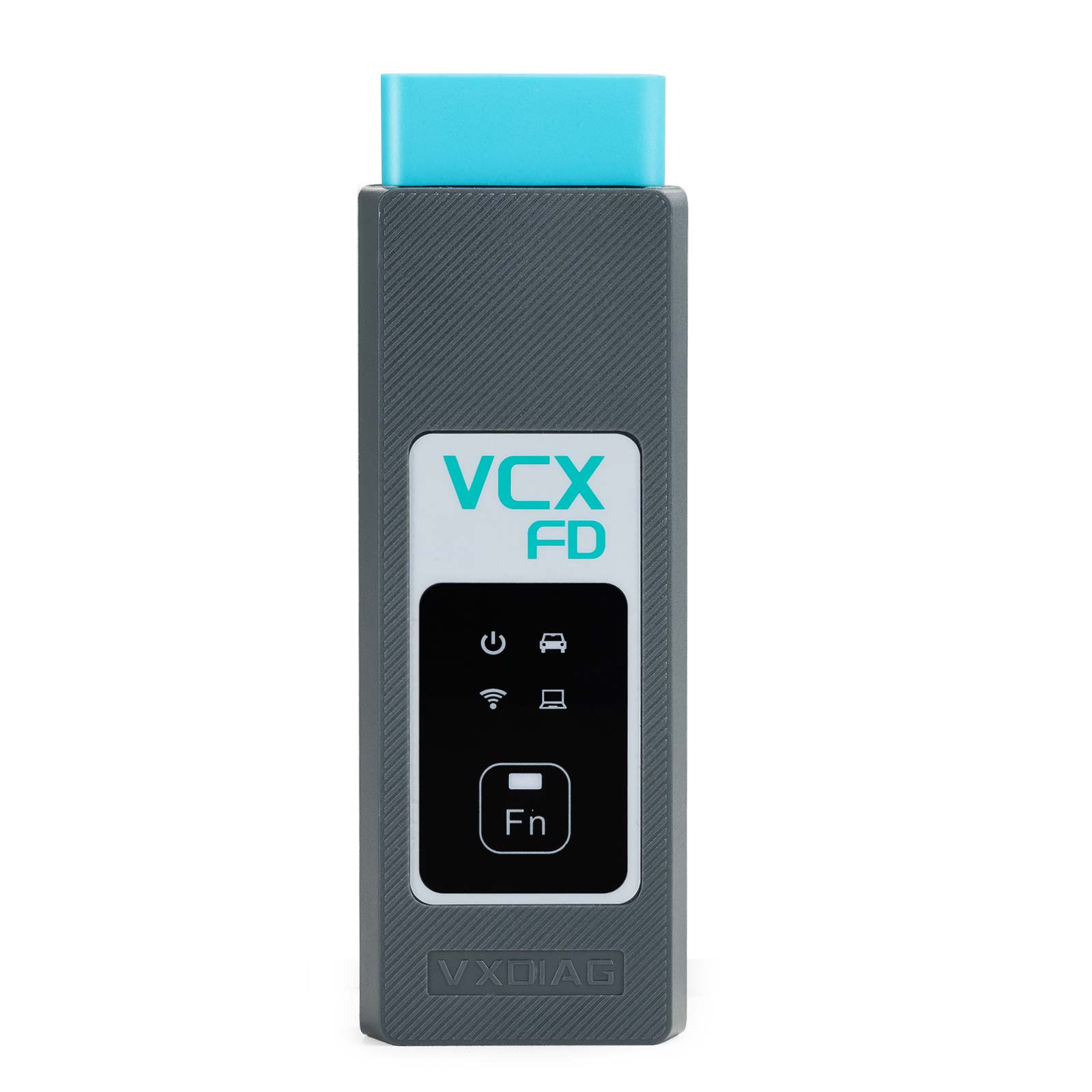

VXDIAG VCX FD for GM Ford Mazda 3 in 1 OBD2 Diagnostic Tool Supports CAN FD Protocol

VXDIAG VCX FD for GM Ford Mazda 3 in 1 OBD2 Diagnostic Tool Supports CAN FD Protocol

NOTE:
If you select option 1:
You need to download and install the software yourself to use on your computer

If you select option 2:
We will help you install all the software on the Lenovo T450 Laptop, and once you receive the product, you can use it directly

Software List:
GM GDS2 V2025.04
Tech2win
DPS
RDS
Ford IDS V132
MAZDA IDS V138

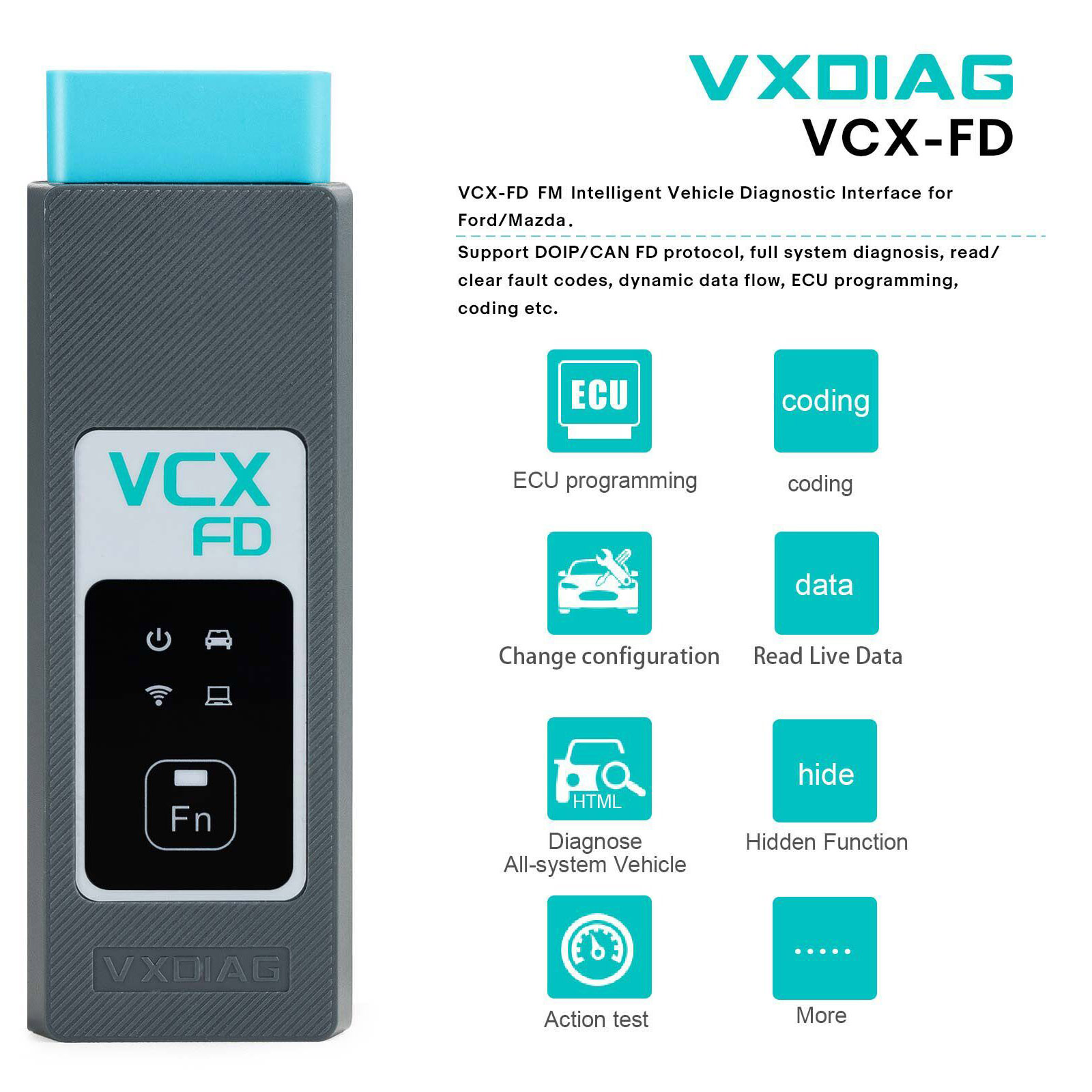

GM Ford Mazda 3 in 1 OBD2 Diagnostic Tool Highlights:
Supports CAN FD and DoIP protocol
Supports USB Type C, WiFi and WLAN Connection

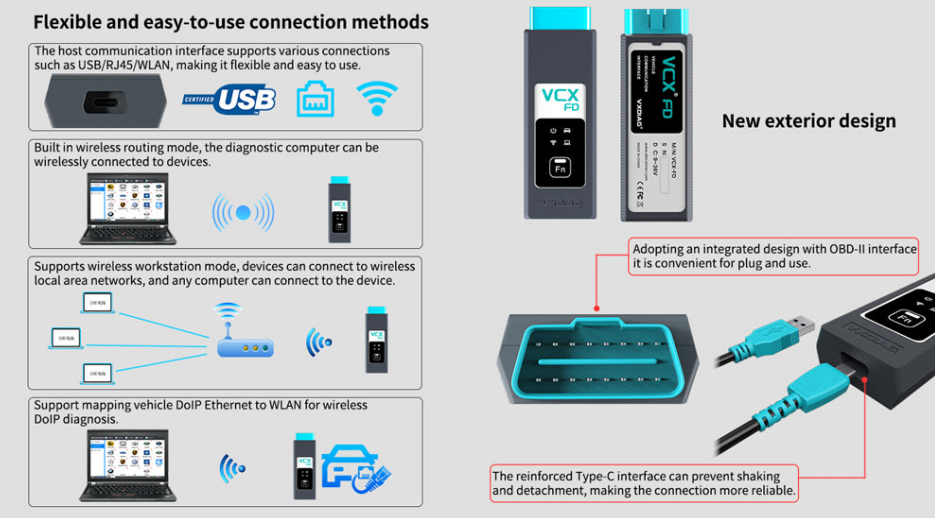

VXDIAG VCX FD Connection:

VXDIAG VCX FD Installation Instructions:
Requirements on PCs:
OS: WINDOWS 10/11 PRO 64BITS
RAM: At least 8GB
Make sure there is no other Software installed on the computer, GM /Ford IDS / Mazda IDS need to install on 3 separate clean windows systems.

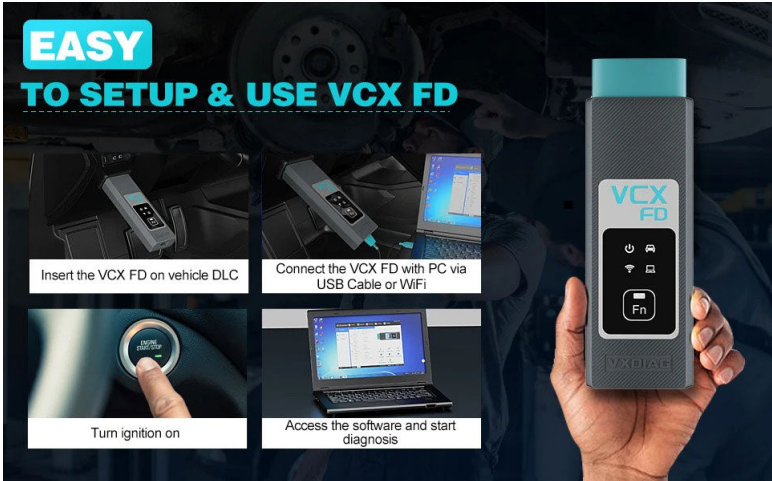

How to Set Up & Use VXDIAG VCX-FD?

Let’s start the software installation on WINDOWS system:
1. First download and install software (we don't provide the link)
2. Install the latest VX MANAGER version via www.vxdiag.net
4. Start the VX Manager. Make sure you your computer network is good. Connect your device by USB cable/WiFi to computer and OBD2 Socket to your ECU Bench connector or Your car’s OBD2 Port.
Install Passthru driver. Check your device license.
5. Turn on the car ignition. You can start to diagnose the car.
Installation Tips: Please turn off anti-virus software before install.

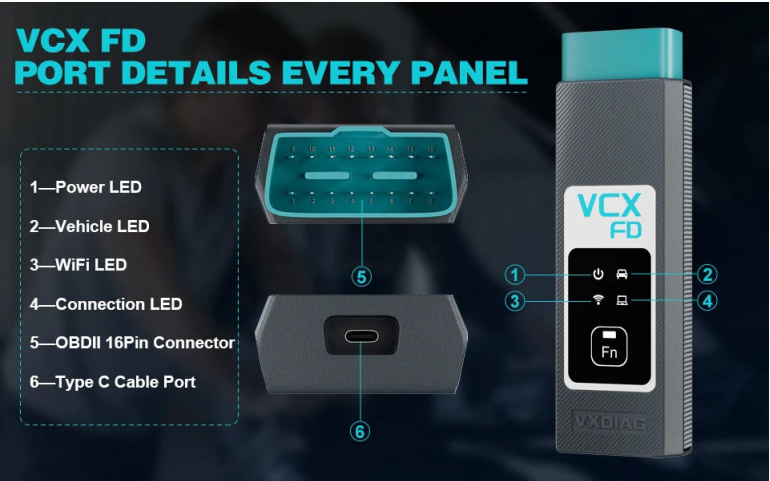

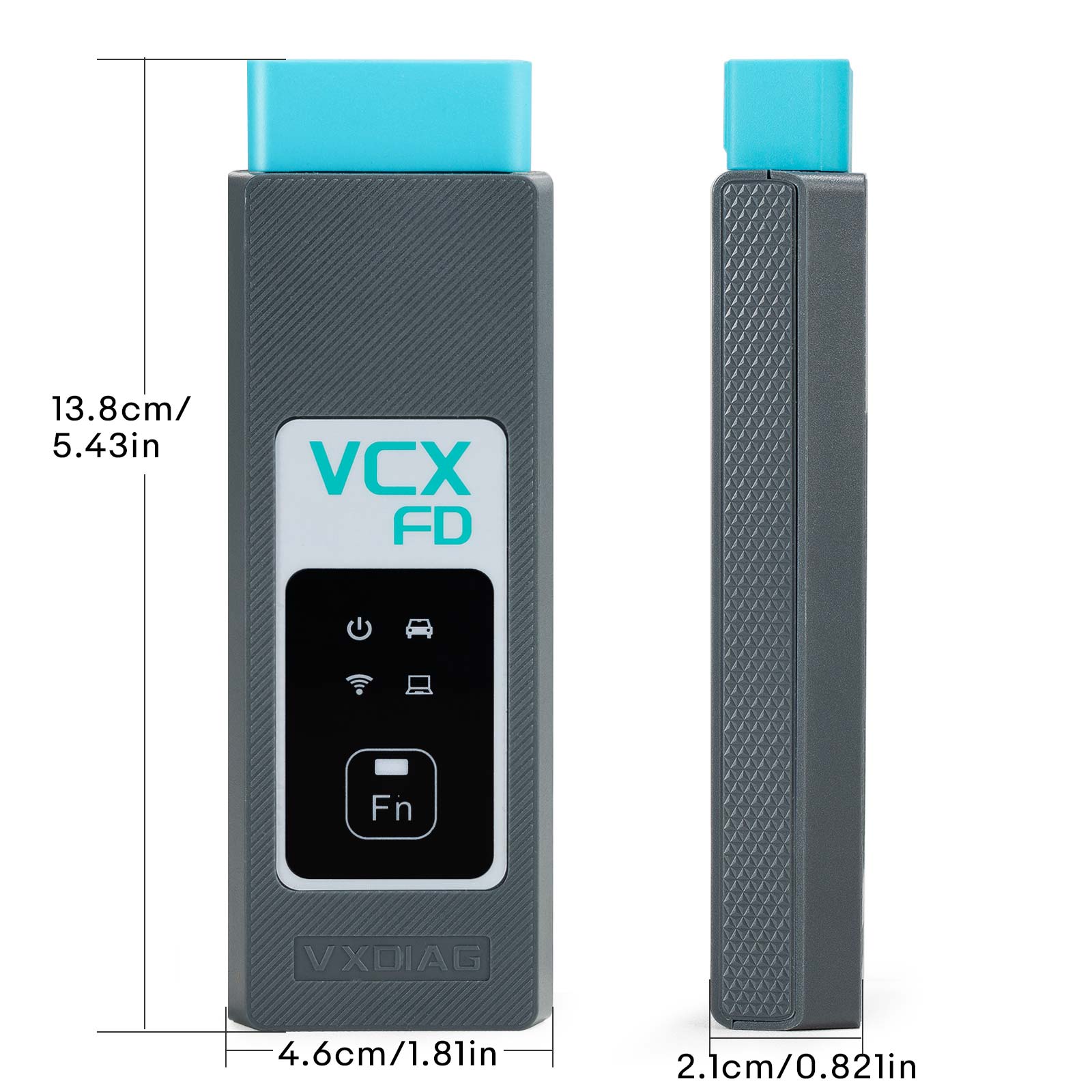

VXDIAG VCX FD Parameters:

1-Power LED: Equipment Working Status: RED
Breathing flash when starting normally
Flash rapidly during hardware failure

2-Vehicle LED: Vehicle communication Status:TWO-COLOR
Flash blue during traditional protocol
Flash green during DoIP protocol

3-WiFi LED: Wireless Network Status: BLUE
Flash quickly during wireless communication
Flash slowly during wireless distribution

4-Connection LED: Host Communication Status: TWO-COLOR
Flash BLUE during USB communication
Flash GREEN during LAN communication

Fn Button: Remote Diagnostic Status: GREEN
Flash slowly after remote connection
Flash quickly during remote diagnosis

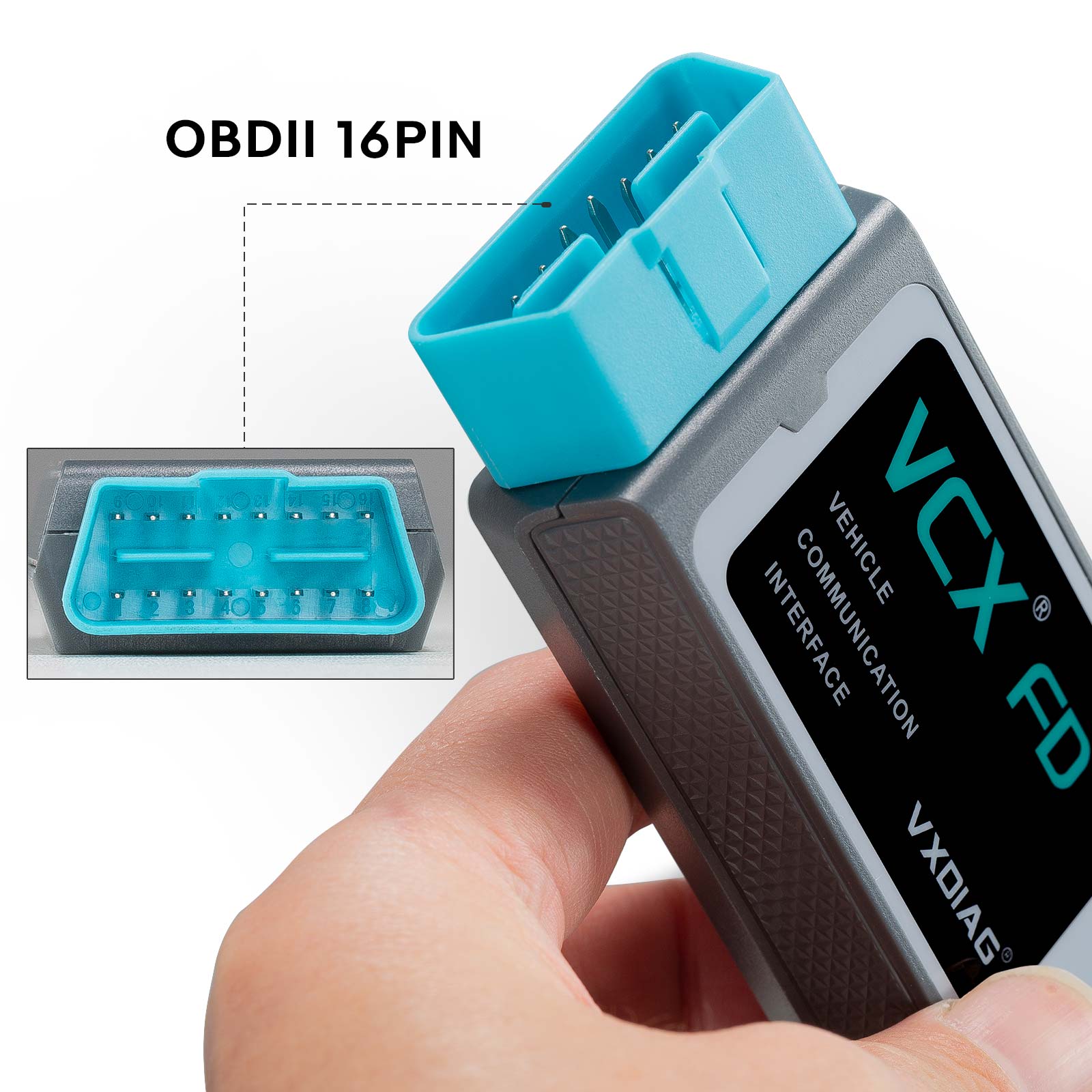

5-OBDII 16Pin Connector: Connect to vehicle's OBD2 port

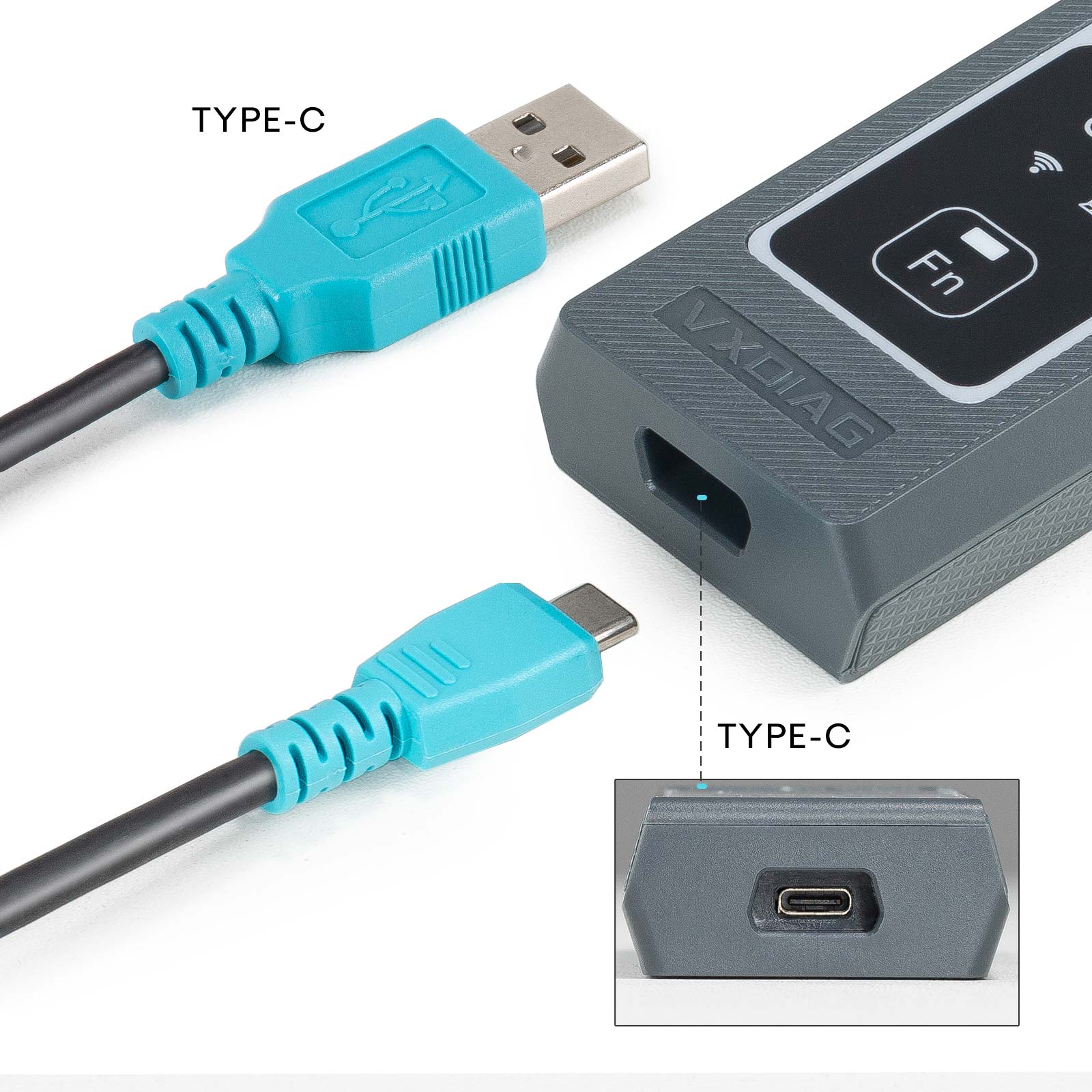

6-Type C Cable Port: Connect to PC via cable

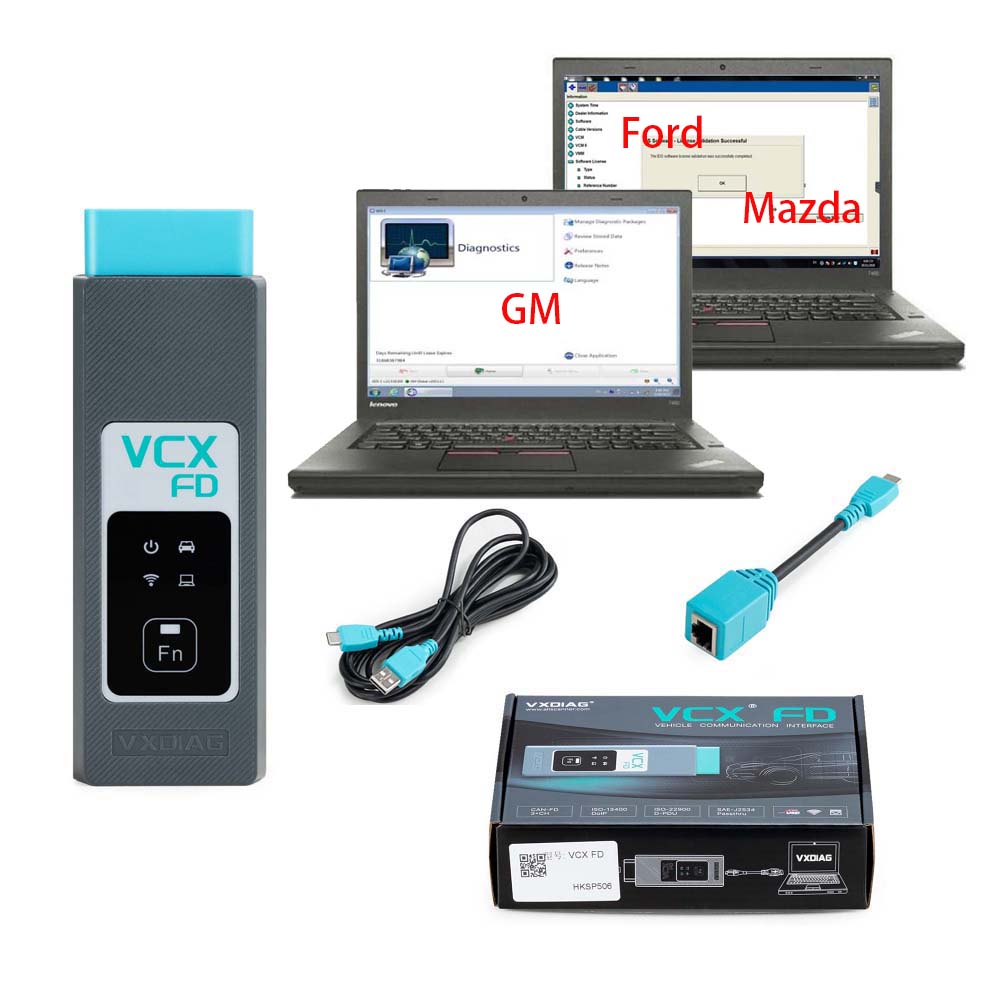

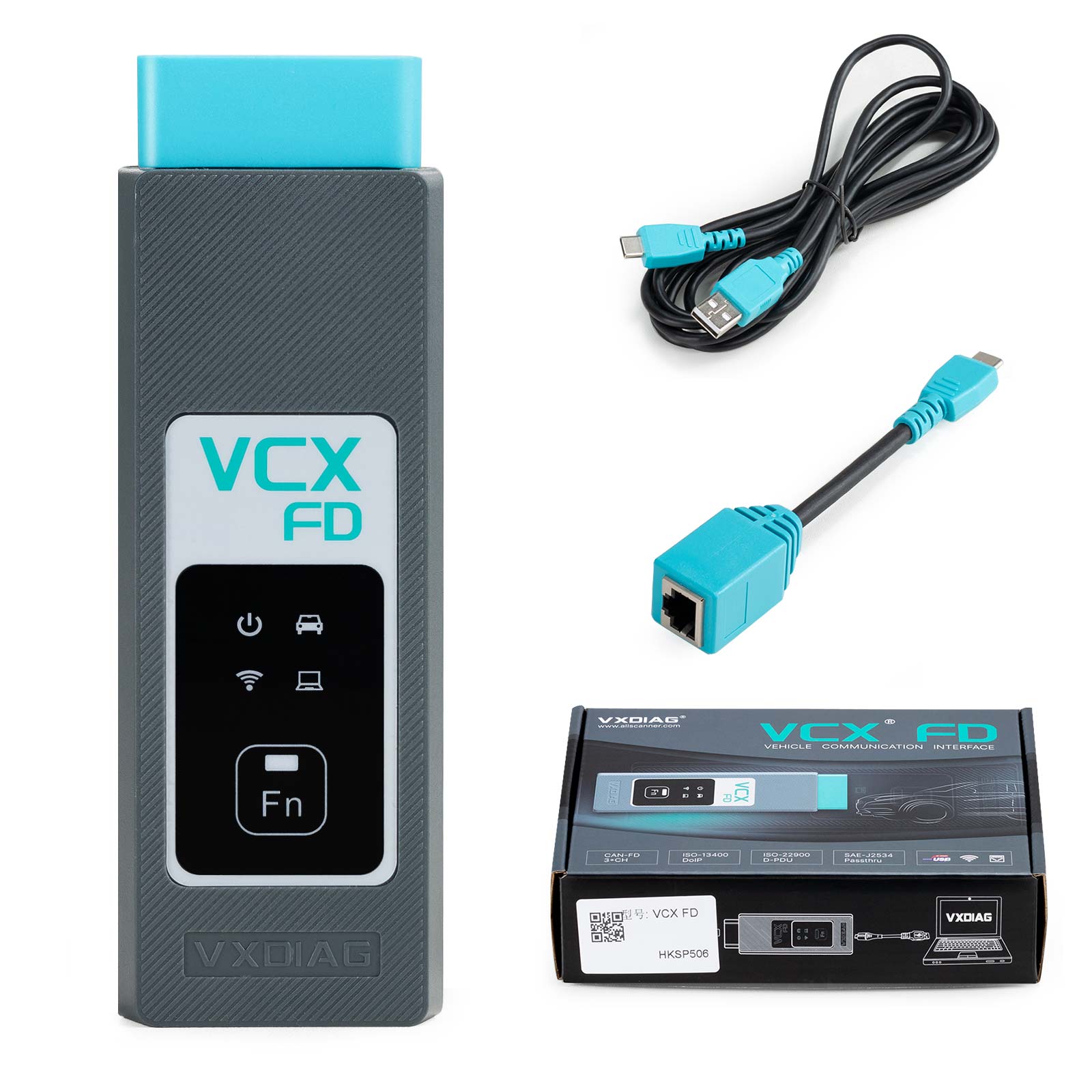

VXDIAG VCX FD for GM Ford Mazda Packing list:

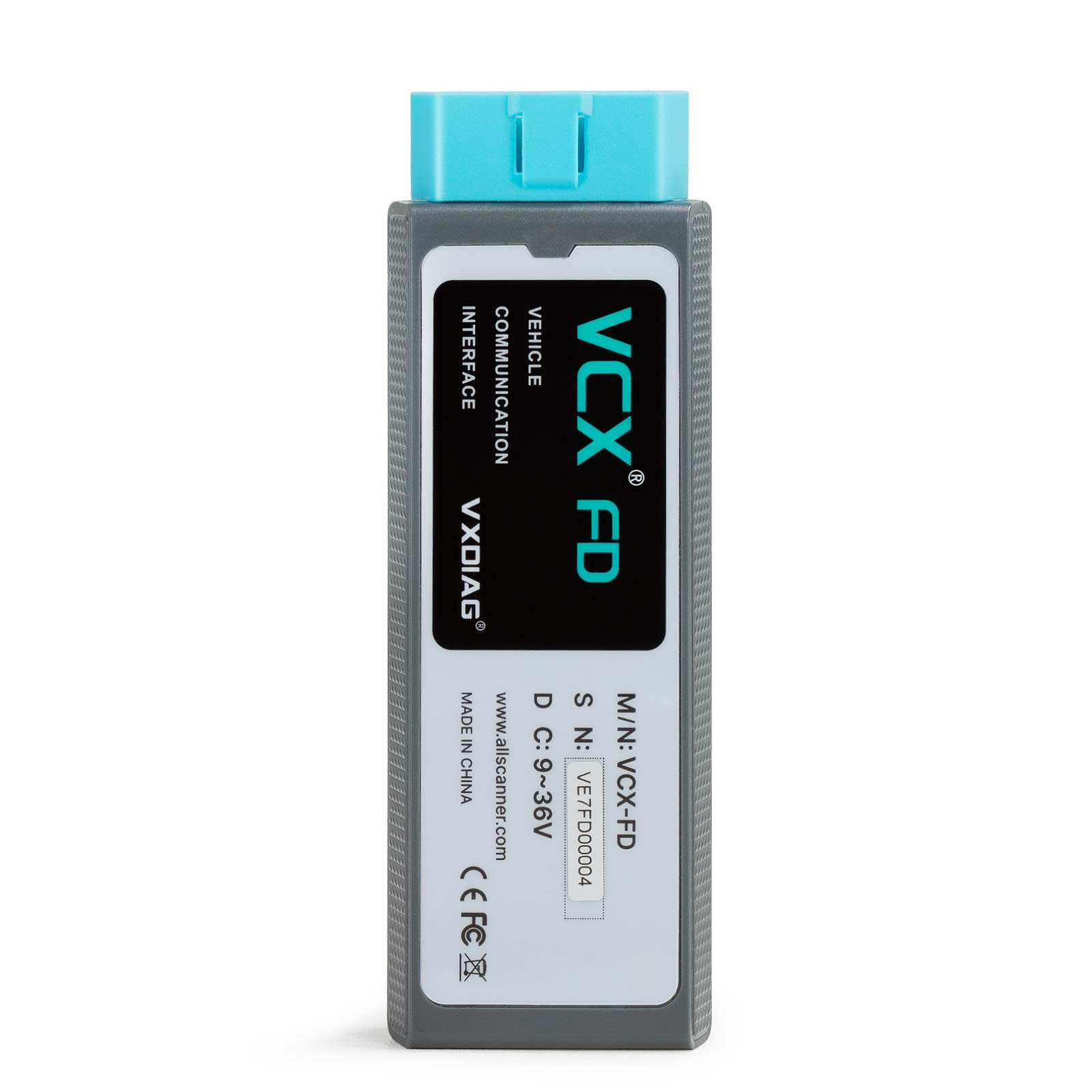

1pc x VCX-FD Interface
1pc x Type-C USB Cable
1pc x RJ45 Lan Converter
1pc x Paper Case
1pc x Lenovo T450 I5 8G Laptop (Option)

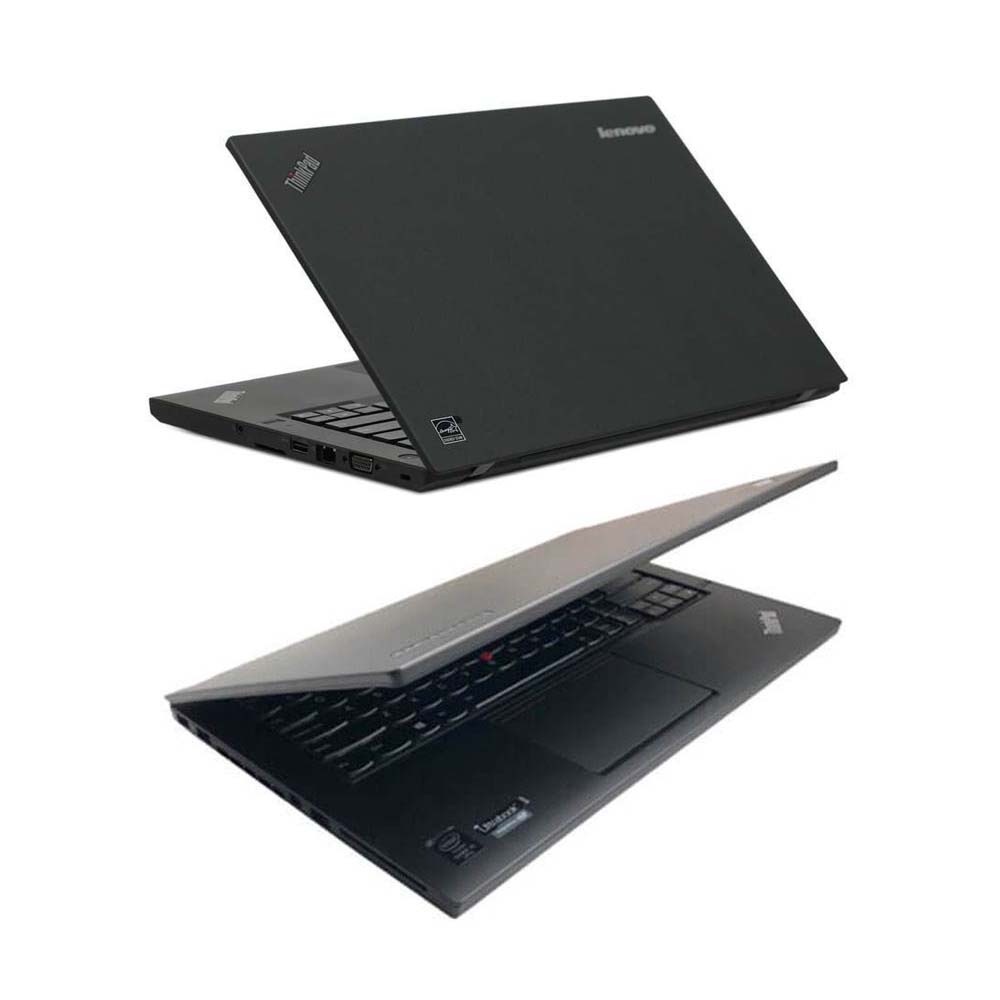

Second Hand Laptop Lenovo T450 Laptop with latest software：
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:14
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
