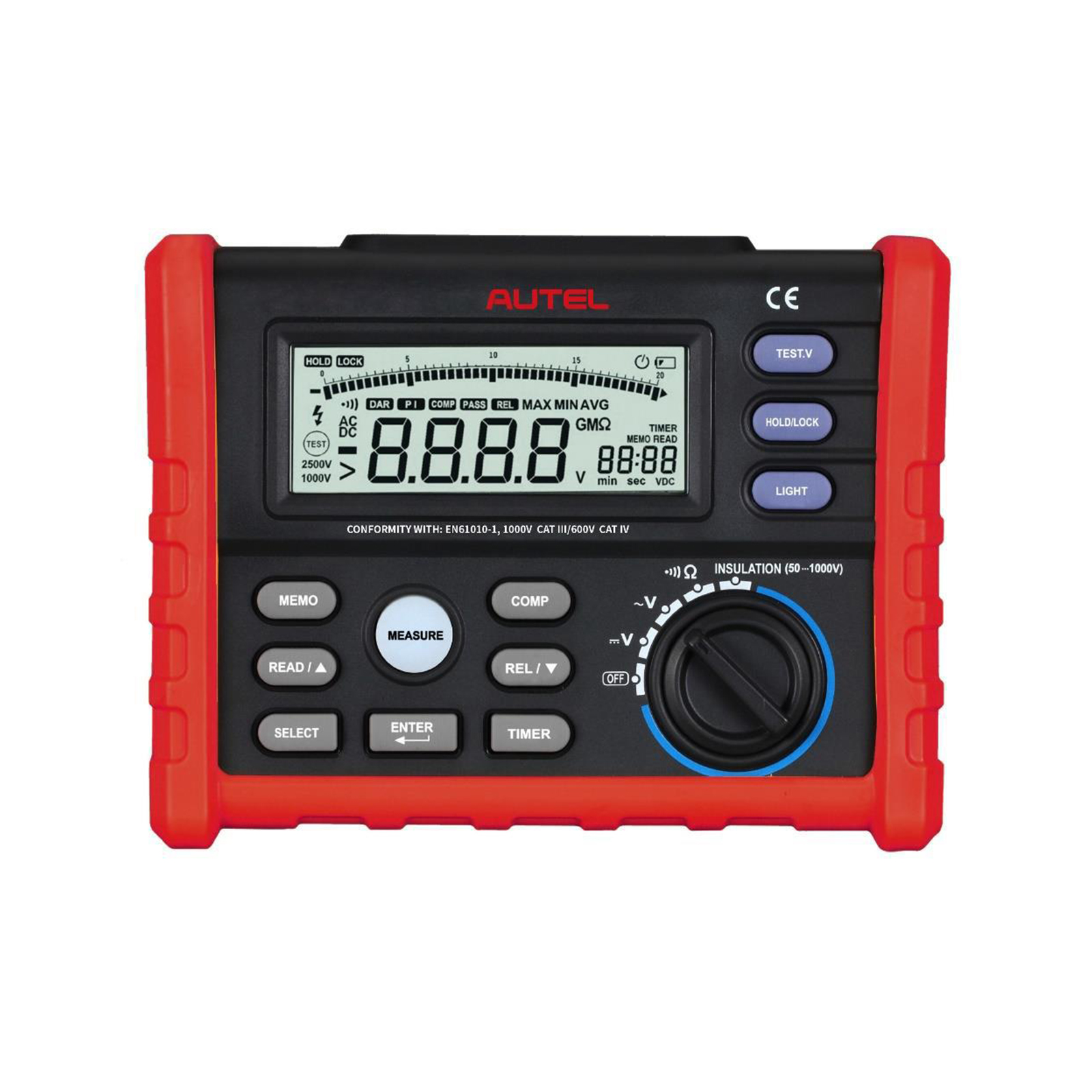

AUTEL MaxiEV ITS100 High Voltage Electrical Component Insulation Resistance Tester

Autel MaxiEV ITS100 User Manual

Notice: One-year warranty, lifetime free upgrade

Introduction:
The MaxiEV ITS100 is a EV Insulation resistance tester.
With the ITS100, technicians can apply a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the tested component or system and measure the resulting current flow to identify issues like damage, deterioration, or contamination of the insulation.
Provides easily interpretable visualized data for informed decision-making during vehicle maintenance.

AUTEL MaxiEV ITS100 Features:
1.Tests high voltage wiring and components
2.Test resistance measurement before loading into the vehicle
3.Helps identify issues like damage, deterioration, or contamination of the insulation
4.Applies a high DC voltage (50V, 100V, 250V, 500V, or 1000V) to the component or system being tested and measure the resulting current flow
5.Provides easily interpretable visualized data for informed decision-making during vehicle maintenance
6.Three measurement modes: relative, timely, and continuity
7.Complies with IEC/EN 61010-1 1000V CAT Ⅲ, 600 V CAT Ⅳ measurements
8.Use to discharge capacitors and testing/diagnosing isolation faults or shorts
9.Automatic power-off function to conserve battery power

The ITS100 is part of our new Autel MaxiEV powerful tools lineup.Combined with the industry-first enhanced EV diagnostic scan tool, the MaxiSys Ultra EV, empower your business with:
Unmatched Compliance: Meet the growing demand for safe and reliable EV service.
Enhanced Safety: Protect technicians and drivers from electrical hazards.
New Revenue Streams: Expand your service offerings to cater to the booming EV market.
Explore now and elevate your service capabilities with Autel's latest innovations!

AUTEL ITS100 Specifications:
INSULATION RESISTANCE RANGE:   0.01MΩ ~ 10.00GΩ
INSULATION TEST OUTPUT VOLTAGE:   50V, 100V, 250V, 500V, 1000V
RESISTANCE TEST: 0.01Ω~200Ω
DC VOLTAGE TEST: 0.1~ 1000V
AC VOLTAGE TEST: 0.1V~750V
DIMENSIONS (WEIGHT):  180*140*65mm (0.9kg)

Package Includes:
1pc x AUTEL MaxiEV ITS100
