LAUNCH X431 EV Diagnostic Upgrade Kit and Activation Card for X431 PAD V, PAD VII, Pro5, PRO3 V+ 5.0, PRO3(PRO3S+ V5.0)

Download

Launch-X431-EV-Add-on-Kit-Software-&-Vehicle-List.pdf

LAUNCH X431 EV Diagnostic Upgrade Kit and Activation Card for X431 PAD V, PAD VII, Pro5, PRO3 V+ 5.0, PRO3(PRO3S+ V5.0), PRO3 ACE, PRO3 APEX

Launch X431 EV Add-on Kit Software & Vehicle List
1 Year Free Update Online. 355USD/ year later.

The Launch X431 new energy battery Diagnostics Upgrade Kit includes an activation card and adapters for specific electric vehicles to perform battery pack analysis. The battery package is compatible with the PAD VII, X431 PAD V, Pro5, PAD VII Elite, PRO3 V+ 5.0, PRO3(PRO3S+ V5.0), PRO3 ACE, PRO3 APEX.

[NEW] After the App is upgraded to the latest version, LAUNCH’s 10-inch-screen tablets are now supported, for example X-431 V+ V5.0, PRO3 V+ 5.0 \X-431 PRO3 (PRO3S+ V5.0)\ APEX.

Use the Launch EV Diag Upgrade Kit (EV DIAGKIT) to diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.


Plug and examine using the dedicated connectors and cables in the EV Diagnosis Add-on Kit. Swift data retrieval – check out the three connection methods below!


How to Activate Energy Battery Pack on PAD VII/Pad V?
1. User has already purchased new energy battery pack diagnostic configuration of the X-431 PAD V/X-431 PAD VII from us and received the Activation Card of new energy detection expansion package and diagnostic adaptor cables.
2. Choose either of the following methods to activate it on diagnostic scanner.

Method 1: via Job Menu
1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 (X-431 PAD V) / V7.00.021 (X-431 PAD VII) or above and a new module “New Energy Diagnose” will appear on the Job menu. Refer to figure 1.

2).Tap New Energy Diagnose to enter the following screen. Refer to figure 2.

*Note: Vehicle Diagnosis in figure 2 covers all new energy vehicle diagnostic software included in the original product configuration. See figure 3.


3).Tap Battery Pack Detection, the system will identify whether the current user account has activated the battery pack diagnostic configuration or not.

A.If not activated, it will navigate to the Mall module directly. See figure 4. Tap Subscription Renewal Card Pay and enter the 24-digit password to activate it. After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack.

B. If already activated but not downloaded the battery pack diagnostic software, it will go to Software Update to download. See figure 5.

C. If already activated and downloaded the battery pack diagnostic software, it will enter the battery pack brand selection screen. See figure 6.


Method 2 - Via Mall
1).Update the main diagnostic app of the diagnostic scanner to V7.03.025 or above and tap Mall on the Job menu. See figure 7.

2).Tap Other Software Packages, and then tap New energy battery pack diagnostic software package to enter figure 8.

3).Tap Subscription Renewal Card Pay to enter figure 9.


4).Tap Subscription Renewal Card Pay, enter the 24-digit password and tap Confirm to activate it. See figure 10 & 11.



5).After it is successfully activated, please go to Software Update to download and install the diagnostic software of the battery pack. See figure 12.

6).After downloading is completed, tap New Energy Diagnose and then tap Battery Pack Detection. The system will enter the battery pack brand selection screen. See figure 6.

*Note: All illustrations and descriptions in this operation instruction are based on the latest information available at the time of publication. Due to continuing improvements, actual product may differ slightly from the product described herein.

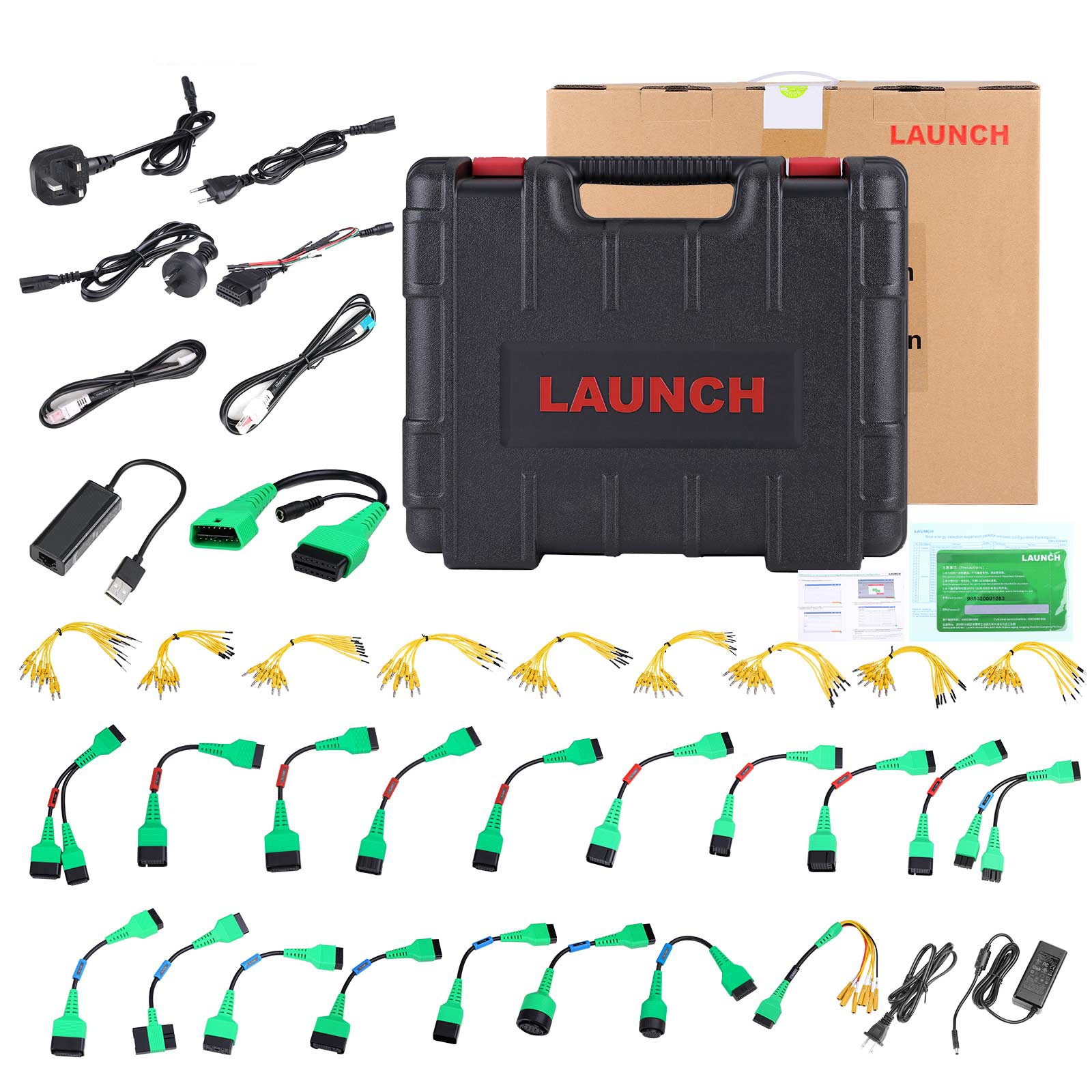

Package Listing:
1pc x Tesla-12+20 connector, RoHS
1pc x Special connector for Tesla airbag repair, RoHS
1pc x (PAD VII) 220V/1.3A, 8-suffix British AC wire, 1M, Pengshengye, RoHS
1pc x OBD16 male to female new energy extension cable, with DC cable, RoHS
1pc x X431 EV MAX battery pack detection 8PIN diagnostic connector, RoHS
1pc x X-431 PAD IV electric control adapter cable 1, RoHS
1pc x X-431 PAD IV electric control adapter cable 10, RoHS
1pc x X-431 PAD IV electric control adapter cable 11, RoHS
1pc x X-431 PAD IV electric control adapter cable 12, RoHS
1pc x X-431 PAD IV electric control adapter cable 2, RoHS
1pc x X-431 PAD IV electric control adapter cable 3, RoHS
1pc x X-431 PAD IV electric control adapter cable 6, RoHS
1pc x X-431 PAD IV electric control adapter cable 7,RoHS
1pc x X-431 PAD IV electric control adapter cable 8, RoHS

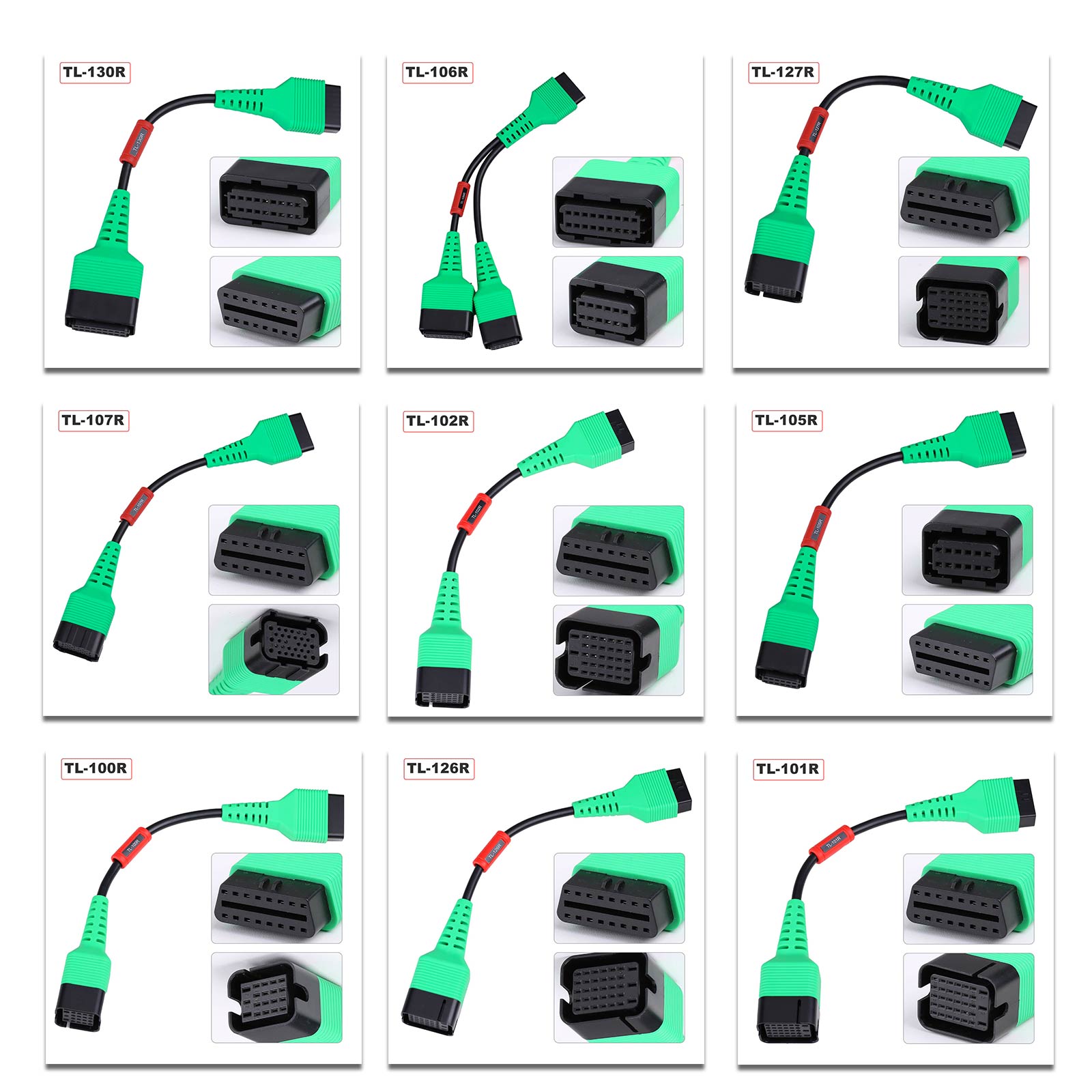

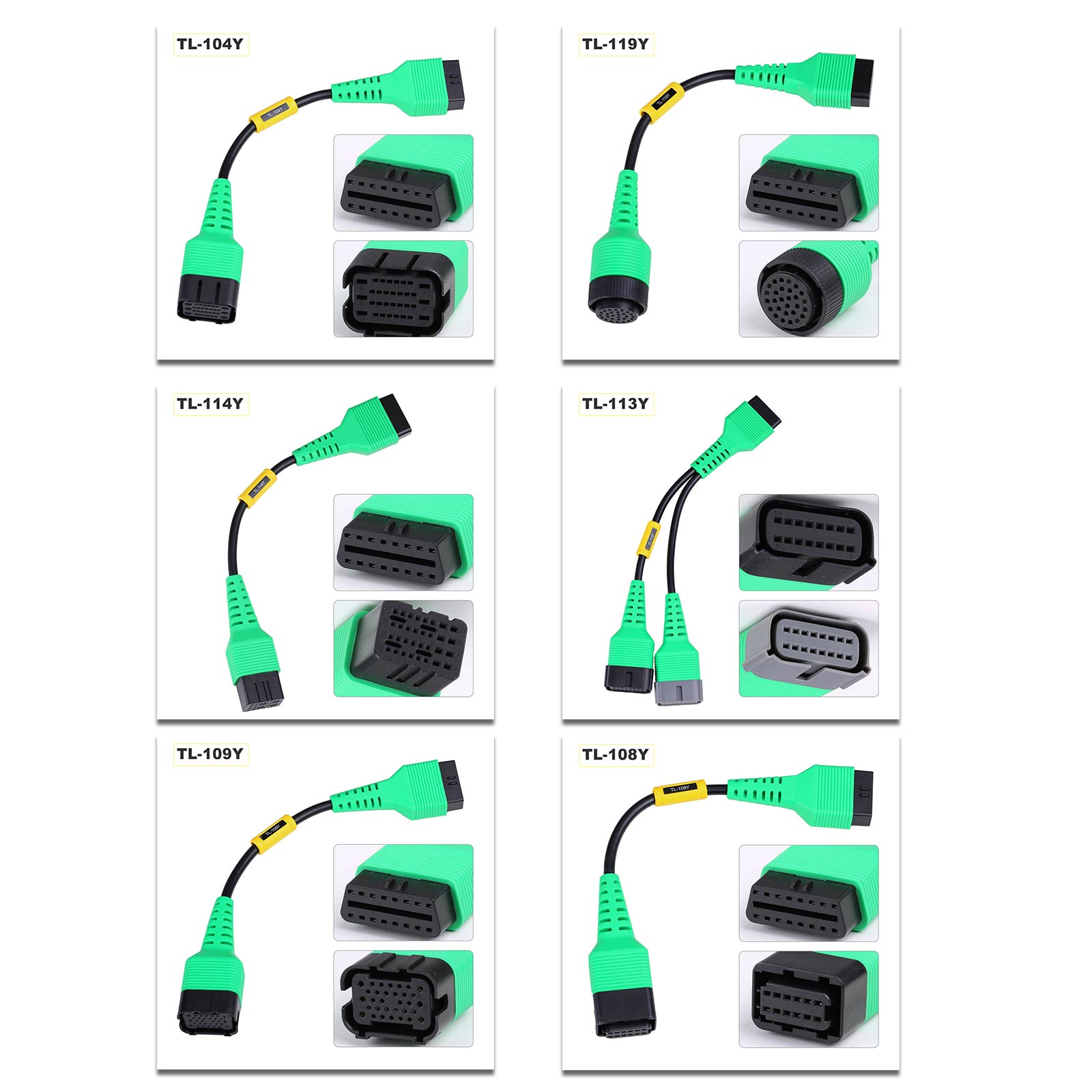

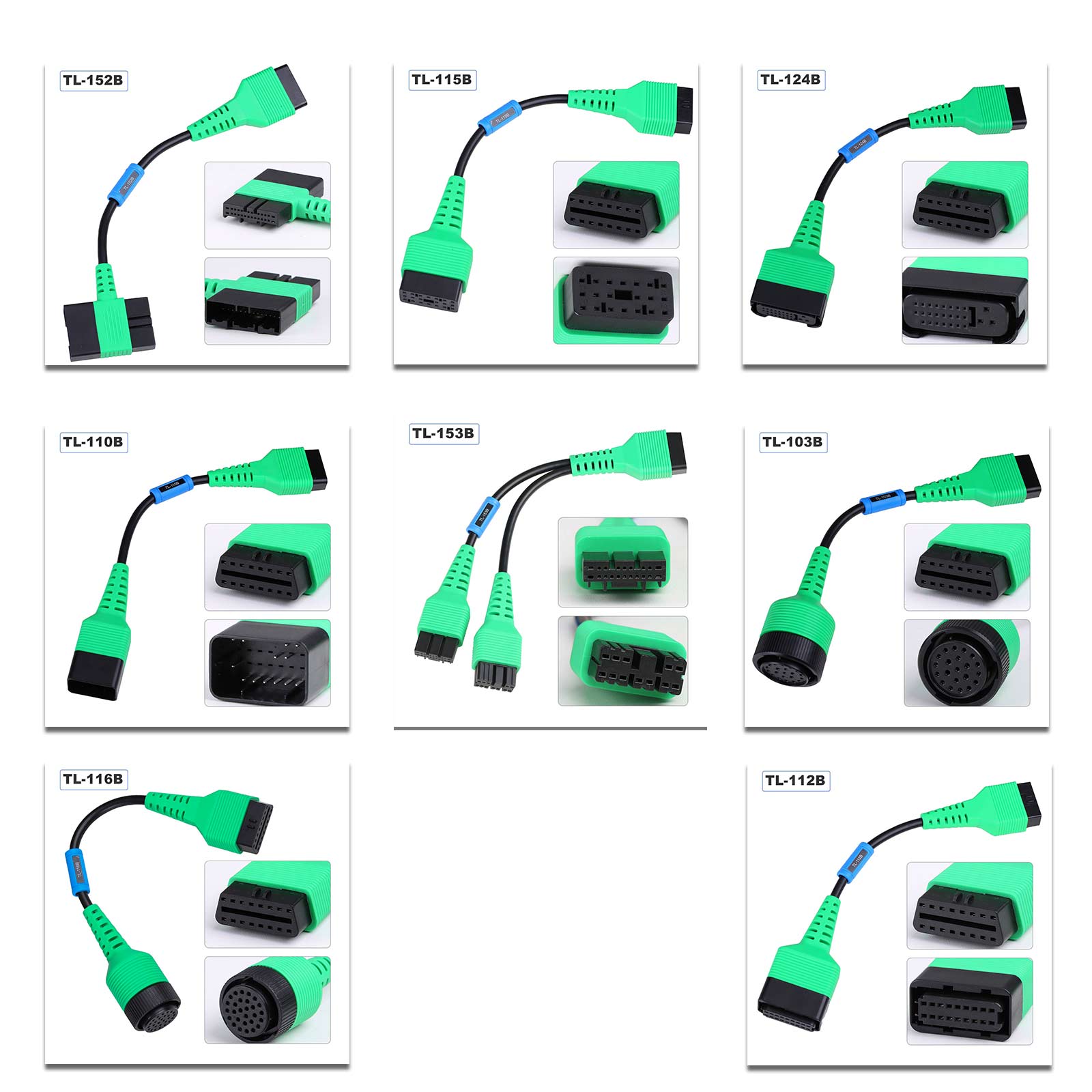

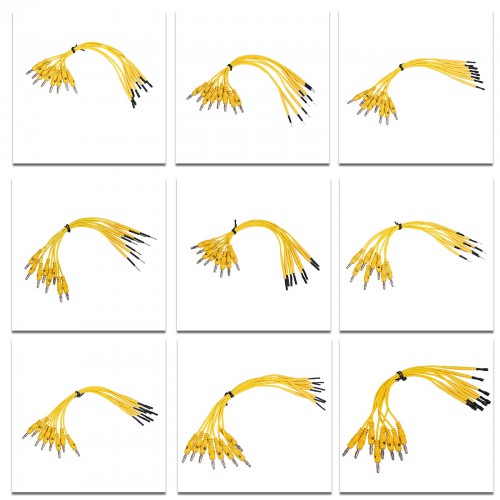

1pc x Battery pack test line 100 models, RoHS
1pc x Battery pack test line 101, RoHS
1pc x Battery pack test line 102, RoHS
1pc x Battery pack test line 103, RoHS
1pc x Battery pack test line 104, RoHS
1pc x Battery pack test line 105, RoHS
1pc x Battery pack test line 106, RoHS
1pc x Battery pack test line 107, RoHS
1pc x Battery pack test line 108, RoHS
1pc x Battery pack test line 109, RoHS
1pc x Battery pack test line 110 models, RoHS
1pc x Battery pack test line 112 models, RoHS
1pc x Battery pack test line 113, RoHS
1pc x Battery pack test line 114, RoHS
1pc x Battery pack test line 115 models, RoHS
1pc x Battery pack test line 116, RoHS
1pc x Battery pack test line 119, RoHS
1pc x Battery pack test line 124 types, RoHS
1pc x Battery pack test line 126 models, RoHS
1pc x Battery pack test line 127 models, RoHS
1pc x Battery pack test line 130 models, RoHS
1pc x Battery pack test line 152 models, RoHS
1pc x (PAD VII), 8-suffix Australian standard AC wire, 1M, Pengshengye, RoHS
1pc x(PAD VII) 220V/1.3A, 8-suffix European standard AC wire, 1M, Pengshengye, RoHS
1pc x Power adapter, 12V4A, 48W desktop, 8-suffix DC connector 5.5, US standard AC cable, 2M, Pengshengye, RoHS
1pc x New Energy Detection Extension Pack Overseas Configuration Operation Guide, RoHS
1pc x Activation Card
