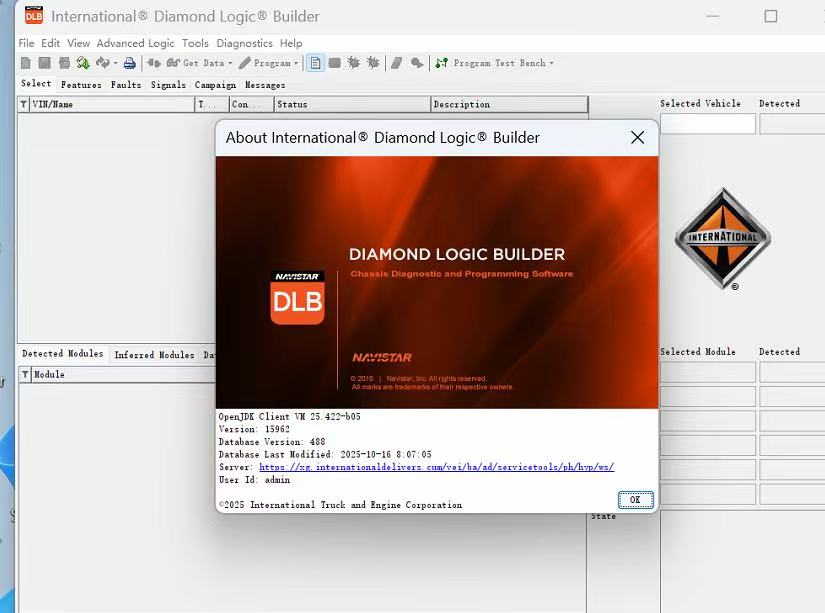

International Diamond Logic Builder (DLB)2025.10 Navistar Diagnostic Software

International Diamond Logic Builder (DLB)10.2025 Navistar Diagnostic Software

Notice:

After payment, we will remotely install and activate the software for you (just install on one computer).

Database Update: 10.2025

Size: 500 Mb

Region: All regions

Type of catalogue: Diagnostic Software
Language: English

SO: Win 11, Win 10, Win 7

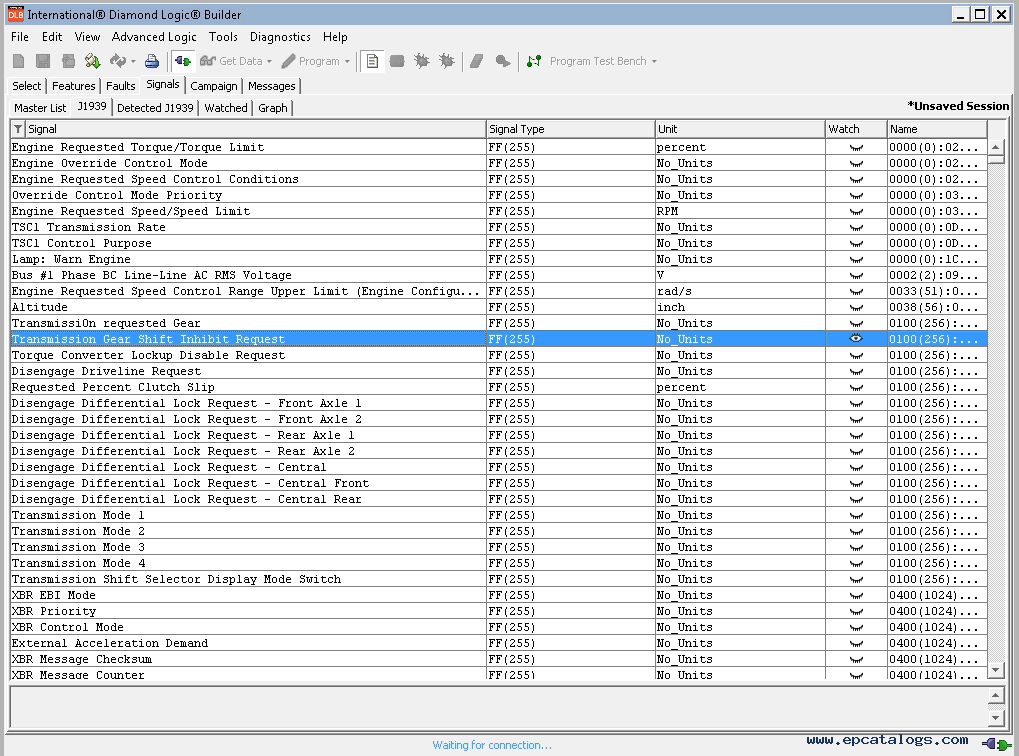

Diamond Logic Builder 2025 (DLB) provides high performance diagnostics for electrical systems in international trucks and high performance IC buses. DLB Fleet displays vehicle signals in graphic and text format.This software also reads and displays the vehicle’s diagnostic trouble codes, as well as the vehicle’s characteristics and parameters.

The International Diamond Logic electrical system further simplifies and integrates your application by allowing the engine, transmission, cab, and body to communicate with each other.



The Diamond Logic electrical system is fully flexible and expandable, with features and functionality that can be added, modified, or removed at any time to suit specific application needs.



International Diamond Logic Builder (DLB) [2025] Level 3 All options are open, all parameters are editable

Recommended adapters:

NEXIQ ™ Technologies – USB-Link2

Dearborn Group Technologies – DPA 5

Noregon® Systems, Inc. – DLA +, DLA + Wireless



Communication link controllers:

DLB uses RP1210A standard controllers for communication.The controllers are specific to the communications device and are not installed with DLB.



User permits:

Diamond Logic Builder has different levels of permissions in levels that allow a more advanced use of the software.

Level 1 (Diagnosis): L1 is included with the active product key.

Level 2 (Diagnosis and programming of parameters): access to L2 requires the completion of web-based training for each user.

Level 3 (Diagnosis, Parameter Programming and Advanced Logic): Access to L3 requires that the Led Instructor training be completed for each user.



You do not need a CYY or DYY account; We have taken care of it and yours is just to enjoy the software.



All options are open, all parameters are editable.



Navistar® Engine Diagnostics is a diagnostic and programming service tool for Navistar® Engines. Navistar Engine Diagnostics, a full-featured PC application, is designed to meet the wide range of service diagnostic challenges of a mixed truck fleet. Coverage includes all J1939 international electronic engine systems.       It allows you to monitor the control system, recover diagnostic trouble codes (DTCs), change parameters, view and plot engine data, and perform specialized service compartment tests on all after-treatment systems and engines. The application also has regular updates, which guarantee the most up-to-date coverage.



Software features:

Control of the control system

Watch

Record

Save

Play instant recordings

Problem diagnosis codes

Retrieve, View, Delete

HD-OBD Freeze Frame Data

HD-OBD monitors

Monitor the results

Preparation for diagnosis

Monitor the performance ratio

View, save print

Service Bay Tests

key on, engine off

Actuator tests

Intermittent fault sensor

Cold start test

Engine running

Air management test

Cylinder cutting test

Engine fan test (if equipped)

High pressure pump test

Post-treatment system tests

Procedures

Calibration of the sensor

Replacements of parts

Programmable parameters

Motor characteristics settings

See Programming

Change Programming

Restoration of the service interval



Needs: One or more communication devices compatible with RP1210A with SAE J1708 and / or SAE J1939.
