LAUNCH X-431 ADAS Radar 3-in-1 Calibration Set Hardware and Software

LAUNCH X-431 ADAS Radar 3-in-1 Calibration Set Hardware and Software

LAUNCH X-431 ADAS Radar 3-in-1 Calibration Set is a professional, integrated calibration solution dedicated to radar‑based ADAS systems for modern passenger vehicles. Designed as an add‑on kit that works with mainstream LAUNCH X‑431 diagnostic tablets, it combines ACC calibration, corner reflector calibration, and Doppler simulation into one complete set, helping repair shops, body shops, and professional technicians complete accurate, efficient ADAS radar calibration with minimal space and setup timeX431

Core Functions & Calibration Coverage

This all‑in‑one calibration tool supports high‑precision calibration for mainstream radar ADAS systems, covering almost all common radar‑based driver assistance functions:

Ø ACC (Adaptive Cruise Control)

Ø BSD/BSM (Blind Spot Detection / Blind Spot Monitoring)

Ø LCA (Lane Change Assist)

Ø FCR (Front Corner Radar)

It supports European, Asian, and North American models, including Mercedes‑Benz, BMW, Audi, Volkswagen, Toyota, Lexus, Honda, Mazda, BYD, Geely, Chery, and many more, making it highly versatile for mixed‑brand workshopsX431.

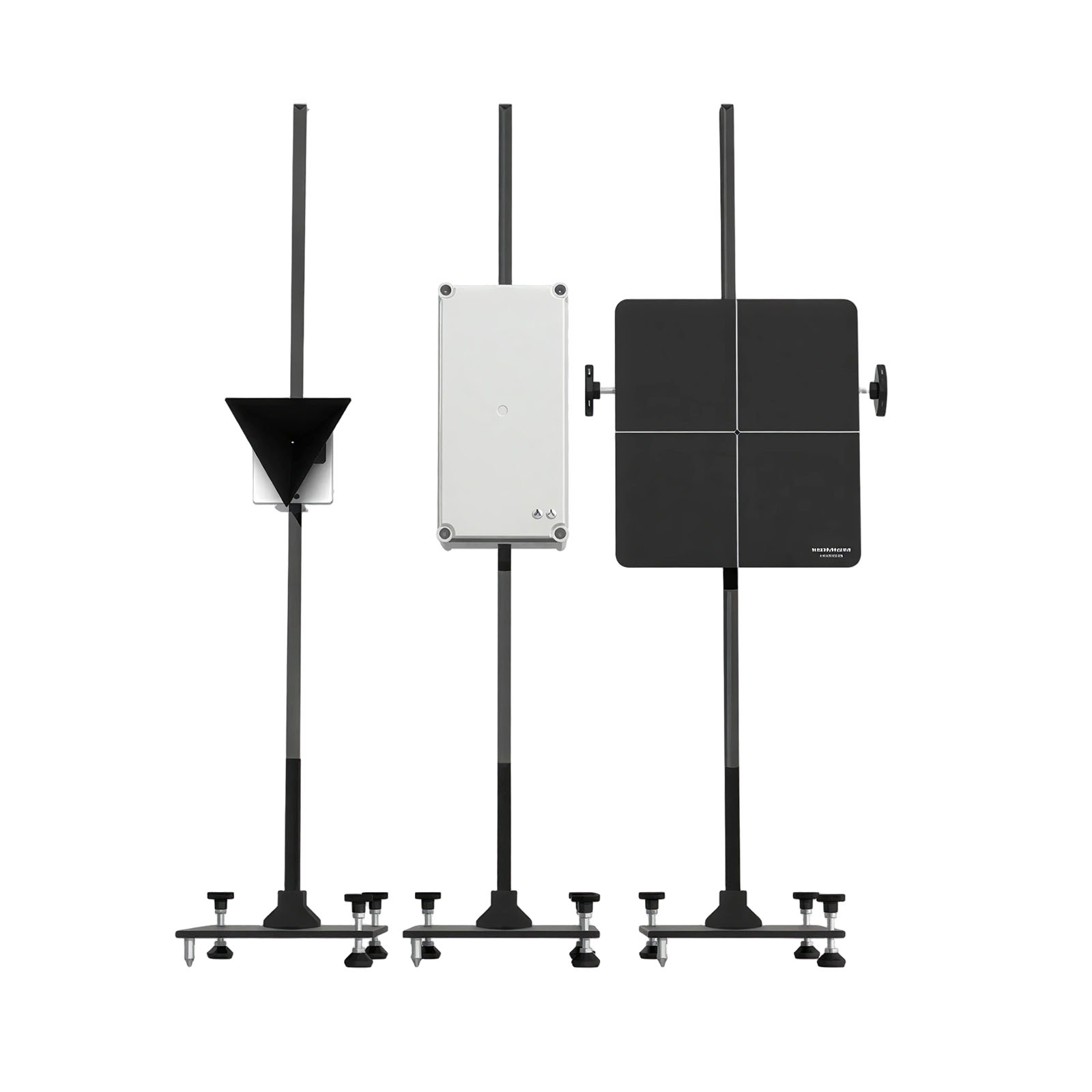

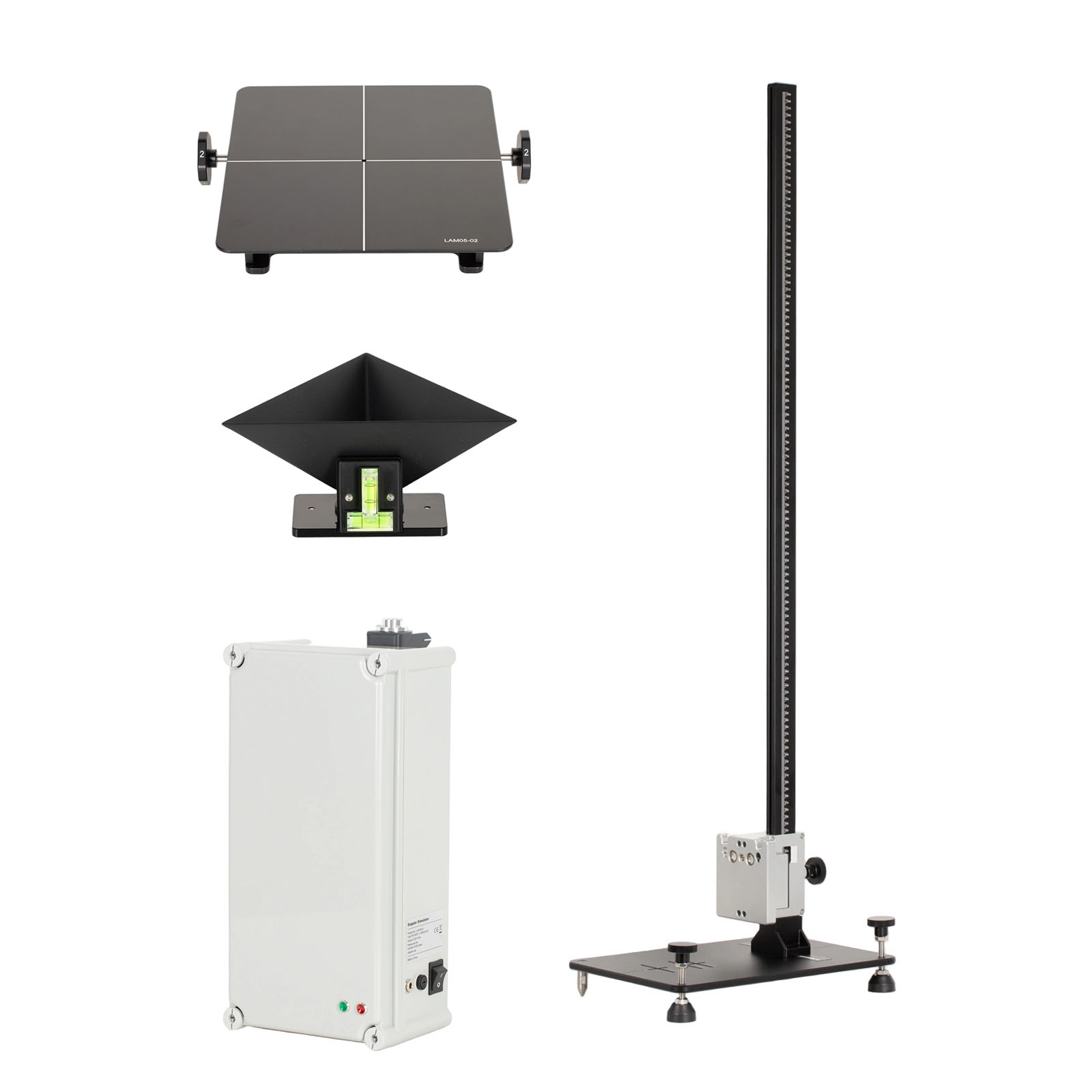

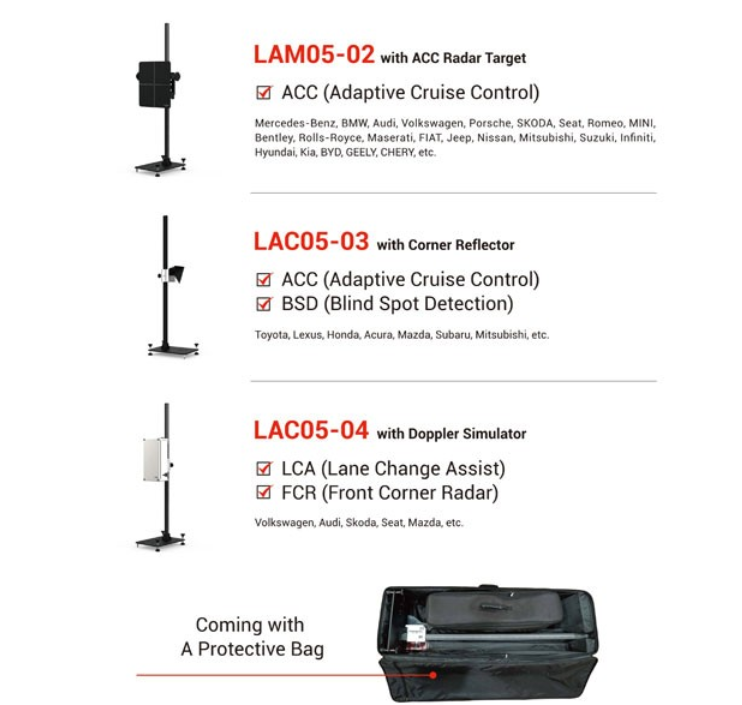

Three Professional Calibration Modules

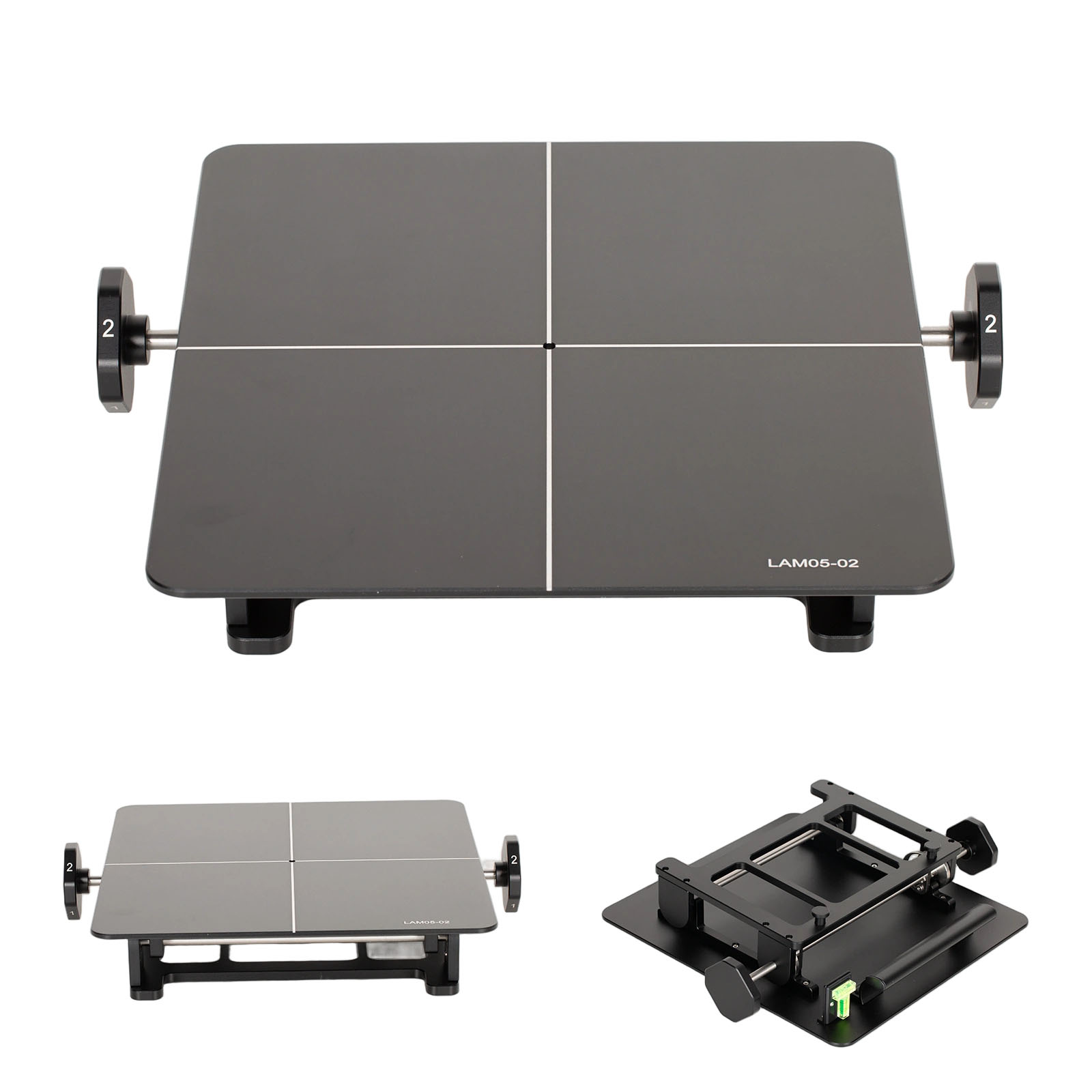

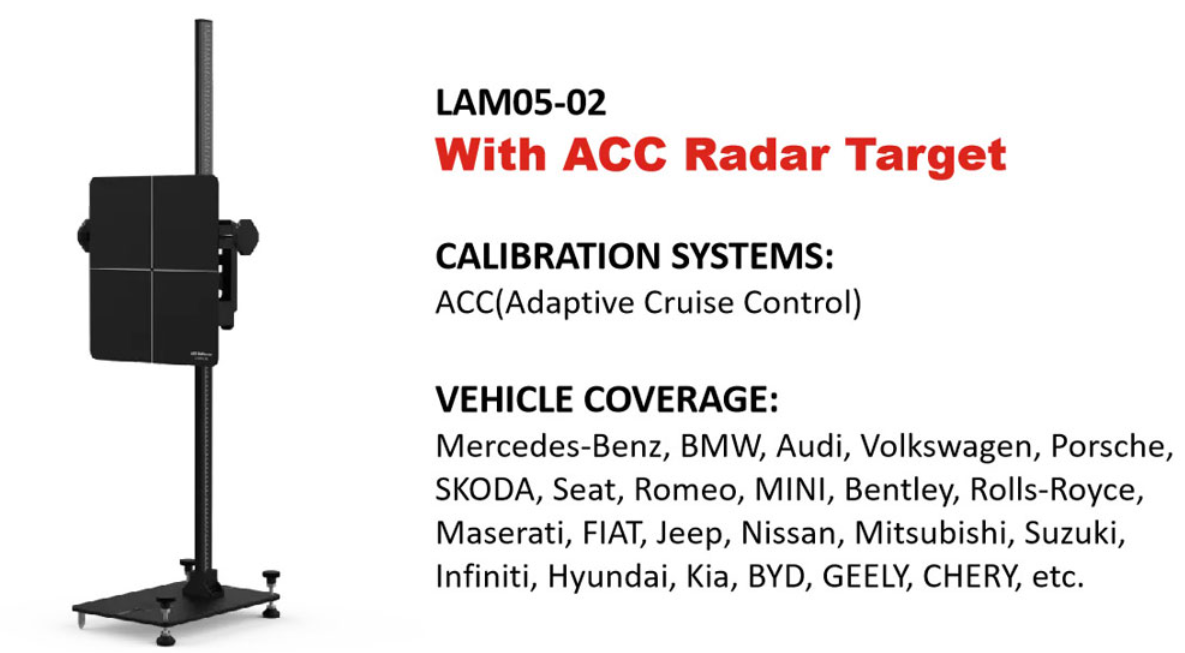

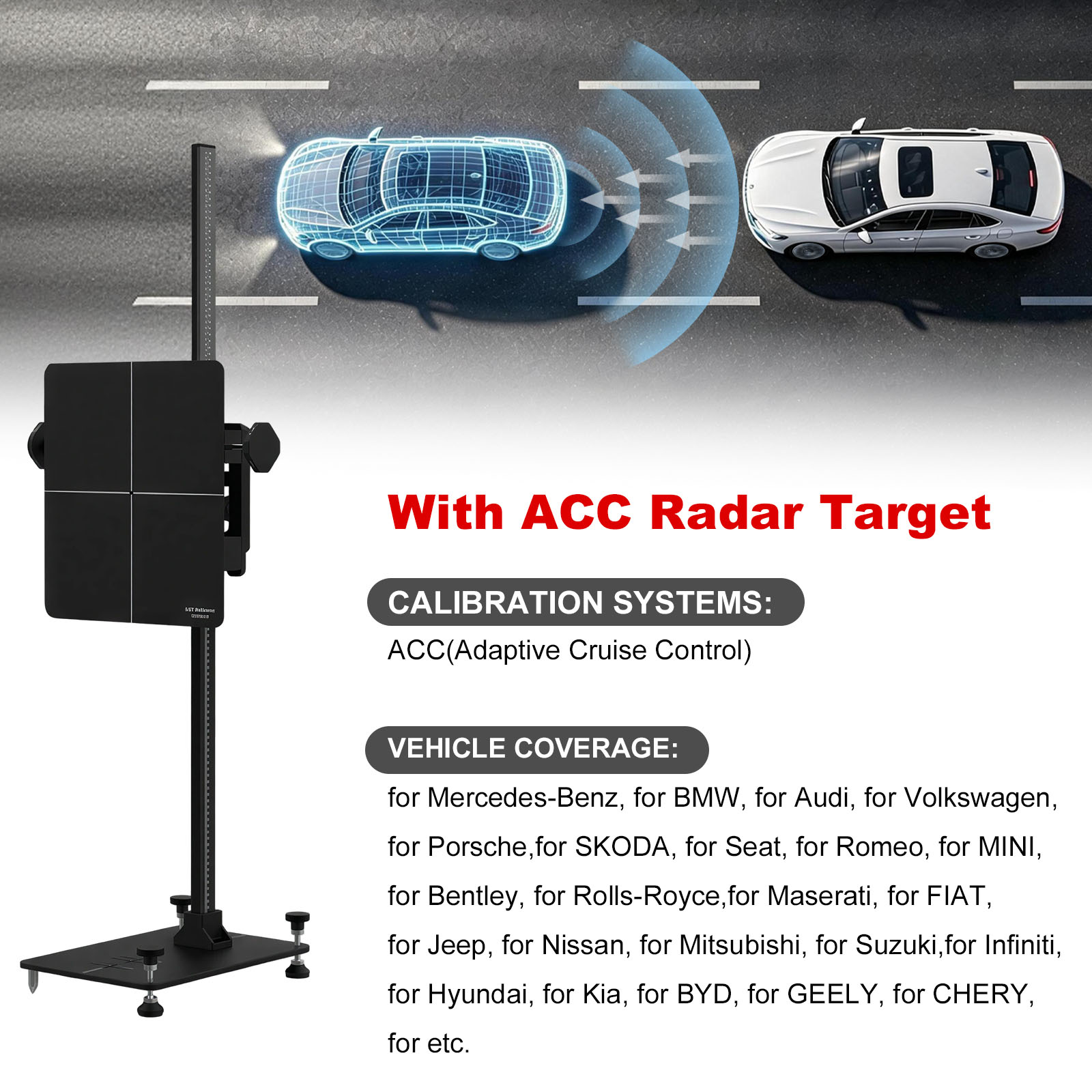

1.ACC Radar Target (LAM05-02)

For adaptive cruise control calibration, compatible with most European, Asian, and domestic brands.

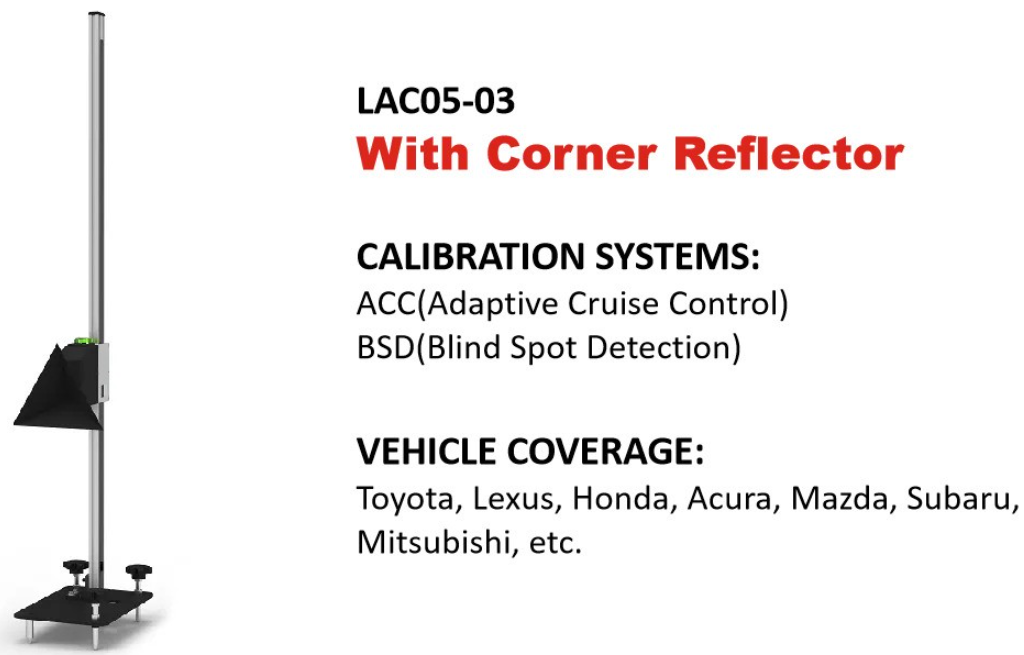

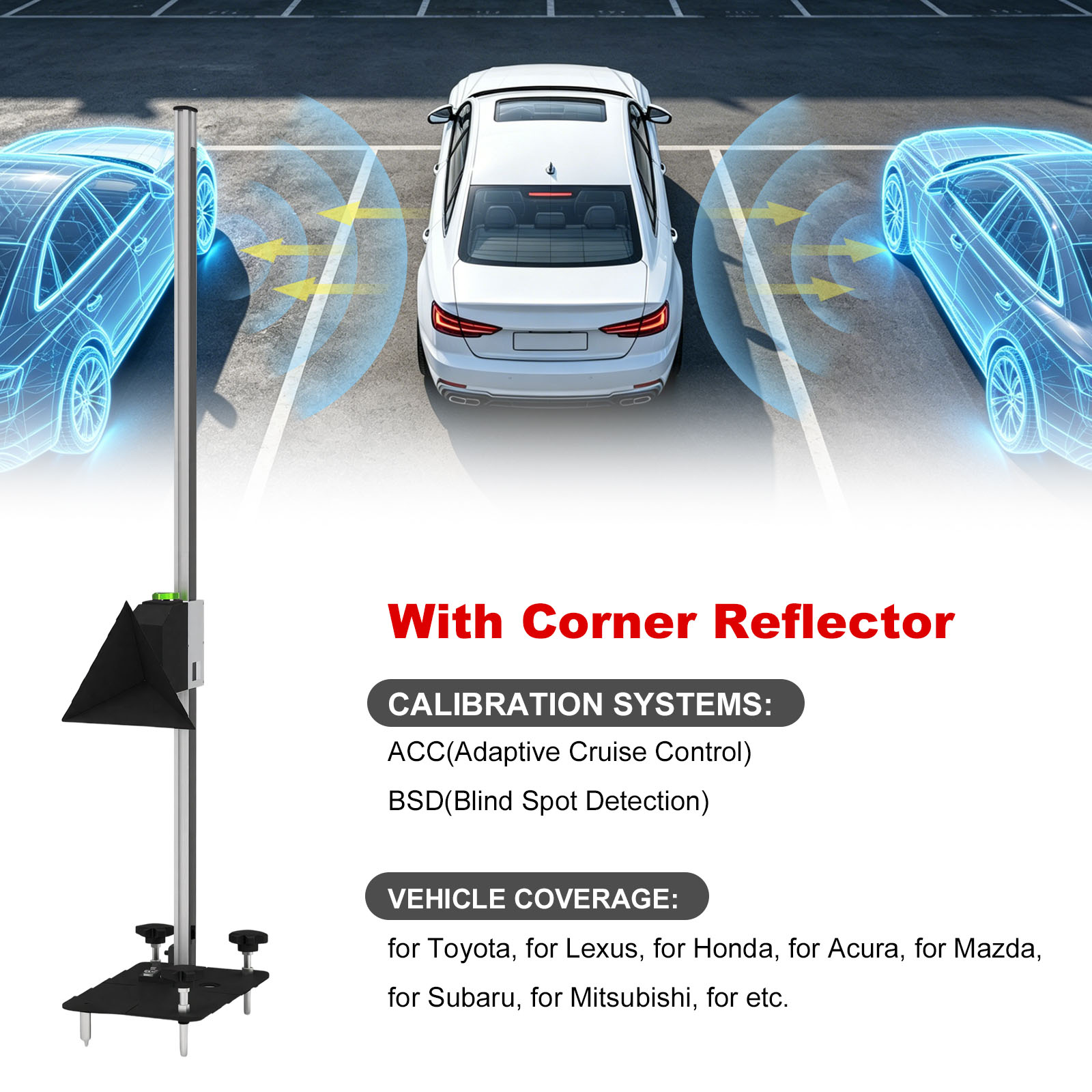

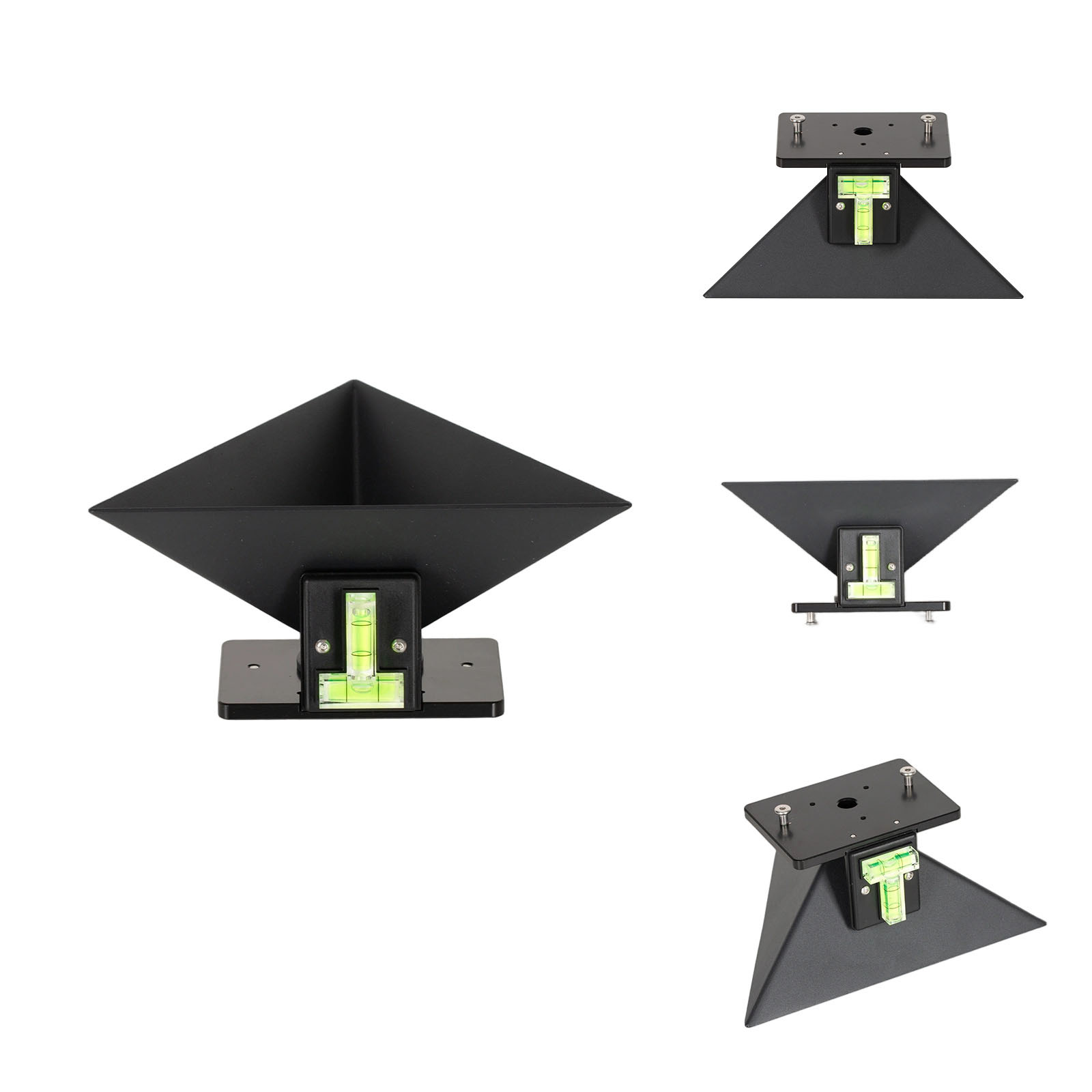

2.Corner Reflector (LAC05-03)

For ACC + BSD dual system calibration; ideal for Toyota, Lexus, Honda, Acura, Subaru, Mitsubishi, etc.

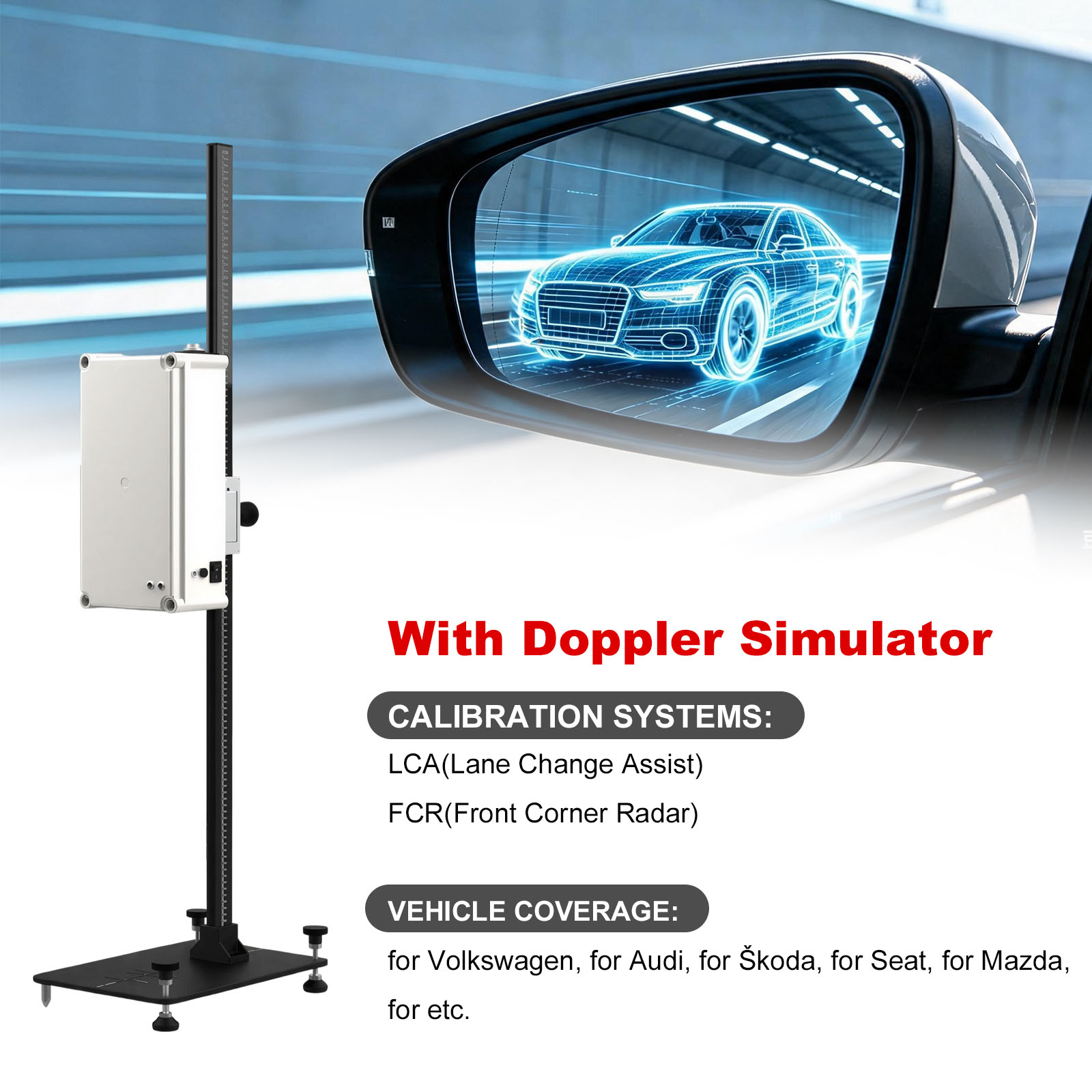

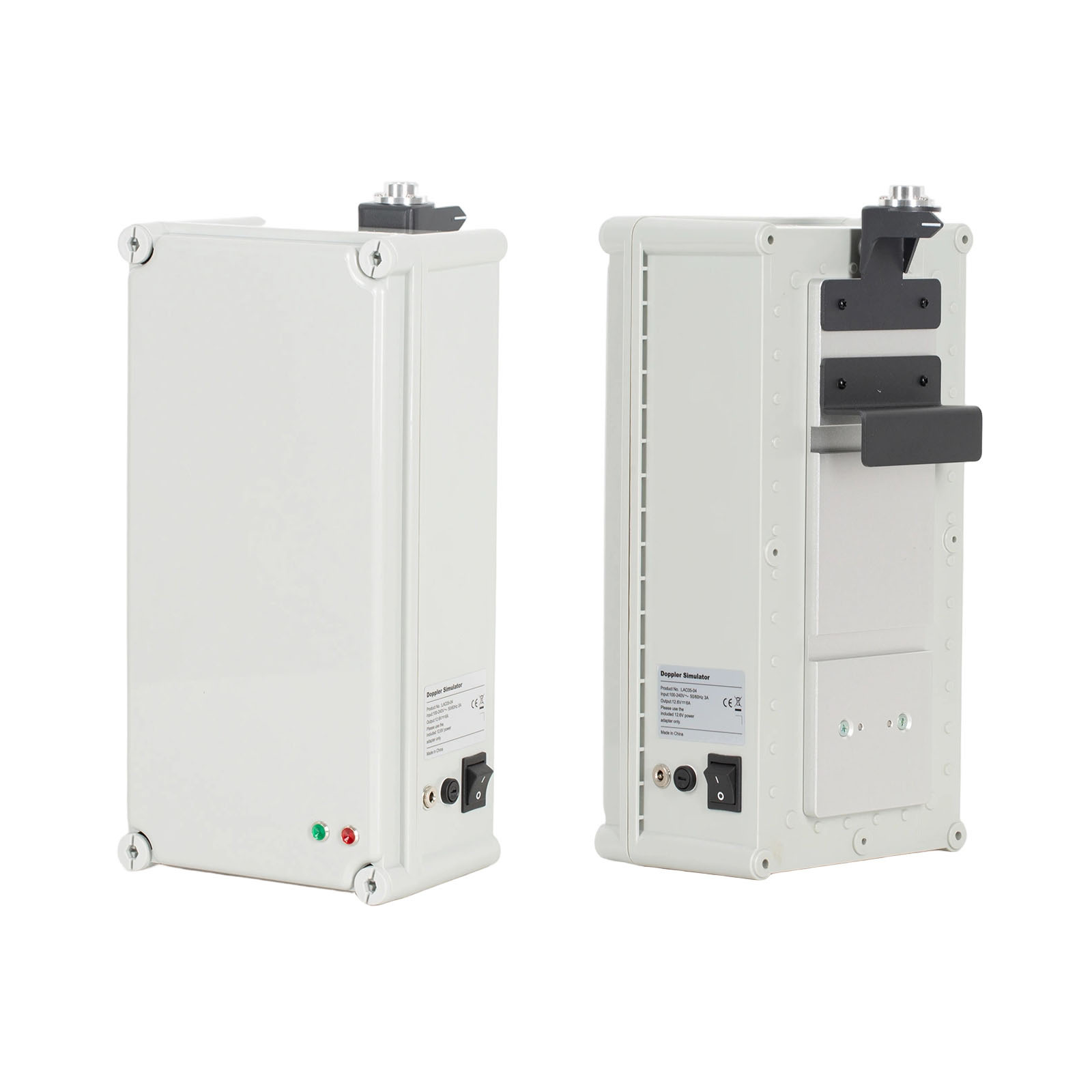

3.Doppler Simulator (LAC05-04)

For LCA lane change assist and FCR front corner radar, suitable for Volkswagen, Audi, Skoda, Seat, Mazda, etc.

Key Advantages & Design Highlights

1. Compact, Portable & Workshop‑Friendly

Ø Lightweight modular structure, easy to transport, store, and set up even in small workspaces.

Ø Unified main frame design eliminates the need for multiple separate ADAS devices, saving cost and space.

Ø Complete with portable bags for the main unit, targets, and accessories for on‑site or mobile calibration jobsX431.



2. High Precision & Stable Positioning

Ø Equipped with a five‑line laser device, plumb line, mounting adaptor, laser reflector, and positioning tools to ensure accurate, repeatable calibration.

Ø Supports both static calibration (in‑shop with tooling) and dynamic calibration (road learning via software), matching OEM requirements X431.



3. Easy Operation with Step‑by‑Step Guidance

Ø Works with dedicated ADAS Radar 3IN1 software on X‑431 tablets with visual, illustrated tutorials.

Ø Generates before/after calibration comparison reports for documentation and customer proof.

Ø Plug‑and‑play design with low learning curve for technicians of all experience levelsX431.



4. Broad Compatibility with X‑431 Series

This is an add‑on kit and must be used with LAUNCH X‑431 diagnostic tools, including:

Local dealer's model:

X-431 PAD9 LINK, X-431 PAD7 LINK, X-431 PAD5 LINK, X-431 PRO3 LINK, X-431 PRO3 SE, X-431 PRO SE

Online dealer models:

X431 PRO cable connection scanner

Launch X431 Pro Elite (Same as X431 PROS Elite)

LAUNCH X431 Pro Star

X431 Pro 8-inch Series Bluetooth scanner

LAUNCH X431 PRO TT/ PRO Dyno

LAUNCH X431 PROS V5.0

Launch X431 V V5.0

X431 Pro 10-inch Series Bluetooth scanner

Launch X431 V+ V5.0

Launch Pro3S+ V5.0

Launch X431 PRO3 APEX

Launch X431 Pro3 ACE

LAUNCH X431 PRO3 V+ 5.0 Elite (Same as PRO3S+ Elite)

Launch X431 Pro5 Smartlink

X431 PAD Series

Launch X431 PAD V Elite

Launch X431 PAD VII Elite



When Calibration Is Required

Ø After replacing or repairing radar sensors / control units

Ø After repairing or replacing bumpers, brackets, or parts that hold sensors

Ø After chassis adjustment or sensor position shift

Ø When sensor angle deviation exceeds factory limits

Ø After collision repair or wheel alignment, it affects sensor alignment X431

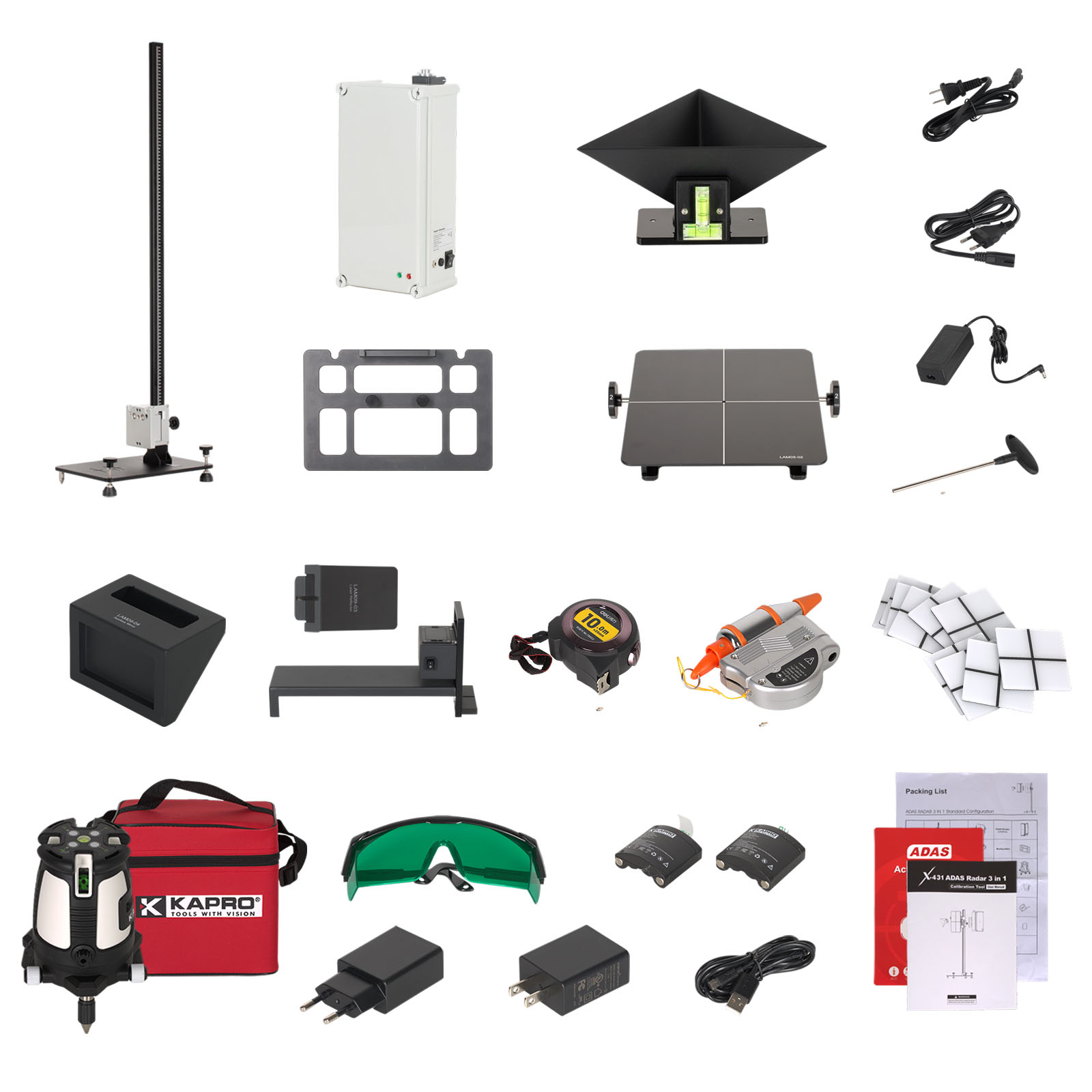

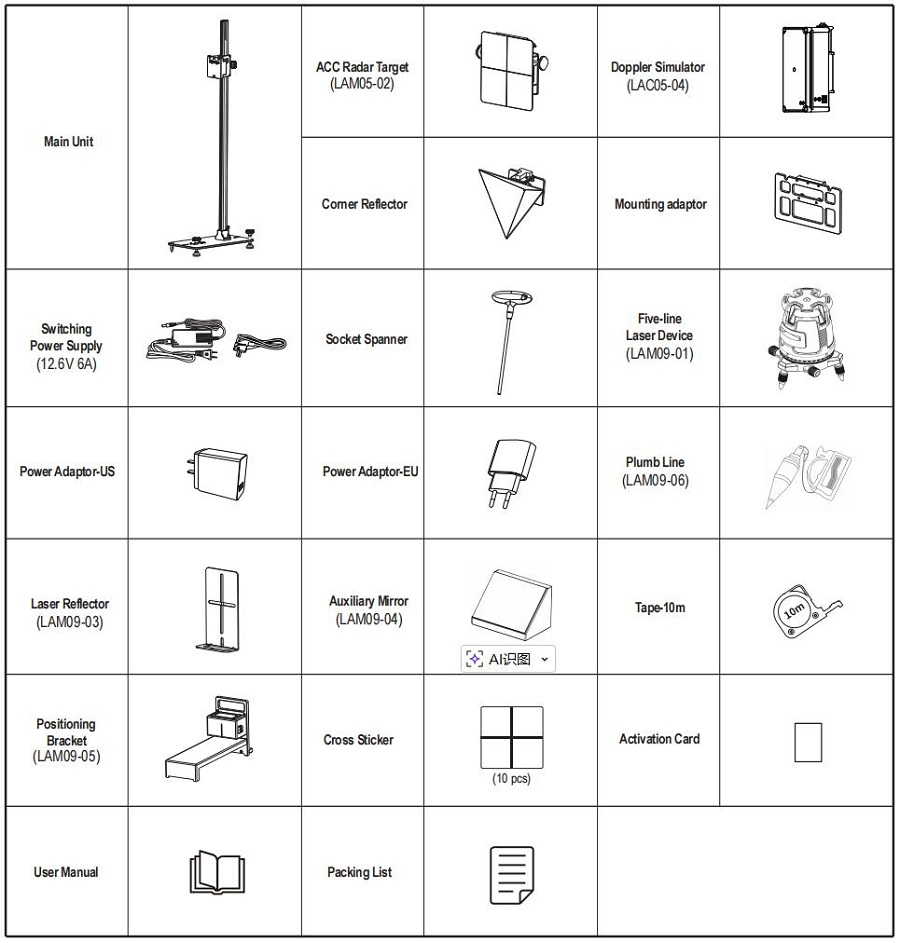

Package includes:

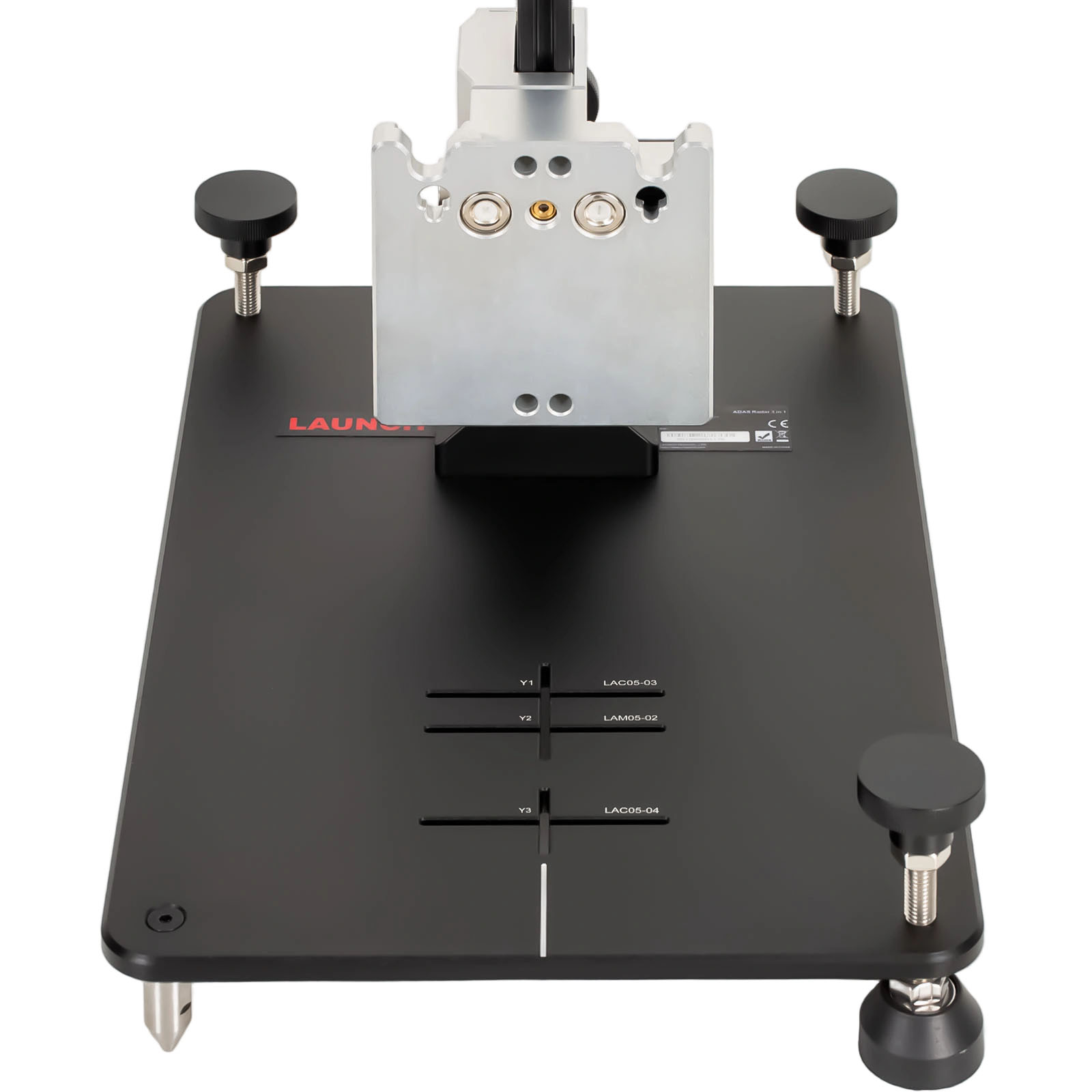

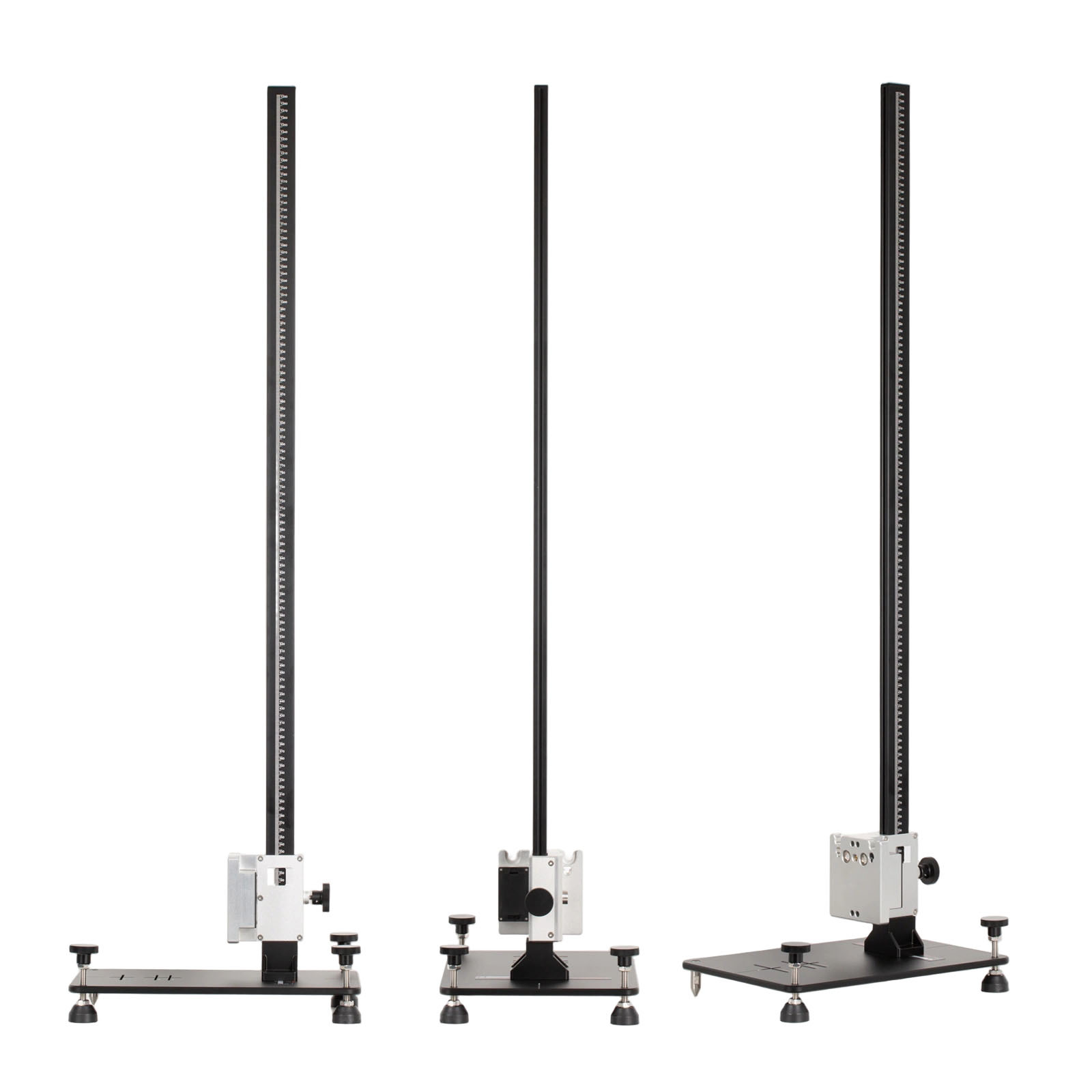

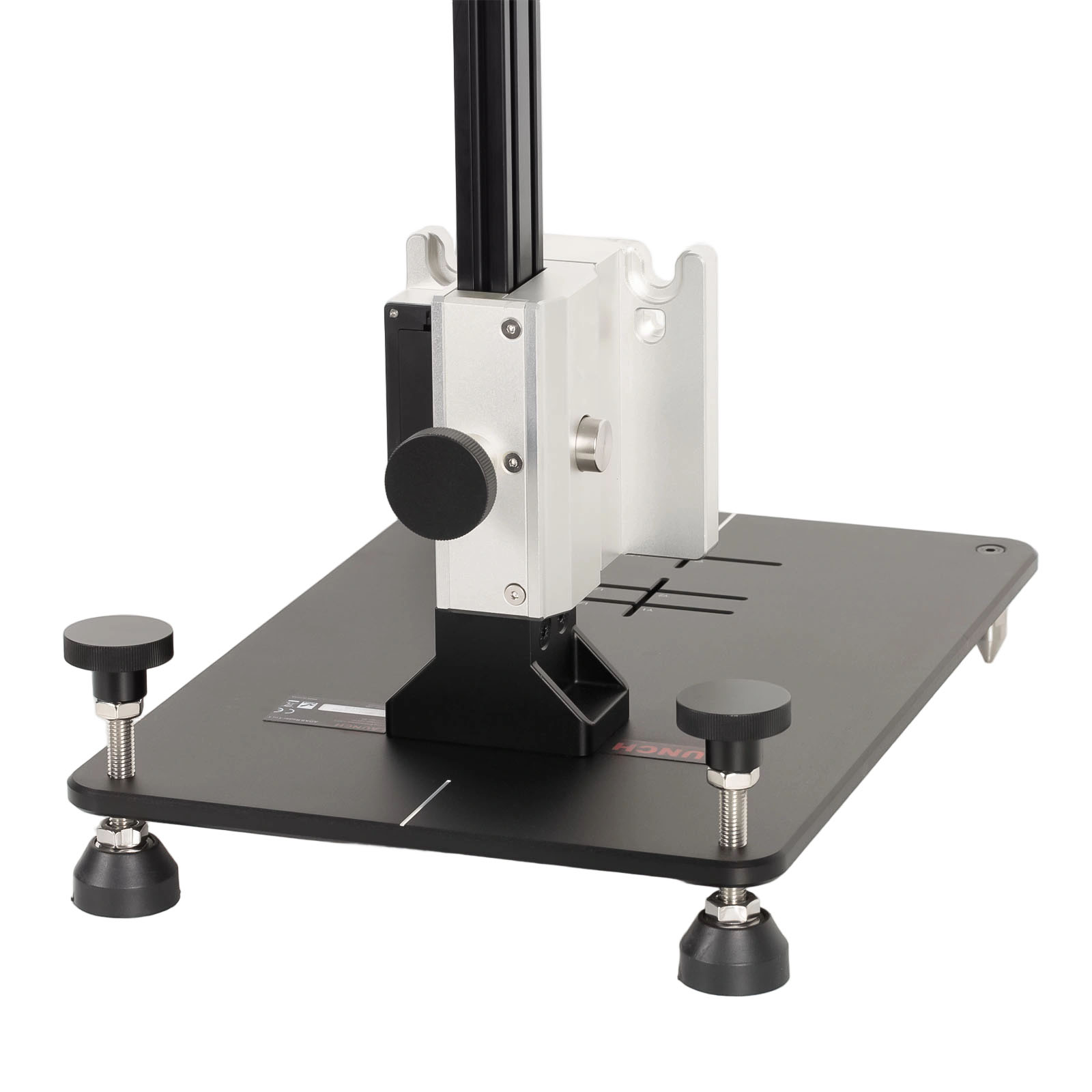

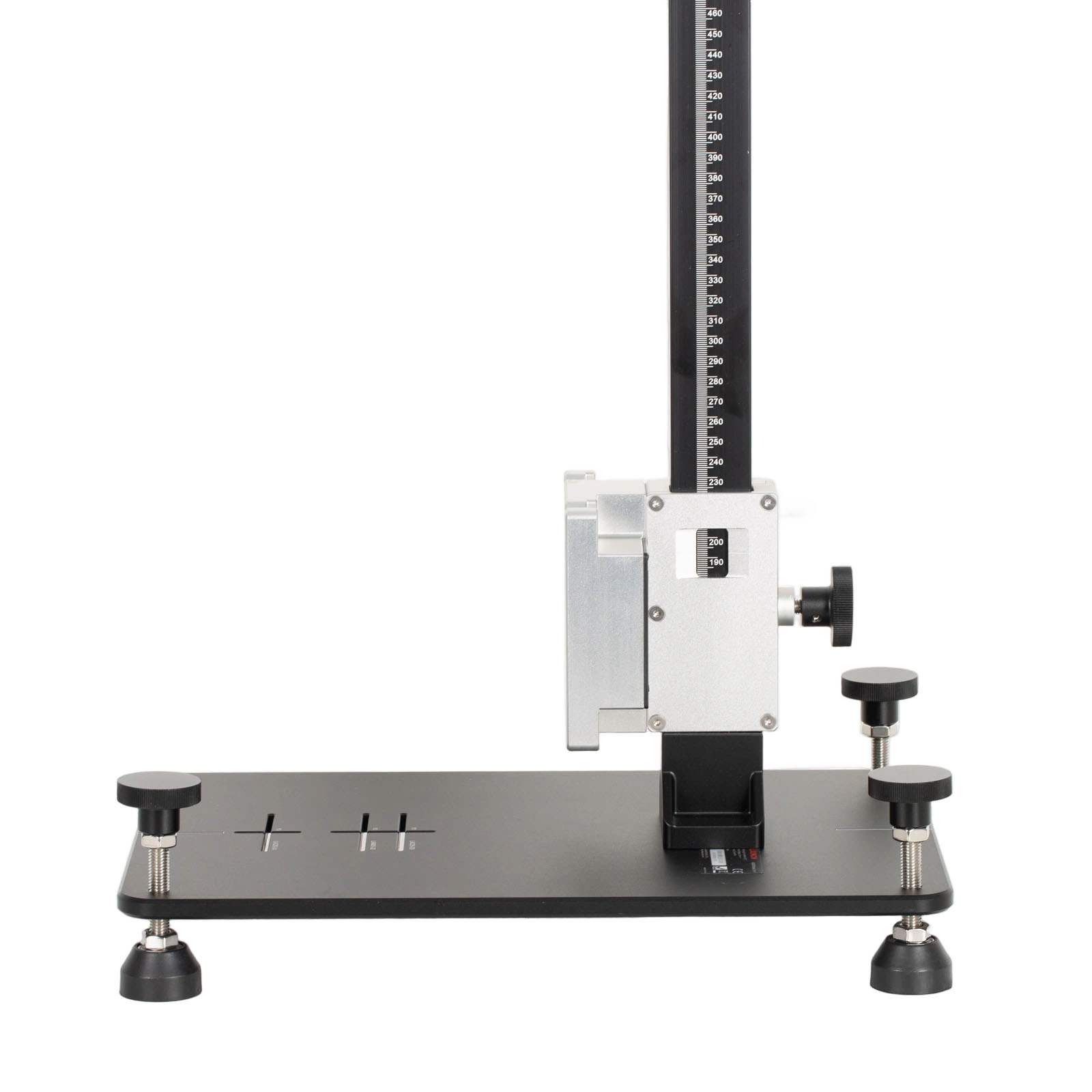

1pc x Main Frame
1pc x ACC Radar Target LAM05-02
1pc x Corner Reflector LAC05-03
1pc x Doppler Simulator LAC05-04
1pc x Switching Power Supply
1pc x Socket Spanner
1pc x Five-line Laser Device LAM09-01
1pc x Power Adaptor-US
1pc x Power Adaptor-EU

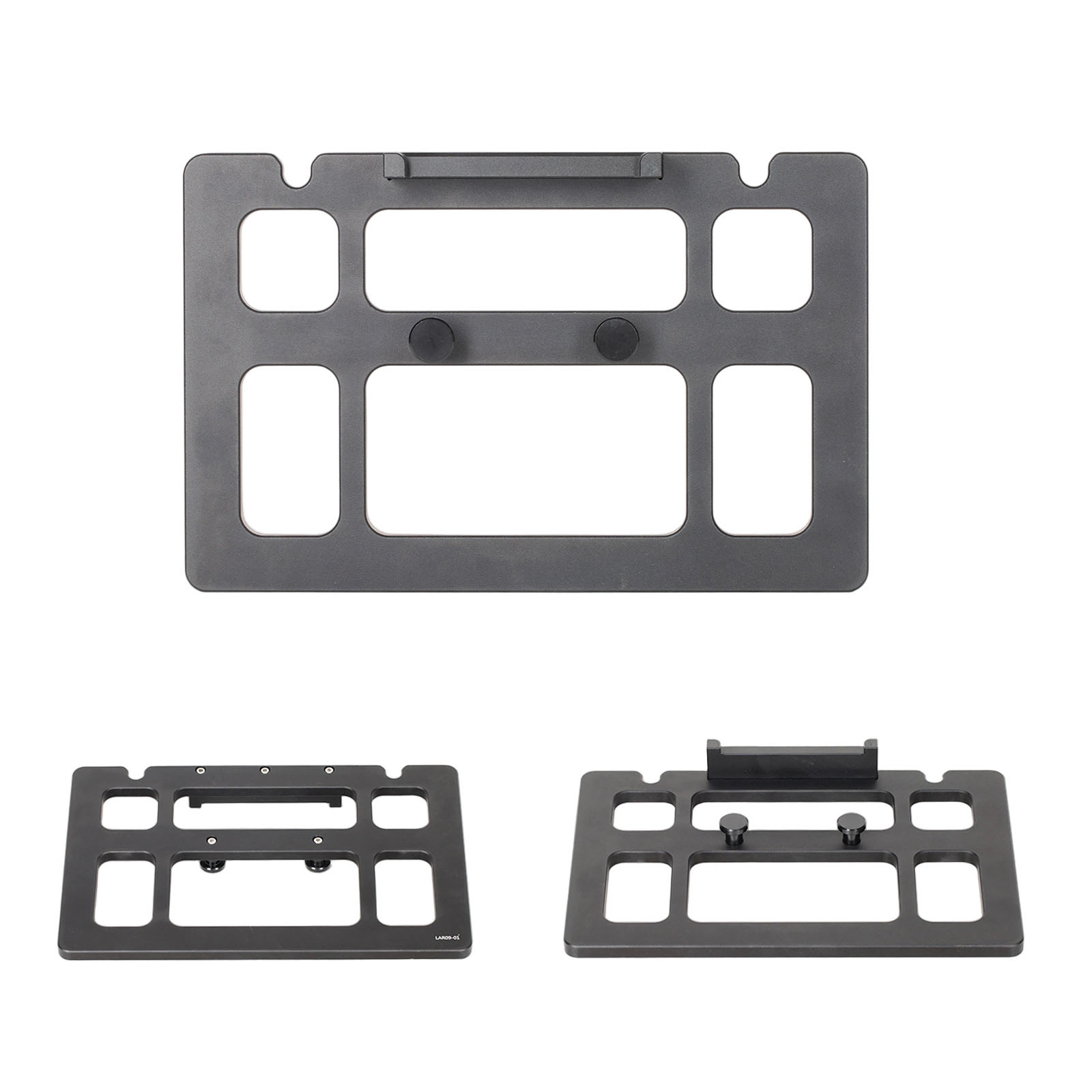

1pc x Mounting Adaptor LAR09-01
1pc x Laser Reflector LAM09-03
1pc x Auxiliary Mirror LAM09-04
1pc x Positioning Bracket LAM09-05
1pc x Plumb Line LAM09-06
1pc x Tape-10m
10pcs x Cross Sticker
1pc x Activation Card
1pc x User Manual
1pc x Packing List
