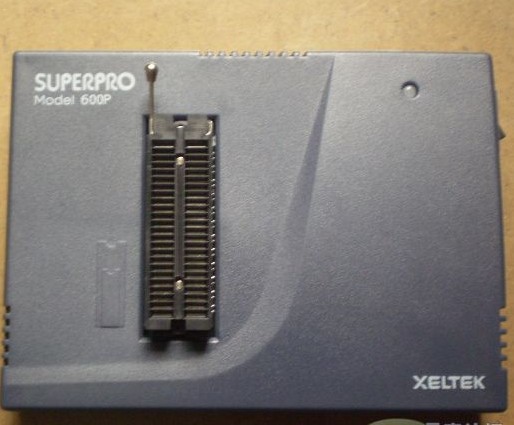

UNIVERSAL EPROM PROGRAMMER: SUPERPRO-600P

SUPERPRO-600P

UNIVERSAL EPROM PROGRAMMER HIGHLIGHTS

Supports 25,000+ IC devices from 150+ IC manufacturers.
High speed programming
USB 2.0 high speed PC interface
High-performance, compact
CE and RoHS compliant
Windows XP / Vista

DEVICE SUPPORT

IC Device types supported include:
FLASH memories, EPROMs, EEPROMs, Serial EEPROMs, FPGA Configuration Serial PROMs, NVRAMs, PLDs, CPLDs, EPLDs, Firmware HUBs, Microcontrollers, PICs, Standard Logics.
Suppoprts standard DIP and skinny DIP packages from 8 to 48-pins on standard equipment
Supports a wide variety of other IC packages with reliable factory-made adapters. Packages supported includes: PLCC, CLCC, SOIC, LAP, QFP, TQFP, VQFP, TSOP, TSOPII, SOP, PSOP, TSSOP, SON, EBGA, FBGA, VFBGA, µBGA, etc.
Free software updates can be downloaded via Internet at any time.
For a complete list of devices supported, please see: Device List

PROGHRAMMING SPEED

Very fast programming speed via USB interface.
Programs and verifies a 64M-bit NOR flash memory device in 11.3 seconds and a 64Mb EEPROM in 43 seconds.
The auto-start feature allows programming to start automatically as soon as a chip is inserted into the programming socket.

IC model	Program+verify	Compare with SP3000U	Type
AT28C64B	0.8(P)+0.1(V)= 0.9(s)	1.2(P)+0.8(V)= 2.0(s)	64Kb EEPROM
24AA128	2.7(P)+1.8(V)= 4.5(s)	5.0(P)+4.0(V)= 9.0(s)	128Kb serial EEPROM
QB25F640S33B60	29.0(P)+14.4(V)= 43.4(s)	55.2(P)+41.4(V)= 96.6(s)	64Mb serial EEPROM
AT89C55WD	2.5(P)+0.4(V)=2.9(s)	3.3(P)+1.0(V)=4.3(s)	20KB FLASH MCU
S25FL064A	43.9(P)+14.7(V)= 58.6(s)	72.8(P)+41.4(V)= 114.2(s)	64Mb SPI EEPROM
PIC16F876A	10.1(P)+0.8(V)= 10.9(s)	22.1(P)+06.2(V)= 28.3(s)
PIC18F442	5.1(P)+1.1(V)=6.2(s)	13.6(P)+06.7(V)=20.3(s)

HARDWARE FEATURES

The programming unit has 48 universal pin-drivers built-in. There is no need to add additional or optional pin-drivers for programming devices of up to 48-pins.
Since each pin-driver is software programmable, proper voltage levels will be applied to each and every pin, not just the Vcc pins, allowing true low-voltage programming for low-voltage devices.
Light-weight and portable, good for field applications and international travel (takes 110V to 240V AC).

EASY-TO-USE S/W FOR IC PROGRAMMING

Programmer-control S/W is Windows XP and Vista compatible.
Pin continuity and reverse insertion checks help to prevent devices from accidental damage.
Over-current and over-voltage protection ensures safety of the devices and programmer hardware.
Auto-program command combines device operations like program, verify, security into a single command at any user-selected sequence.
Project function simplifies operations. Settings such as device selection, file selection, device configuration, program options can be saved into project files, thus reducing multiple steps into a single operation.
Automatically recognizes file formats and detects large file offsets.

DEVICE SUPPORT

Device (IC) Types Supported:
EPROM, Paged EPROM, Parallel and Serial EEPROM, FPGA Configuration Serial PROM, FLASH Memory (NOR), EPLD, Firmware HUB, Microcontroller, Microchip PIC, etc.
Device Packages Supported on Standard Equipment:
DIP, SDIP.
Device Packages Supported with Optional Adapters:
PLCC, JLCC, SOIC, QFP, TQFP, VQFP, PQFP, TSOP, TSOPII, SOP, SSOP, PSOP, TSSOP, SON, QFN, EBGA, FBGA, VFBGA, µBGA, CSP, SCSP, etc.

DEVICE UPDATES

Software and device algorithms are updated regularly.
Current software can be downloaded free of charge
Updates are available by mail at a nominal charge.

HARDWARE & ELECTRICAL

PC interface: High speed USB 2.0

AC power supply: Input 100V-240V AC, 50/60 HZ.
Output 12VDC, 2 Amp.
Programmer physical size: 8" x 5 1/2" x 2 5/8" high
(203mm x 140mm x 65mm)
Net weight (programming unit, AC power supply, USB cable):
2.0 Lbs.
Gross shipping weight: 5 Lbs.

WARRANTY

2-years. Programmer is warranted to be free of manufacturing or workmanship defects for two (2) years from the date of purchase. Warranty covers parts, labor, and free UPS ground shipping from Advin back to customer. (Free ground shipping applies to 48-states and Canada only).

INCLUDED ITEMS

Programming unit with 48-pin DIP ZIF socket adapter.
AC power supply.
USB Cable.
S/W CD.
User's Guide.
Registration card and user-feedback form.
