DIAGXT T80 Universal Oscilloscope,Automotive Oscilloscope,Store, Parse, Modify, Send CAN Bus Data with 4G Memory

DIAGXT T80 Universal Oscilloscope,Automotive Oscilloscope,Store, Parse, Modify, Send CAN Bus Data with 4G Memory

Given the fact that many auto repair personnel struggle to operate complex oscilloscopes, DIAGXT has designed the daevice DIAGXT T80 to suit repair personnel, making it more convenient, quicker, and easier to learn. It's been dubbed the "Oscilloscope You Can Learn in Short Time."



Why choosing DIAGXT T80？

Advanced Automotive-Specific Functions :

* Waveform Transmission : Can send correct timing waveforms to a vehicle's ECU.  This is crucial for diagnosing timing-related issues (e.g., no-start conditions) by verifying if components like injectors or spark plugs activate with the simulated signal.

* CAN Bus Expert : Capable of capturing, parsing, editing, saving, and transmitting CAN bus data—a function not commonly found in standard oscilloscodes.

*Extensive Waveform Library : Includes a standard database of 400 diesel engine timing waveforms. Users can also build their own library by capturing waveforms from known-good vehicles.

Beginner-Friendly Operation : Just 3 minutes of training is sufficient for beginners.  Pre-configured settings for common vehicle components and intuitive touch controls make the learning curve minimal.

High-Capacity Data Handling : Features a massive 4GB storage depth, allowing for long-term, high-sample-rate data collection (e.g., for ignition signals) and enabling you to review over ten minutes of captured waveforms repeatedly.

Powerful Multi-Channel Analysis : Equipped with 4 channels to capture multiple signals simultaneously.  It supports 3-screen simultaneous display for viewing longer waveform sequences, facilitating easier fault location.

Product Highlights:

Up to 4G Storage

Temporarily store up to 4G of data for users to query.

Standard Database

Provide users with 400 standard timing waveforms for diesel engines.

CAN Analysis

View CAN bus waveform, can store, mordify and send CAN data.

Single channel sampling rate of 200M, storage of 4G

Convenient and efficient car oscilloscope

CAN bus data storage, parsing, modification and sending

Send timing waveform

Complete manufacturer waveform library data.



Product Features:

1.The operation is simple, and 3 minutes of training for zero-based customers is sufficient.Using the acquired waveform data, the instrument makes the cost of learning extremely low.

2.The number of channels is large, and more types of data can be collected at one time, which is convenient for comprehensive analysis of signals.

3.High storage depth allows for continuous high sampling rates, enabling long-term data collection against car ignition signals and other signals with a high sampling rate and a long time span for accurate acquisition and analysis.

4.3 screens of data are collected and displayed simultaneously, allowing for the viewing of longer continuous time waveforms, making it more convenient to locate faults.It's even more convenient to use.

5.Supports waveform raw data saving and viewing, and supports decoding based on waveform data.

6.The power mode is flexible, the charging speed is fast, and it can be adapted to more use cases.The hinge is adjustable, and the fixed bracket design allows for easy placement of the instrument, such as for benchtop oscilloscope use.At the same time, it has a large-capacity rechargeable battery, making it convenient to carry around for use.

7There is a multimeter with a basic function.With it, you catch the waveform of interest.Hold the screen multi-touch, operate and zoom in like a mobile phone, zoom out the moving waveform.



Product Advantages:

1.Adopts the handheld design.It is more portable and not limited by 220V power supply.      At the same time, compared with the PC version, it is not limited by laptops;

2.Adopts touch operation.It is convenient for waveform adjustment;and easy to use with physical buttons；

3.With a memory of up to 4G.It can temporarily store waveform of more than ten minutes in the memory and can be viewed repeatedly at will.Ordinary oscilloscopes only have the information of the current screen;

4.Adds an "Options" menu, which presets the amplitude and time base based on the characteristics of each vehicle component.To measure, users simply click the corresponding sensor name, eliminating the complex setup process and making it more suitable for new beginner;

5.Features a save function.Complete waveform can be permanently saved to an SD card for easy future referenceFurthermore, data, not images, is saved.This can also be viewed on a PC.The waveform can also be exported;

6.With a waveform transmission function.It can send the correct timing signal to the vehicle ECU.This is convenient for checking timing errors.For example, if a vehicle fails to start and maintenance personnel suspect a timing signal failure, this function can be used to send the correct waveform to the ECU.If the injectors, spark plugs, etc. are activated at this time, it means that there is indeed a problem with the vehicle's original signal;

7.Send data from the manufactures’ waveform library, or send self-collected waveform.If our waveform library does not have the corresponding waveform, the user can collect waveform from the same model vehicle as a database;

8.With the vehicle CAN bus analysis function;it can collect, analyze, modify, save and send CAN bus data, which is a function that other oscilloscopes also do not have;

9.Equipped with more convenient interfaces and adapters to collect signal acquisition.



Product Functions:

Number Of Channels: 4

Trigger Types: Ascending edge, descending edge, bilateral edge

Waveform Data Decoding: CAN, UART, SPI

Raw Data Is Saved And Viewed：Support

CAN Bus Data Parsing (Support Protocol-Based Parsing): Support

CAN Bus Data Saving: Support

CAN Bus Data Editing: Support

CAN Bus Data Sending: Support



Product Specifications:

Sampling Rate: Single Channel  1G sps

Bandwidth: 100 M

Storage: 4 GB

ADC: 10  Bits

Screen Size: 7  Inches

Display Resolution: 1024*600

Scroll Mode: Support

Touchscreen Operation: Support

Key Operation: Support

Multi-Touch: Support

Update Method: WIFI

Battery: The continuous working time is about 1.5 hours when fully charged.

Product Size: 23*17*3.5 cm

Product Weight: 1.2KG

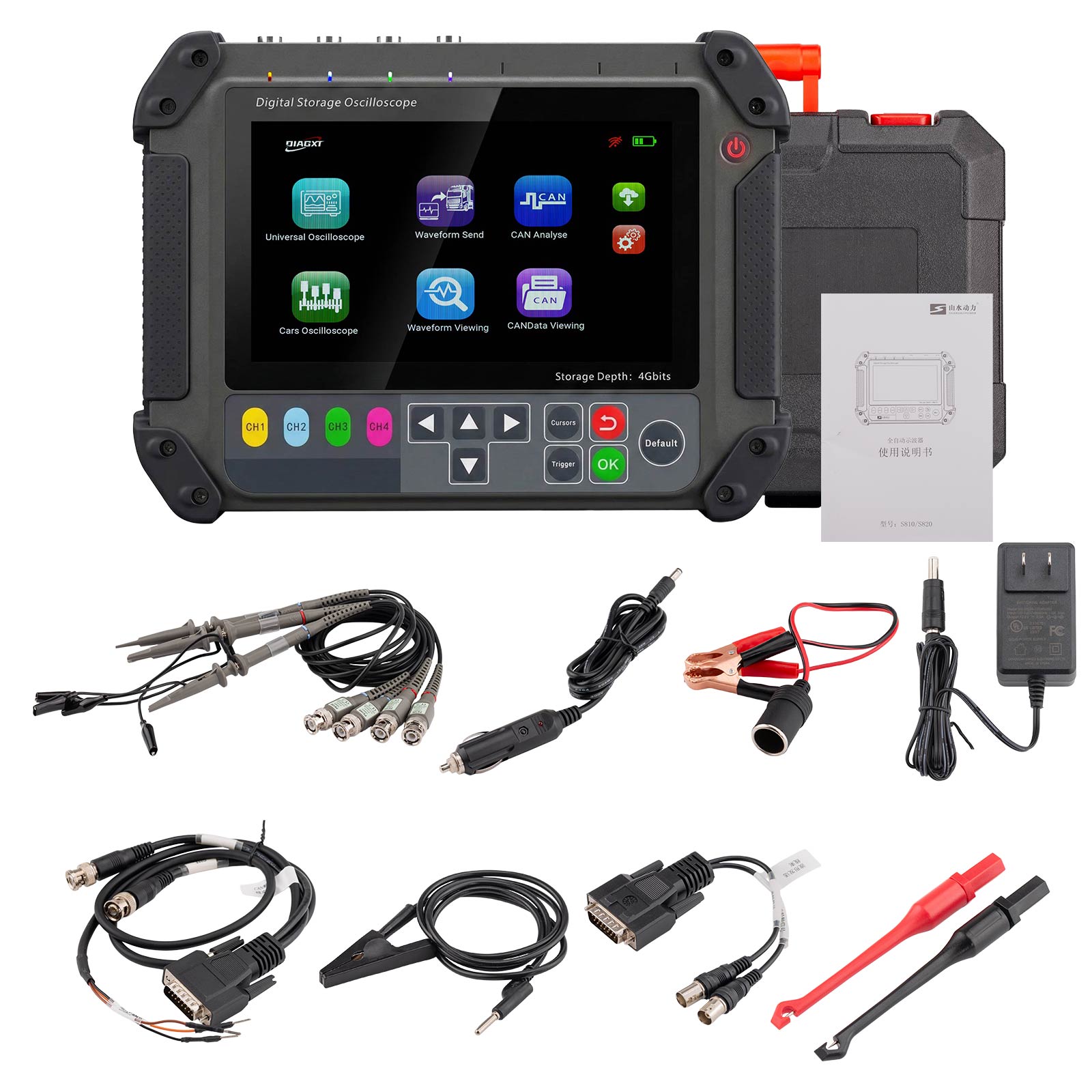

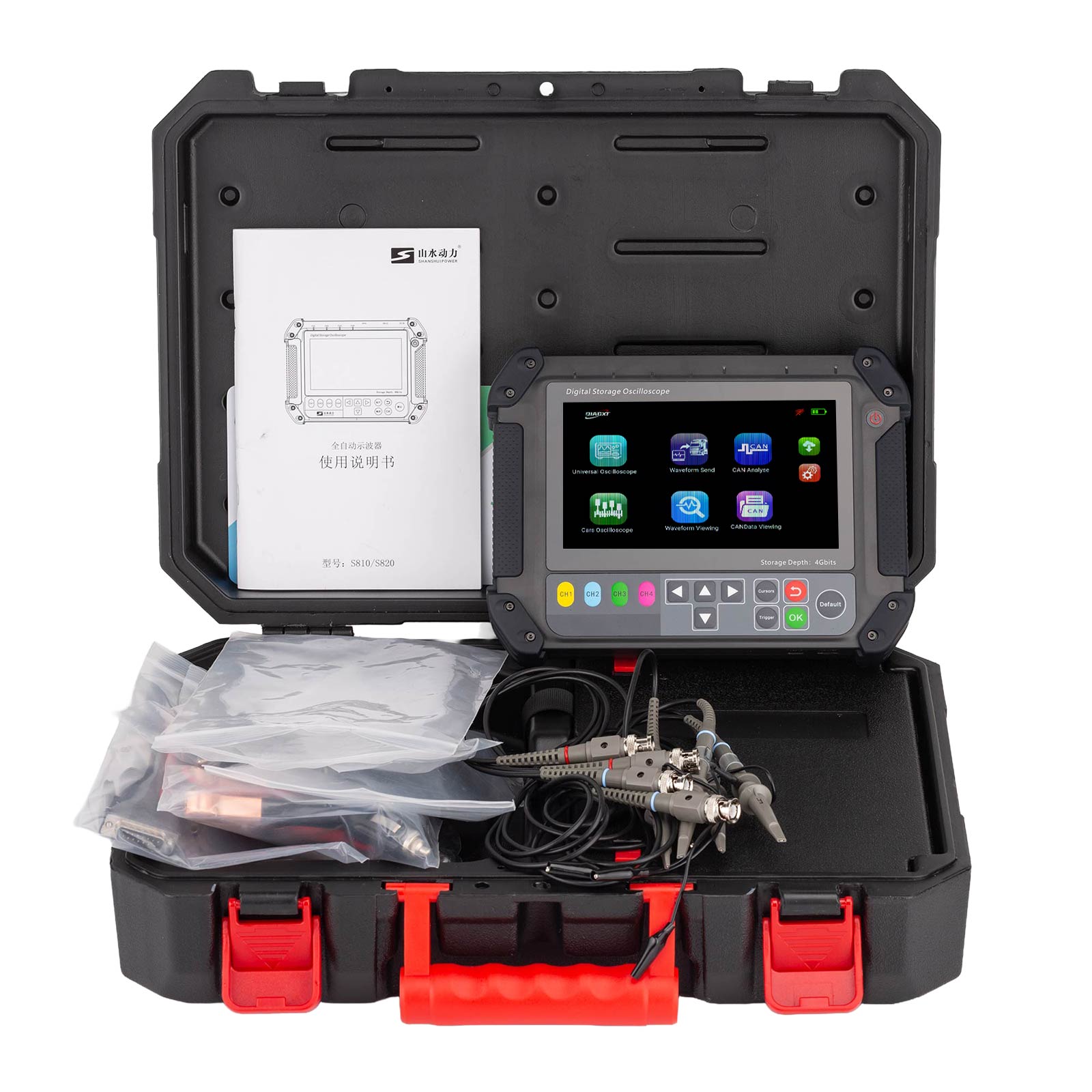

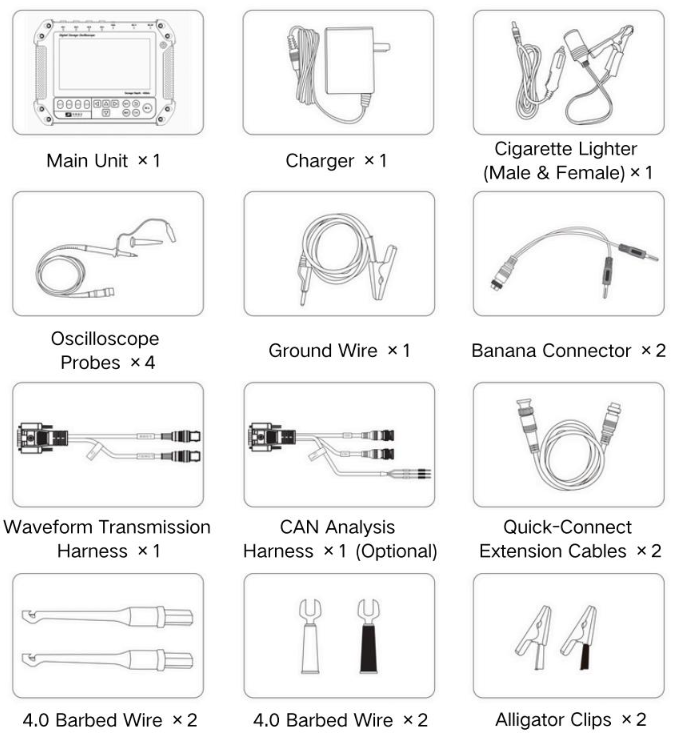

Package includes:

1pc x Main Unit

1pc x Charger

1pc x Male Cigarette Lighter

1pc x Female Cigarette Lighter

4pcs x Oscilloscope Probes

1pc x Ground Wire

2pcs x Banana Connectors

1pc x Waveform Transmission Harness

2pcs x 4.0 Barbed Wires
