JMD Key Baby Key Cutting Machine

JMD Key Baby Key Cutting Machine

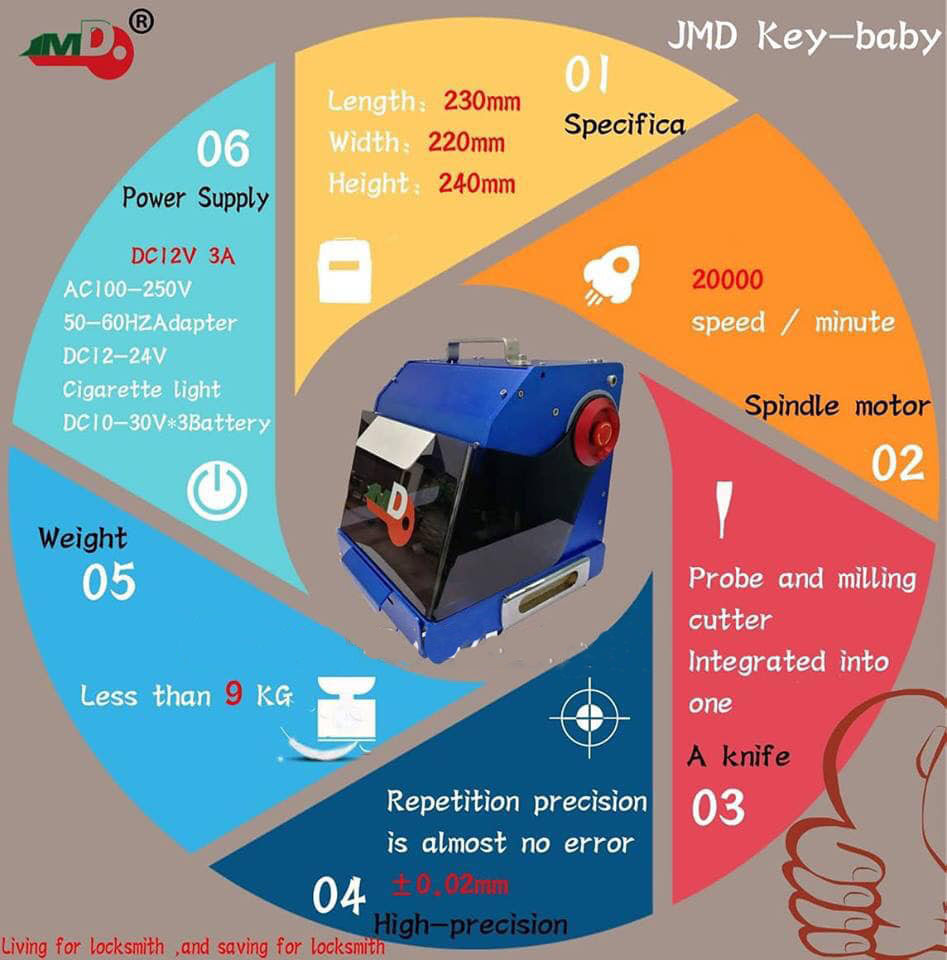

JMD Key Baby Key Cutting Machine Parameters:

(1) The three axes of XYZ are driven by screw rod with repetition accuracy of 0.02mm.
(2) High-speed brushless spindle motor, 20,000 revolutions or more per minute
(3) Aluminum alloy oxidation fuselage, the weight of the whole machine does not exceed 9 kg
(4) Ultra-low power, whole power less than 36W
(5) Wide Voltage Input DC12-24

JMD Key Baby Key Cutting Machine Functions List:
Cutting after reading code
Tooth Cutting of Duplicate Key
Two-in-one tool unlocks, reads out tooth cutting
The key card is cut by the software of tooth-searching
Keyboard duplicate key cutting
Manual addition of data cutting keys
The key data can be manually measured, added to the system, and then cut.

Note:Civil keys currently support flat embryo keys and three-dimensional embryo keys cutting.
Manual data for flat-embryo keys and stereo-embryo keys are currently supported to increase

How to Update JMD Key Baby Key Cutting Machine?
Main program and database upgrade

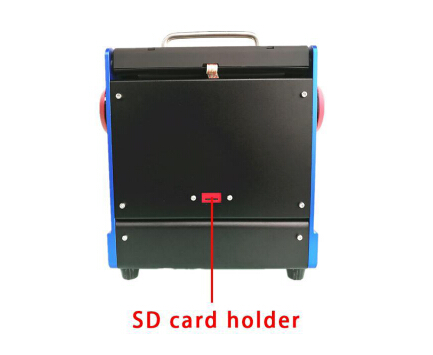

Pull out the SD card on the back of the machine, copy the upgrade package into the SD card, insert the SD card that has copied the upgrade package back into the machine, boot up, the program will be upgraded automatically, after the upgrade is completed, the machine will automatically jump to the main program interface.
Then shut down, pull out the SD card, delete the upgrade package in the SD card, and insert the SD card back into the machine (if the upgrade package is not deleted, the machine will upgrade the program again the next time it starts).

Interface upgrade mode

Copy the upgrade file to the U disk. There is a USB socket on the left side of the display screen. Insert the U disk into the SUB socket of the display screen. After booting, the upgrade will be automatically upgraded. After the upgrade, the screen will display "Please plug out the U disk", pull out the U disk, shut down and boot up again. The upgrade is successful!

JMD Key Baby Key Cutting Machine Specifications:

JMD Key Baby Key Cutting Machine Package List:
2pc x Milling cutter
2pc x Driver module
1pc x The power adapter
1pc x Cigarette lighter power cord
1pc x Card reader
1pc x Fixture No. 2
1pc x 1.6MM gasket
1pc x 0.8MM gasket
1pc x Shoulder shield
1pc x Brush
1pc x Wrench tool
1pc x  Fixture reinforcement rod
