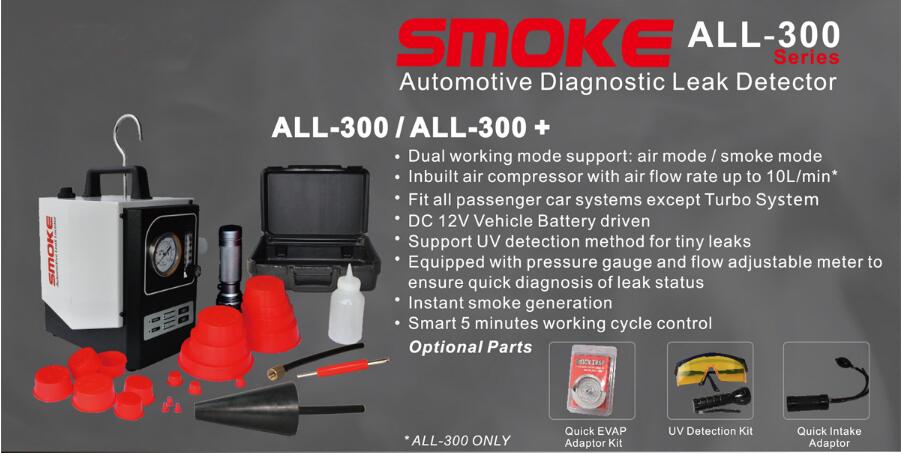

Smoke Automotive Leak Locator ALL-300

ALL-300 Smoke Automotive Leak Locator is an innovative product that provide safe and convenient method to check leaks in automotive systems! It is the fastest way of detecting and locating the leak position of all pipe system in an vehicle at an affordable price so far.



All-300 Highlights:
1. Significantly reduce the service time-cost
2. Ensure better service quality and discover potential service request
3. AL-300 is a handy new generation of automotive system leak locator
4. AL-300 uses Mineral Oil to generate smoke. the oil is possible to get at drug store, or supermarket(Mineral Oil based baby Oil) ,a 30 ML refill will be enough for test for 40 times( varies, depend on how long the user operate the equipment for each test.)
5. AL-300 is a one-time invest for a workshop or garage, but will help so much in work


1. Time saving features

1)Help locate the leak position on all vehicle systems in 1 minute
2)Fast determine the leak size by read the flow meter

2. Professional
1)Easy to Operate
2)Fast in helping locate the leak
3)Multi-functional
4)Dual Mode: Smoke Mode, Air Mode
5)Visual pressure minitoring
6)Visual flow control
7)Inbuild air compressor
8)5L/Min Super flow rate
9)Visual monitoring of smoke fuel level
10)Bigger oil tank up to 200ml capacity
11)Best mate for automotive scanner

3. Affordable
 1).Unbeatable price / performance ratio
 2).Designed for long time use

4. Flexible

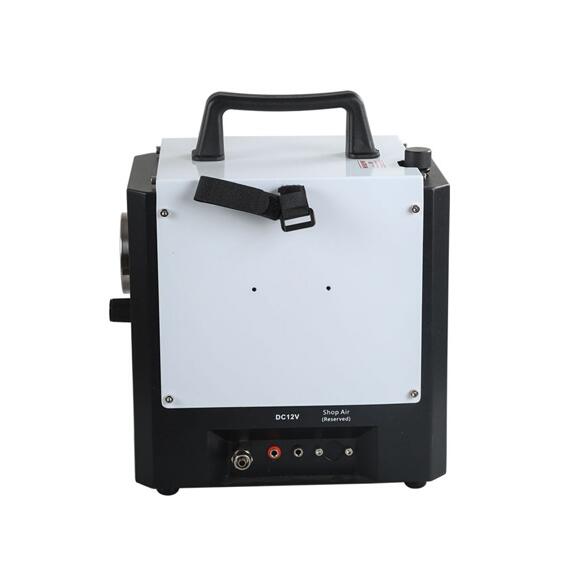

With inbuild air compressor, and power supplied by 12Volt vehicle battery, its the best tool for leak locating regardless of the working condition.

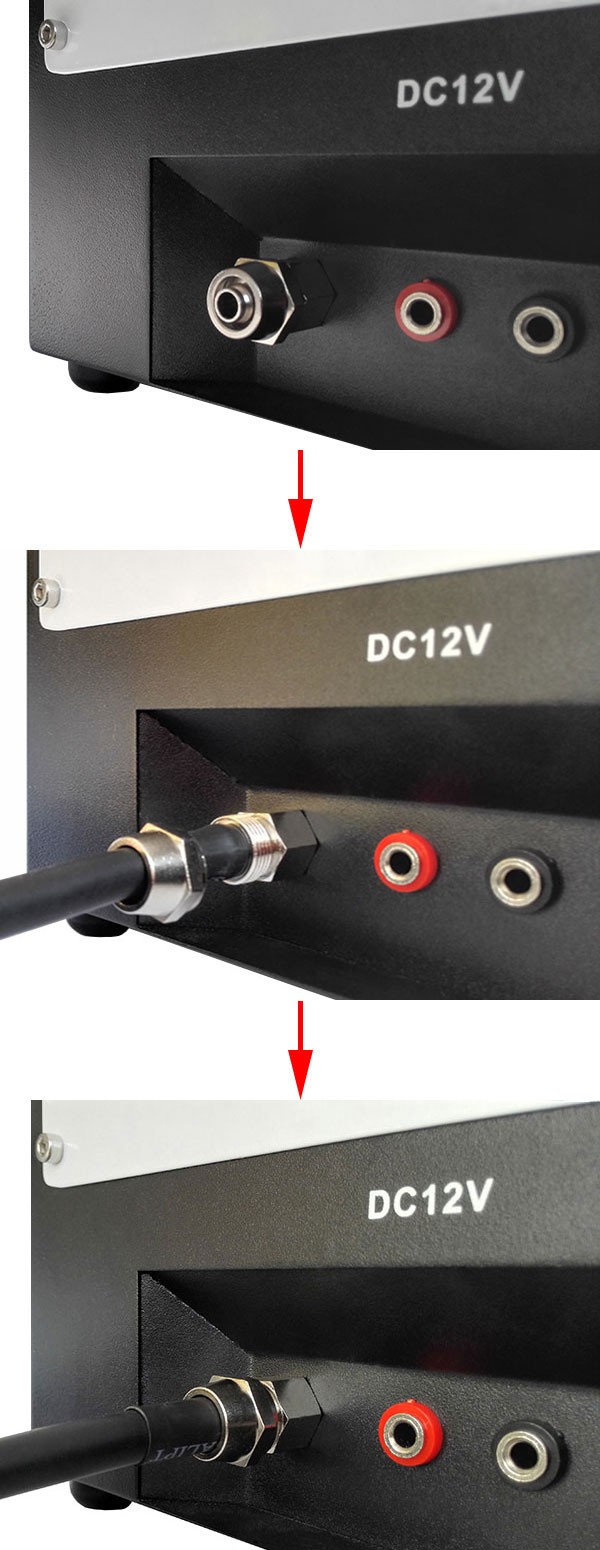

How to connect the smoke tube for ALL-300



All-300 Features:
1. Simple To Operate

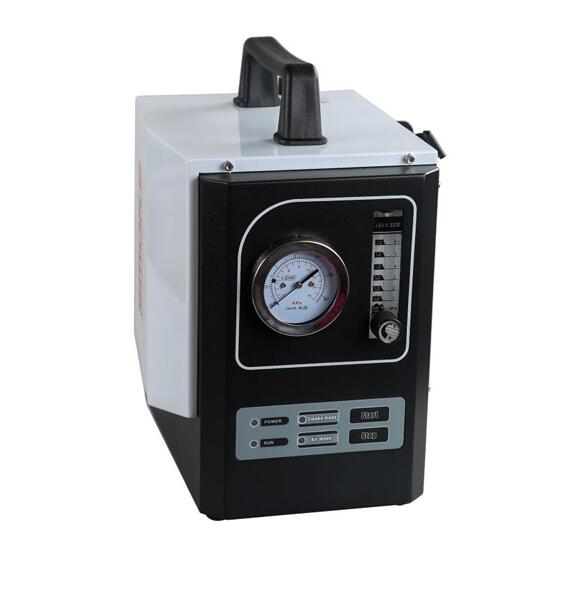

1)The Smoke Automotive Leak Locator is easily controlled with a nice keypress film and a flow control. with visual indication of the pressure level and flow status.
2)Stablized output pressure is perfect to perform leak test of all pipe system with no damage to the vehicle sealing.
3)Save time and fast leak detection. In most cases, a scan tool may find out pressure sensors abnormal etc., while actually the 'pressure low' problem is caused by  leak somewhere.
4)Use Air Mode to fast determine if there's a leak. and use Smoke Mode to find out where the leak is.
5)Use Air Mode to fast determine if there's a leak. and use Smoke Mode to find out where the leak is.
6)Adjustable air flow to perform leak test on different system that requires different flow amount.
7)If the system doesn't leak, when reached the required pressure, the flow meter readings will drop to 0, otherwise, can determine the leaksize by the flow rate

2. Multi-function
The Smoke Automotive Leak Locator is a multi purpose tool essential for EVAP system, but also applicable for: EGR valves, Gaskets & Fittings, Hoses, Worn Throttle shafts, Break Boosters, Catalytic Converters, Oil Leaks, Lamp Housings, manifolds and more....

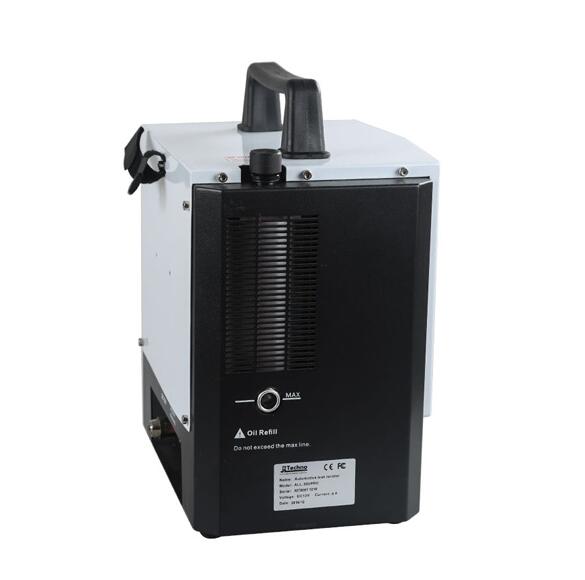

3. Visual monitor smoke fuel level

Fast to know the fuel level, don't have to guess if its time for fuel refill.

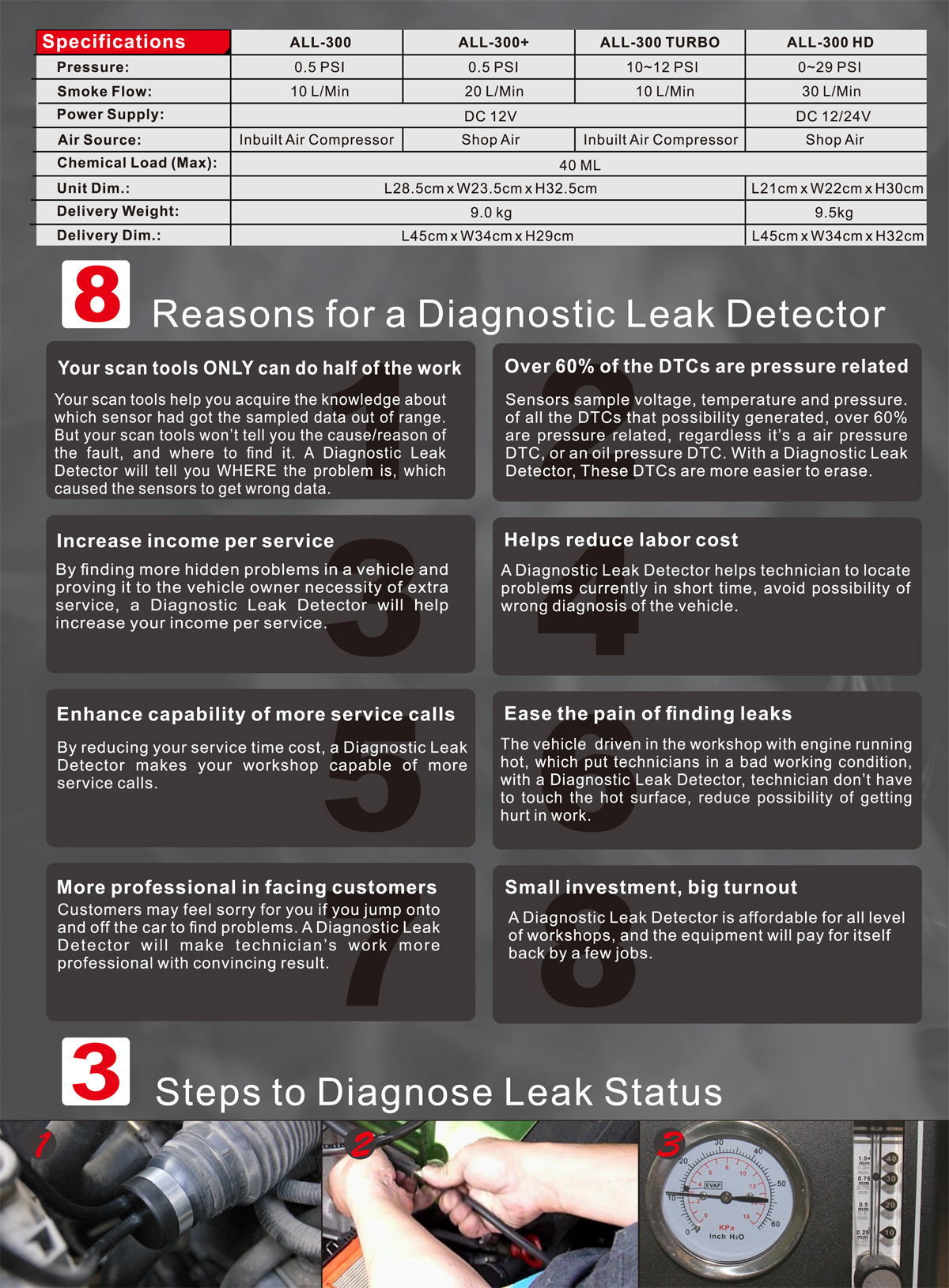

ALL-300 series comparison :


ALL-300 Smoke Automotive Leak Locator Target customer:

Car manufacturer workshops, Independent Workshop or tire service shop, garages etc. where Professional, reliable and affordable equipment is needed.

All-300 Specifications:
1. Air flow control: 0.1~5 L/MIN
2. Power supply : DC12V, 8A, 100W

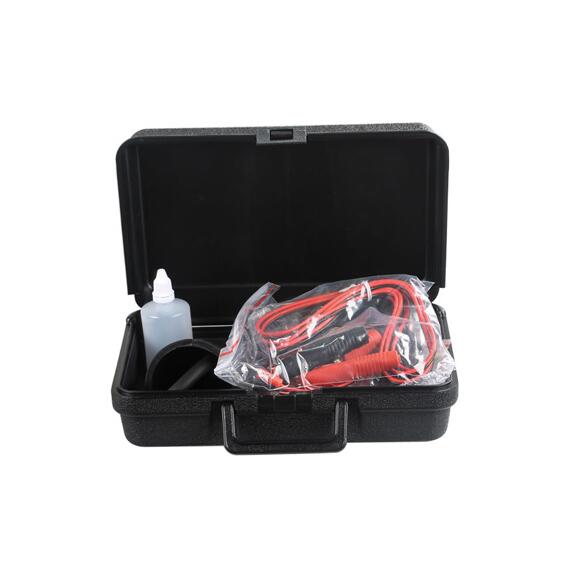

3. Full set of accessories

All-300 Requirements on Surroundings:
1. Ambient Temperature - 20°C ~ + 50°C
2. Relative Humidity ≤ 90%

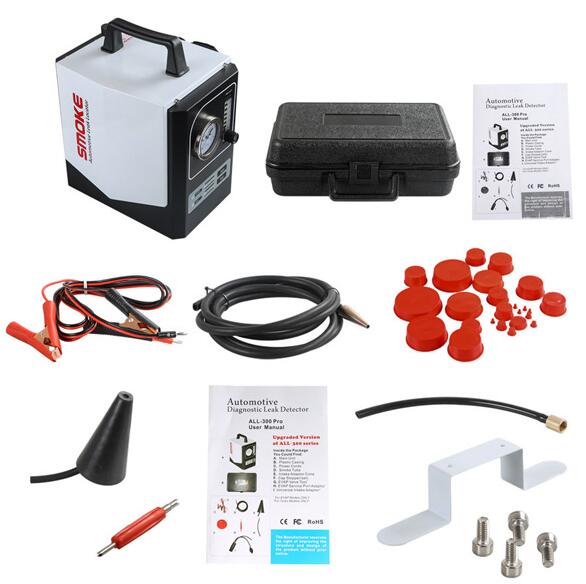

All-300 Package:
1set × ALL-300 Smoke Automotive Leak Locator
