OD6 BENZ STAR C6/BMW ICOM/JLR DOIP VCI/VAS 5054A/PORSCHE Piwis2/FORD/GM/HONDA/TOYOTA/SUBARU/VOLVO Full Multi Diagnostic

  • Item No.  CA430-1
  • History: 25  sold
  • Configuration:




  • Market Price: US$1,500.00
    Shop Price: US$1,250.00
    Quantity
    Total
    Shipping:
    Express Shipping Service    Estimated delivery time: 3-5 days »
    Affected by the epidemic, there will be delays in transit time.
  • Stock  Out of stock
  • Weight:  4.5KG
  • Rate:  comment rank 50 () Write a Review
  • Member Benefits  Shipping  Return Policy

Description

Attribute

Review

Technical Support

Video


OD6 BENZ STAR C6/BMW ICOM/JLR DOIP VCI/VAS 5054A/PORSCHE Piwis2/FORD/GM/HONDA/TOYOTA/SUBARU/VOLVO Full Multi Diagnostic Tool


OD6 DoIP VCI  Description :

2020.12 Mercedes Benz C6 DoIP Xentry Diagnosis VCI +JLR DoIP VCI SDD and Pathfinder for Jaguar Land rover+V2020 BMW ICOM Next A+B+C+TOYOTA TIS Techstream+Honda HDS HIM+VW ODIS+VOLVO VIDA +SUBARU SSM3 +FORD IDS/ MAZDA IDS+GM Tech2Win and GM GDS2 +PORSCHE P

All original software will be installed
1. If you select the software installed the HDD/SSD , you can insert the it to your laptop then can use it
Configuration requirements and usage of PC
1.1 Computer hardware requirements: CPU i5/i7; memory: 8g.
1.2 Usage: there are 4 options after power on, which can be selected by the up and down keys, and then click enter to confirm.
2. If you select the software installed the laptop , you can use it directly when you get it
Second Hand Laptop Lenovo T430 Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:14
Processor Type:Intel (R) Core(TM) I5-3320M CPU
Memory: 8GB
Hard Disk:2TB HDD or 2TB SSD

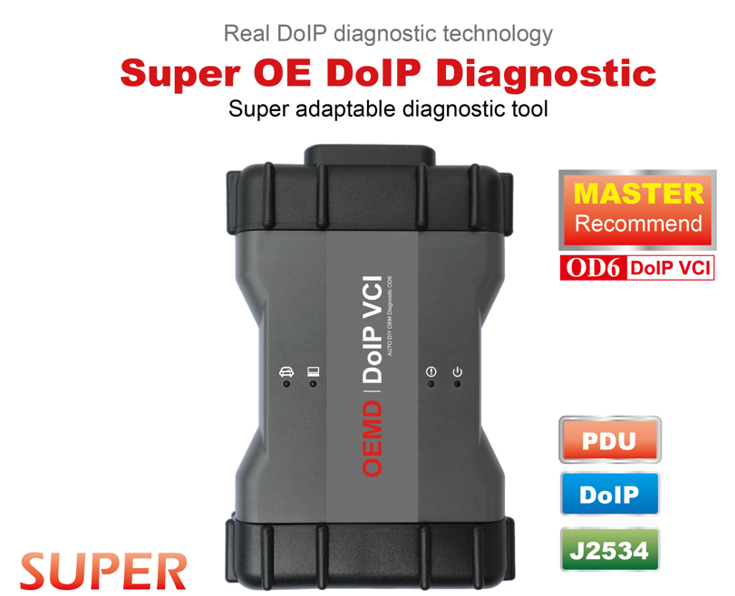

OD6 DoIP VCI multi in one DoIP OE diagnosis is a real DoIP original diagnosis instrument based on DOP, J2534 and more original protocols adaptation under OEMD brand. It not only supports all J2534 protocols, but also takes the lead in realizing perfect and complete DoIP adaptation in the industry, replacing the original diagnosis instrument's adaptation ability, programming ability, diagnosis and programming speed, stability and original diagnosis. The ability of the instrument has been greatly improved, taking the lead in the industry to replace C6 in an all-round way, and it is also the first comprehensive original diagnostic instrument in the industry to realize all functions of ICOM A2 and VAS6154. OD6 has really raised the multi in one and comprehensive original diagnosis instrument to a new benchmark height, which has become the only choice for J2534 and DoIP OE diagnosis tool.


1.2020.12 Mercedes Benz C6 DoIP Xentry Diagnosis VCI software
2.JLR DoIP VCI SDD and Pathfinder software for Jaguar Land rover
3.V2020 BMW ICOM Next A+B+C
4. TOYOTA TIS Techstream V13.00.22 software
5. Honda HDS HIM V3.102.051 software
6.VW ODIS V5.1.6 software
7.VOLVO VIDA 2014D
8.SUBARU SSM3 2018.10
9.FORD IDS/ MAZDA IDS
10.GM Tech2Win and GM GDS2 V2020
11.PORSCHE PiwisII V18.1


Add 5 software
1.VOLVO VIDA 2014D
2.SUBARU SSM3 2018.10
3.FORD IDS/ MAZDA IDS
4.GM Tech2Win and GM GDS2 V2020
5.PORSCHE PiwisII V18.1

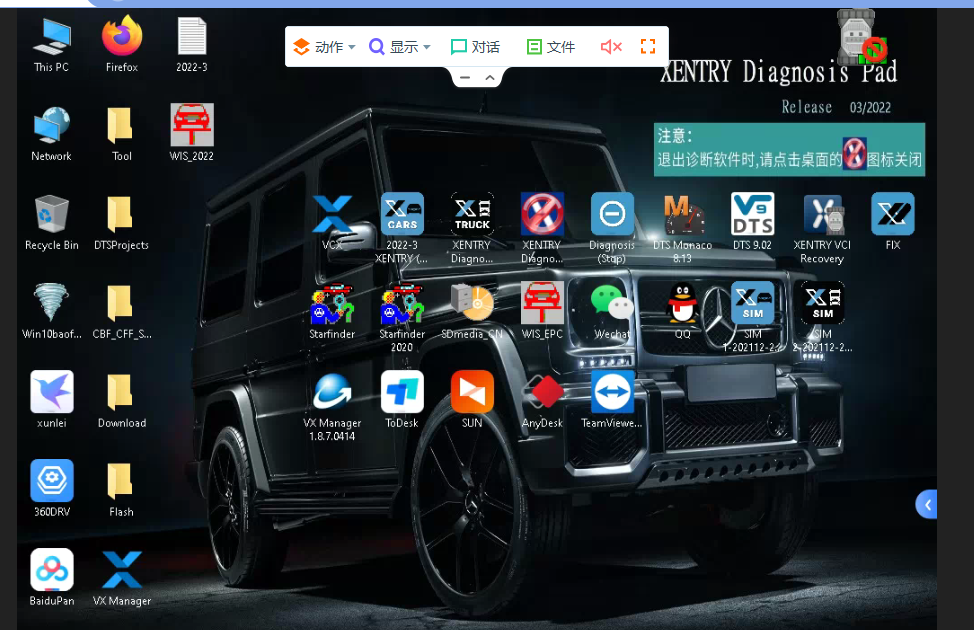

1. Mercedes Benz C6 DoIP Xentry Diagnosis VCI software display:

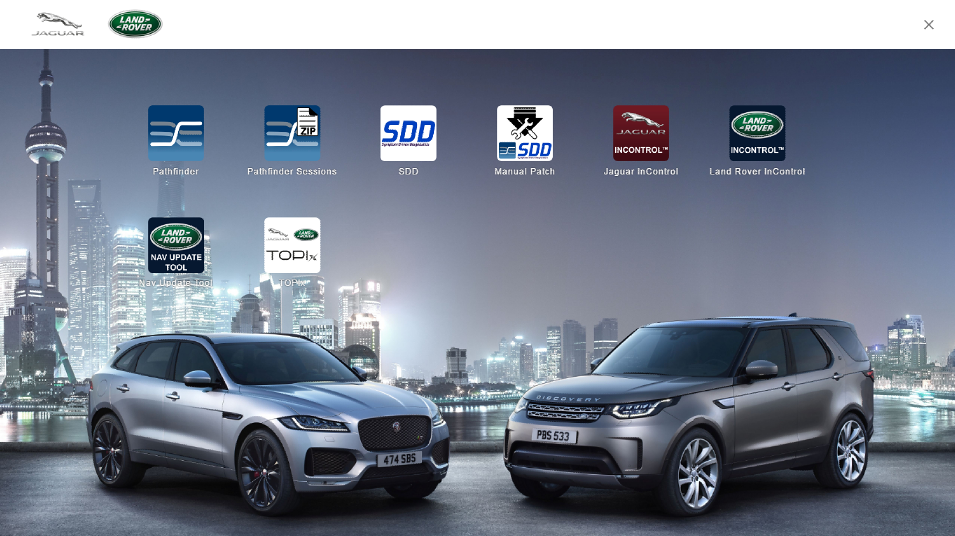

2. JLR DoIP VCI for Jaguar Land rover SDD and Pathfinder software display:

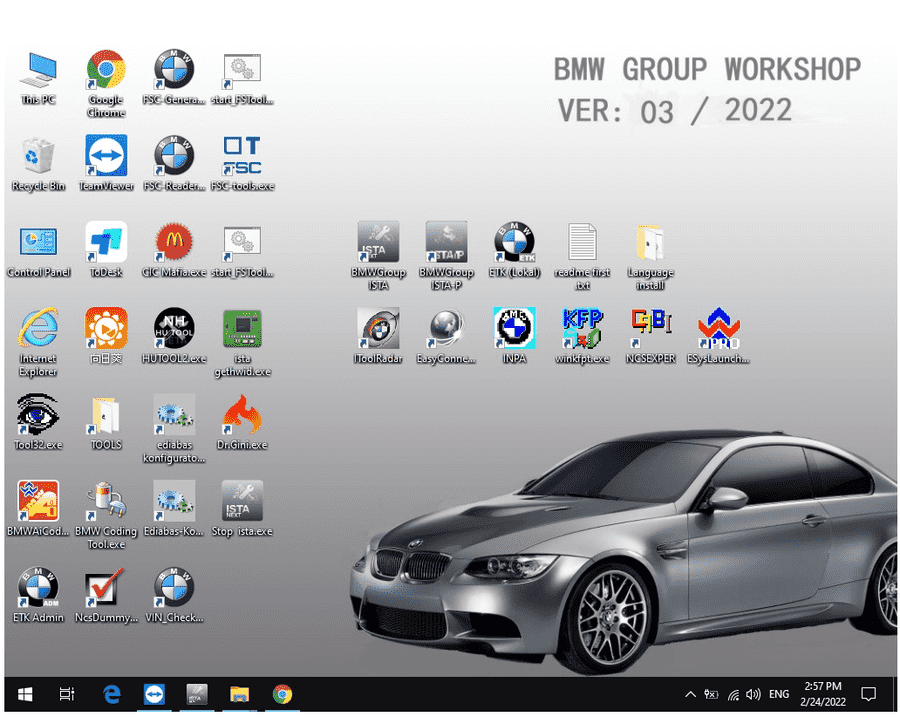

3.BMW ICOM Next A2+B+C software display:

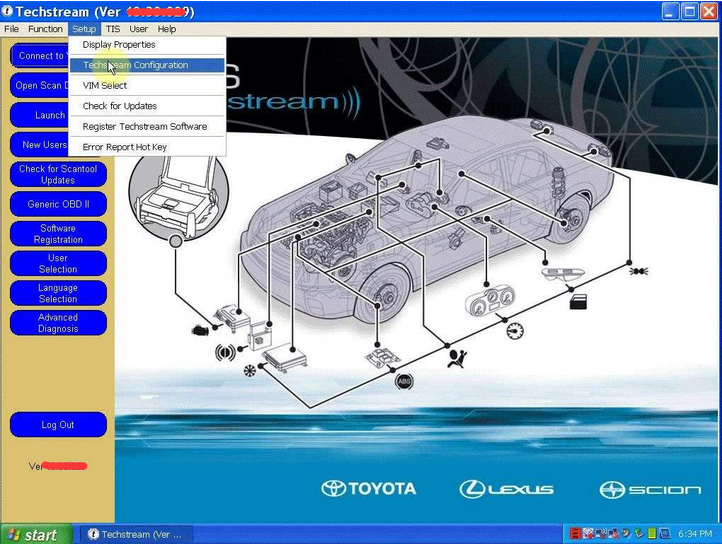

4. TOYOTA TIS Techstream software display:

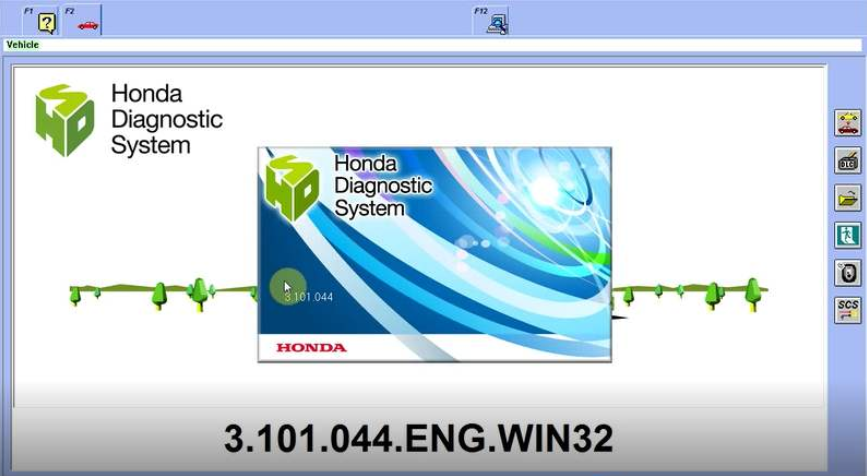

5. Honda HDS HIM V3.102.051 software display:

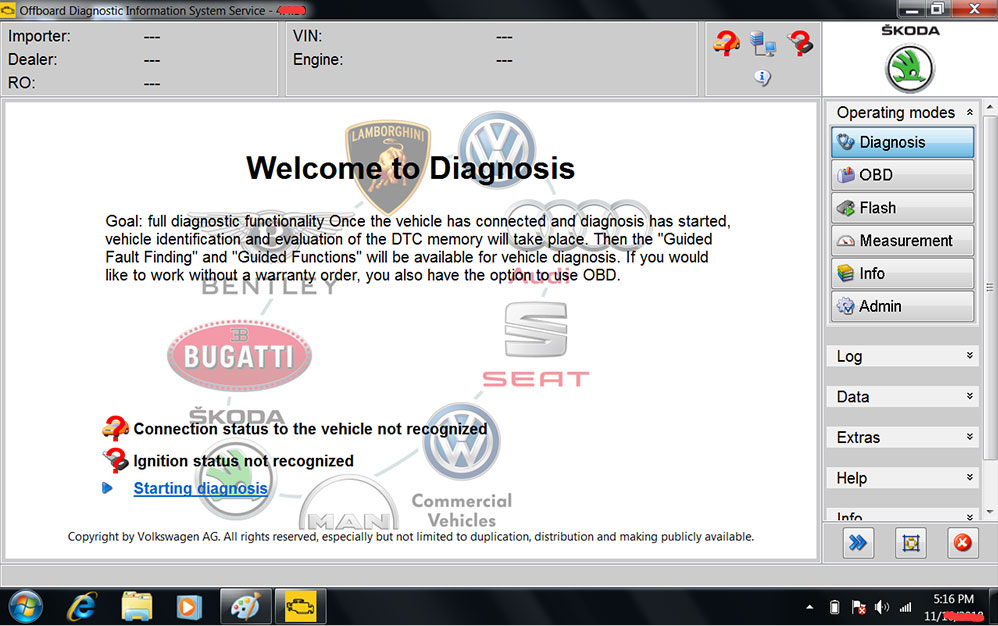

6.VW ODIS V5.1.6 software display:


7.VOLVO VIDA 2014D software display:


8.SUBARU SSM3 2018.10 software display:

9.FORD IDS/ MAZDA IDS software display:

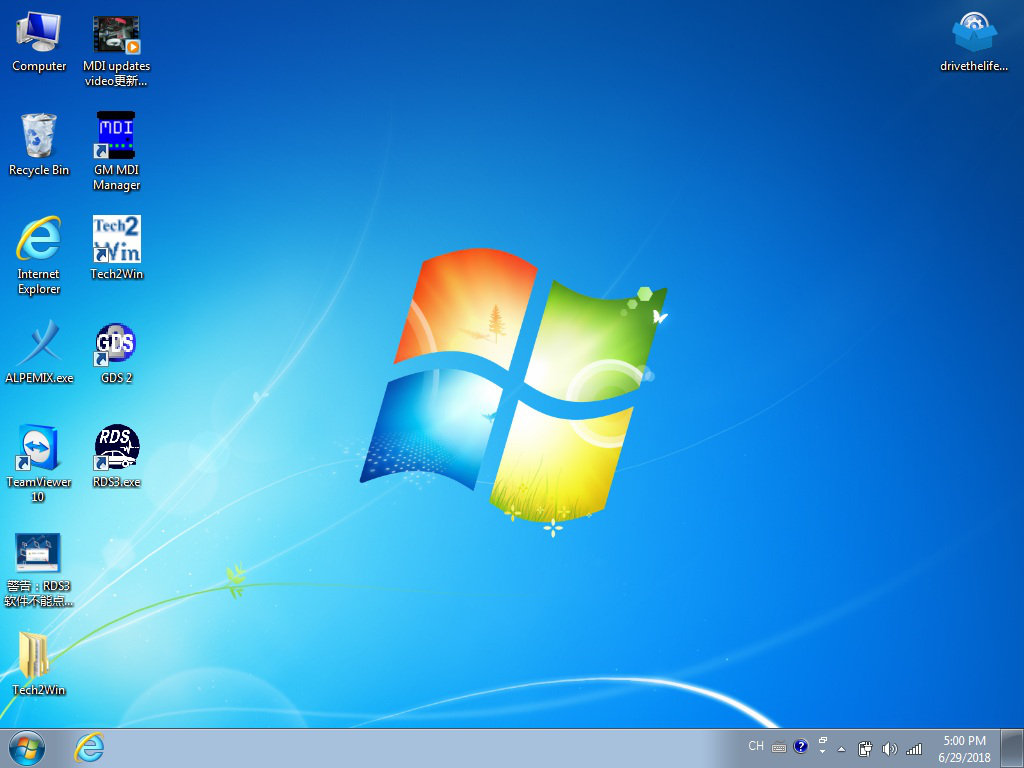

10.GM Tech2Win and GM GDS2 V2020 software display:

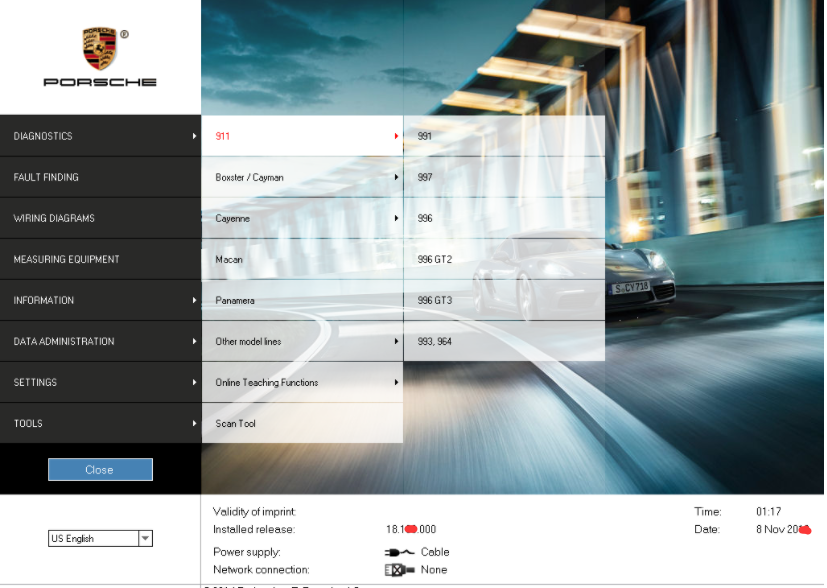

11.PORSCHE PiwisII V18.1 software display:


OD6 DoIP VCI Features:
It adapts to the OE diagnosis software, perfectly replaces the OE diagnosis, and realizes the OE diagnosis functions such as control unit identification, reading and deleting fault information, data flow, guided fault query, action test, programming, matching, code setting, brush hiding, changing vehicle configuration, etc.

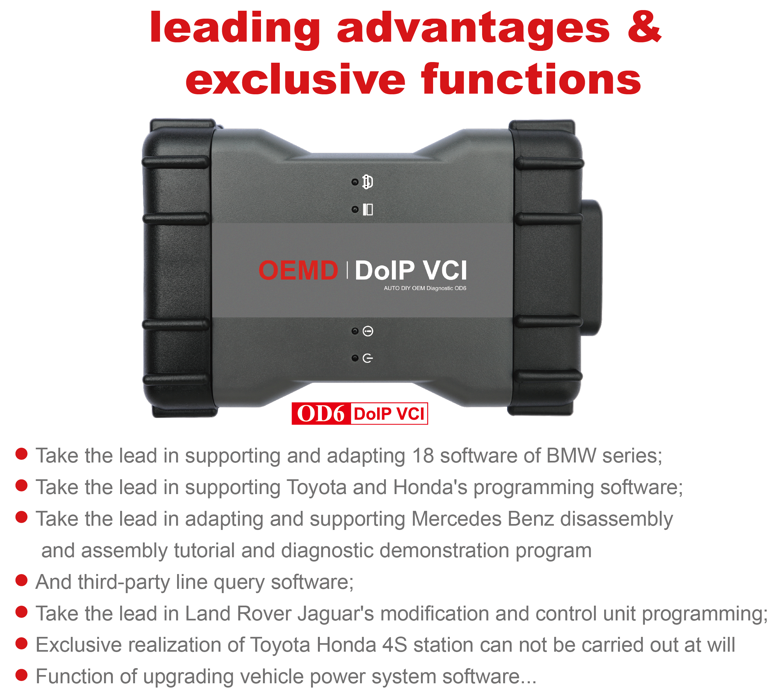

Advantage characteristics
1.Multi in one comprehensive diagnosis instrument VCI of the original factory, one machine is multi-purpose and cost-effective;
2.Comprehensive and perfect DoIP support, not only support but also more perfect adaptation;
3.Realize the functions and speeds that J2534 and other comprehensive original diagnosis instruments cannot achieve;
4.Solve the problem that non doip or other diagnostic instruments are unable to program audio gateway and instruments;
5.Solve the problem that non doip or other diagnostic instruments cannot test the new and old models;
6.The industry takes the lead in supporting and adapting 18 BMW series softwares;
7.The industry takes the lead in supporting the programming software of Toyota and Honda;
8.The industry takes the lead in adapting and supporting Mercedes Benz disassembly and assembly tutorials, diagnostic demonstration programs and third-party line query software;

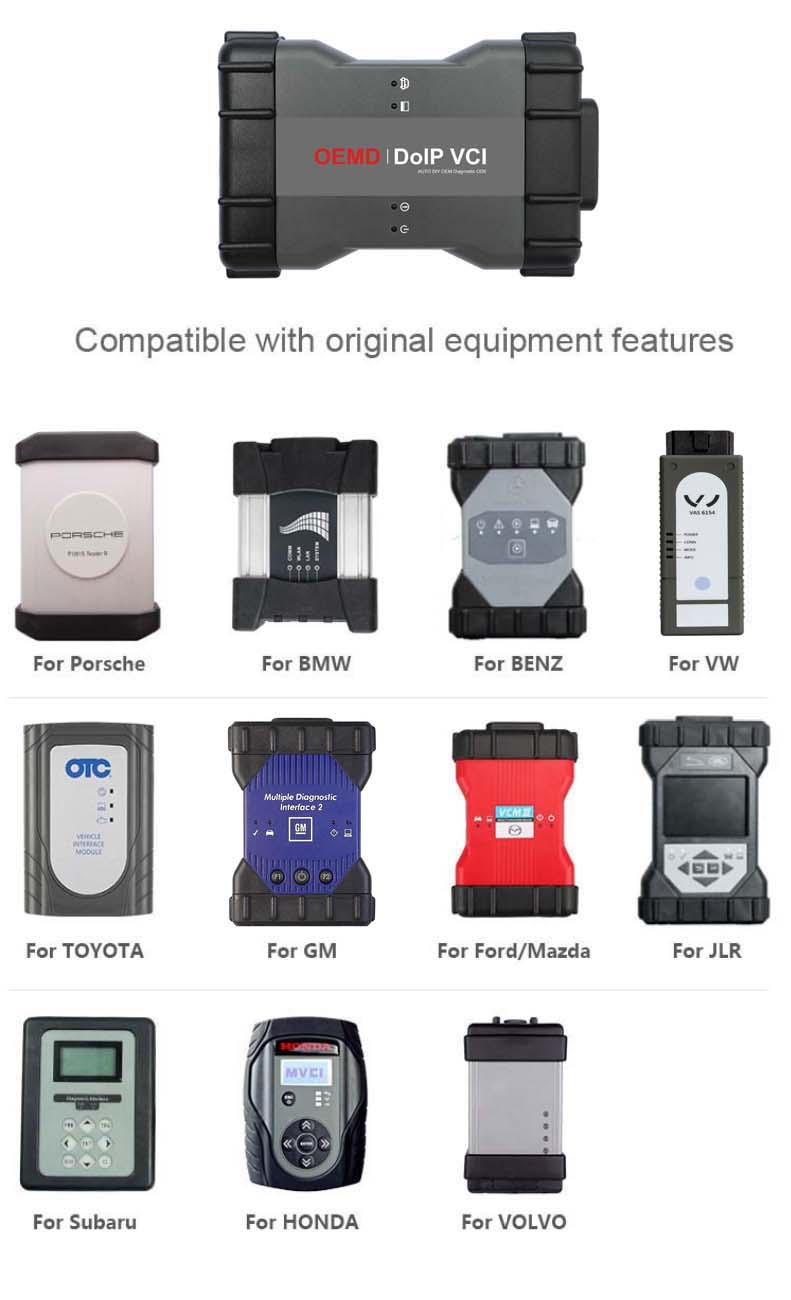

9.It can perfectly replace C6 and many original diagnostic instruments;
10.Realize all functions of ICOM A2, and realize rapid programming of vehicle control unit;
11.Realize the installation and use of win 10 of Audi ODIS series;
12.Realize all functions of VAS6154;
13.At the same time, it supports SDD and Pathfinder, and can modify the vehicle and program the control unit to read the data quickly;
14.Support all functions of tis software of the main factory, and realize the function of upgrading vehicle power system software that 4S stations at home and abroad can't do at will;
15.Support all functions of the factory's HDS software, so as to realize the function that 4S stations at home and abroad cannot upgrade the vehicle power system software at will;
16.Multi protocol is added to ensure comprehensive adaptation ability and programming function;
17.Support Volvo, Ford Mazda, GM, Porsche, Subaru, etc;
18.Strongly recommended by the original diagnosis and training experts;
19.The actual measurement of doip programming, no gimmick, with data and facts.

Protocol support:
1.SAE-J2534-1
2.SAE-J2534-2
3.ISO-9141 K-Line
4.ISO-14230 K-Line
5.ISO-15765 K-Line/CAN
6.ISO-11898 DWCAN
7.ISO-11898 DWFTCAN
8.SAE-J1850 VPW(GM Class2)
9.SAE-J1850 PWM(FORD SCP)
10.SAE-J2411 Single Wire CAN(GMLAN)
11.SAE-J2610 SCI(Chrysler)
12.SAE-J2740 GM ALDL
13.SAE-J2809 (HONDA DIAG-H)
14.SAE-J1939 CAN
15.SAE-J1708 On RS 485
16.VAG TP16 CAN
17.VAG TP20 CAN(SAE J2819)
18.VAG KW81(SAE J2818)
19.BMW DS2
20.FORD UBP
21.DOIP

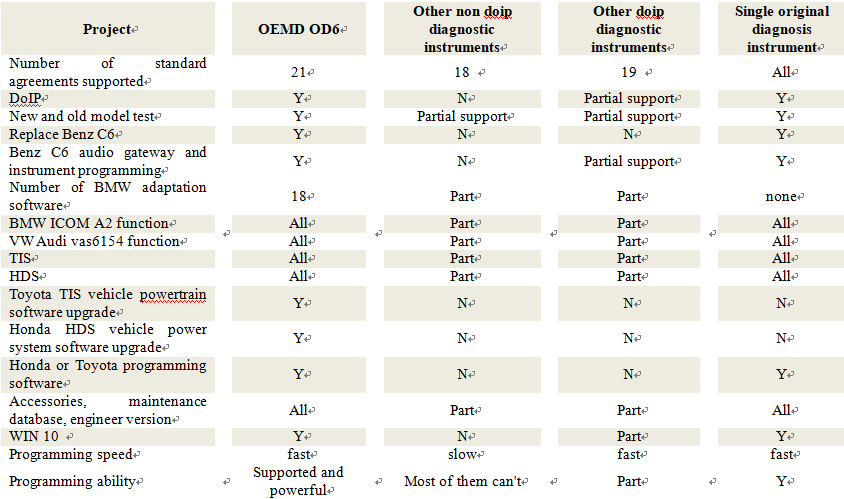

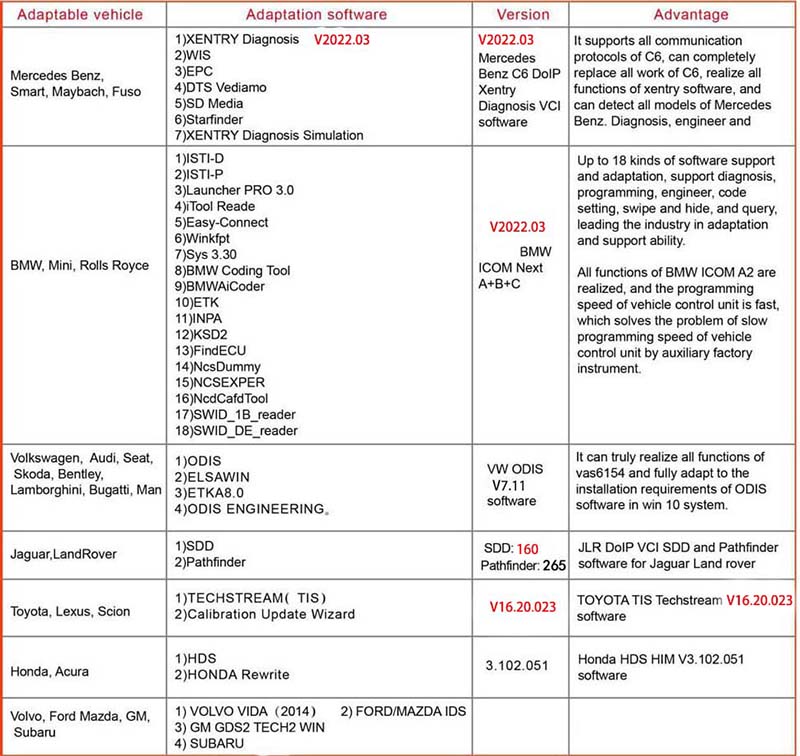

Product comparison table :
