RH850/V850 Adapter and Other Accessories be used with MP001 programmer for OBDSTAR G3/DC706

RH850/V850 Adapter and Other OBDSTAR Accessories be used with MP001 programmer for OBDSTAR G3/DC706

Option 1:

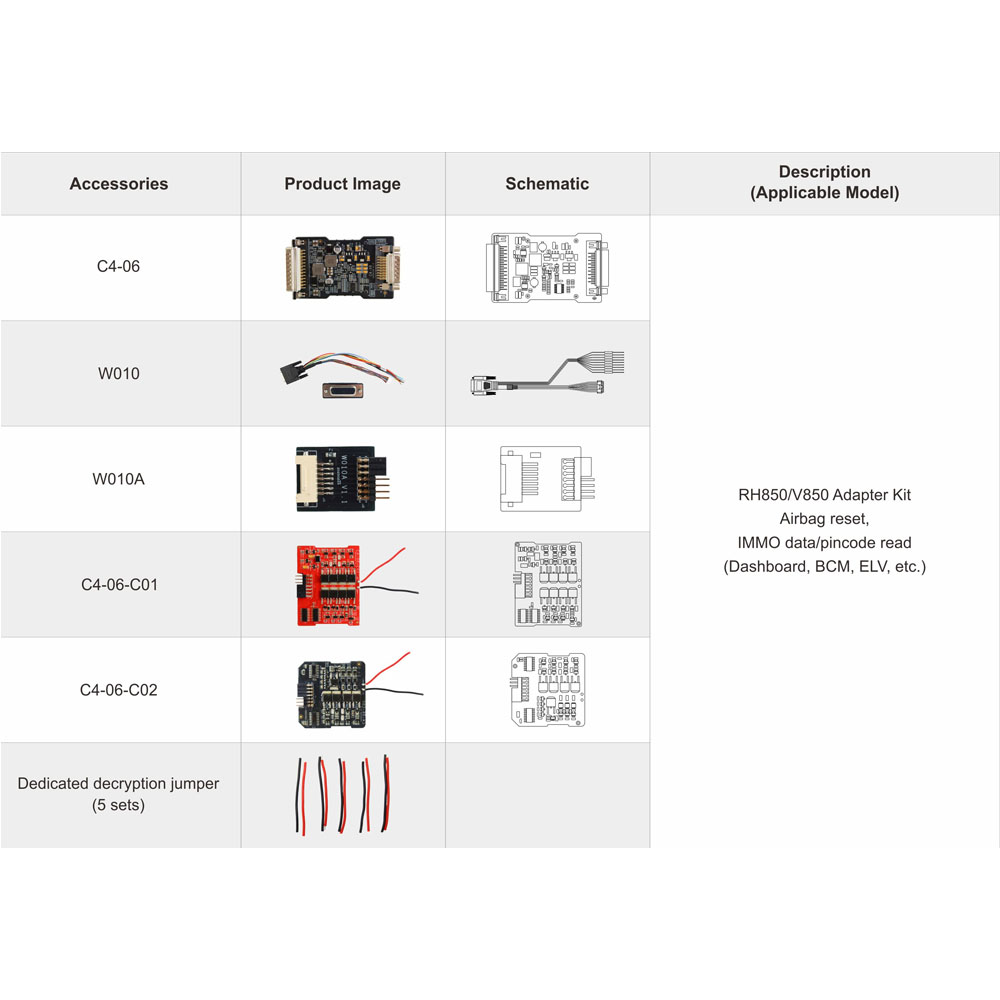

RH850/V850 Adapter Kit for Airbag Reset, IMMO data/Pincode Read

OBDSTAR RH850/V850 Adapter Kit Works with X300 Classic G3

RH850/V850 adapter full kit is for airbag reset, immo data/pincode read (Dashboard, BCM, ELV, etc.).  And all data read is unencrypted, can be used on third party devices!



Features:

Supports VAG MQB 5A key programming (without removing components.  With built-in MQB calculator.  No need to buy Sync data for All keys lost.  Requires to buy MQB collector together)

Supports Ford/Lincoln 2021- BCM RH850 key programming (including all keys lost)

Supports Nissan Renault HFM RH850 key programming (including all keys lost)

Supports FCA key programming (coming soon)

Airbag Reset

All data read is unencrypted, can be used on third party devices!



Supported Tools:

X300 Classic G3/KEYMASTER G3 (DOES NOT work with x300 dp plus/dc706/p50...)



Note: Need to be used with MP001 multifunctional programmer.

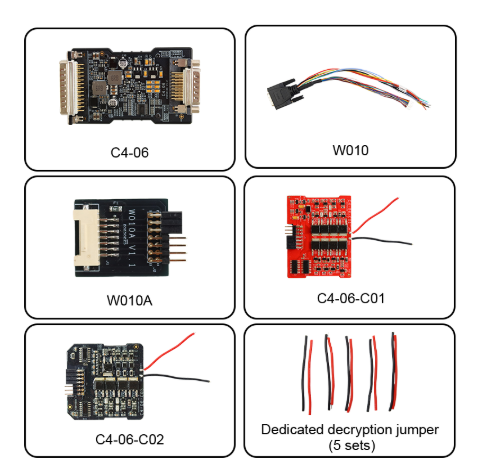

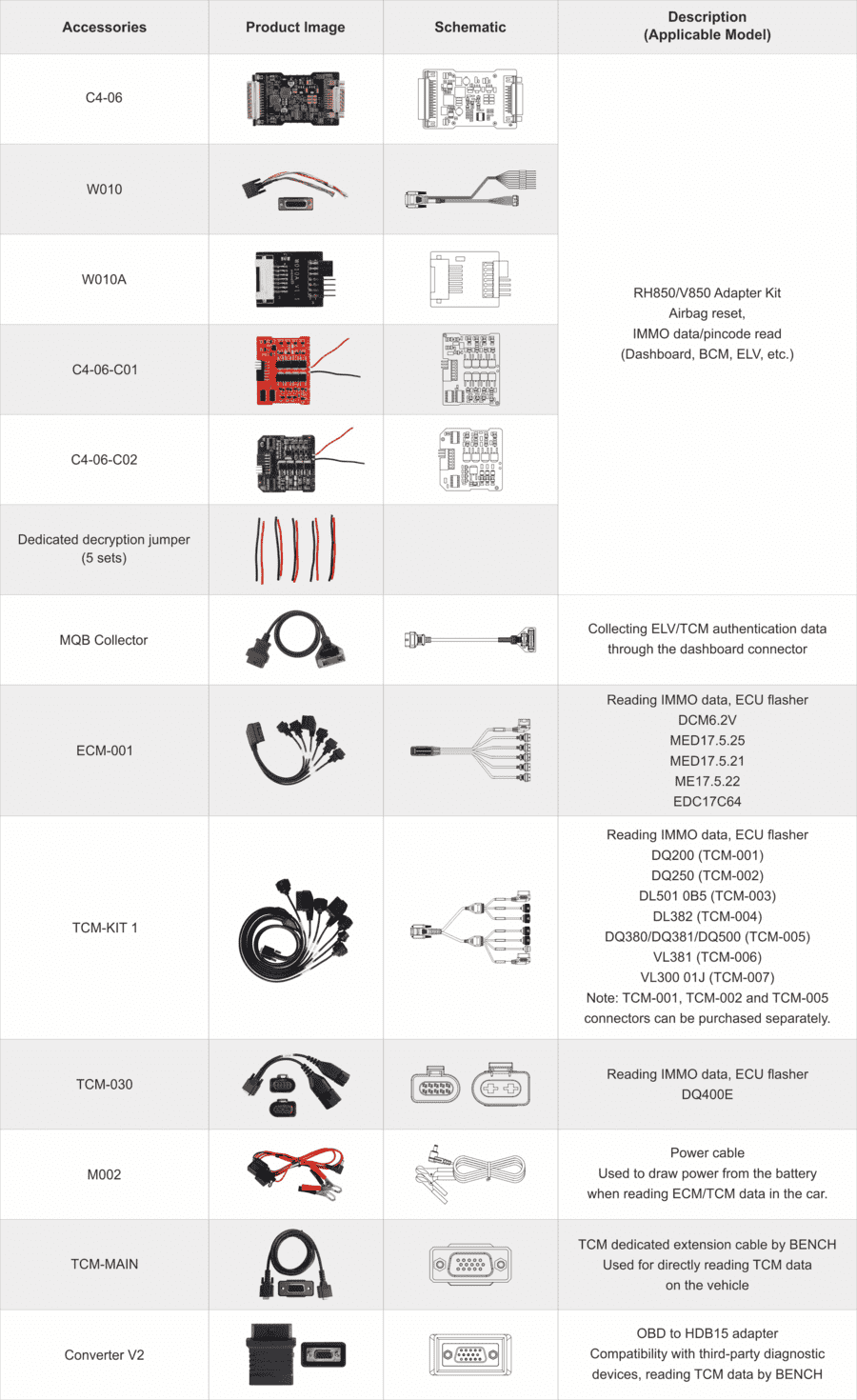

Package List:

1. C4-06

2. W010

3. W010A

4. C4-06-C01

5. C4-06-C02

6. Dedicated decryption jumper (5 sets)

Option 2:

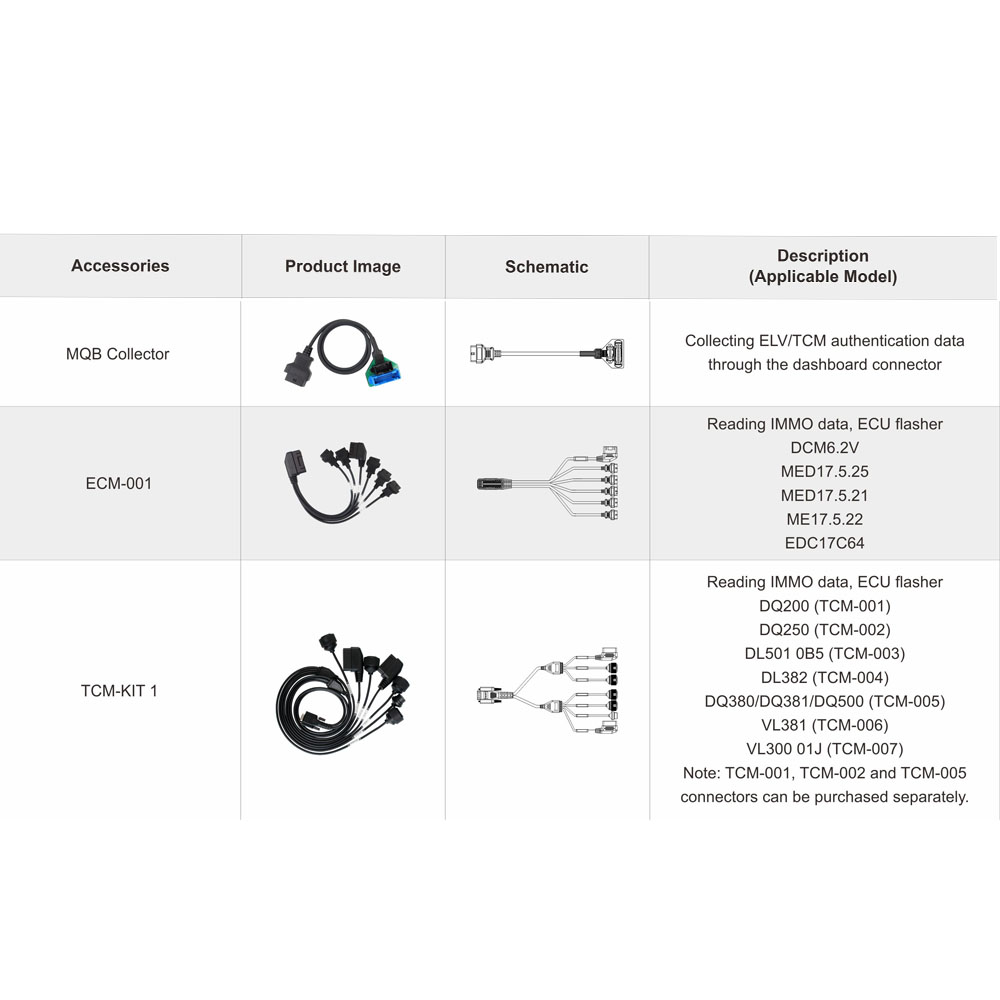

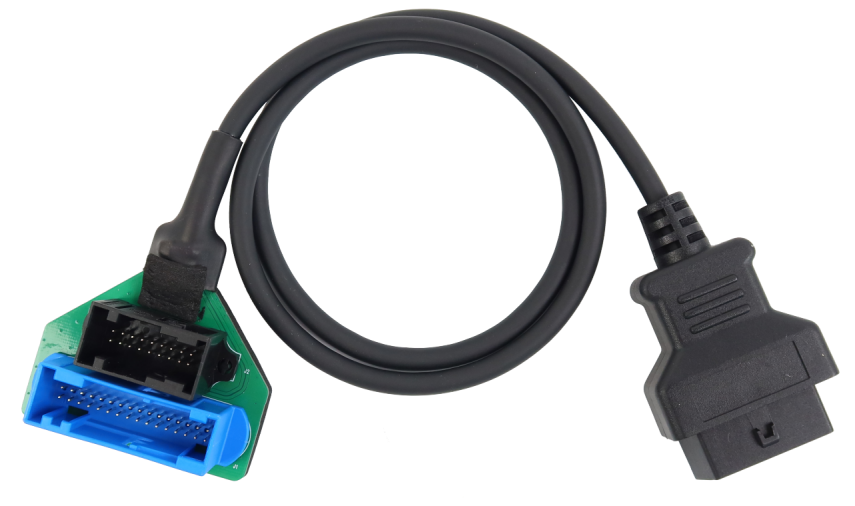

MQB Collector

Collecting ELV/TCM authentication data through the dashboard connector

Supported Tools:

X300 Classic G3/KEYMASTER G3 (DOES NOT work with x300 dp plus/dc706/p50...)



Note: Need to be used with MP001 multifunctional programmer.

Option 3:

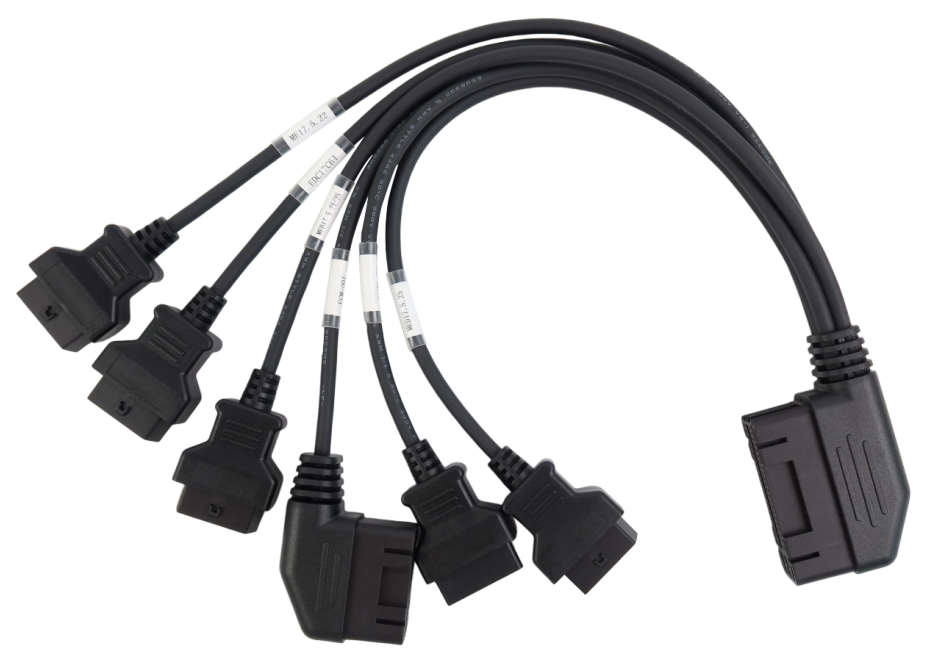

ECM-001
Reading IMMO data, ECU flasher

DCM6.2V

MED17.5.25

MED17.5.21

ME17.5.22

EDC17C64

Supported Tools:

X300 Classic G3/KEYMASTER G3 / DC706

Note: Need to be used with MP001 multifunctional programmer.





Option 4:

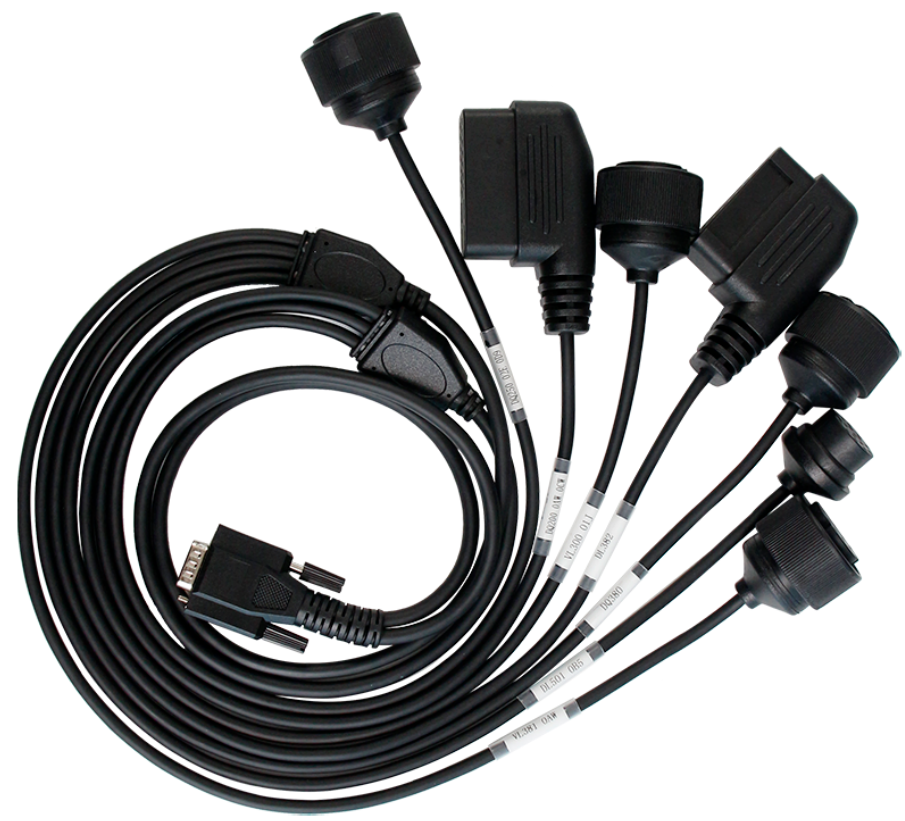

TCM-KIT 1

Reading IMMO data, ECU flasher

DQ200 (TCM-001)

DQ250 (TCM-002)

DL501 0B5 (TCM-003)

DL382 (TCM-004)

DQ380/DQ381/DQ500 (TCM-005)

VL381 (TCM-006)

VL300 01J (TCM-007)

Supported Tools:

X300 Classic G3/KEYMASTER G3 / DC706

Note: Need to be used with MP001 multifunctional programmer.

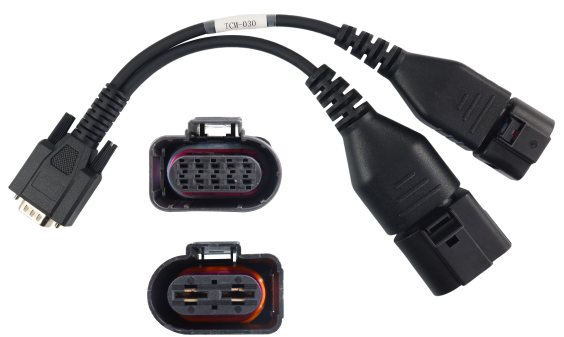

Option 5:

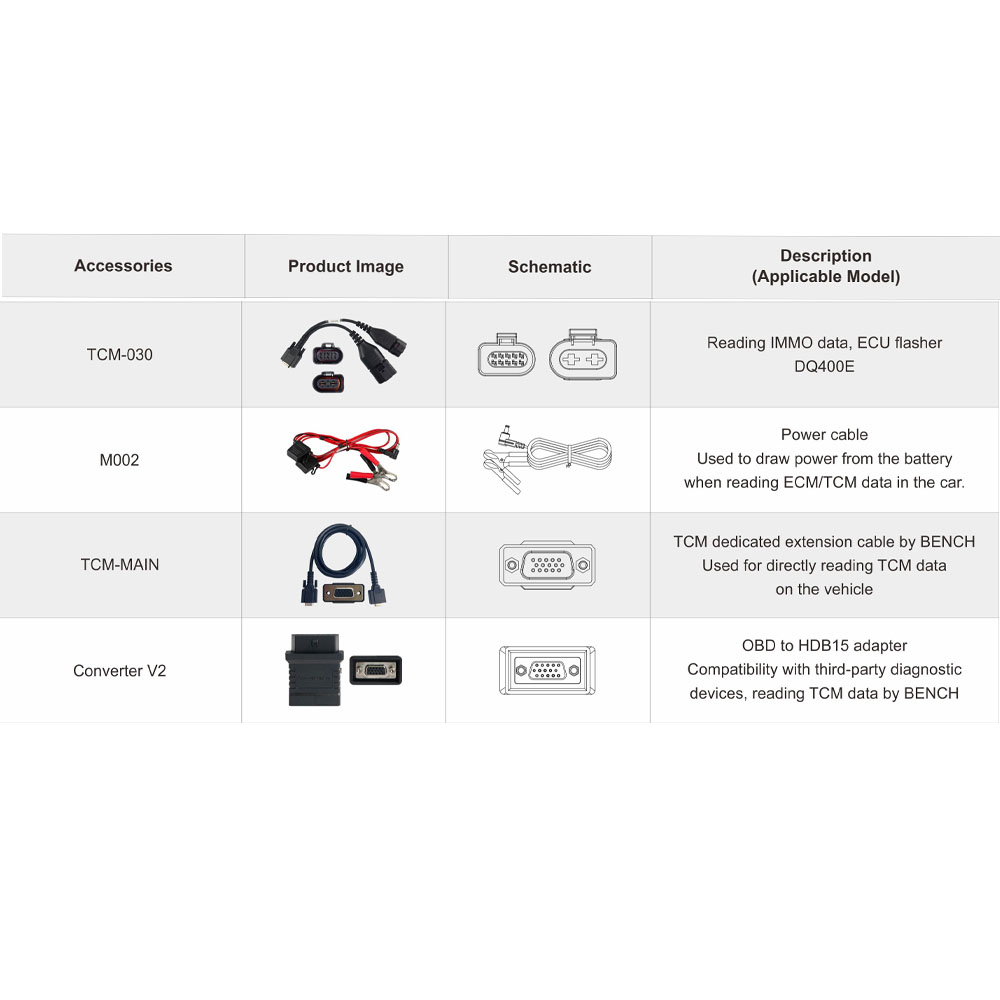

TCM-030

Reading IMMO data, ECU flasher

DQ200 (TCM-001)

DQ250 (TCM-002)

DL501 0B5 (TCM-003)

DL382 (TCM-004)

DQ380/DQ381/DQ500 (TCM-005)

VL381 (TCM-006)

VL300 01J (TCM-007)

Supported Tools:

X300 Classic G3/KEYMASTER G3 / DC706

Note: Need to be used with MP001 multifunctional programmer.

Option 6:

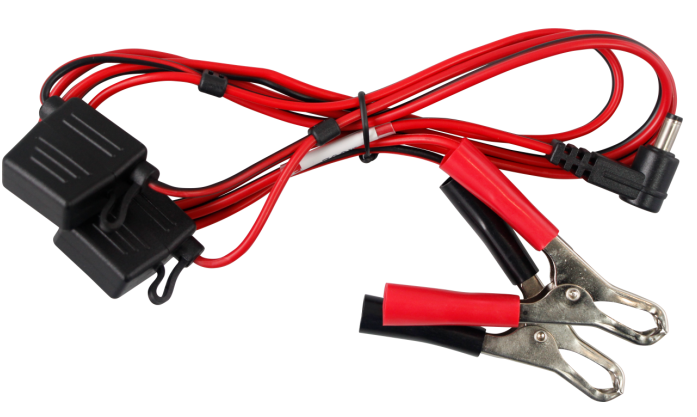

M002
Power Cable

Used to draw power from the battery when reading ECM/TCM data in the car.

Supported Tools:

X300 Classic G3/KEYMASTER G3 / DC706

Note: Need to be used with MP001 multifunctional programmer.

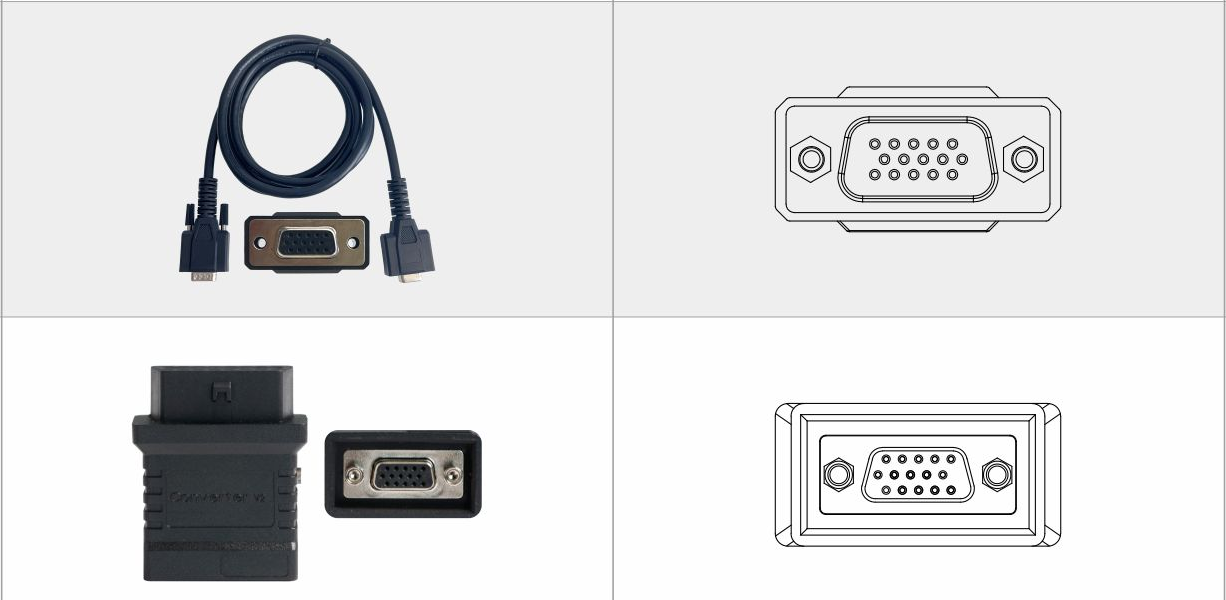

Option 7:
TCM-MAIN+Converter
Used for directly reading TCM data on the vehicle

Supported Tools:

X300 Classic G3/KEYMASTER G3 / DC706

Note: Need to be used with MP001 multifunctional programmer.

Option 8:
RH850/V850 Adapter and Other Accessories Full Kit

Note: Need to be used with MP001 multifunctional programmer.

Supported Functions
Volkswagen MQB48-5A key programming (component removing free) (MQB49-5C under development)			Need the accessories
D70F3529 Dashboard		1. Support read all data; 2. Support IMMO data decryption (VIN/CS/power class, etc.); 3. Support BLADE AKL synchronization code calculation (G3 Support dashboard/ECM/TCM data reading and IMMO data decryption by BENCH/BOOT);    Support ECM models (with dedicated cables): DCM6.2V, EDC17C64, EDC17C74, ME17.5.22, MED17.5.21, MED17.5.25, SIMOS18, etc.    Support TCM models (with dedicated cables): AQ250, DQ200, DQ250, DQ380, DQ381, DQ400, DQ500, etc. 4. Support PROXIMITY AKL synchronization code calculation (calculated by dashboard, ECM, TCM and ELV IMMO data);    ELV IMMO data acquisition method 1: Read D70F3624/SPC560 ELV data and decrypt IMMO data through MP001 and RH850/V850 adapter.    ELV IMMO data acquisition method 2: Collect ELV authentication data from dashboard connector through MQB collector, calculate ELV IMMO data by dashboard, ECM and TCM IMMO data. 5. Support synchronization code reading from worked key; 6. Support continental VDO dashboard IMMO data reading by OBD; 7. Support MQB used TCM replacement (upcoming upgrade); 8. Support MQB used ECM replacement (upcoming upgrade); 9. Support KYDZ keys.	1~8,choose one between option 4 and option 5
D70F3537 Dashboard
D70F3525 V1 Dashboard
D70F3525 V2 Dashboard
D70F3525 V3 Dashboard
D70F3526 V1 Dashboard
D70F3526 V2 Dashboard
D70F3526 V3 Dashboard
D70F3526 V4 Dashboard
D70F3532 V1 Dashboard
D70F3532 V2 Dashboard
D70F3535 Dashboard
D70F3426+95128 Dashboard
R7F701401 Dashboard
R7F701402 Dashboard
R7F701407 Dashboard
D70F3624 ELV
Ford/Lincoln 2021-key programming (including AKL)
R7F701573 BCM		F-150, Bronco, Nautilus, Navigator, and other 2021-models	1
R7F701053 BCM		New Mondeo, Mustang Mach-E, Focus, Corsair, EVOS, RANGER, and other 2021-models
Nissan/Renault key programming (including AKL)
R7F7010193 HFM		1. Nissan: SYLPHY/SENTRA B18, X-TRAIL/ROGUE T33, JUKE 2020-, PATHFINDER 2021-, QASHQAI 2021-, NOTE E-POWER, R53, NP300 2019-, etc; 2. Renault: ARKANA, CAPTUR II, CLIO V, MEGANE IV PH2, NEW ZOE, SANDERO 2020-, TRAFIC 2022-, ZOE2, KANGOO III, Talisman Ph2, ect; 3. Dacia: JOGGER, SANDERO, LOGAN 2020- ect.	1
R7F7010253 HFM
R7F701056 BCM
R7F701057 BCM
R7F701042 BCM
FCA key programming (upcoming upgrade)
R7F701057 BCM		Fiat 500Е, Alfa Romeo Tonale, Alfa Romeo Giulia, Alfa Romeo Stelvio, Jeep Renegade, Fiat 500X, Dodge Hornet, etc.	1
Airbag Reset
R7F7016863		Subaru (data R/W + crash erase)	1
R7F7016843		Toyota, Lexus (data R/W + crash erase)
R7F7016443		Toyota, Lexus (data R/W + crash erase)
R7F701330A		Volvo, Polestar, Geely, Lynk&Co, Polestar, Toyota, Mazda, Land Rover, Jaguar, Tesla (supports data R/W, supports crash erase partially, supports third-party manual crash erase)
R7F7010643		Dongfeng, Changan, Jihu, Chery, Hongqi, Ford/Lincoln, Great Wall, Land Rover Jaguar, GAC Trumpchi, Xiaopeng, Tesla (data R/W + crash erase(except Tesla) ).
R7F701A033		Dongfeng, Jihu, BAIC, Changan, FAW, Ford/Lincoln, Geely, Great Wall, Haima, Hongqi, Jianghuai, Peugeot, Wuling, Tata, GAC Motor, WM Motor, Xiaopeng, Zotye, etc. (data R/W + crash erase)
R7F701042（upcoming upgrade）		Suzuki, Volkswagen (data R/W +crash erase)
