OBDSTAR MP001 Programmer Read/Write Clone Data For OBDSTAR P50, DC706, X300 Pro4, X300 Classic G3, MS80, MS50

OBDSTAR MP001 Programmer Read/Write Clone Data For OBDSTAR P50, DC706, X300 Pro4, X300 Classic G3, MS80, MS50

OBDSTAR MP001 Set (MP001 Programmer+C4-01Host + W004/W005/W006/ECU Bench Jumper).

MP001 is the latest multifunctional programmer developed by OBDSTAR, which fully supports data read/write, clone, data processing functions for automotive, commercial vehicle, new energy vehicle, motorcycle, marine (jet-ski).

Product Features:
1.MP001 is compatible with P003+ and has more SlMOS 18 than P003+( because the boot mode of SlMOS 18 is very special and needs more lO ports to be supported, P003+ has 4 lO ports and can't support it), and since MP001 has up to 12 lO ports, it can meet all future ECM requirements.
2.Support P002 functions.
3.OBDSTAR MP001 Set (MP001 Programmer+C4-01Host + W004/W005/W006/ECU Bench Jumper).

Software function
EEPROM/MCU reading and writing
Key flashing
Steering angle repair
Body computer data processing
Immo off
Pincode reading
Battery module repair
Instrument repair

and more functions are under development.

Note:
Different tablet device models require different configuration software.
To use MP001 programmer, you must have ECU bench jumper cables.

OBDSTAR MP001 Programmer Specification:
CPU: STM32F407VET6
Connector: DC, OBD female, OBD male, DB9, DB25
Input voltage: DC 12V/24V
Output voltage: 500mA
Weight: 260g
Working temperature: -10℃~55℃
Device Size: 165*110*35mm

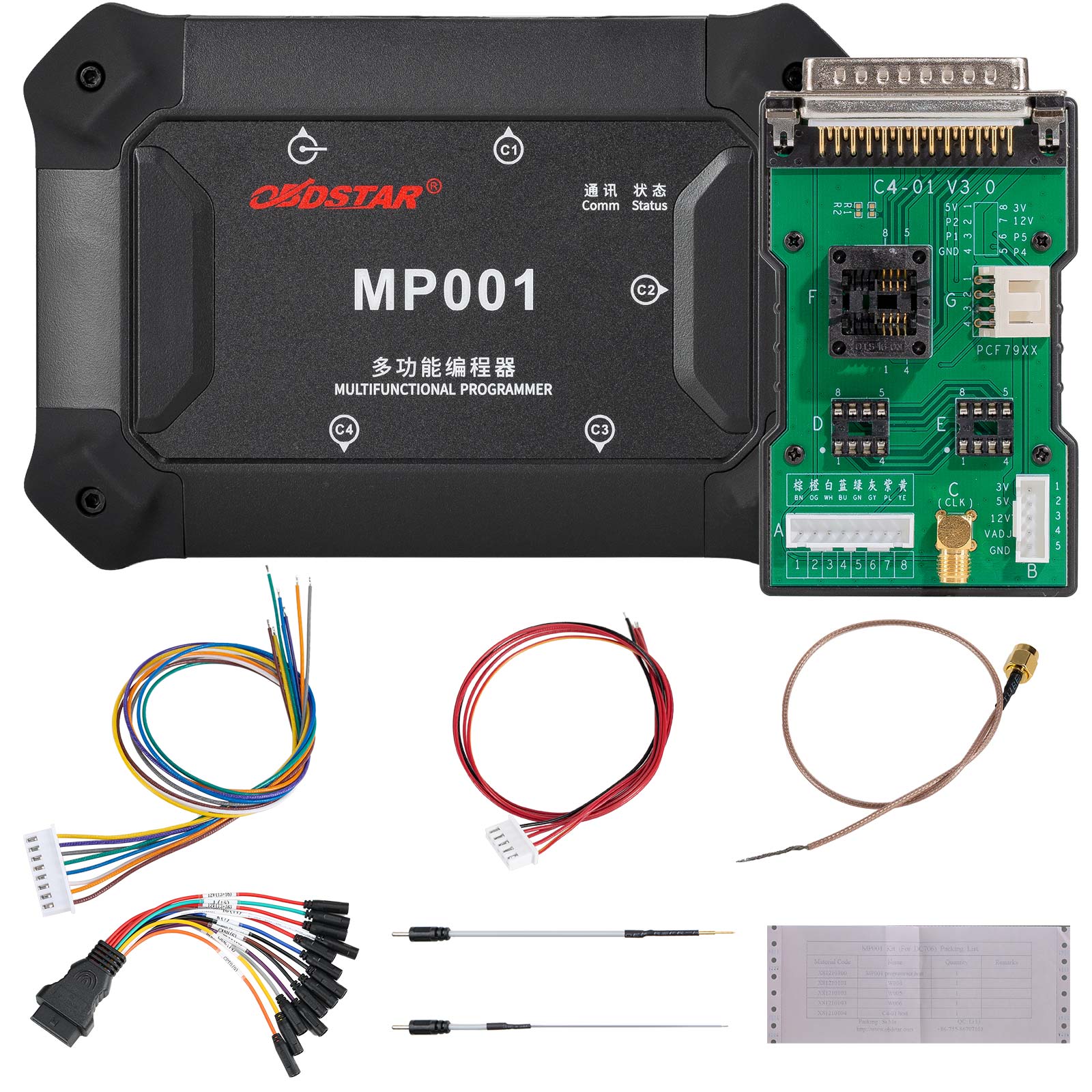

Package List:
1pc x OBDSTAR MP001 Programmer

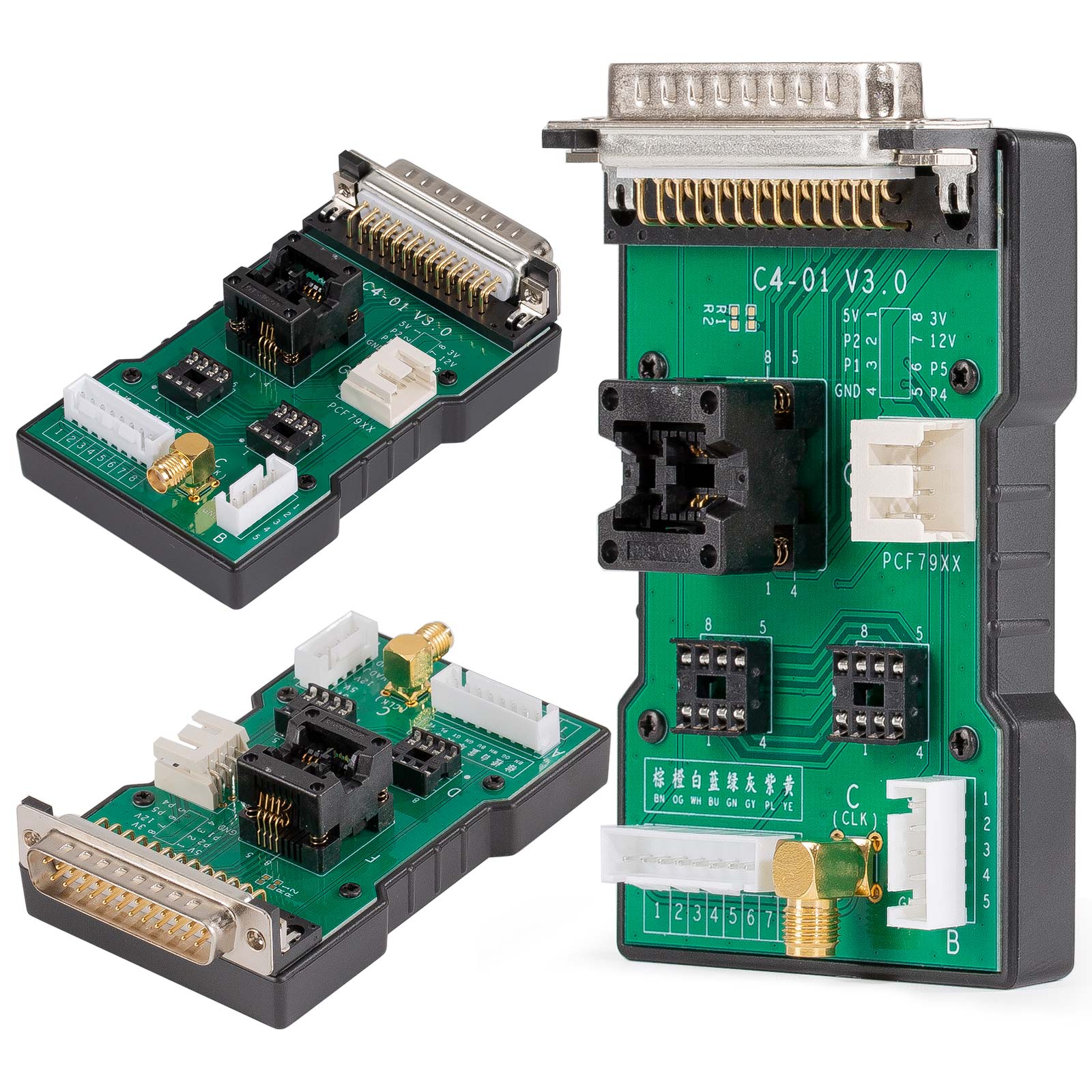

1pc x OBDSTAR C4-01 Host
1pc x W004 Read/Write soldering wire
1pc x W005 Read/Write soldering wire
1pc x W006 Clock frequency wire

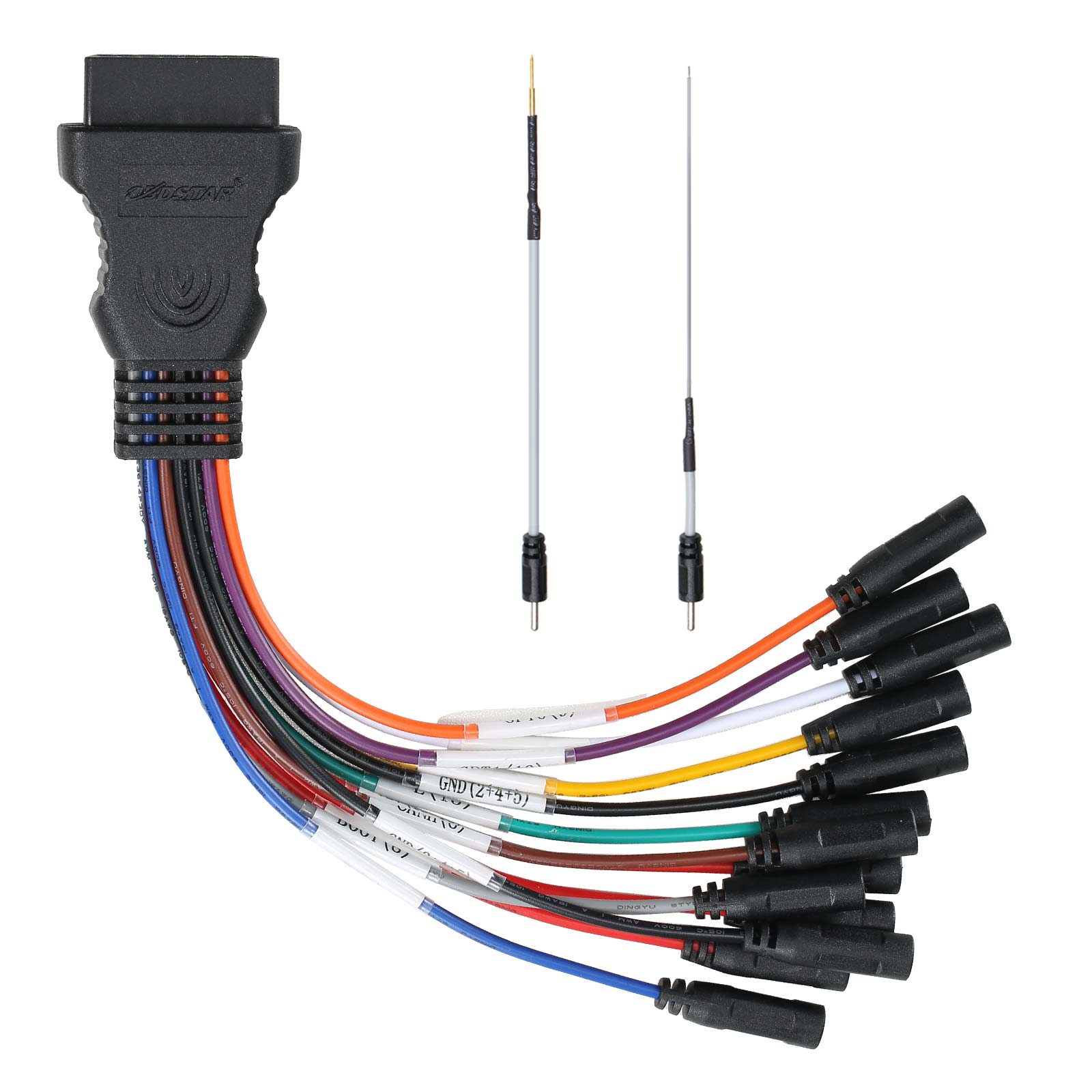

1pc x OBDSTAR ECU Bench Jumper
