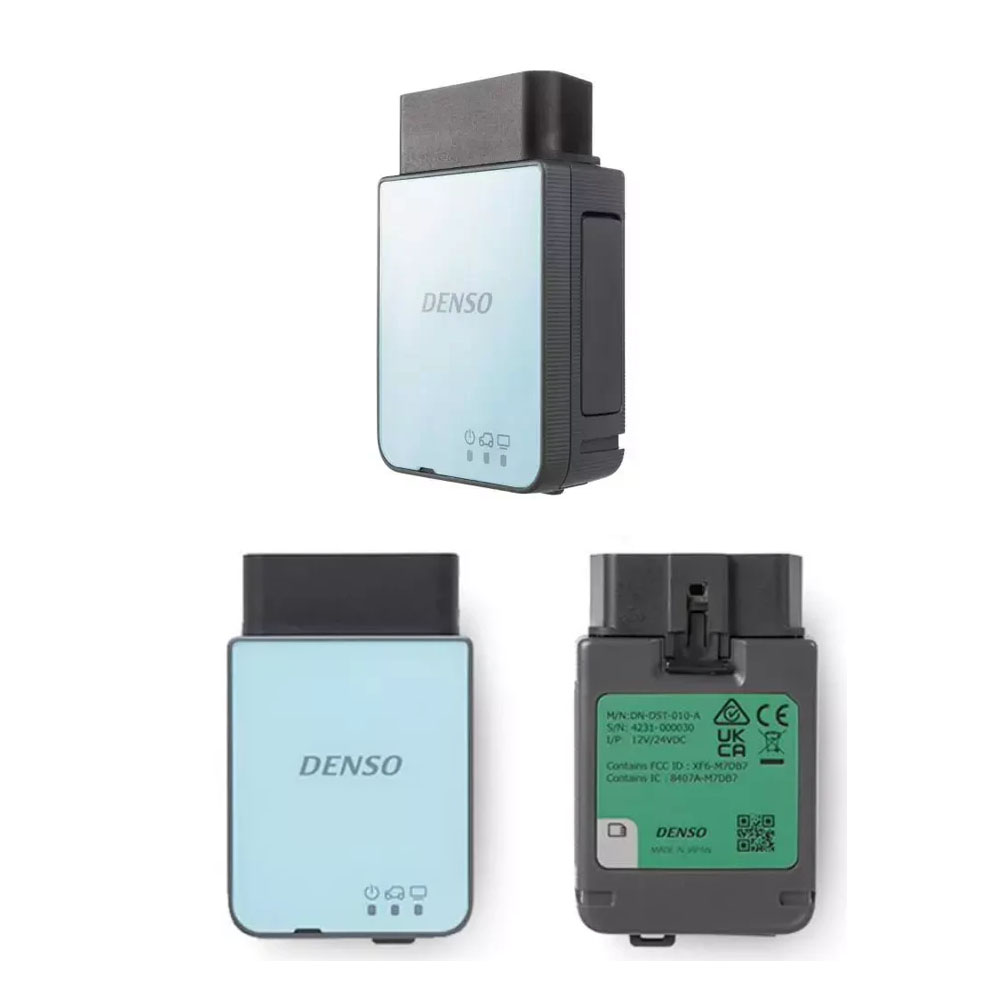

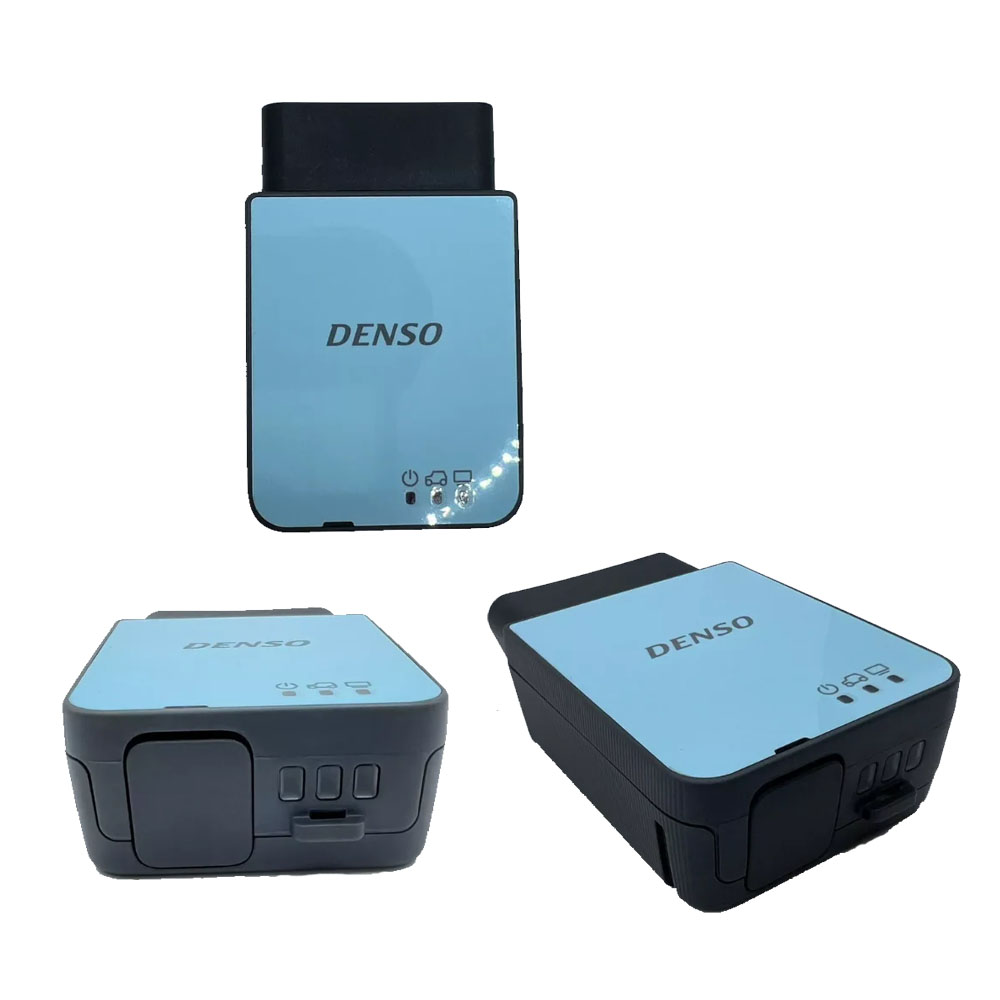

DENSO DST-010-A Green 95171-01480 OBD Certified Inspection Scan Tool
NOTE：
1.Pre-08 cars, DENSO DST-010-A can't be supported
2.Toyota GTS software can installing and activate remotely (USD50 cost for one-time installation service )
3.Toyota GTS + software: you should have online account by yourself , we not offer online account
Software list:
Honda i-HDS V1.010.011
Toyota GTS V18.00.008
Toyota GTS and GTS+ V2025.12 Software
Subaru SSM4 V2026.04 Software
DENSO DST-010-A support Toyota, Honda, SubaruToyota GTS and GTS+ Software：
https://mega.nz/folder/DzhwGKhb#bze2SsrRQsR4HoNaQuRA6w
Subaru SSM3 SSM4 Software：
https://mega.nz/folder/v6hDDSgI#yulyaIiyxc1D_4y4kEzm2Q
DENSO DST-010-A Green supported communication standards ISO9141, ISO14229, ISO14230, ISO15765, ISO15031-5, SAEJ1979, ISO13400
DENSO DST-010-A Green compatible with ISO13400 high-speed communication (DoIP) Wireless module enables connection to PC via Wi-F CPU 32-bit microcontroller External interface PC communication USB USB2.0 × 1 (MiniDIN connector) Wireless LAN IEEE802.11bgn 2.4GHz IEEE802.15.1 Ver.4.0/Class1 SD memory card (SD, SDHC compatible) slot × 1 Vehicle communication ISO9141(K/L) HS-CAN DoIP
DENSO DST-010-A Green Supporting Protocols
1.SAE-J2534-1 2004, SAE-J2534-2 2010 Passthru Driver
2.ISO-22900-1/2 MVCI with D-PDU Driver
3.ISO13400-1/2/3/4 DoIP Driver
4.CAN-BUS1 channel:
HSCAN1/CANFD1: PIN 6/14
5.CAN-BUS2 channel:
HSCAN2/CANFD2: PIN 3/11
6.2-way K-Line *5
K1-Line: indicates K7
K2-Line: K1,K9,K14,K15
7.ADC input: VBAT ADC input
8.Gigabit eCAT DB16 output
9.100 Mbit USB2.0 HS network card
10.WIFI relay/bridge

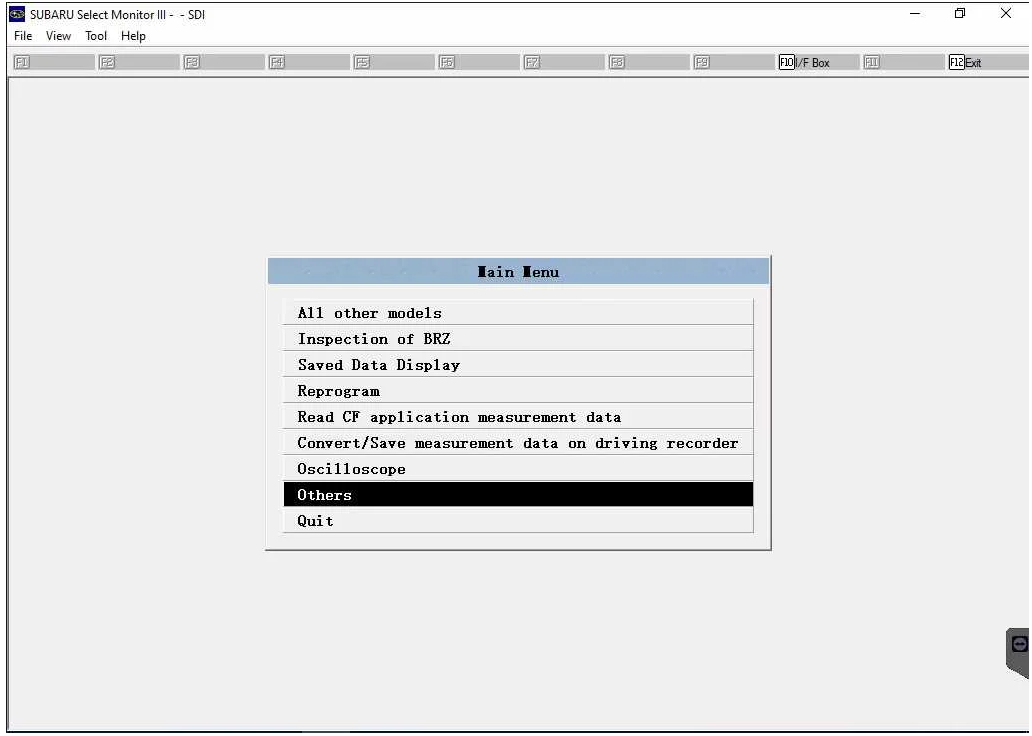

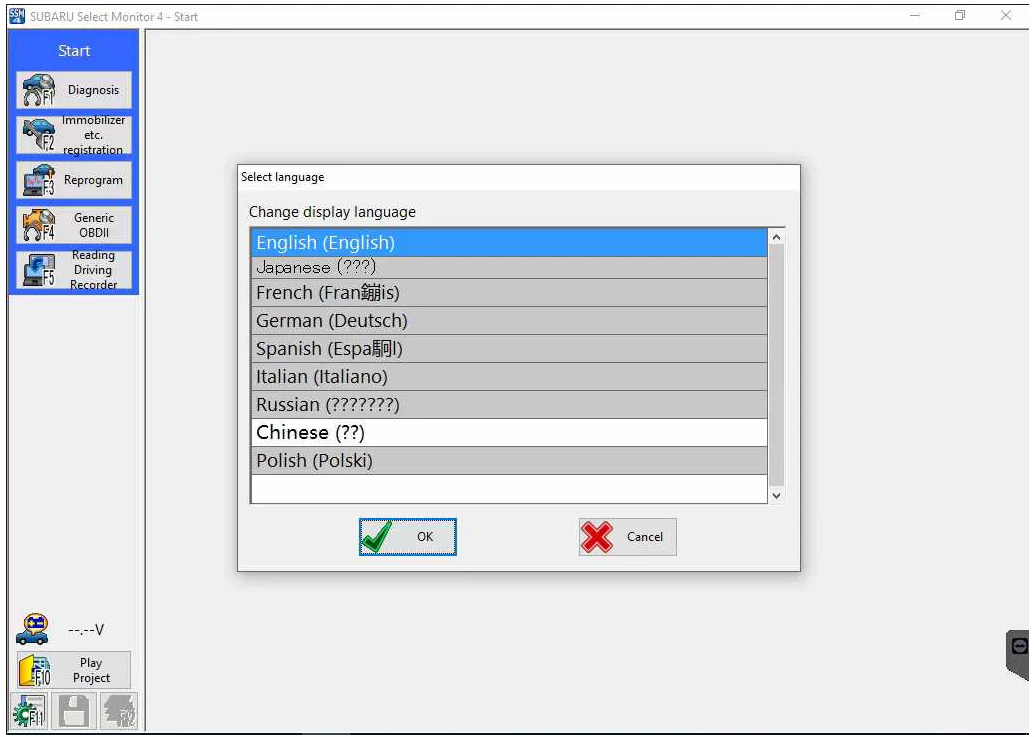

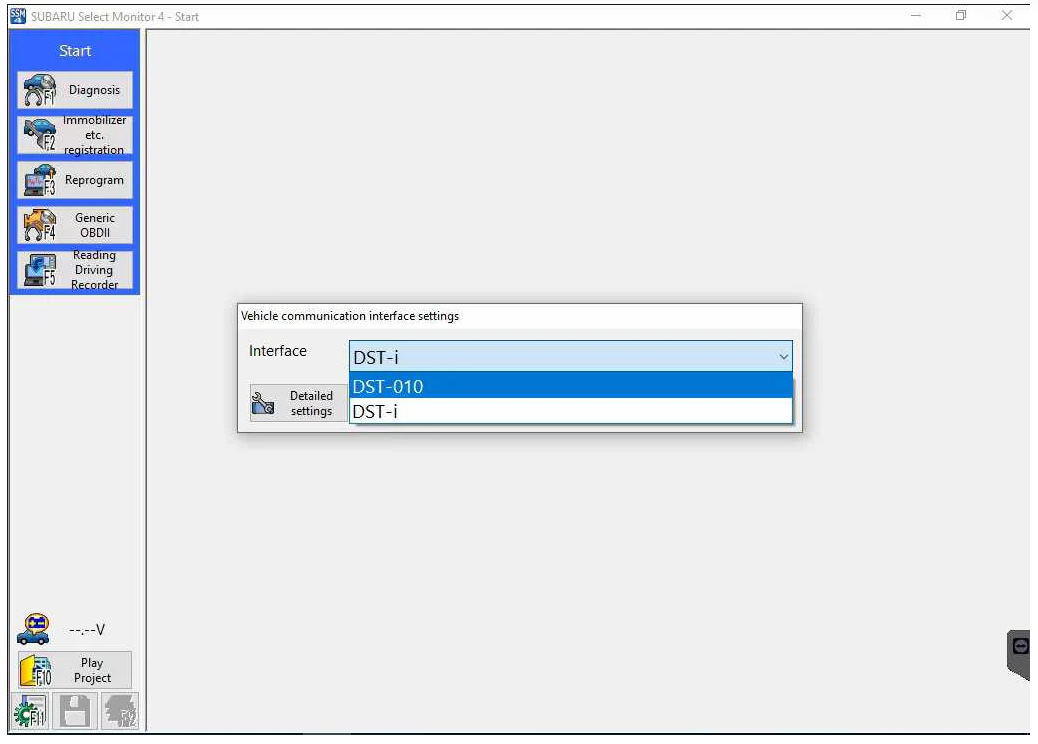

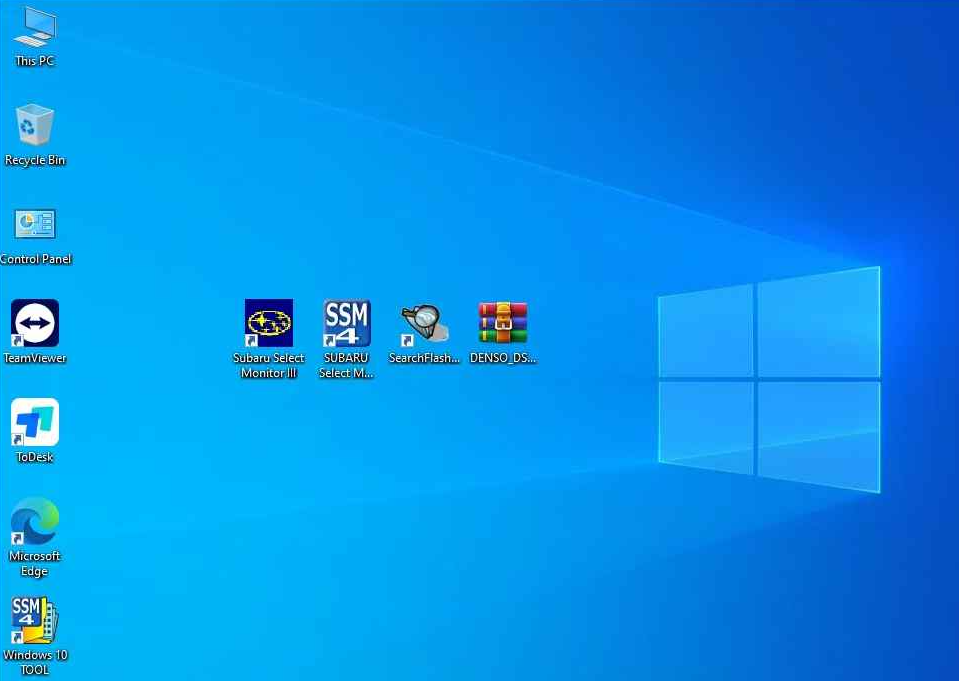

Subaru Software display:

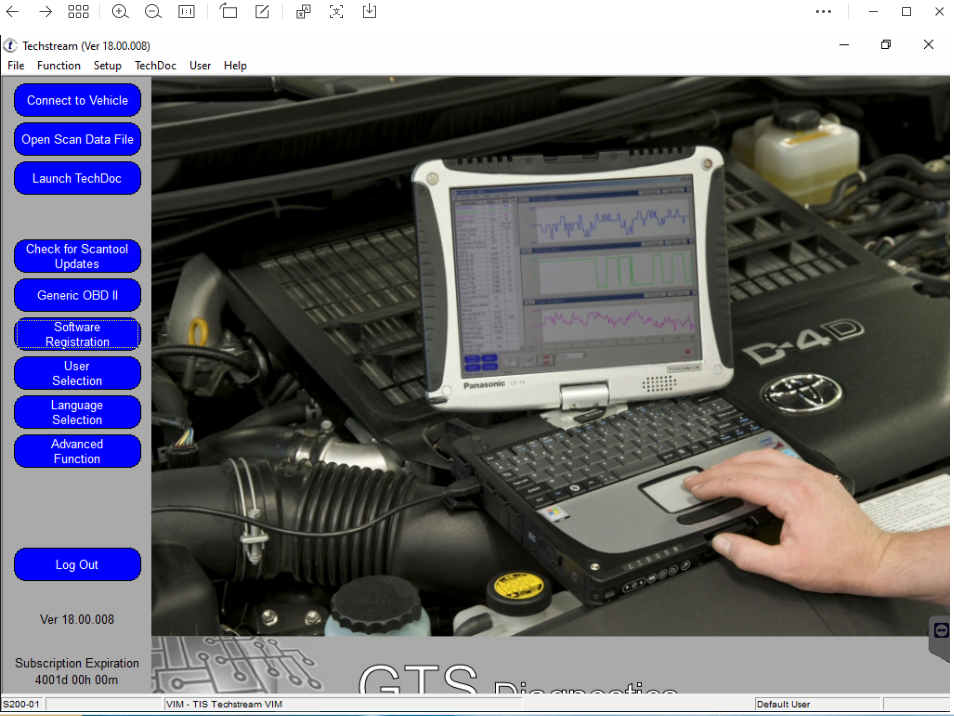

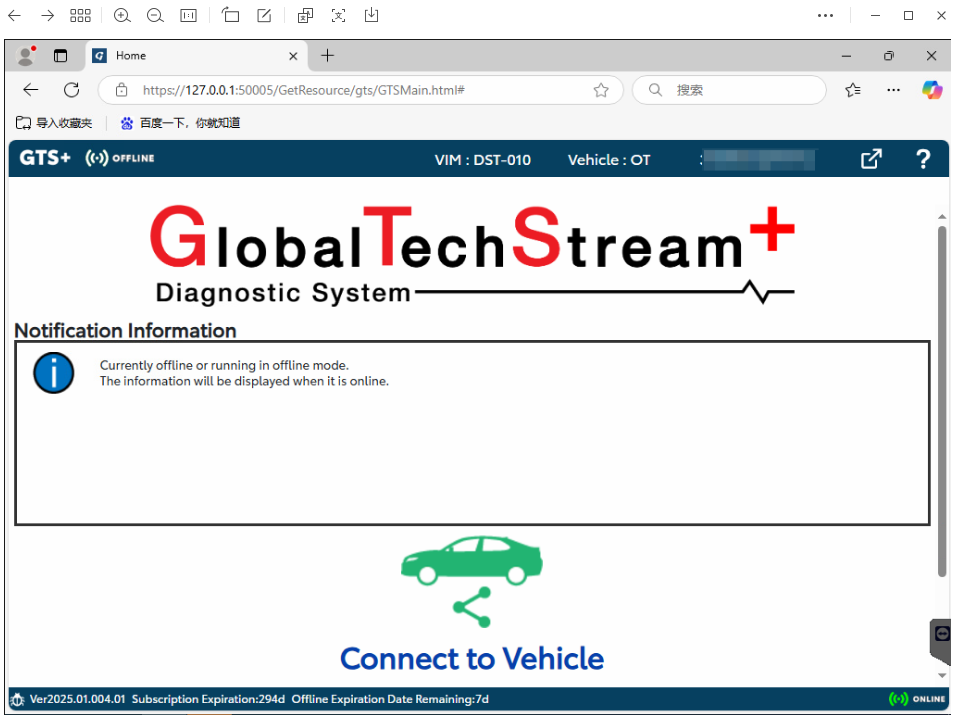

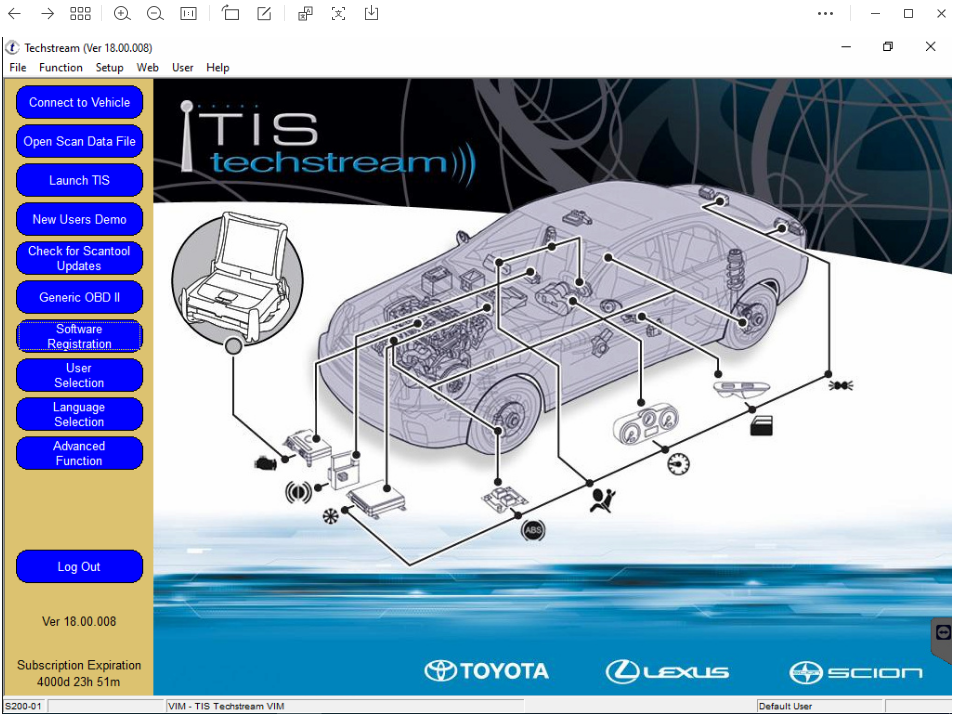

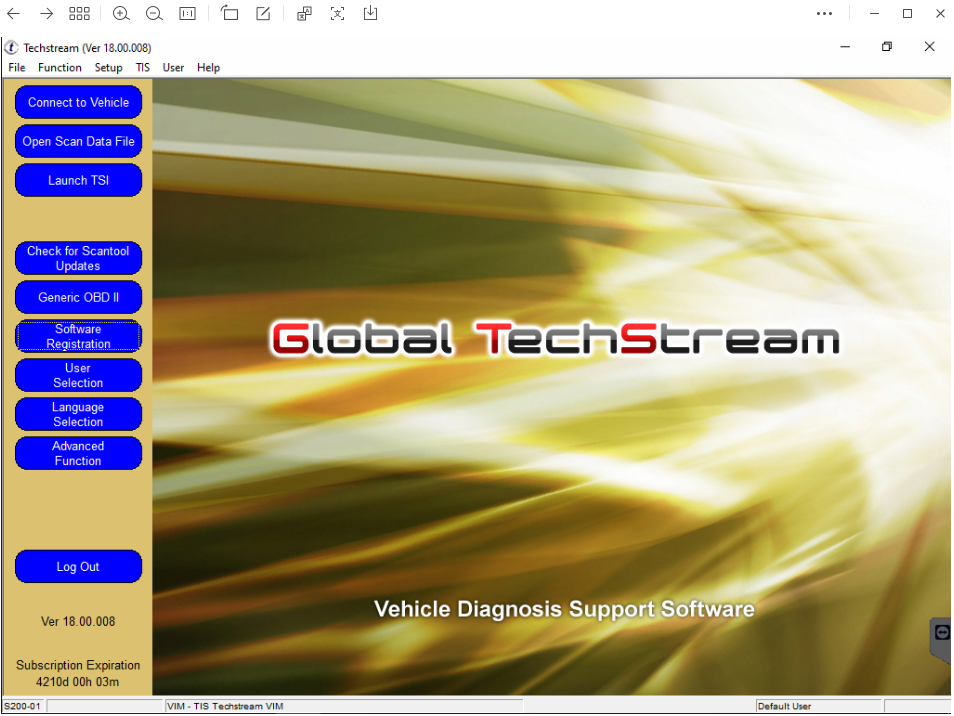

Toyota GTS ans GTS+ Software display:

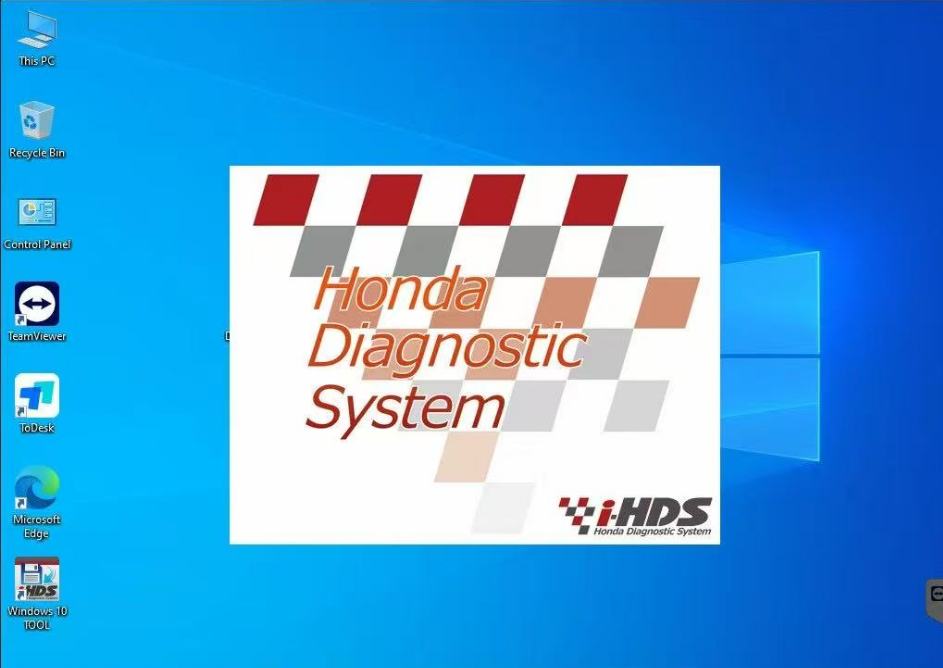

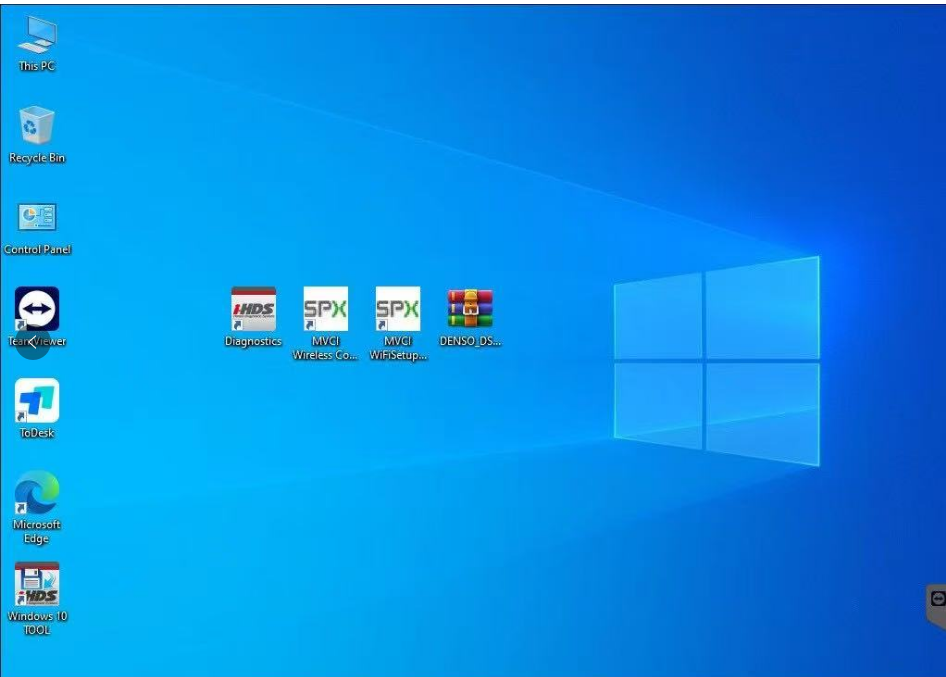

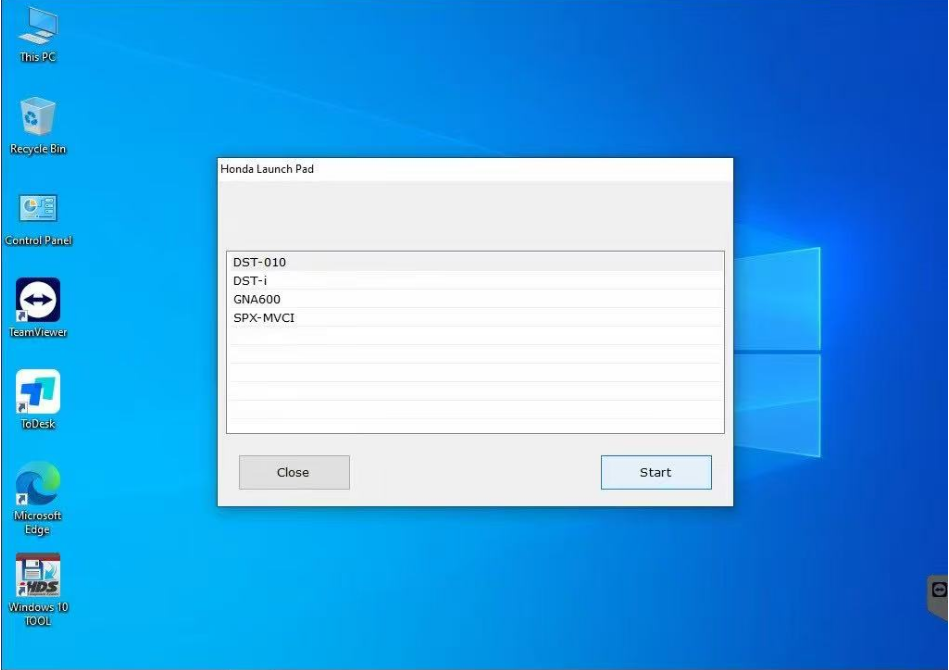

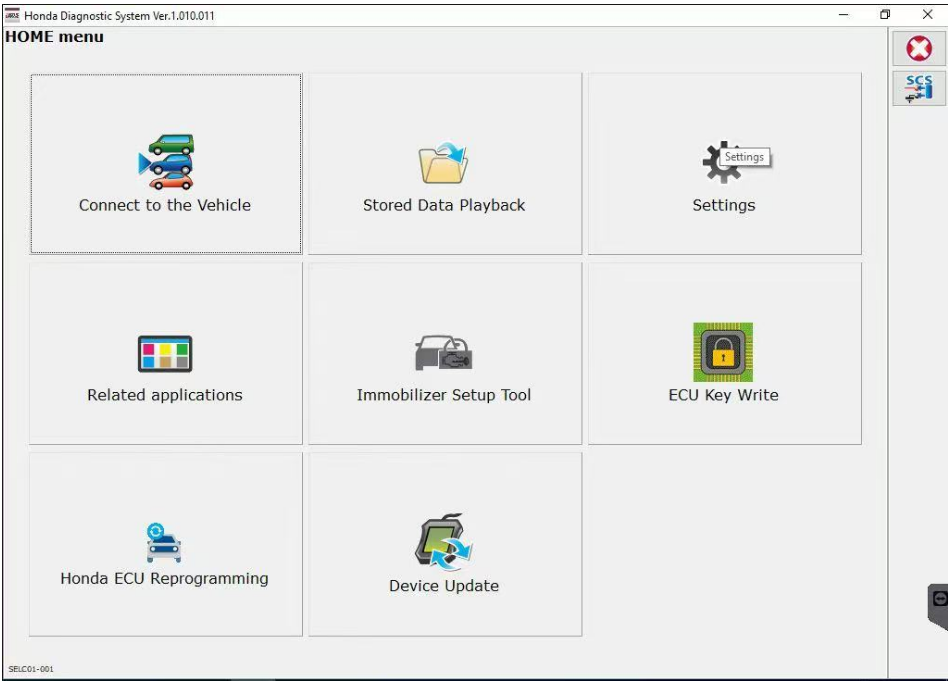

Honda i-HDS Software display:

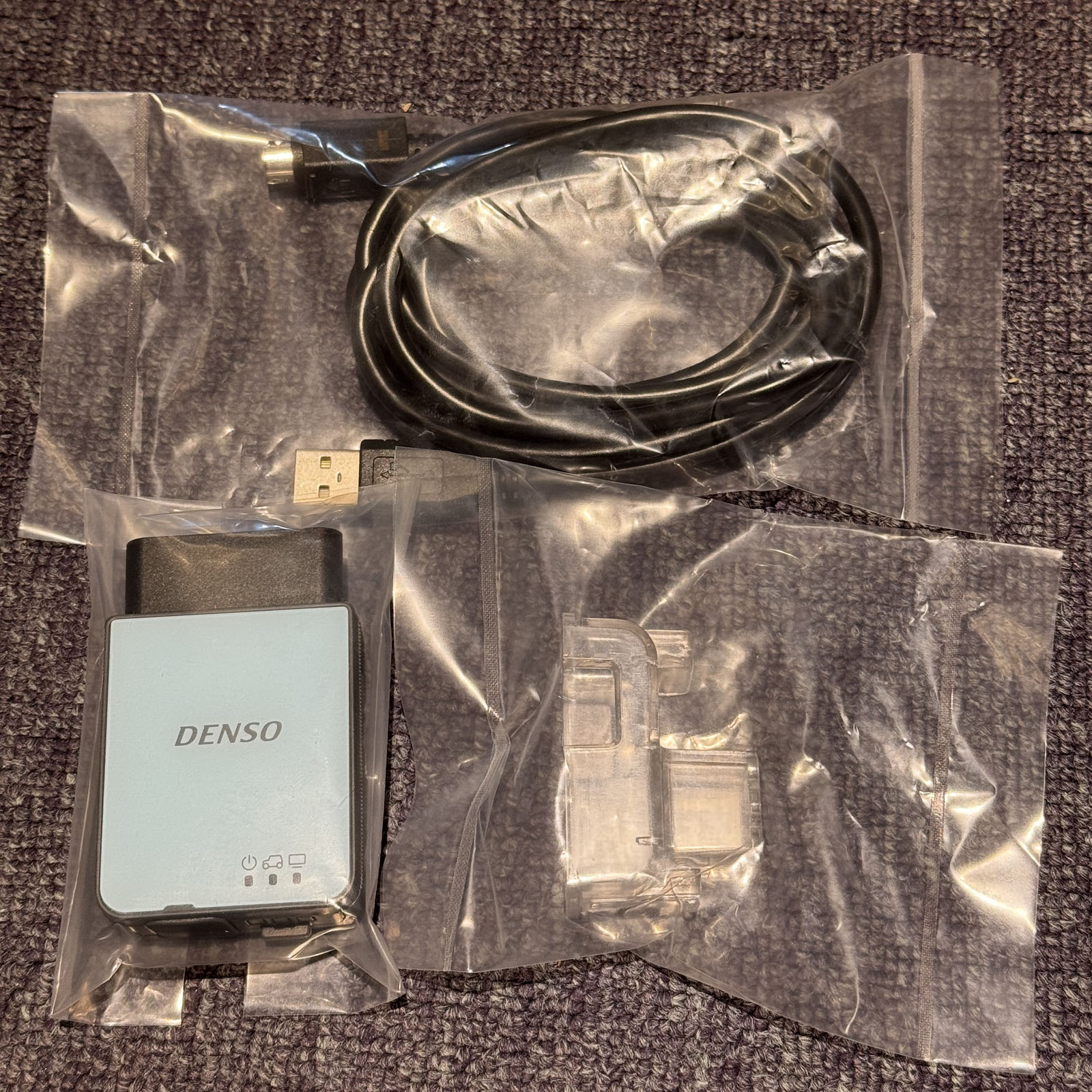

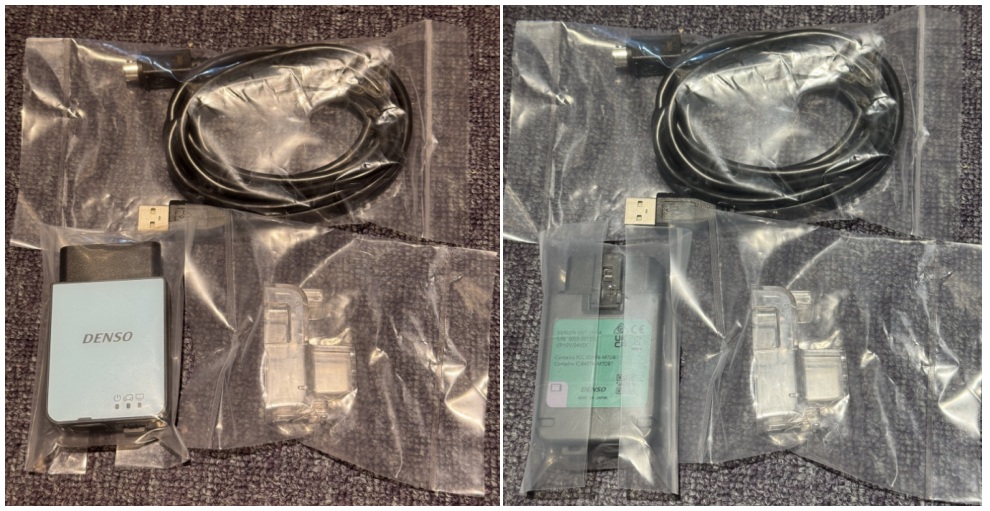

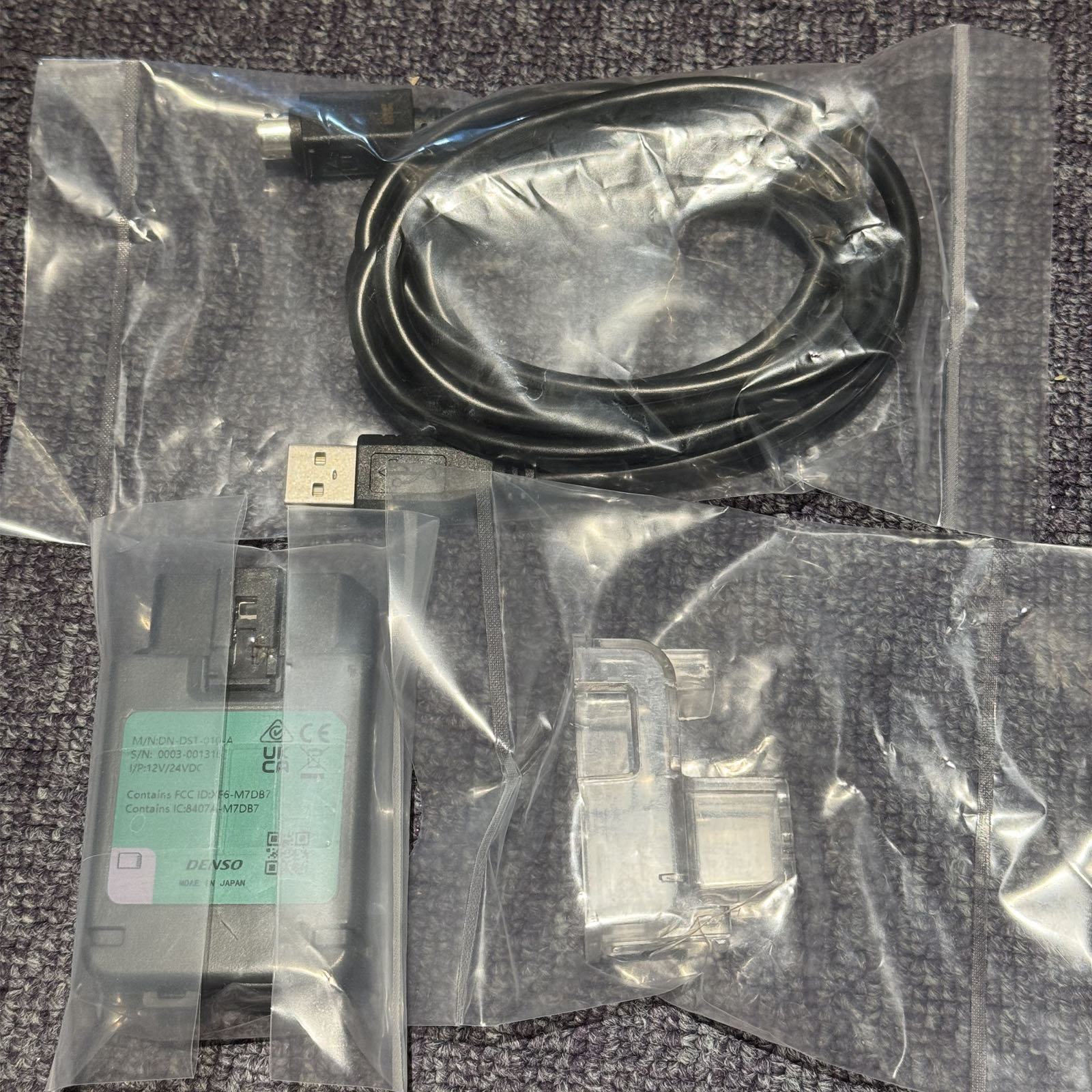

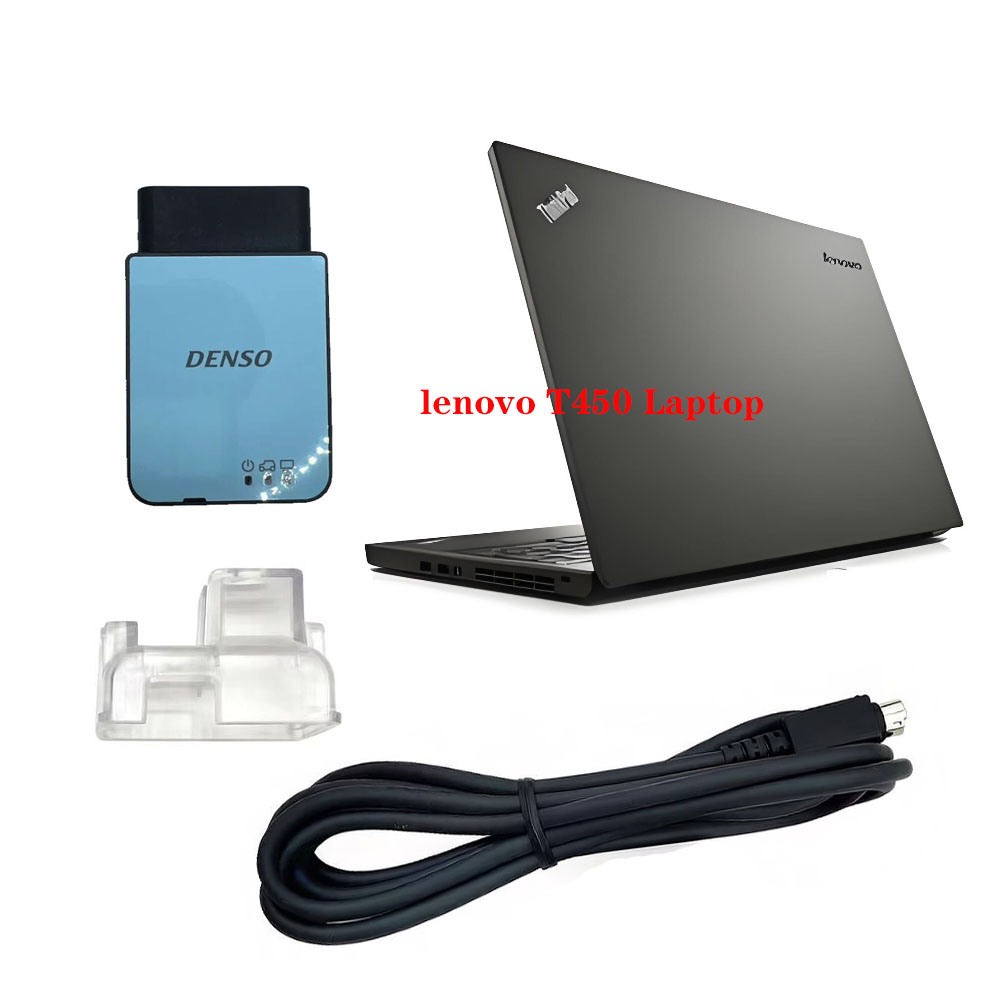

Packing List:
