V2026.03 SUPER MB PRO M6+ Pro Star Benz Wireless Diagnosis Tool Full Configuration for Benz Cars and Trucks

V2026.03 SUPER MB PRO M6+ Pro Star Benz Wireless Diagnosis Tool Full Configuration for Benz Cars and Trucks

Note:
1) If you need Benz Cars and Trucks Software, please Select the option with 512G SSD Xentry Software（Free software for brushing and hiding）.
2) This kit supports to work with original Benz Xentry Software.
3) About WIFI set :Unplug the USB cable, wifi name: M6+ DOIP-**** , when connected, the wireless indicator green light is always on, the wired light is off, no setting is required, the password is 123456789.
4) The software only provides one-free registration. change the tied computer need to register again cost 33 usd.
5) Recommended to buy the whole set with computer, you can use it when you receive it.

Why Choose SUPER MB PRO M6 Pro:
1.M6+ has greatly improved product functions and compatibility, and is 100% compatible with the original Mercedes-Benz software.
2.The front label of the M6+ uses a design with trademark rights and art copyrights to improve product recognition.
3.The communication interface between the M6+ and the computer is a USB3.0 interface, which improves the compatibility of the product with the computer and the tablet. (Compatible with all old and new computers and tablets, no need to choose old-fashioned computers and tablets with network ports.)
4.SUPER MB PRO M6 plus supports remote C-side operation. The client does not need to install special diagnostic testing software. Just connect the M6+ to a local computer that can access the Internet, and we can provide customers with paid diagnosis and detection of vehicle failure services remotely. Customers can Set up a local remote diagnostic test in the local area network. Greatly improve the flexible range of use of the product.
5.M6+ supports BM-W E-SYS, Aicoder wired and wireless programming and coding of F and G series, and supports BM-W modification, flashing and hiding.
6.M6+ supports BM-W APP software, provides mobile phone software such as Bimmercode (code setting and brushing to hide) Bimmerlink (diagnostic clearing code) in English, and supports MHD .Bimmergeeks .. XHP Flashtool. ODIS-e.XDelete. THOR-the M Flasher. Mobile APP such as PRO-Tool.
7.M6+ supports DOIP communication dedicated to all vehicles, such as the new Volkswagen, A-udi, Skoda, Bentley, Lambo, etc. A dedicated transition button is provided.
8.Support new models such as W223 c206 213 167.
9.SUPER MB PRO M6+ Pro adopts double-radiation mode (radiation fan & radiation fin). Radiation fan will automatically turn on high-power radiation mode when SUPER MB PRO M6 internal temperature over 35℃, greatly improving the stability and safety when programming.
10.Built -in network interface prevents deformation and damage from impact.

Software List:
1.Software Version:V2026.03 Car / V2023.09 Truck Diagnostic Software
2.Support Multi-Language:(Default language is English, if you want other languages, please leave message)English/ Bulgarian/ Danish/ Greek/ Spanish/ French/ Italian/ Korean/ Polish/ Romanuan/ Serbo-Croatian/ Turkish/ Czech/ German/ Finish/ Hyngarian/ Japanese/ Dutch/ Portuguese/ Russian/ Swedish/ Chinese.
3.Support Both Mercedes Benz Cars and Trucks
4.Support Mercedes Benz Cars After Year 2000
5.DAS 2026.03 for car and DAS 2023.09 for truck : the automatically Diagnosis Assistance System. Support 257 and so on new cars to register free to diagnosis
6.Xentry 2026.03 for car and Xentry 2023.09 for truck : New software released by Benz Company after 04/2009 by diagnosis new cars.
7.WIS net 2021.10:Workshop Information System
Supply the whole view of the wiring diagram in a car, component location diagram and maintenance method. What you do is to enter the chassis number, and then you will get the manufacture data, engine configuration and the car model -all in detail.
8.EPC.net 2018.11:Electronic Parts Catalog
9.ST Finder:Part Location Finder options: 2016 and 2020 and 2023
10.STARUTILITIES : the movement management system and self-test
11.SD MEDIA 2014
12.PL76 2022.01
13.HHT Software for old cars
14.Engineer version Vediamo updated to V5.01.01 ，Engineer version DTS updated to V9.02，Upgrade to the latest version of 2022 data
15.Support Offline and Online Programming, If You Want to Do Online,you must have an account online.

M6+ Pro, M6+ and M6 product function comparison chart


Passenger Car Supported List:
A(176), A(169), A(168), B(246), B(245), CLC(117), C(204) C(203), C(202), 190(201), E(212), E(211), E(210), 124(124), S(222), S(221), S(220), S(140), S(126),
E(207), CLK(209), CLK(208), CLS(218), CLS(219), CL(216), CL(215), CL(140) SLK(172), SLK(171), SLK(170), SL(231), SL(230), SL(129), SL(107), SLS(197),
M(166), M(164), M(163), G(463), G(461), E(212), E(211), E(210), 124(124), S(222), S(221),S(220), S(140), CLK(209), CLK(208), CLS(218), CLS(219), CL(216),
CL(215), CL(140), SLK(172), SL(231), SL(230), SL(129), SL(107),SLS(197), M(166), M(164), M(163), G(460), GL(164), GLK(204), R(251)

Van Supported List:
MB 100(631), T1, SprinterIII, SprinterII, SprinterI, Sprinter900, Citan, Vito(639), Vito(638), V(638), Viano(639), T2, Vario, Vaneo(414)

Truck Supported List:
Actros963/4, Actros2,3, AtegoIII, AtegoII, AxorII, Eonic, Zetros, Actros, Atego Light, Atego Heavey, HPN M96, Atron, HPN M2000, SKL, FSK, Further model series

Unimog Supported List:
U20, UGN, UHN

Bus Supported List:
TRAVEGO, INTOURO, INTEGRO, CITARO, CAPACITY, CITO, TOURISMO, O350/O403, CONECTO, O404, O405-O408,
Minibus, OC500, TOURO, TOURINO, MBC, MULITEGO, O500, O500/OH, OH, OH368, OF, OF384, LO, O400, FURTHER MODEL SERIES

Super Sports Car Supported List:
SLR(199)

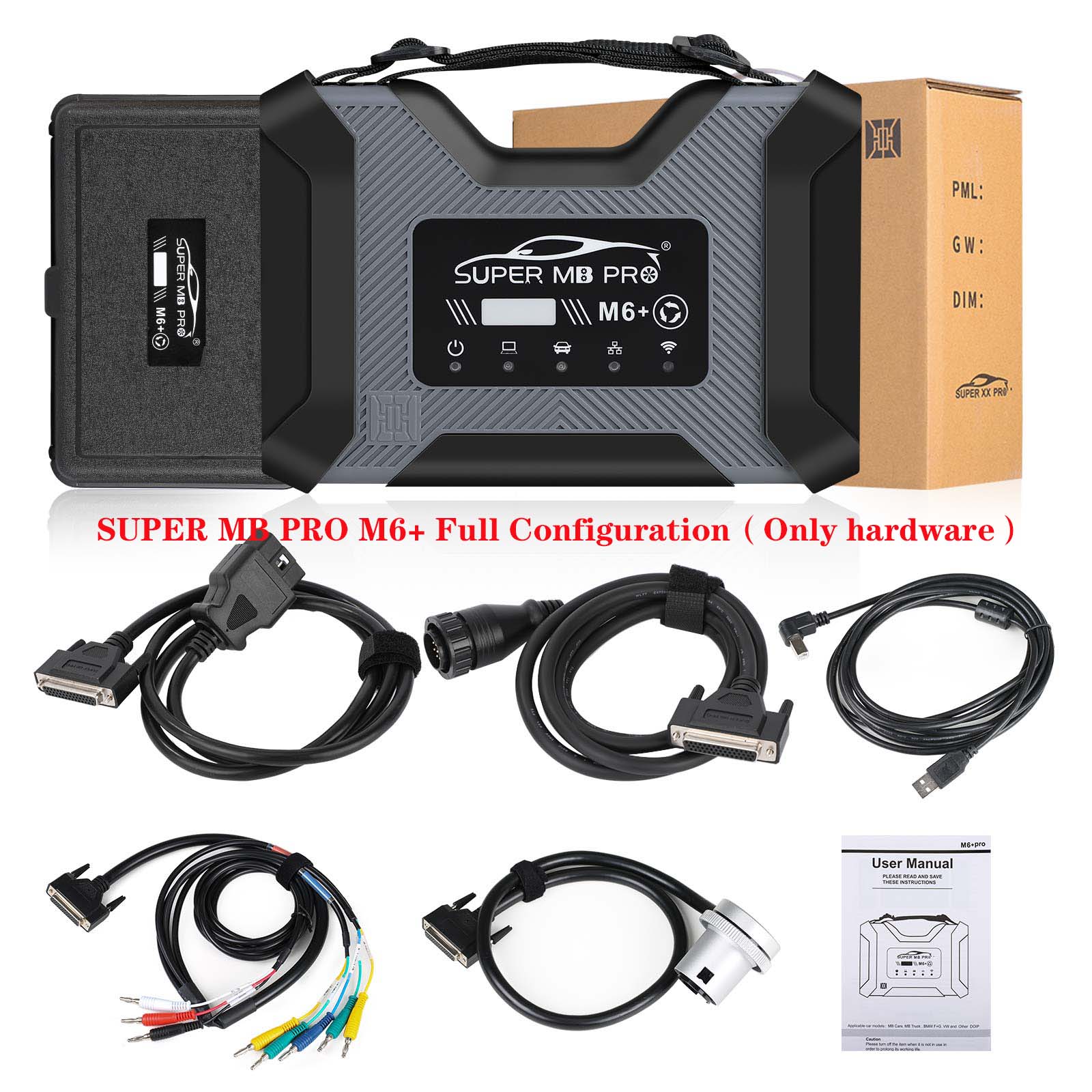

Option 1:
Package:

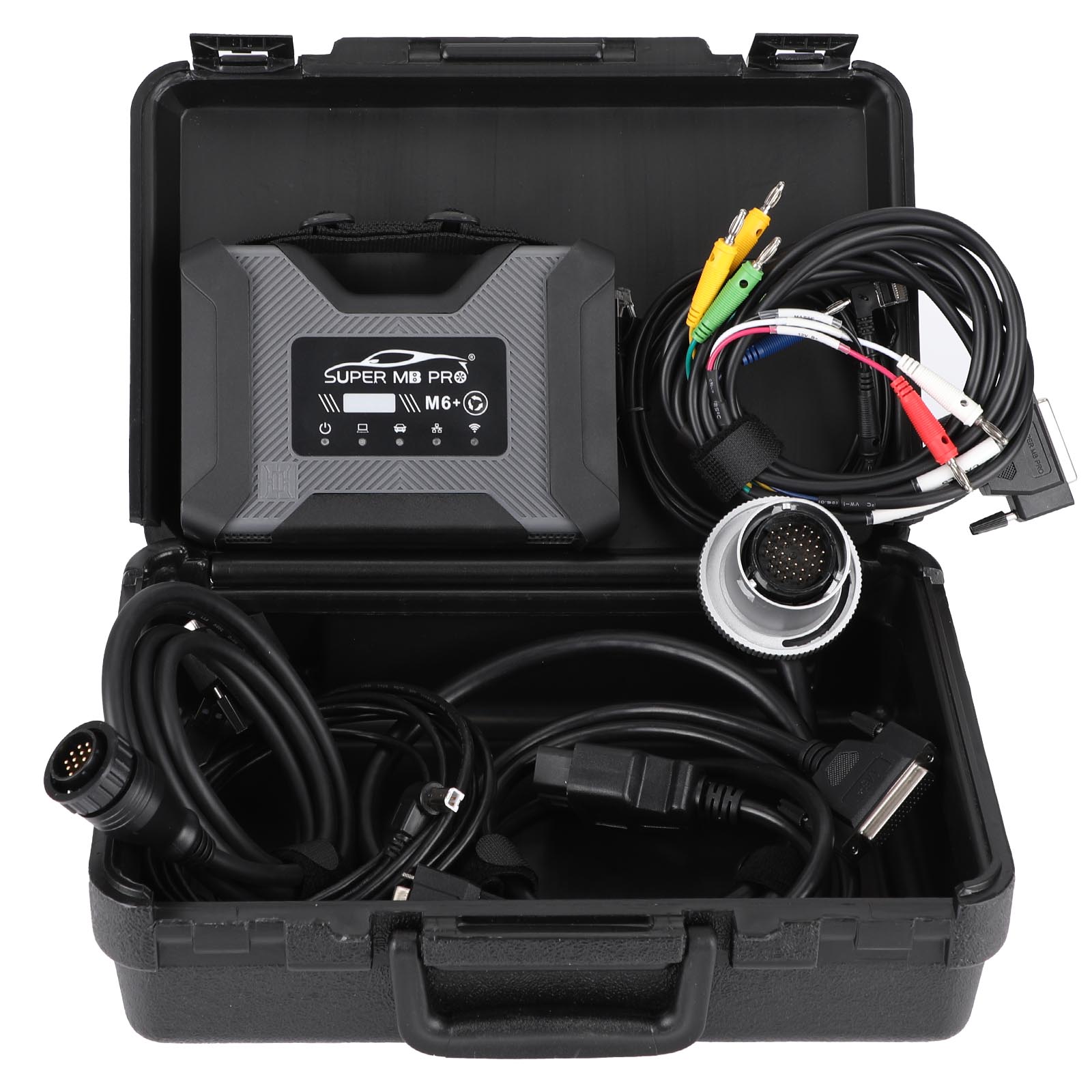

1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable

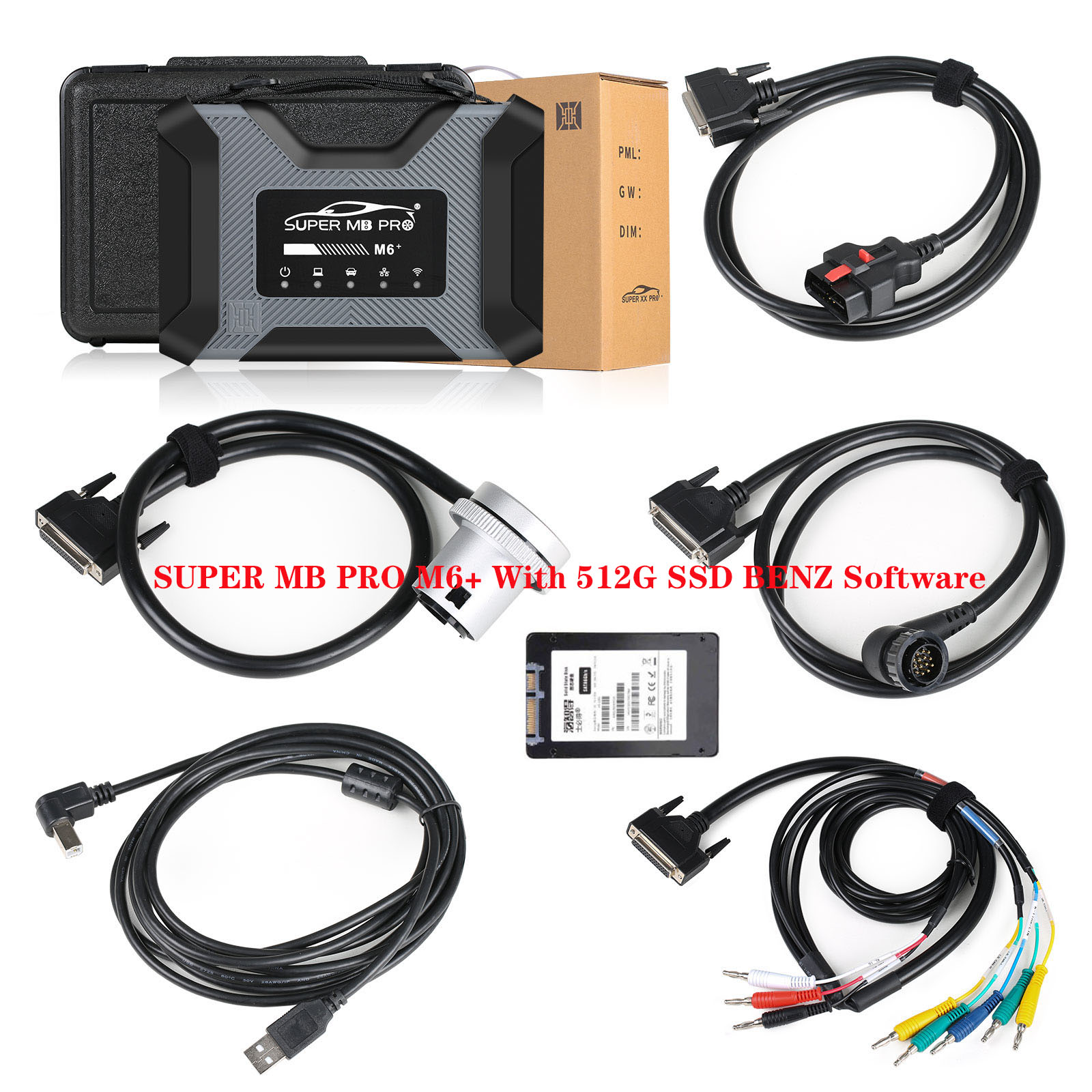

Option 2:
Package :

1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable

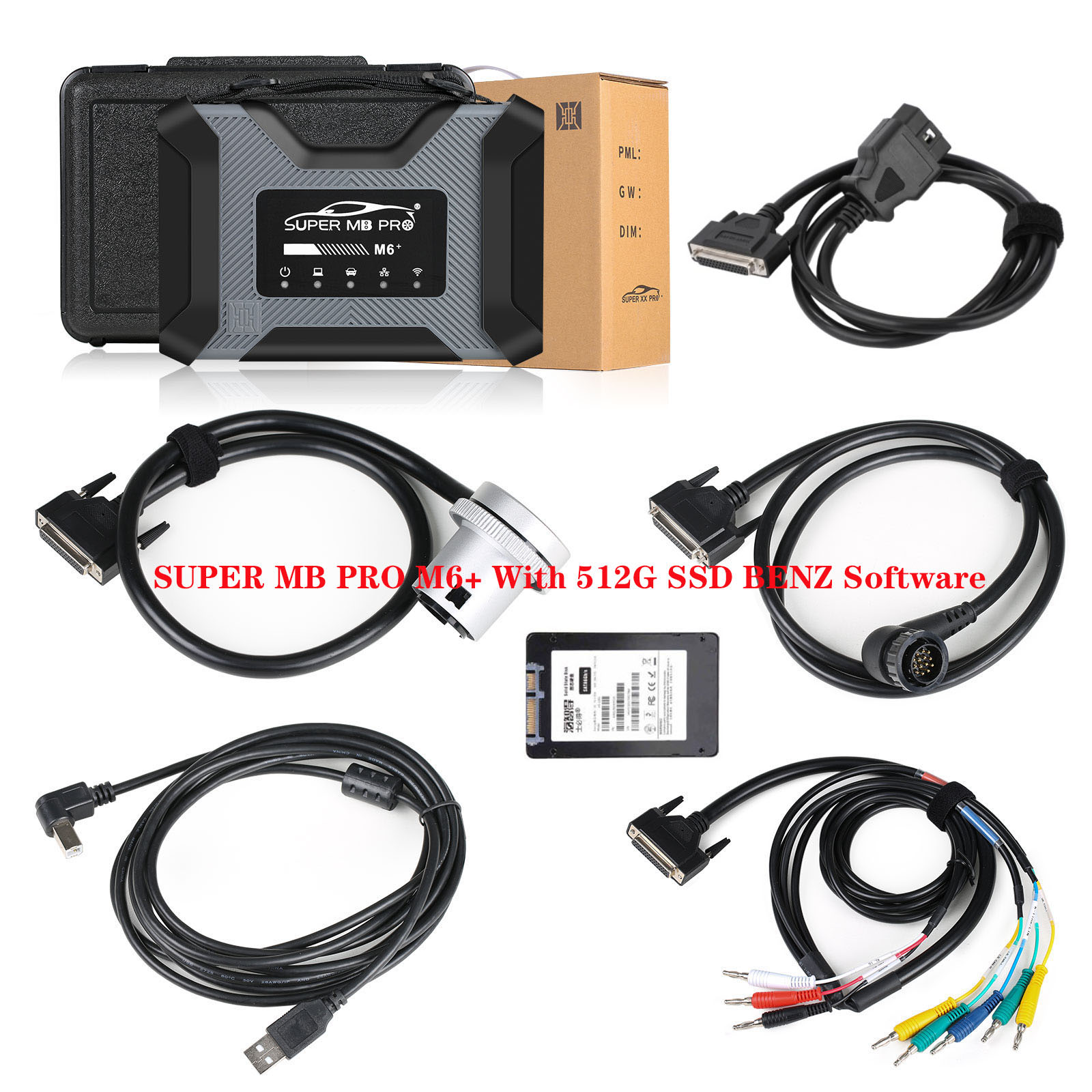

1PC x 512G SSD (Benz Dealer Diagnostic Software)



Option 3:
Package :
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable

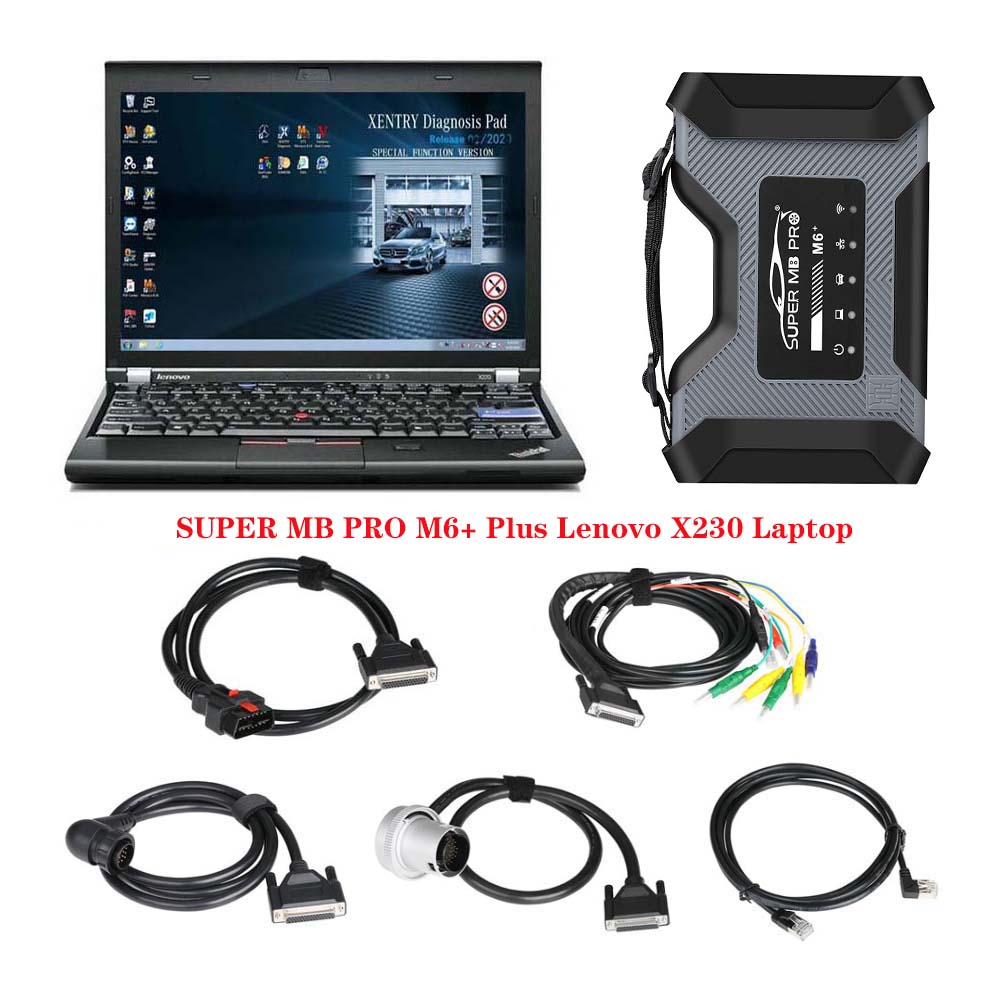

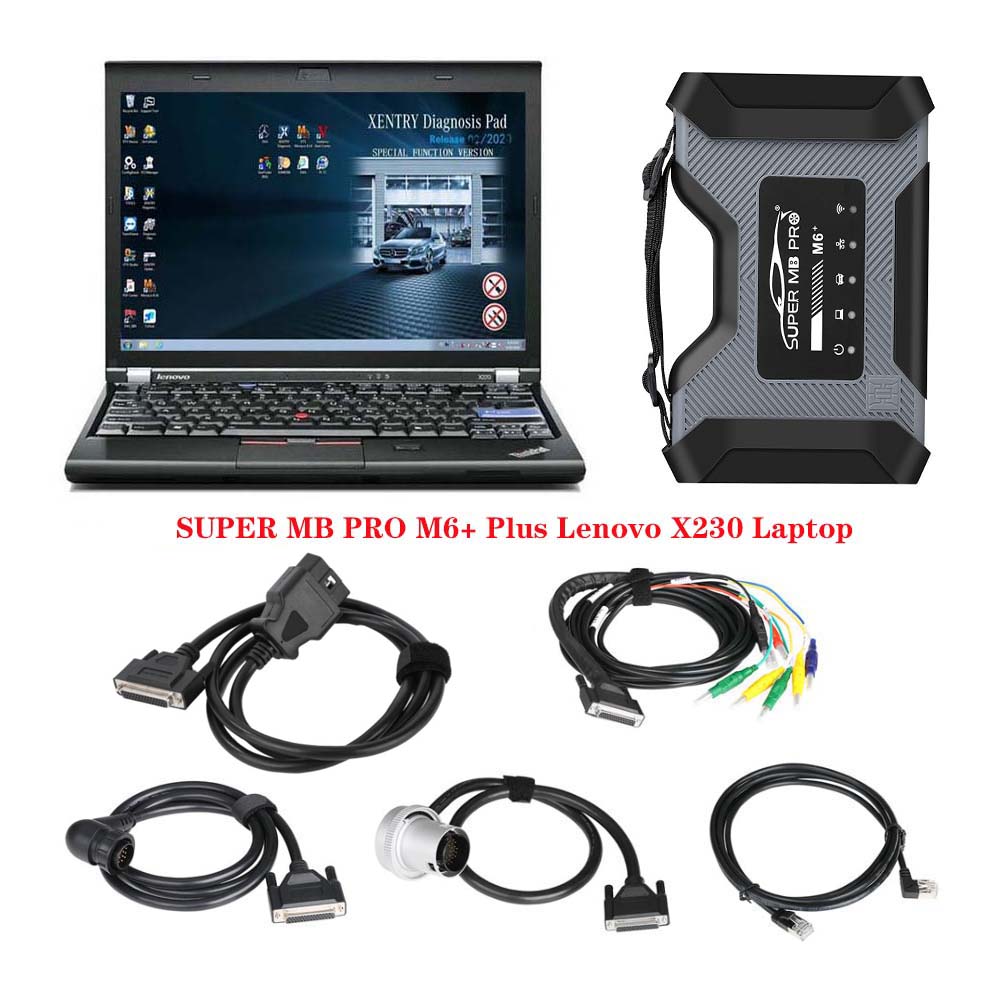

1pc x Second Hand Laptop Lenovo X230 Laptop （All software activated. All system ready to use）


Second Hand Laptop Lenovo X230 Specification:
Brand:Lenovo
Condition:Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-3320M CPU
Memory:8GB
Processor Speed:2.6GHz
Hard Disk: 512G SSD

Option 4:
Package :
1pc x SUPER MB PRO M6+ Pro Host
1pc x OBD2 16pin Cable
1pc x USB Cable
1pc x 38PIN Cable
1pc x 14PIN Cable
1pc x 4PIN Cable

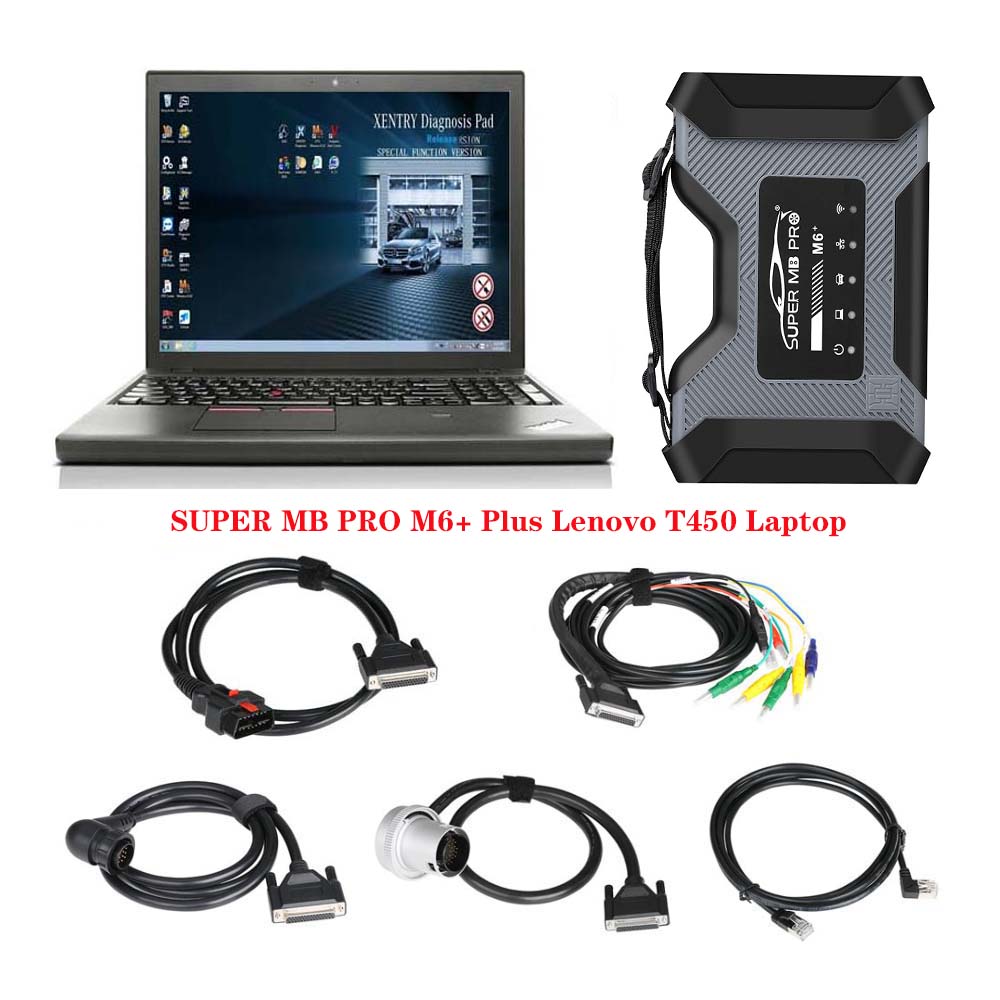

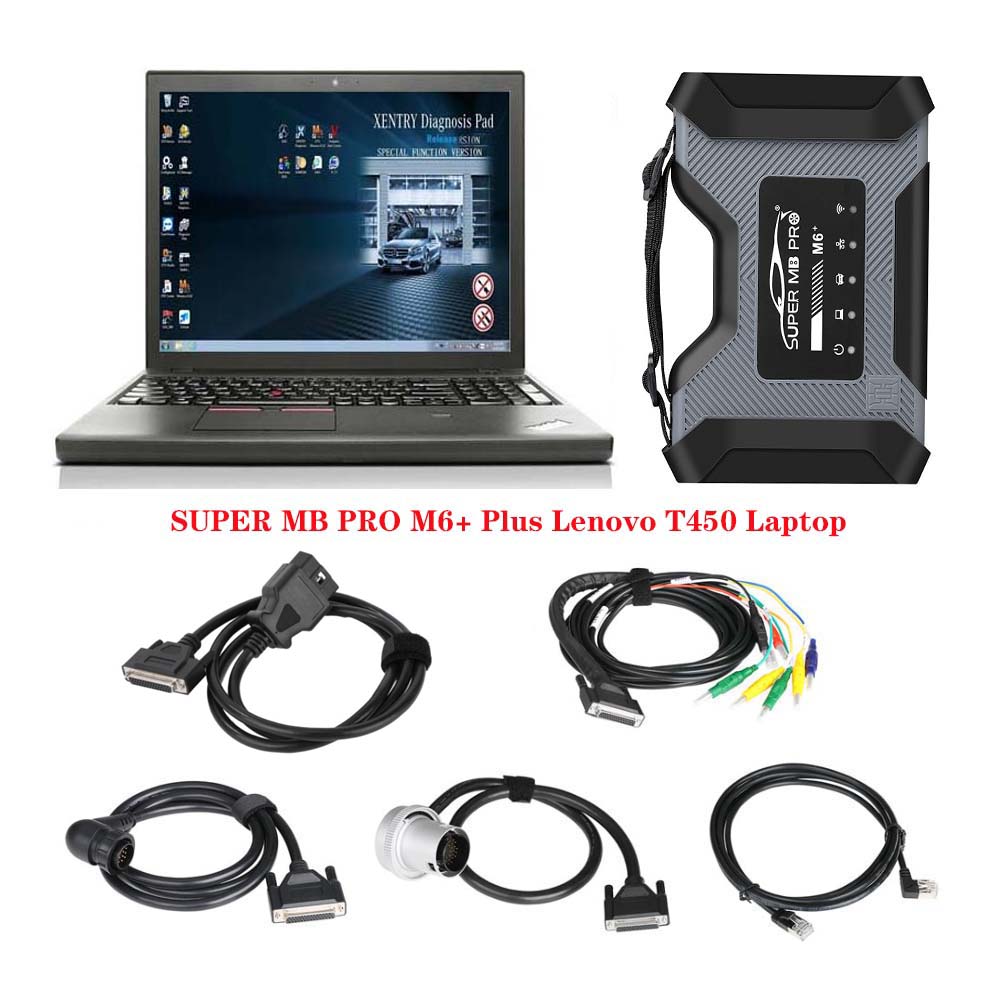

1pc x Second Hand Laptop Lenovo T450 Laptop （All software activated. All system ready to use）

Second Hand Laptop Lenovo T450 i5-5200U 8GB Memory Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/ Notebook
Screen Size:14
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
Hard Disk: 512G SSD

M6+ Pro Connection Instructions

M6+ PRO Mercedes-Benz and BMW configuration
1. Plug the M6+PRO into the power supply or connect the OBD to the test vehicle, and plug in the USB/LAN cable of the M6+PRO.
2. Turn on the computer and plug in the computer USB/LAN cable.
3. Open the computer network configuration interface and find the Realtek USB FE Family Controller network/the network adapter that comes with the PC.

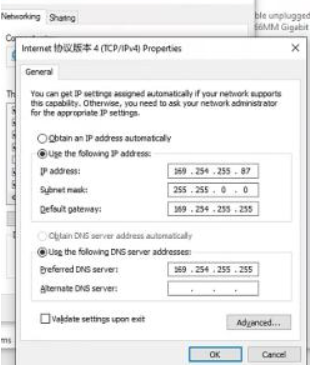

4. Click “Properties”--TCP/IPV4, and set the IP address as shown in the figure below.

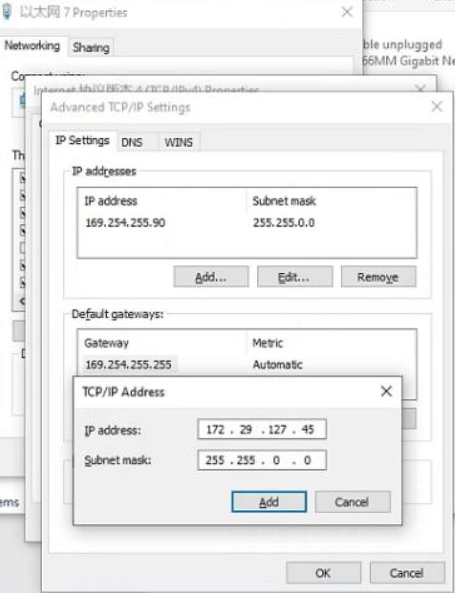

5. Click “Advanced”, and add a group of network IP addresses as shown in the figure below.

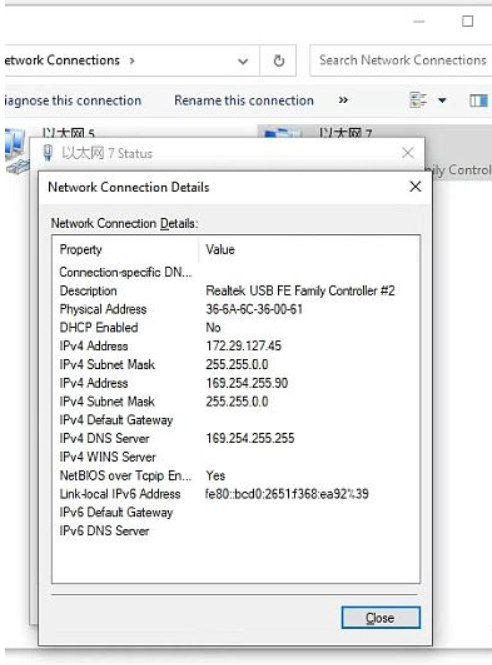

6. Click “OK”. After the configuration is successful, the display is as follows.

7.For the same computer, if you replace a new M6+PRO, you need to reset the IP address. After the setting is completed, the computer is successfully bound to the M6+PRO and there is no need to set the IP address again for wired and wireless Internet access. (Use LAN port connection mode, no need to re-set IP when changing devices).

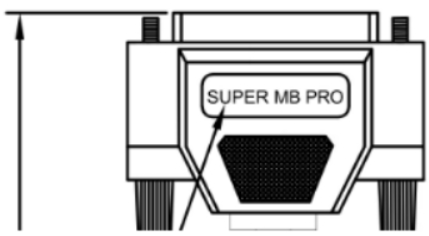

8.You can test Mercedes-Benz normally. Please connect the diagnostic cable with SUPER MB PRO logo.

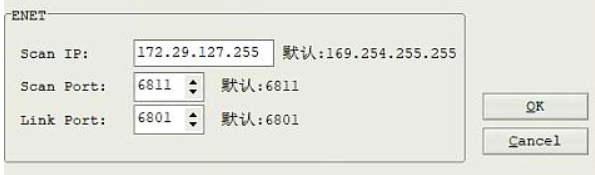

9. BMW wireless BMWAiCode configuration(only for F+G chassis)
Connect to the M6+PRO -***, password：123456789, wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer-side BMWAiCoder configuration is as follows:

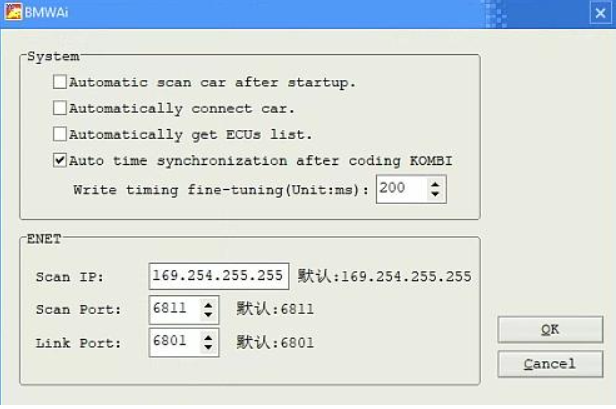

10. BMW wired BMWAiCode configuration(only for F+G chassis)
Connect the USB/LAN cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer-side BMWAiCoder configuration is as follows:

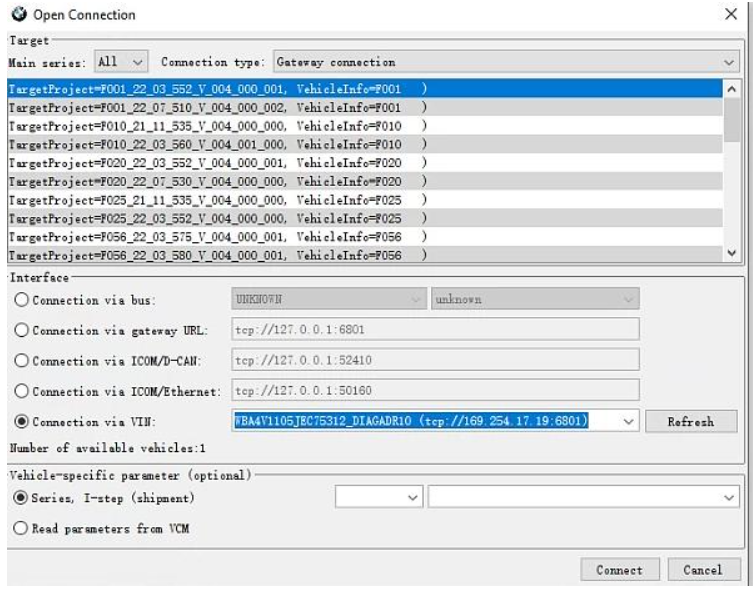

11. BMW wired and wireless E-Sys configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. On the computer side, select the following for direct connection. Wired is similar, no setup required.

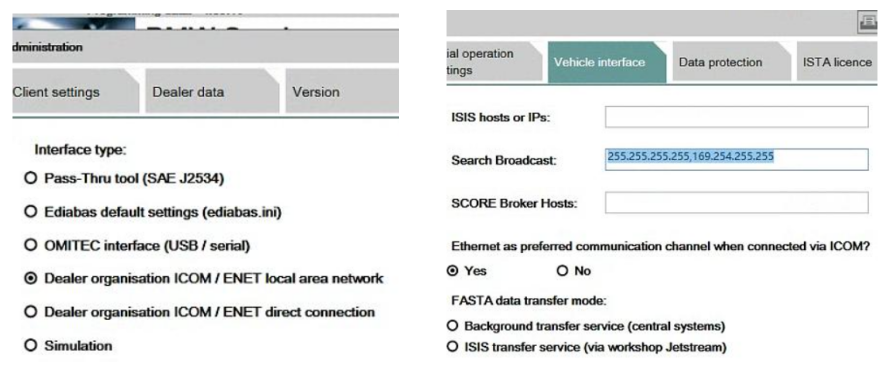

12. BMW wired ISTA configuration(only for F+G chassis)
Connect the USB cable, press and hold the M6+PRO switch button for 3S, and the M6+PRO host wired indicator light will flash. The computer ISTA configuration is as follows:

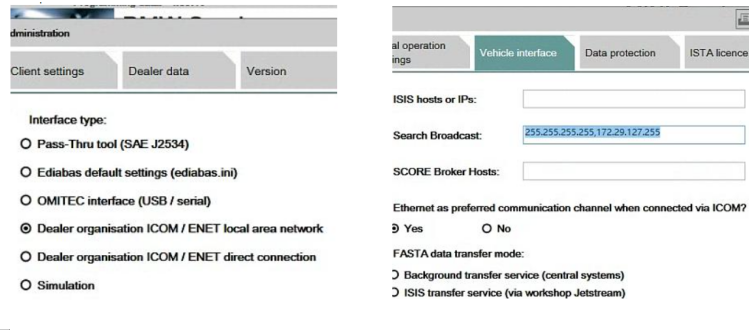

13. BMW Wireless ISTA configuration(only for F+G chassis)
Connect to the M6+PRO -*** wirelessly, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash. The computer side is selected as follows:

14.The mobile phone BWM APP adopts wireless connection. (only for F+G chassis)
Connect to the M6+PRO -***, password: 123456789, press and hold the M6+PRO switch button for 3 seconds, and the M6+PRO host wireless indicator will flash.
15. Supported BMW models and years.
