If you have one launch x431 series product , you dont know how to do oil reset with it , please check the operations as bellow :

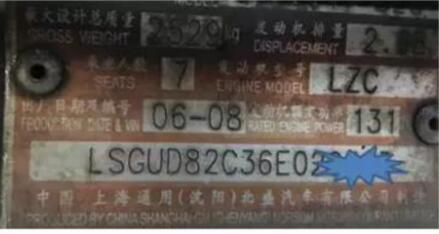

ShangHai GM Buick,2006,VIN=LSGUD82C36E029343,Pic1
Notice :
1. Switch on the ignition;
2. Keep battery voltage keep more than 12V;
3.Executing when the wifi state in good ,otherwise it will cause diagnose abnormally.
Operation Instructions :
1. Select Chinese GM V48.90 above

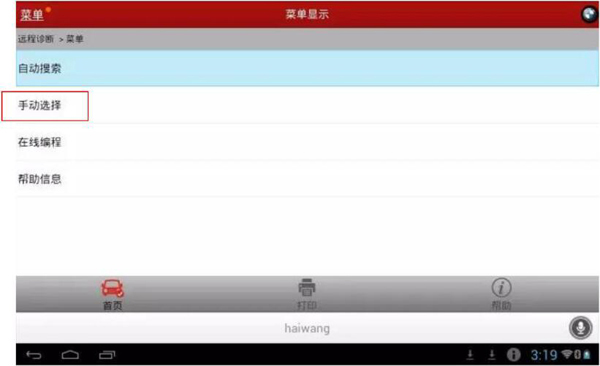

2. Select manually ,Note: do not choose the online programming. See as pic 2

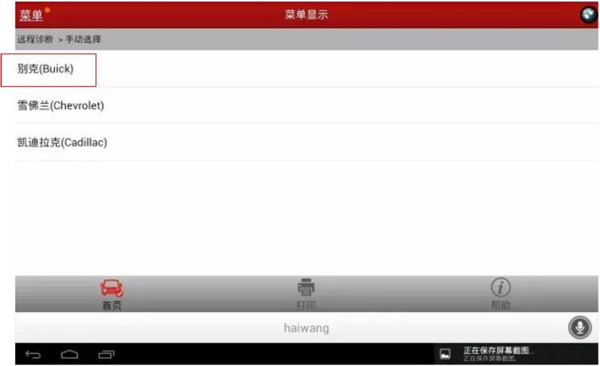

3.Select “Buick”; see as pic 3

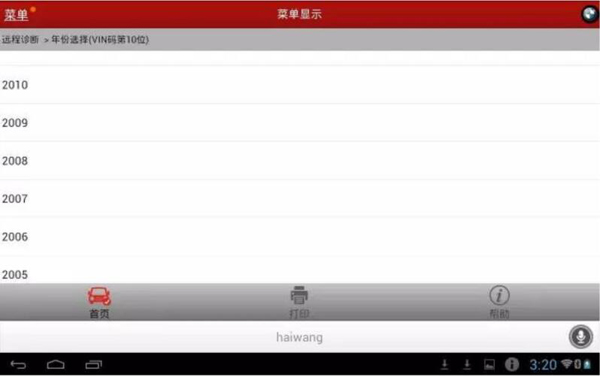

4.Select Year of Model 2006，pic4

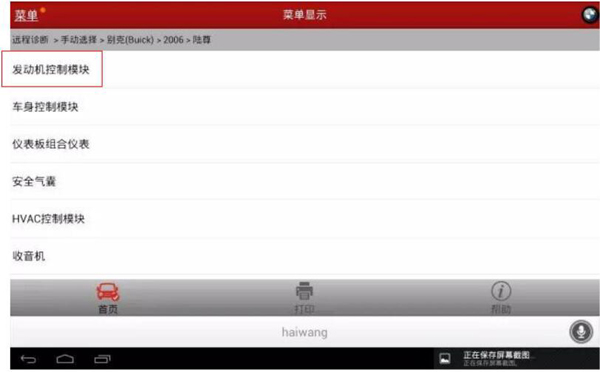

5.Select“Engine control module”, pic5

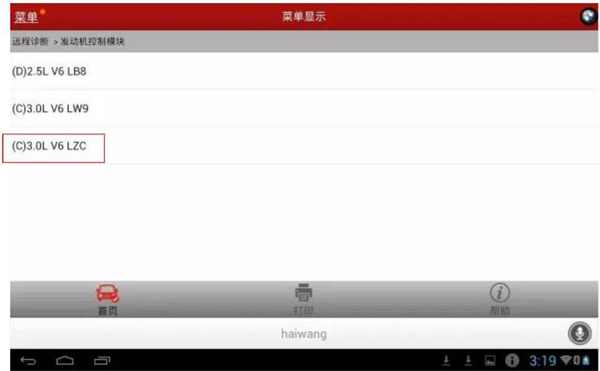

6.Select the engine type “（C)3.0LV6 LZC”pic 6

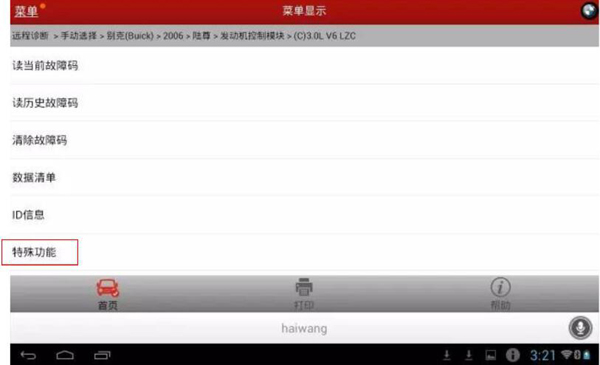

7.Select“Special function”，see pic7

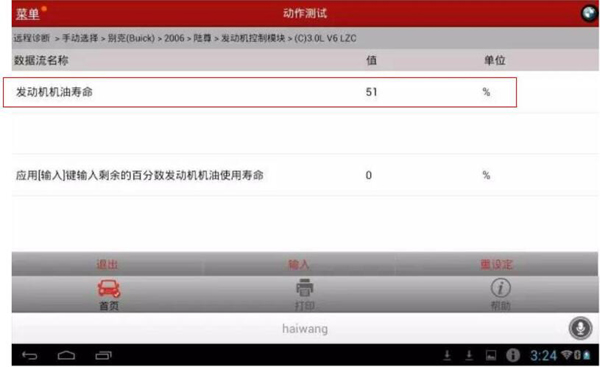

8.Select oil reset，Display engine oil life currently value 51%,see as pic8

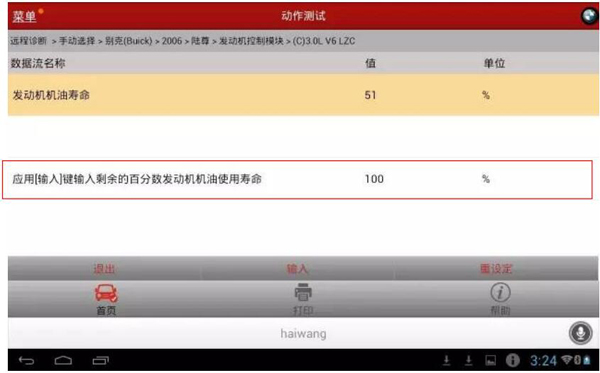

9.Click input , after clicking 100 , then click reset , see as pic 9

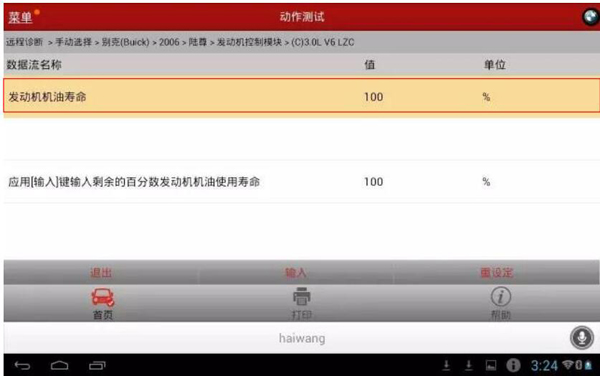

10.When the engine oil life transfer from 50% to 100% , It indicates reset successful , see as pic 10
11.Turn off the key , exist the software , operation end .
