Here the STEPS;
1. Connect Cat ET software, click on menu “Service” then “Monitoring System”.
Read More: How to Connect Caterpillar ET Software from your Laptop to ECM
2. Select Service, then Monitoring System menu.
3. Just to make sure, before setting up the Monitoring System, need to set “Unlocked” on Monitoring System Configuration Access, through menu “Service” then “Parameter Lockout”.

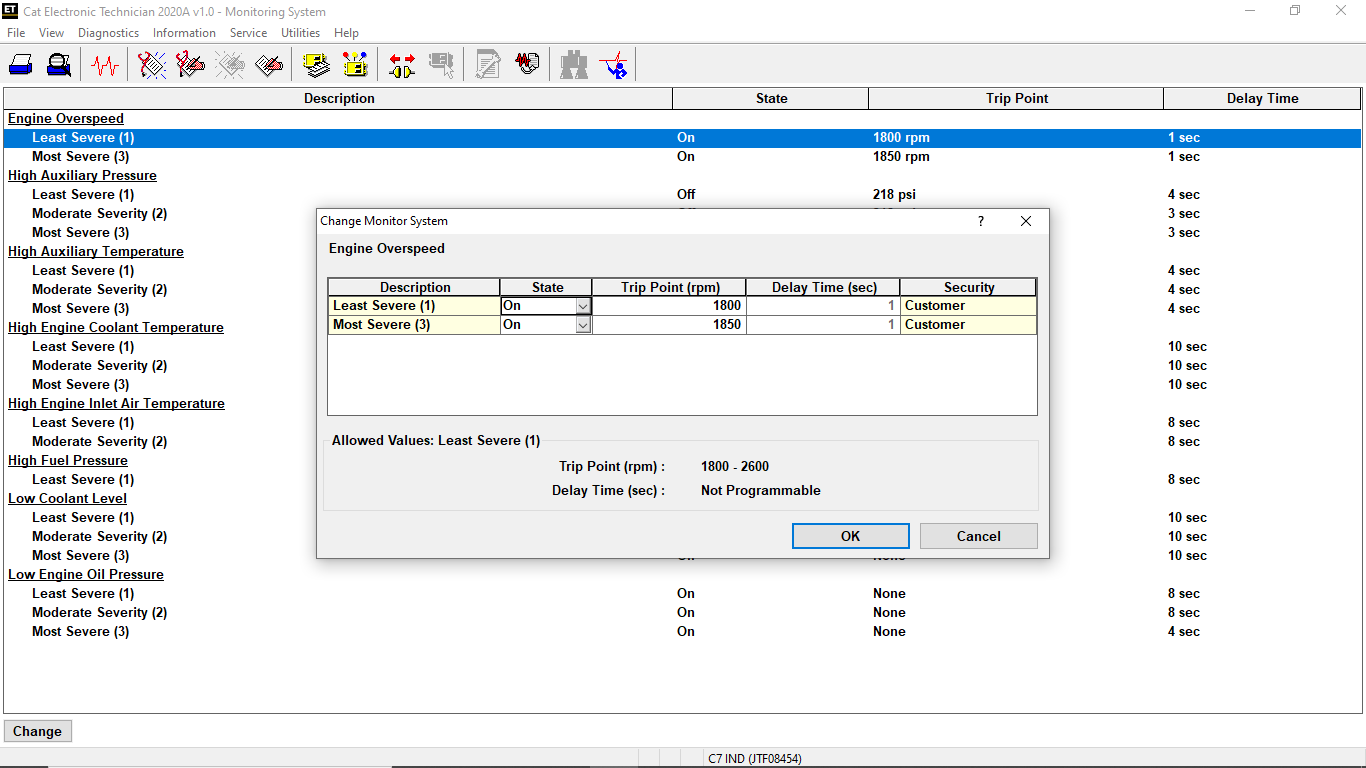

4. Back to Monitoring System, click on “Engine Overspeed”. Change the Monitor System for Engine Speed, by editing on Trip Point (RPM): 1800-2600 RPM.
4. For example: set Trip Point to 1800 RPM, then try to testing the Engine Overspeed while engine is running. When Engine RPM reached 1800 RPM, the Engine should be shutdown suddenly (the ECM will activated the ASO valve or Injection Disabled and Engine Overspeed Shutdown on Status Flags), with Event Code: SPN190 – FMI0 (E362 – Engine Overspeed Shutdown).
→Engine Overspeed Warning (SPN 190 – FMI 15) on Murphy PowerView Display.
And when the Engine speed reached 1100 (rpm), the Engine should be shutdown suddenly (the ECM will activated the Air Shutoff/ASO Valve or Injection Disabled and Engine Overspeed Shutdown E362 (3) on Status Flags, with Event Code: SPN 190 – FMI 0, refer to Figure 1.1 above. Read More: Injection Disabled on Status Flags Caterpillar ET Software.
