This Article will show you an easy way to read pin code for Peugeot to program key by using XTOOL X100 PAD tablet key programmer. Check the related operation guide as below.
Step 1: Connect X100 PAD to the vehicle via the main cable properly

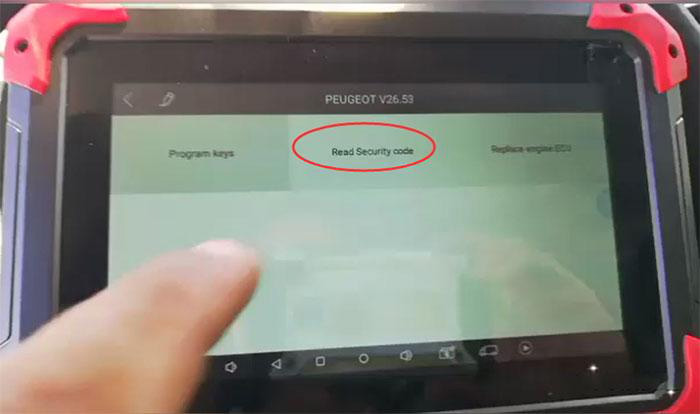

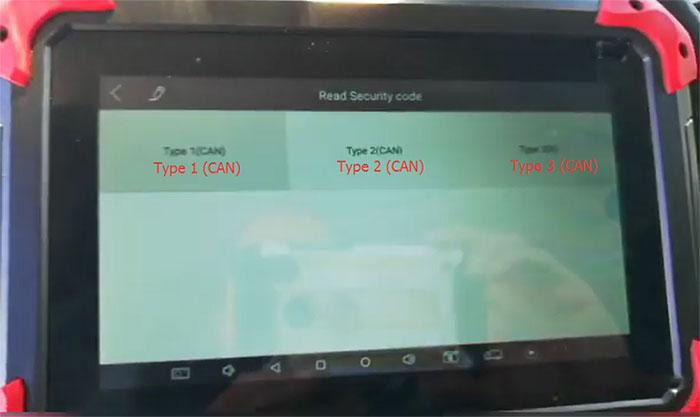

Step 2: Select “Peugeot”-> “Read Security code”-> “Type 1 (CAN)”
Step 3: Turn the ignition switch on
Then turn off
Turn the ignition switch on immediately
Then turn off again
Repeat the steps according to the on- screen prompt
The process takes about 1 min.

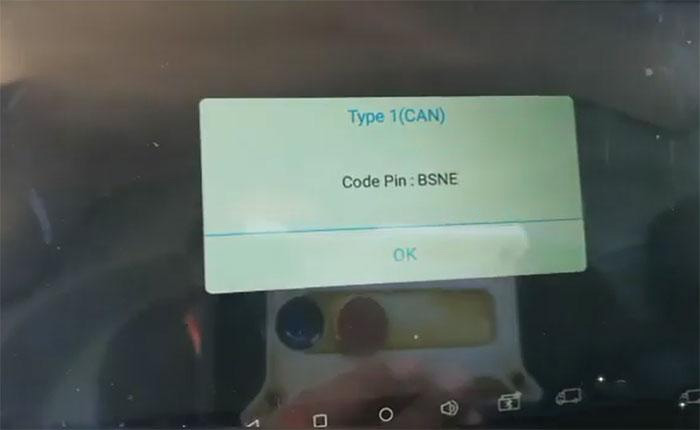

Step 4: The Pin code is read out successfully. It’s correct pin code as expected!

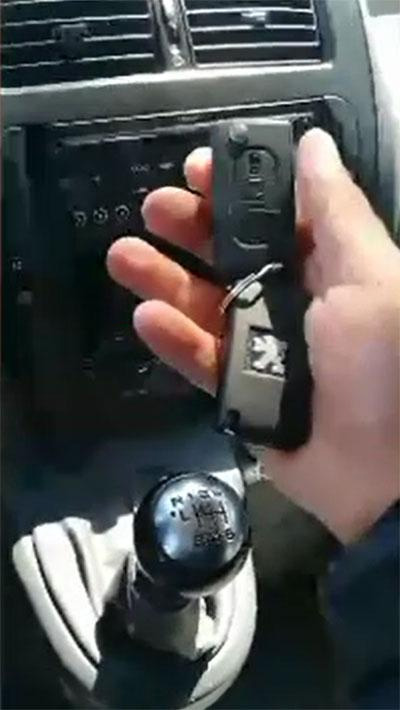

Step 5: Finally, use it to program key using the program keys function menu.
FYI…
Attach the related XTOOL X100 PAD car list for Peugeot Immobilizer function from the official website.
| Immobilizer Function List | |||
| Software Version: 26.43 | |||
| Automaker | Model | System | Function |
| Peugeot | 106 | Immobilizer | 1.Program keys
2.Program decoder 3.Program engine ECU |
| Peugeot | 107 | Immobilizer | 1.Add a key
2.Erase keys 3.Reset Immobilizer |
| Peugeot | 1007 | Immobilizer | 1.Program keys |
| Peugeot | 1007 | Immobilizer | 1.Program keys |
| Peugeot | 206 | Immobilizer | 1.Program keys |
| Peugeot | 207 VAN | Immobilizer | 1.Program keys |
| Peugeot | 207 CAN | Immobilizer | 1.Program keys |
| Peugeot | 207CC | Immobilizer | 1.Program keys |
| Peugeot | 208 | Immobilizer | 1.Program keys |
| Peugeot | 2008 | Immobilizer | 1.Program keys |
| Peugeot | 3008 | Immobilizer | 1.Program keys |
| Peugeot | 3008 | Smart key | 1.All smart keys lost |
| Peugeot | 301 | Immobilizer | 1.Program keys |
| Peugeot | 306 | Immobilizer | 1.Add a key
2.Erase keys 3.Reset Immobilizer |
| Peugeot | 307 VAN | Immobilizer | 1.Program keys |
| Peugeot | 307 CAN | Immobilizer | 1.Program keys |
| Peugeot | 308 | Immobilizer | 1.Program keys |
| Peugeot | 308S | Immobilizer | 1.Program keys |
| Peugeot | 406(VF37) | Immobilizer | 1.Add a key
2.Erase keys 3.Reset Immobilizer |
| Peugeot | 406(VF38) | Immobilizer | 1.Program keys |
| Peugeot | 407 | Immobilizer | 1.Program keys |
| Peugeot | 4007(Petrol) | Non smart key | 1.Live data 2.Program Immobilizer keys 3.Program remote keys |
| Peugeot | 4007(Petrol) | Smart key | 1.All smart keys lost |
| Peugeot | 4007(Diesel) | Non smart key | 1.Live data 2.Program Immobilizer keys 3.Program remote keys |
| Peugeot | 408(T73) | Immobilizer | 1.Program keys |
| Peugeot | 408(T93) | Immobilizer | 1.Program keys |
| Peugeot | 4008 | Non smart key | 1.Program keys |
| Peugeot | 4008 | Smart key | 1.All smart keys lost |
| Peugeot | 4008(china) | Non smart key | 1.Program keys |
| Peugeot | 4008(china) | Smart key | 1.All smart keys lost |
| Peugeot | 508 | Non smart key | 1.Program keys |
| Peugeot | 508 | Smart key | 1.All smart keys lost |
| Peugeot | 5008 | Immobilizer | 1.Program keys |
| Peugeot | 5008 | Smart key | 1.All smart keys lost |
| Peugeot | 607 VAN | Immobilizer | 1.Program keys |
| Peugeot | 607 CAN | Immobilizer | 1.Program keys |
| Peugeot | 806 | Immobilizer | 1.Program keys
2.Program decoder 3.Program engine ECU |
| Peugeot | 807 VAN | Immobilizer | 1.Program keys |
| Peugeot | 807 CAN | Immobilizer | 1.Program keys |
| Peugeot | Expert(-2007) | Immobilizer | 1.Program keys
2.Program decoder 3.Program engine ECU |
| Peugeot | Expert(2007-) | Immobilizer | 1.Program keys |
| Peugeot | Partner | Immobilizer | 1.Program keys
2.Program decoder 3.Program engine ECU |
| Peugeot | Partner VAN | Immobilizer | 1.Program keys |
| Peugeot | Partner CAN | Immobilizer | 1.Program keys |
| Peugeot | Ranch | Immobilizer | 1.Program keys
2.Program decoder 3.Program engine ECU |
| Peugeot | Rcz | Immobilizer | 1.Program keys |
| Peugeot | Read Security code | 1.read security code | |
| Peugeot | Replace engine ECU | 1.Replace engine ECU | |
