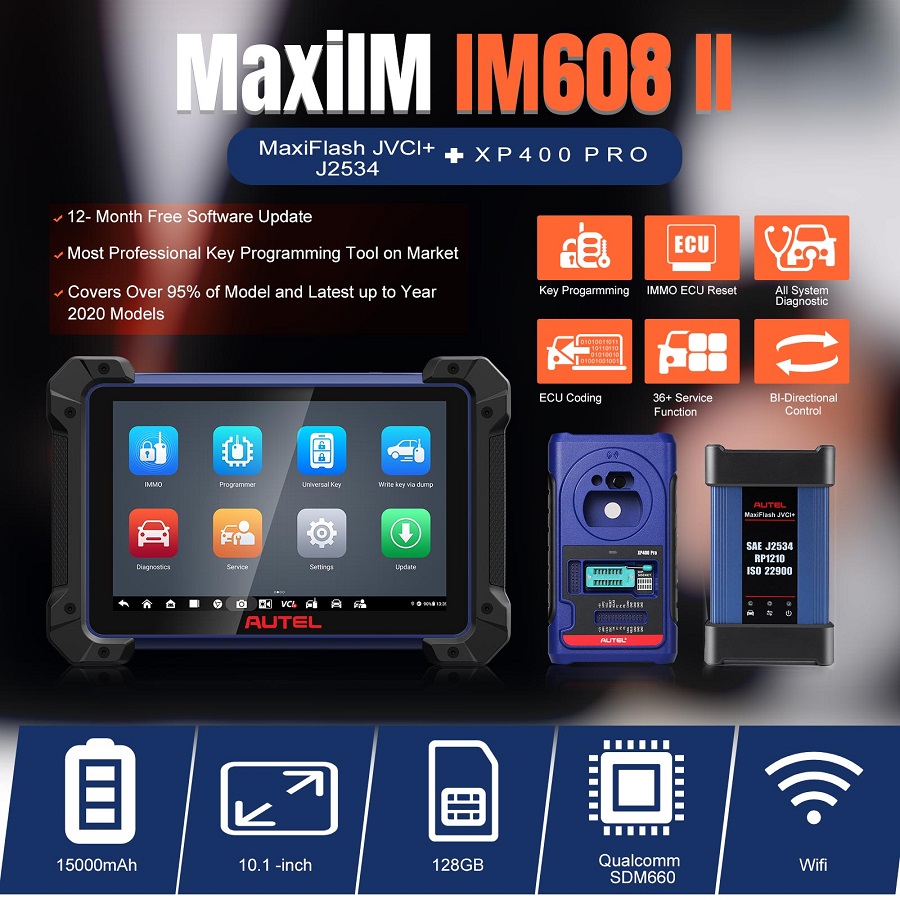

IM608 Pro II (IM608 II). It is the updated version of Autel IM608 and IM608 Pro. The firmware has been improved, comes with larger RAM & ROM and new JVCI+ VCI. It also adds built-in DoIP and CAN FD protocol (no converter required), and supports read/write CAN protocol without password and remote expert function.
IM608 II VS IM608 VS IM508 VS KM100
| Product | IM608Pro Ⅱ/IM608S Ⅱ/IM608 Ⅱ | IM608PRO/IM600/IM608 | IM508S | IM508 | OtoFix IM1 | KM100 |
| Hardware | 1.Tablet, Programmer, VCI | 1.Tablet, Programmer, VCI | 1.Tablet, Programmer, VCI | 1.Tablet, Programmer, VCI | 1.Tablet, Programmer, VCI | 1.vertical screen |
| 2.VCI Bluetooth connection | 2.VCI Bluetooth connection | 2.VCI cable connection | 2.VCI cable connection | 2.VCI Bluetooth connection | 2.VCI Bluetooth connection | |
| / | / | / | / | / | 3. Unable to connect Programmer | |
| Usability | 1.Support Auto VIN | 1.Support Auto VIN | 1.Support Auto VIN | 1.Support Auto VIN | 1.Support Auto VIN | 1.Support Auto VIN |
| 2.Support Guided function | 2.Support Guided function | 2.Support Guided function | 2.Support Guided function | 2.Support Guided function | 2.Support Guided function | |
| 3. Support Immo scan | 3. Support Immo scan | 3. Support Immo scan | 3. Support Immo scan | 3. Support Immo scan | 3. Support Immo scan | |
| Immobilizer software | comprehensive immo software | comprehensive immo software | comprehensive immo software | comprehensive immo software | 1. comprehensive immo software | Most immo key programming function |
| 2. some advanced feature need to pay | except remove and replace anti-theft parts | |||||
| Diagnostic software | 1. Medium diagnostic function | 1. Medium diagnostic function | Basic diagnostic function | Basic diagnostic function | Basic diagnostic function | No |
| 2. BMW Benz immobilizer system programming | 2. BMW Benz immobilizer system programming | |||||
| Remote Expert | Yes (coming soon) | No | No | No | Yes | No |
| Processor | Qualcomm SDM660 Octa-core Processor： | Samsung Exynos T5260 6-Core Processor: | Rockchip RK3566 Quad core Processor： | Rockchip RK3188 Quad core Processor： | Rockchip PX30 Quad-core Processor： | PX30 4x ARM Cortex-A35 |
| 4x 2.2 GHz(A73) | 4x 1.3 GHz(A7) | 4x 1.8GHz(A55) | 4x 1.6GHz(A9) | 4x 1.5GHz(A35) | 1.5GHz 64bits | |
| 4x 1.8 GHz(A53) | 2x 1.7 GHz(A15) | |||||
| Operating system | Android 10.0 | Android™ 4.4.2, KitKat | Android 11 | Android 4.4.4 | Android 9 | Android 9.0 |
| RAM | 4 GB | 2 GB | 4 GB | 1 GB | 2 GB | 2G RAM |
| ROM | 128 GB | 64 GB | 64 GB | 32 GB（2021+ 64GB） | 64 GB | 64G Flash |
| Display/Resolution | 10.1 inches | 10.1 inches | 7 inches | 7 inches | 7 inches | 5.5′ |
| Resolution | 1920*1200 | 1920*1200 | 1024*600 | 1024*600 | 800*1200 | 1280×700 |
| Wi-Fi | Wi-Fi (802.11 a/b/g/n/ac) | Wi-Fi (802.11 a/b/g/n/ac) | Wi-Fi（802.11a/b/g/n/ac） | Wi-Fi (802.11 b/g/n) | Wi-Fi (802.11 b/g/n) | Yes |
| BT | BT V5.0 + BR/EDR | BT V2.1 + EDR | No | No | BT V5.0 + EDR | Yes |
| USB | USB 2.0：(2 USB HOST Type A, 1 USB mini device) | USB 2.0：(2 USB HOST Type A, 1 USB mini device) | USB 2.0：(1 USB HOST Type A, 1 USB mini device) | USB 2.0：(1 USB HOST Type A, 1 USB mini device) | USB 2.0：(1 USB HOST Type C, 1 USB OTG Tyep C) | / |
| HDMI | HDMI 2.0 | HDMI 1.4a | No | No | No | / |
| SD Card | SD Card (Support up to 64GB) | SD Card (Support up to 32GB) | SD Card (Support up to 64GB) | SD Card (Support up to 32GB) | SD Card(Support up to 64GB) | / |
| DB16 DLC | No | No | DB16 DLC | No | No | / |
| Headphone plug | Yes | Yes | No | No | No | / |
| microphone | 1MIC | 1MIC | No | No | Yes | / |
| Speaker | 2 | 2 | No | No | 1 | / |
| GPS | Yes | No | No | No | No | / |
| Light-sensitive | Yes | Yes | No | No | Yes | / |
| Button | 1 power button | 1 power button | 1 power button | 1 power button | 1 power button | / |
| Battery | 3.8V 15000 mAh | 3.8V 15000 mAh | 3.7V 5000 mAh | 3.7V 5000 mAh | 5800mAh | 4950mAh |
| Camera | Rear: 16 Megapixel, AF with Flashlight | Rear: 8.0 Megapixel, AF with Flashlight | No | No | Rear: 800W | / |
| VCI or Not | JVCI+ | JVCI | standalone | standalone | V1 | |
| Programmer | XP400PRO | XP400PRO | XP200 | XP200 | XP1 | V200 |
| VCI Connection | BT/USB | BT/USB | standalone | standalone | BT/USB | BT |
| Weight | 1.58 kg | 1.48 kg | 0.78 kg | 0.78 kg | 0.46 g | / |
| Product/function | IM608Pro Ⅱ/IM608S Ⅱ/IM608 Ⅱ | IM608PRO/IM600/IM608 | IM508S | IM508 | OtoFix IM1 | KM100 | |
| Programmer function (with XP401 Pro/XP400 Pro) | EEPROM read and write | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | No |
| Disadvantage: The board has no IO port pin detection function | Disadvantage: The board has no IO port pin detection function | Disadvantage: The board has no IO port pin detection function | / | / | |||
| MCU read and write | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | / | / | No | |
| Less mcu coverage | Less mcu coverage | ||||||
| Engine computer read and write | More coverage than competitors. | More coverage than competitors. | More coverage than competitors. | No | No | ||
| Support CAN TC1762TC1766 TC1793TC1797 R/W without pass | Disadvantage: small coverage of CAN protocol read and write | Support CAN TC1762TC1766TC1793TC1797 R/W without pass | Less ECU coverage | ||||
| Immobilizer module read and write | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | / | / | No | |
| Disadvantages: No solder-free board, no IO port pin detection function | Disadvantages: No solder-free board, no IO port pin detection function | Disadvantages: No solder-free board, no IO port pin detection function | Less IMMO coverage | Less IMMO coverage | |||
| Odometer/airbag module read and write | Advantage: More coverage than competitors | Advantage: More coverage than competitors | Advantage: More coverage than competitors | / | No | No | |
| / | Less coverage | ||||||
| key identification generation | Advantage: There are more types of key identification; | Advantage: There are more types of key identification; | Advantage: There are more types of key identification; | / | / | Yes | |
| Disadvantages: Some key identification information is not comprehensive enough; | Disadvantages: Some key identification information is not comprehensive enough; | Disadvantages: Some key identification information is not comprehensive enough; | Less coverage | Less coverage | |||
| Write key via dump | Yes | Yes | Yes | / | No | No | |
| Less coverage | |||||||
| Renew/Unlock remote | Yes | Yes | Yes | Need XP400 Pro | Need XP1 Pro | Yes | |
| Frequency detection | Yes | Yes | Yes | Need XP400 Pro | Need XP1 Pro | Yes | |
| key tool function | Generate universal key | Yes | Yes, need XP200/XP201/XP400/ | Yes | Yes | Yes | Yes |
| Need XP200/XP201/XP400/XP401/XP400PRO/XP401PRO | / | ||||||
| / | / | ||||||
| XP401/XP400PRO/XP401PRO | |||||||
| APB112 chip simulation | / | Need APB112 | / | Need APB112 | Need APB112 | Yes | |
| Ignition coil detection | / | Need APB112 | / | No | No | Yes | |
| Diagnostic function | Auto VIN | Yes | Yes | Yes | Yes | Yes | NO |
| Read/clear DTCs | Yes | Yes | Yes | Yes | Yes | ||
| Read datastaream | Yes | Yes | Yes | Yes | Yes | ||
| read freeze frame | Yes | Yes | Yes | Yes | Yes | ||
| Read ECU information | Yes | Yes | Yes | Yes | Yes | ||
| Active Test | Yes | Yes | No（coming soon） | Yes | No | ||
| Service function | Yes (36) | Yes (36) | Yes (36) | Yes (36) | Yes (36) | ||
| Special functions | All system | All system | No (coming soon) | All system | No | ||
| Online coding | Yes, does support Benz, Audi (only CN&HK), Skoda (only CN&HK) | Yes, does not support Benz, Audi(only CN&HK), Skoda (CN&HK) | No | No | No | ||
| Offline coding | Yes | Yes | No | No | No | ||
| Hidden function flashing | Yes, except Mercedes | Yes, except Mercedes | No | No | No | ||
| Guided function | Yes, except BMW, Benz, Land rover | Yes, except BMW, Benz, Land rover | No | No | No | ||
| Online programming | Yes, part of BMW and Benz (not all function) | Yes, IM608Pro will do part of BMW and Benz online programming (No all) | No | No | No | ||
| Cloud service | report management | report management | report management | report management | report management | ||
| Remote expert C side(Only CN) | |||||||
| Other functions | SCAN VIN | Remote Desk | Remote Desk | Remote Desk | SCAN VIN | ||
| SCAN License | D-PDU | CANFD (Need converter) | CANFD (Need converter) | SCAN License | |||
| Remote Desk | RP1210 | / | / | Remote Desk | |||
| D-PDU | DoIP（Need converter） | / | / | DoIP | |||
| RP1210 | CANFD（Need converter） | / | / | CANFD | |||
| DoIP | / | / | / | / | |||
| CANFD | / | / | / | / | |||
| Remote Expert | Usability | since July 2022 | / | / | / | the version is too low. Most of the functions have not been upgraded | / |
| Advantage: | |||||||
| Immo and Diagnostic 2-in-1 in the same tablet, easy to use. Auto obtain and decode VIN | |||||||
| Order status and step prompts are clear. Synchronization of orders and connection steps; | |||||||
| Operational capability support: including activities, coupons, merchant order flow control, etc. | |||||||
| Disadvantage: | |||||||
| The expert side needs to be upgraded through PC Suit | |||||||
| Car brands | Advantage: | / | / | / | Supports few car series, only supports Mercedes-Benz, BMW, Chrysler, GM cars, BMW does not support DoIP protocol | / | |
| Supports 140+ brands, except Tesla | |||||||
| Decode VIN, Auto VIN, smart identify vehicle info. | |||||||
| Intelligent identify protocol type (CAN, CANFD, DoIP), automatic identify DoIP communication. | |||||||
| Latency and Stability | Better latency | / | / | / | Only supports transfer server mode | / | |
| B/C mode: transfer server+ P2P direct connection | |||||||
| Extension | endoscope | Yes (optional) | Yes (optional) | Yes (optional MV105/108) | Yes (optional MV105/108) | NO | / |
