Launch X431 PRO 3 user guide video: Throttle Adaptation on Mercedes W212 the 2014 year
Here, Following is the images of Launch X431 PRO 3 working test
Check connection
Run Launch X431 PRO 3 application

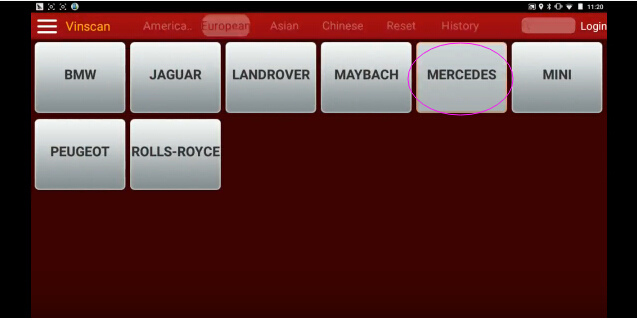

Select Europe, then Mercedes

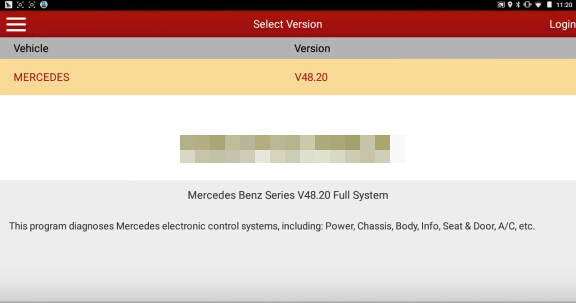

Launch X431 PRO3 has Mercedes 48.20 software
This program diagnoses Mercedes electronic control systems, including power, chassis, body, info, seat & door,A/C, etc.

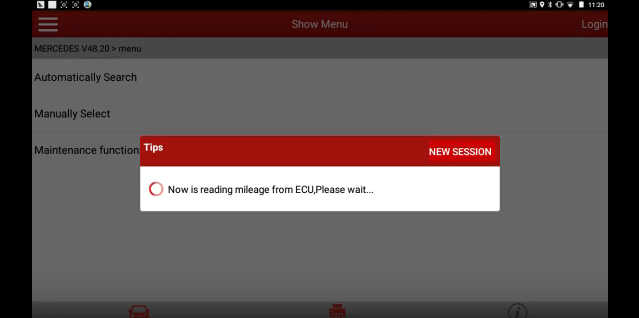

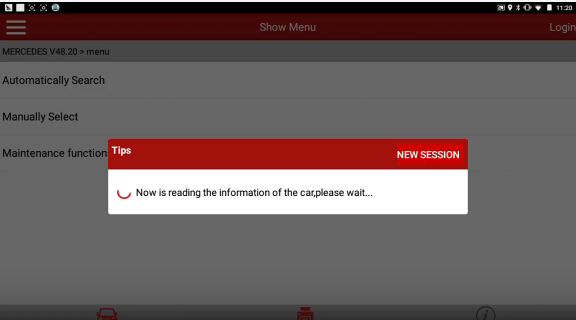

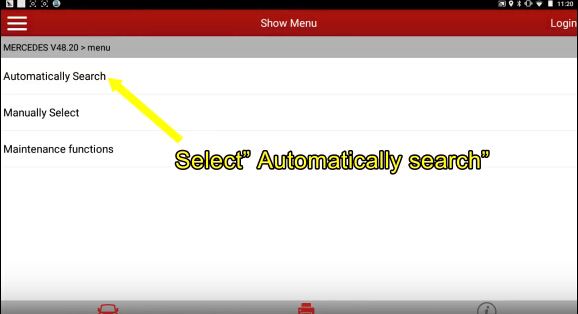

Select Automatically search

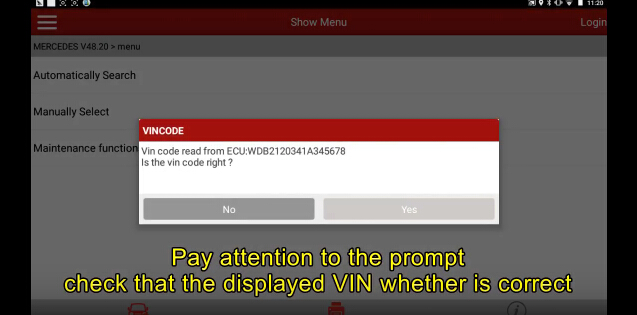

Check VIN

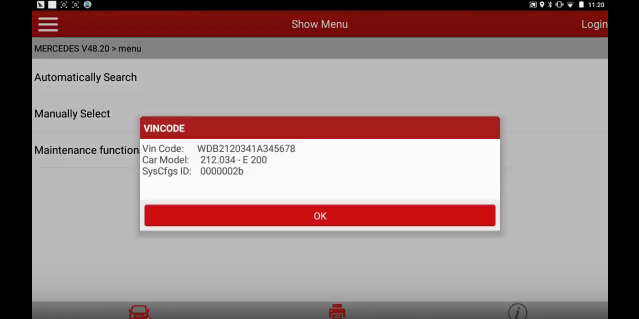

Read VIN code

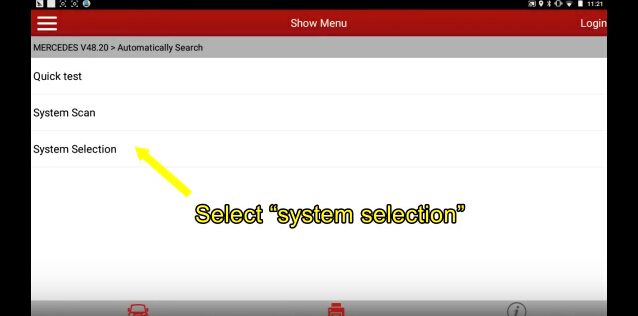

Select System selection

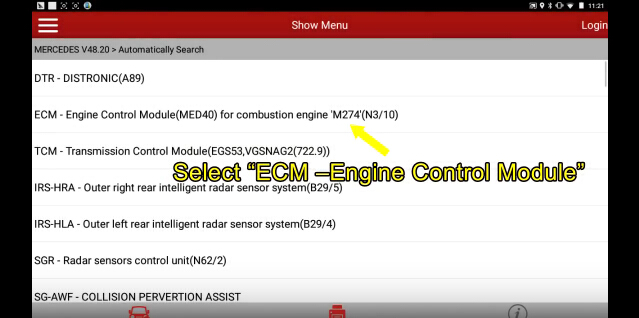

ECM- Engine control module (MED40) for combustion engine M274 (N3/10)

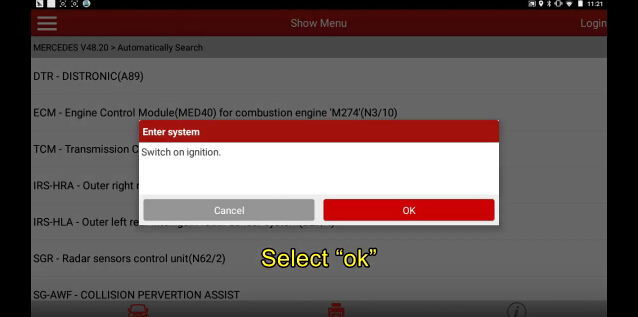

Switch on ignition

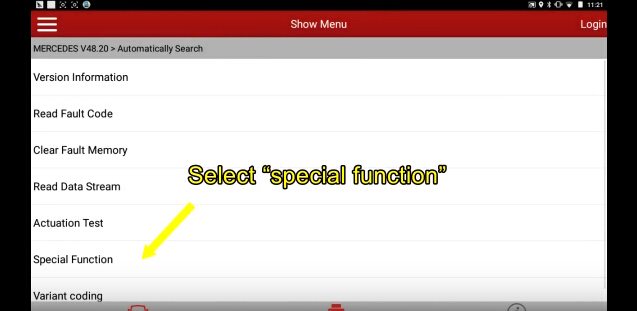

Select Special function

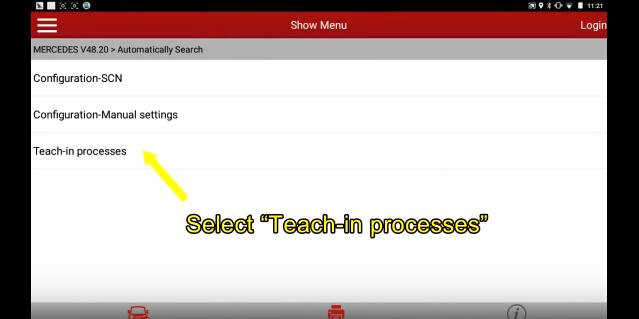

Tech-in processes

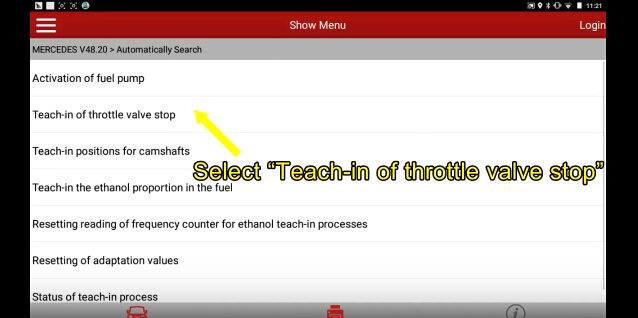

Tech-in of throttle value stop

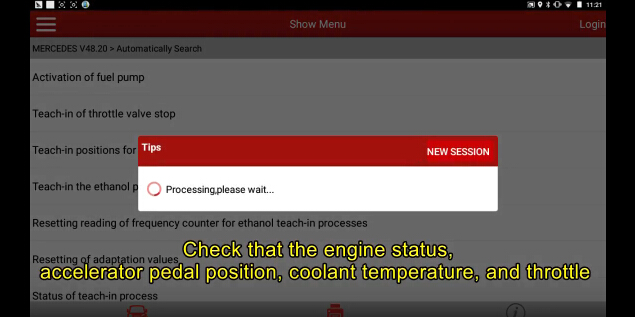

Check the engine status, accelerate pedal position, coolant temperature, and throttle

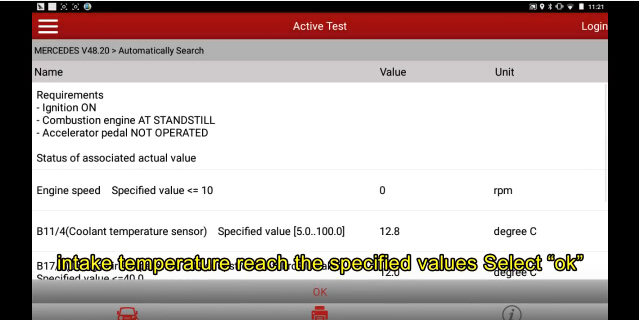

Intake temperature reach the specified values

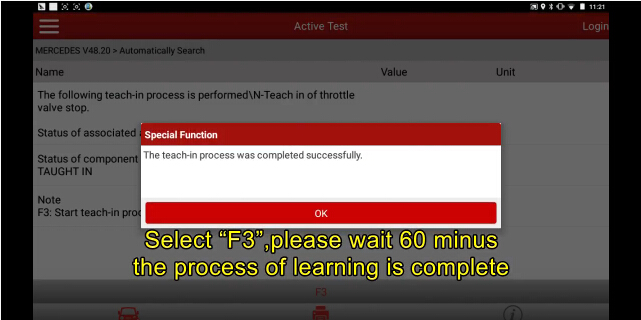

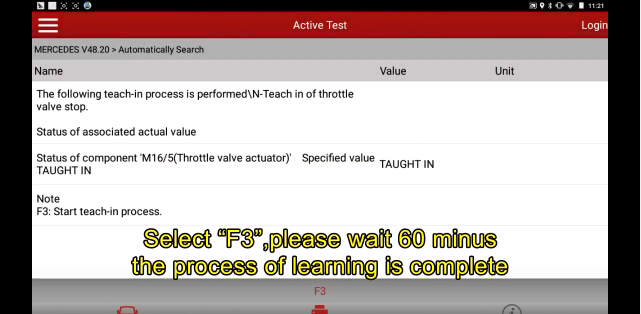

Select F3, start tech-in process
Wait for 60 minutes, then the learning process is complete
The tech-in process was completed successfully
Job’s done!
