This article is aim to read Pin Code for 2019 Cadillac XT using OBDSTAR X300 DP PLUS.
Car: 2019 Cadillac XT
Model: BOSCH RH850+24C32 BCM
Device: OBDSTAR Key Master DP Plus
Procedures:

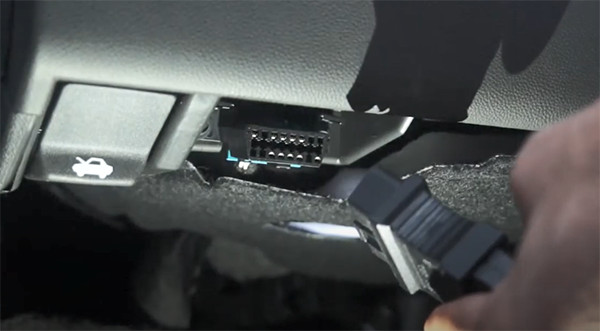

Connect X300 DP Plus to the vehicle OBDII port

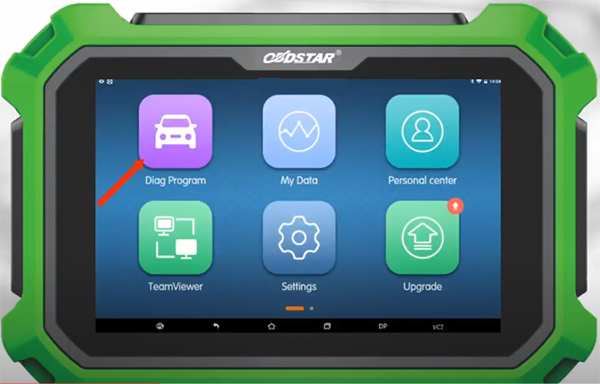

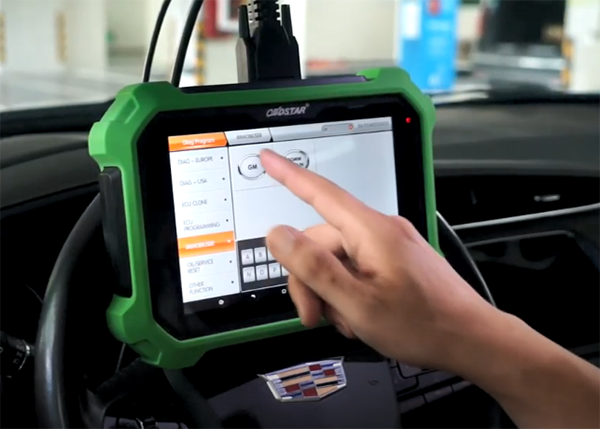

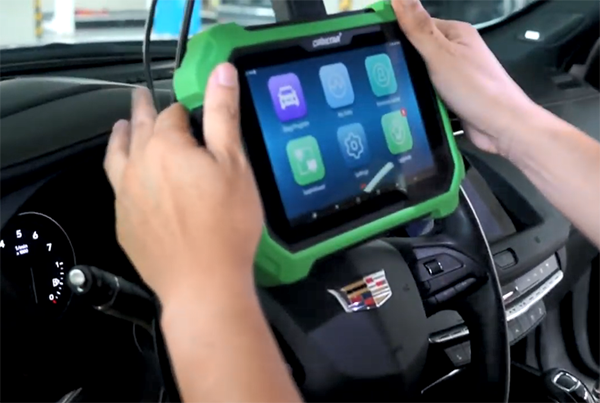

Select Diag Program-> IMMOBILISER->GM->GM V32.11
Upgrading VCI…
Initializing diagnostic data…
Authorizing…

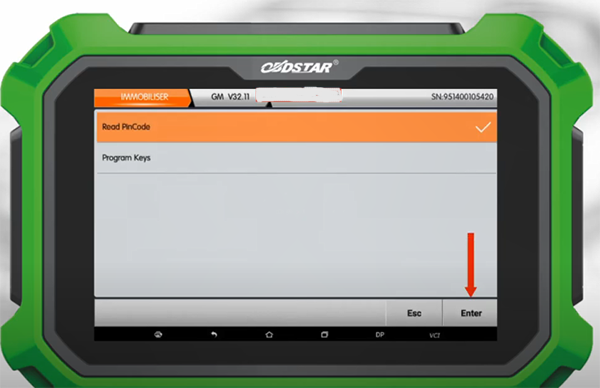

Choose Read PinCode and press [Enter] button

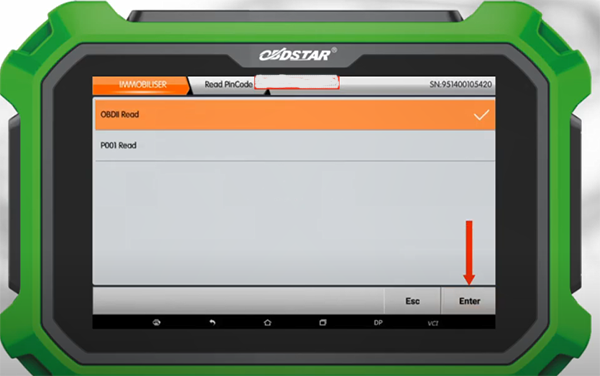

Select the OBDII Read and press [Enter] button

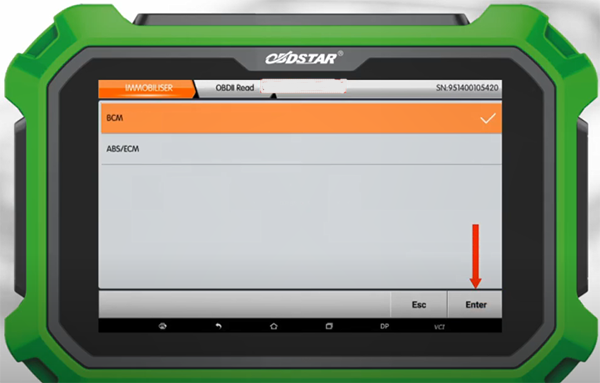

Choose BCM and press [Enter] button

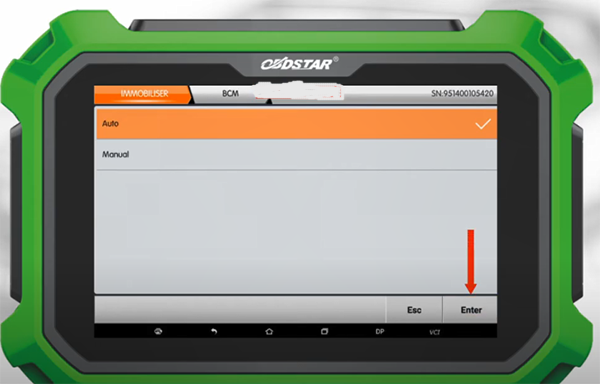

Select Auto and press [Enter] button
This function is available by connecting the server. Ensure the internet connection is normal.
Read out the type is BOSCH RH850+24C32

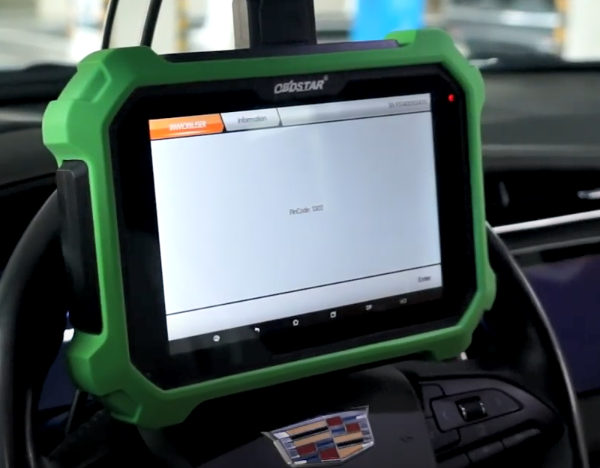

Finally, read out the PinCode successfully
