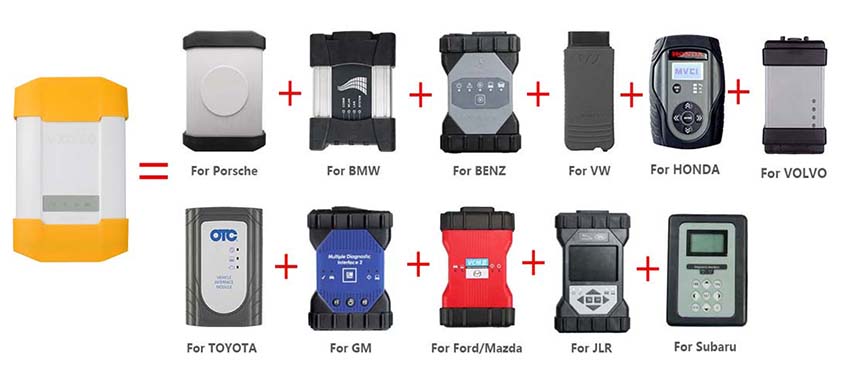

The hard drive comes with MB STAR C6 DoIP,BMW ICOM, GM Tech2Win and GM GDS2 ,Ford IDS,Mazda IDS,Toyota TIS, Honda HDS,VW ODIS,JLR SDD and Pathfinder（option),Subaru SSM3,Volvo VIDA,Porsche Piwis2 Original Software.
Software version:
1.Toyota TIS V18.00.008
For Toyota,support year 2000-2023
2.Honda HDS HDS V3.105.12
For Honda,support year 2005-2023
3.FORD/ MAZDA IDS V129
Ford,support year 2005-2023
(some F series models which car year is before 2010 cannot work for Ford IDS and some model need to work with FDRS
please contact seller if you are not sure the device can work for your model or not.thanks)
For Mazda support year 2005-2023
4.GM MDI2 V2023.05
For GM,support year 2000-2023
5.For VOLVO Vida V2014D
6.JLR SDD and Pathfinder V161 and V374
JLR SDD,support year 2007-2017
JLRPathfinder,support year 2016-2023
7.VW ODIS V11
For VW AUDI,support year 2001-2023
8.Benz Star C6 V2023.06
For Mercedes Benz,support year 2005-2023
9.BMW ICOM V2024.03 ISTA-D V4.46.14, Programming: ISTA-P V3.71.0.200
For BMW,support year 2004-2023
10.PORSCHE PIWIS 2 V18.1000
For Porsche 2,support year 2005-2017
11.SUBARU SSMIII V2022.01, SSM3 V1.57.71.8, SSM4 V22.60
For Subaru,support year 2005-2022
All original software will be installed
1. If you select the software installed the HDD/SSD , you can insert the it to your laptop then can use it
Configuration requirements and usage of PC
1.1 Computer hardware requirements: CPU i5/i7; memory: 8g.
1.2 Usage: there are 4 options after power on, which can be selected by the up and down keys, and then click enter to confirm.
2. If you select the software installed the laptop , you can use it directly when you get it
Multi in one DoIP OE diagnosis is a real DoIP original diagnosis instrument based on DOP, J2534 and more original protocols adaptation under OEMD brand. It not only supports all J2534 protocols, but also takes the lead in realizing perfect and complete DoIP adaptation in the industry, replacing the original diagnosis instrument’s adaptation ability, programming ability, diagnosis and programming speed, stability and original diagnosis. The ability of the instrument has been greatly improved, taking the lead in the industry to replace C6 in an all-round way, and it is also the first comprehensive original diagnostic instrument in the industry to realize all functions of ICOM A2 and VAS6154. OD6 has really raised the multi in one and comprehensive original diagnosis instrument to a new benchmark height, which has become the only choice for J2534 and DoIP OE diagnosis tool.
Features:
It adapts to the OE diagnosis software, perfectly replaces the OE diagnosis, and realizes the OE diagnosis functions such as control unit identification, reading and deleting fault information, data flow, guided fault query, action test, programming, matching, code setting, brush hiding, changing vehicle configuration, etc.
Advantage characteristics
1.Multi in one comprehensive diagnosis instrument VCI of the original factory, one machine is multi-purpose and cost-effective;
2.Comprehensive and perfect DoIP support, not only support but also more perfect adaptation;
3.Realize the functions and speeds that J2534 and other comprehensive original diagnosis instruments cannot achieve;
4.Solve the problem that non doip or other diagnostic instruments are unable to program audio gateway and instruments;
5.Solve the problem that non doip or other diagnostic instruments cannot test the new and old models;
6.The industry takes the lead in supporting and adapting 18 BMW series software;
7.The industry takes the lead in supporting the programming software of Toyota and Honda;
8.The industry takes the lead in adapting and supporting Mercedes Benz disassembly and assembly tutorials, diagnostic demonstration programs and third-party line query software;
9.It can perfectly replace BENZ STAR C6 and many original diagnostic instruments;
10.Realize all functions of BMW ICOM A2, and realize rapid programming of vehicle control unit;
11.Realize the installation and use of win 10 of Audi ODIS series;
12.Realize all functions of VAS6154;
13.At the same time, it supports SDD and Pathfinder, and can modify the vehicle and program the control unit to read the data quickly;
14.Support all functions of tis software of the main factory, and realize the function of upgrading vehicle power system software that 4S stations at home and abroad can’t do at will;
15.Support all functions of the factory’s HDS software, so as to realize the function that 4S stations at home and abroad cannot upgrade the vehicle power system software at will;
16.Multi protocol is added to ensure comprehensive adaptation ability and programming function;
17.Support model expansion, such as Volvo, Ford Mazda, GM, Porsche, Subaru, etc;
18.The actual measurement of doip programming, no gimmick, with data and facts.
Protocol support：
1.SAE-J2534-1
2.SAE-J2534-2
3.ISO-9141 K-Line
4.ISO-14230 K-Line
5.ISO-15765 K-Line/CAN
6.ISO-11898 DWCAN
7.ISO-11898 DWFTCAN
8.SAE-J1850 VPW（GM Class2）
9.SAE-J1850 PWM（FORD SCP）
10.SAE-J2411 Single Wire CAN（GMLAN）
11.SAE-J2610 SCI（Chrysler）
12.SAE-J2740 GM ALDL
13.SAE-J2809 (HONDA DIAG-H)
14.SAE-J1939 CAN
15.SAE-J1708 On RS 485
16.VAG TP16 CAN
17.VAG TP20 CAN（SAE J2819）
18.VAG KW81（SAE J2818）
19.BMW DS2
20.FORD UBP
21.DOIP
Second Hand Laptop Lenovo T450 Specification:
Brand: Lenovo
Condition: Used
Type:Laptop/Notebook
Screen Size:12.5
Processor Type:Intel (R) Core(TM) I5-5200U CPU
Memory: 8GB
Hard Disk：2000G HDD or 2000G SSD

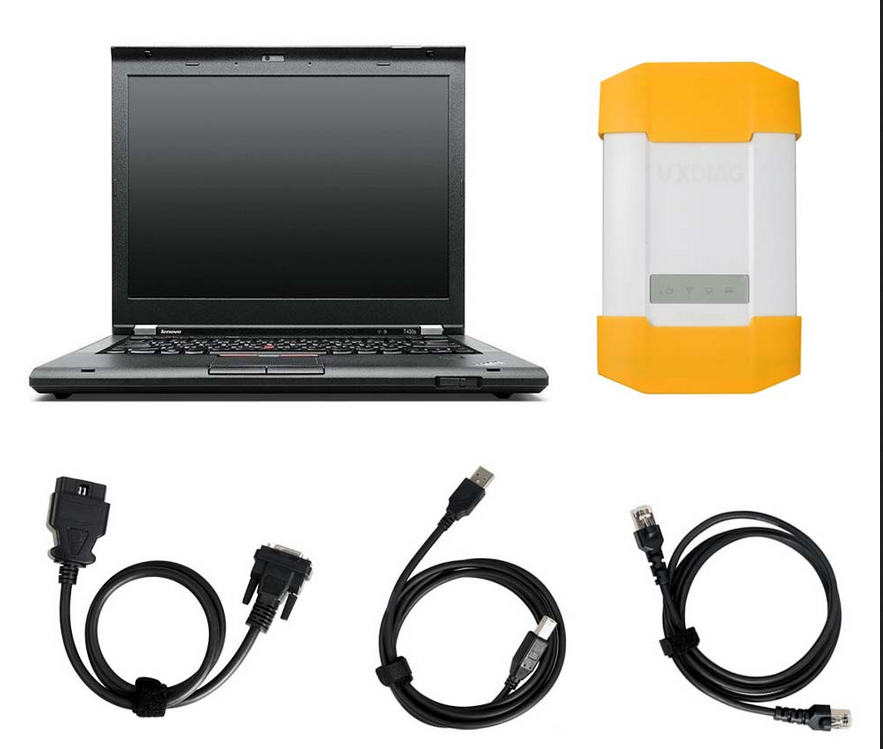

Package List:
1pc x VXDIAG VCX-PLUS Machine
1pc x OBDII Cable
1pc x USB Cable
1pc x 2TB HDD （Optional）
1pc x Second Hand Lenovo T450 Laptop（Optional）
