This article will show you how to read pin with im608 pro and program key!! For beetle volkswagen 2000-2005.

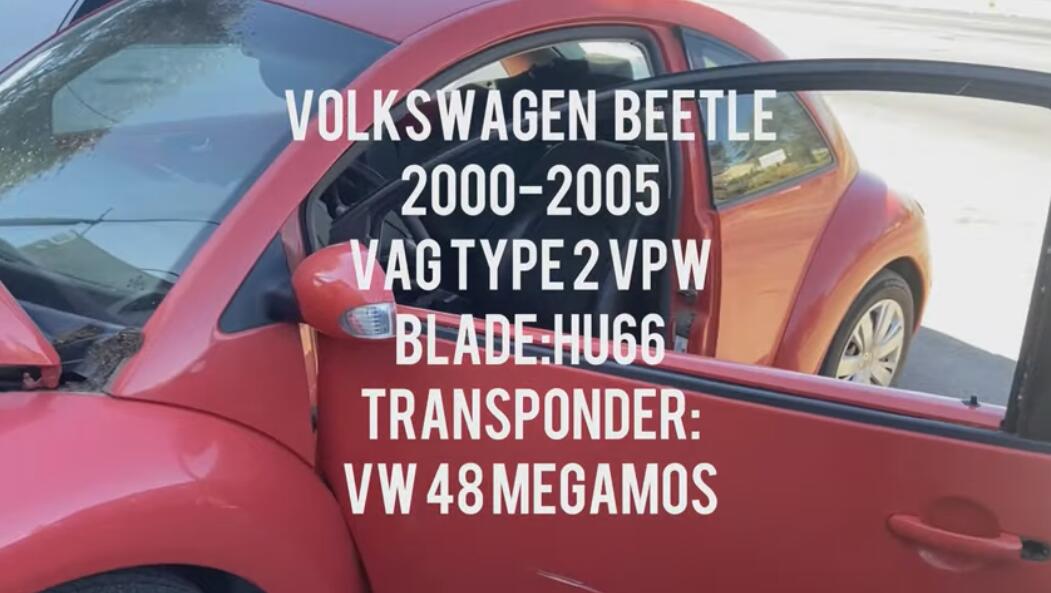

Car model: Volkswagen beetle 2000-2005
Tool: im608 pro
Video：
Process:

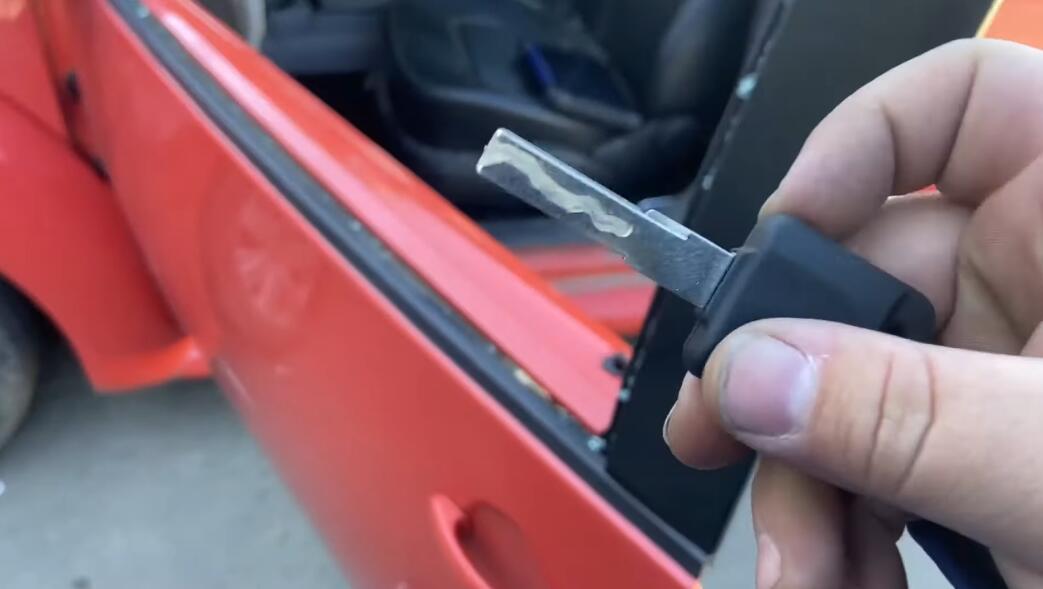

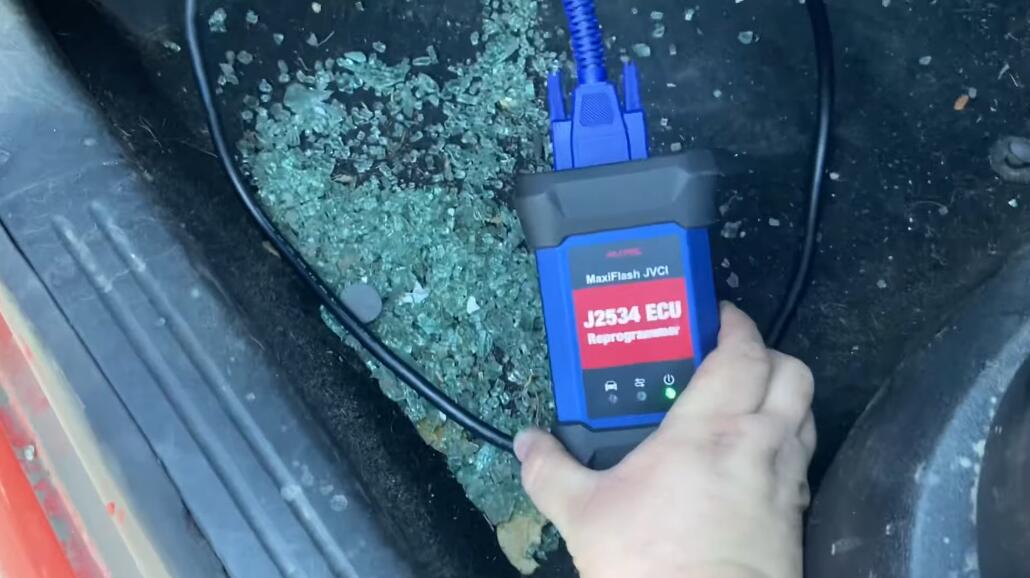

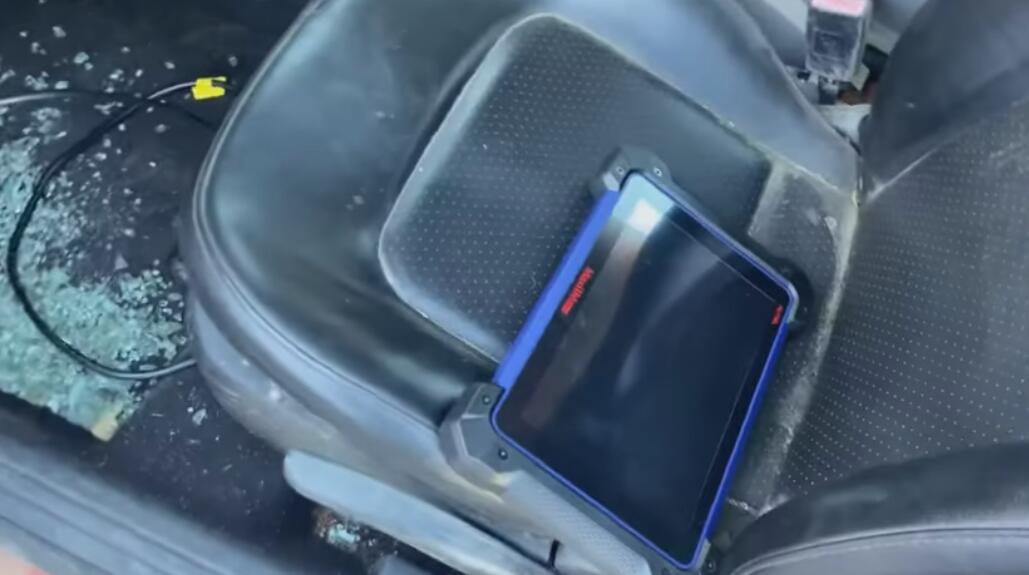

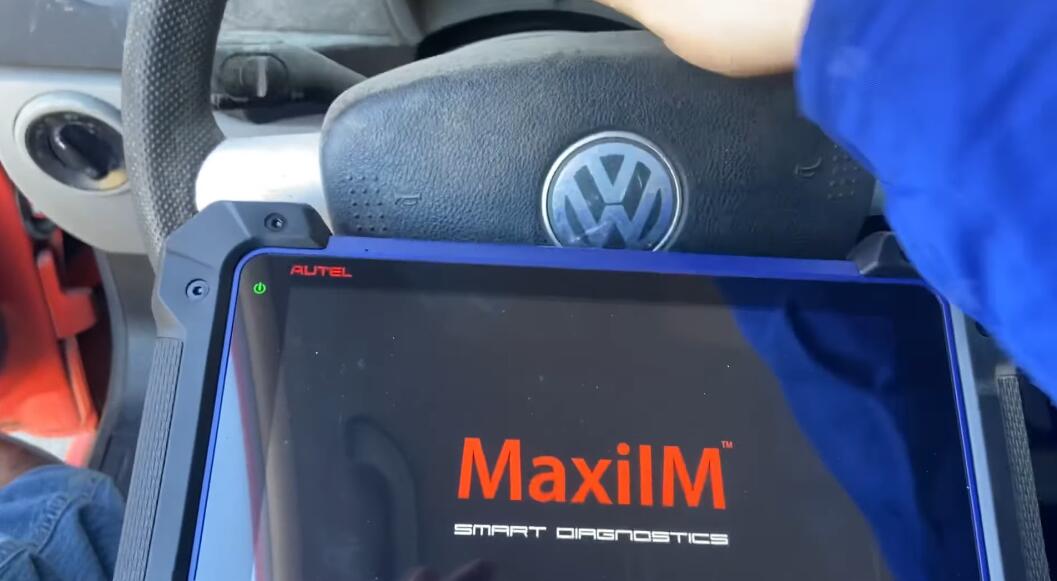

Used the original key to turn on the ignition, meanwhile IM608 boot.

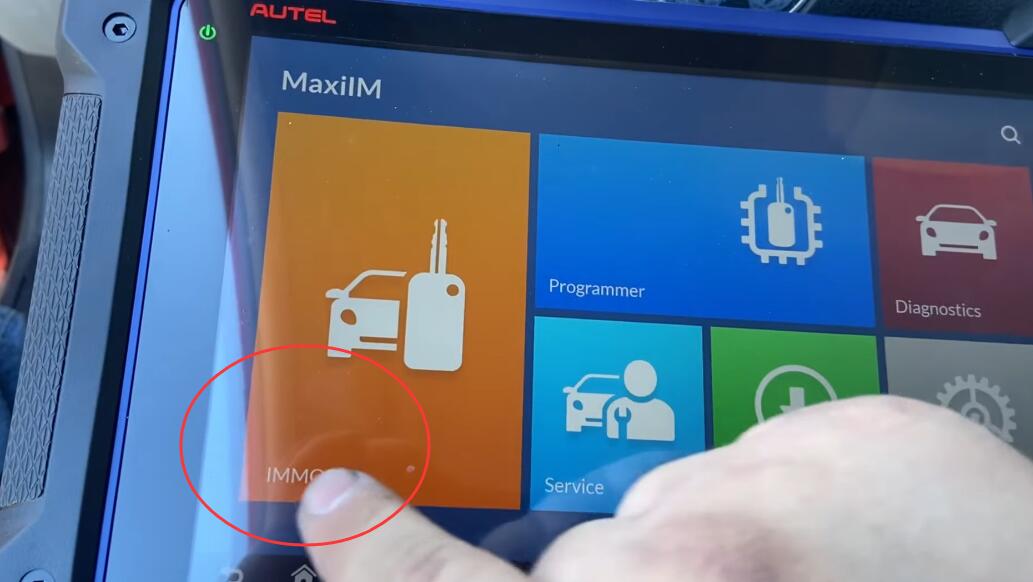

Tap “IMMO”.
Accept the agreement.

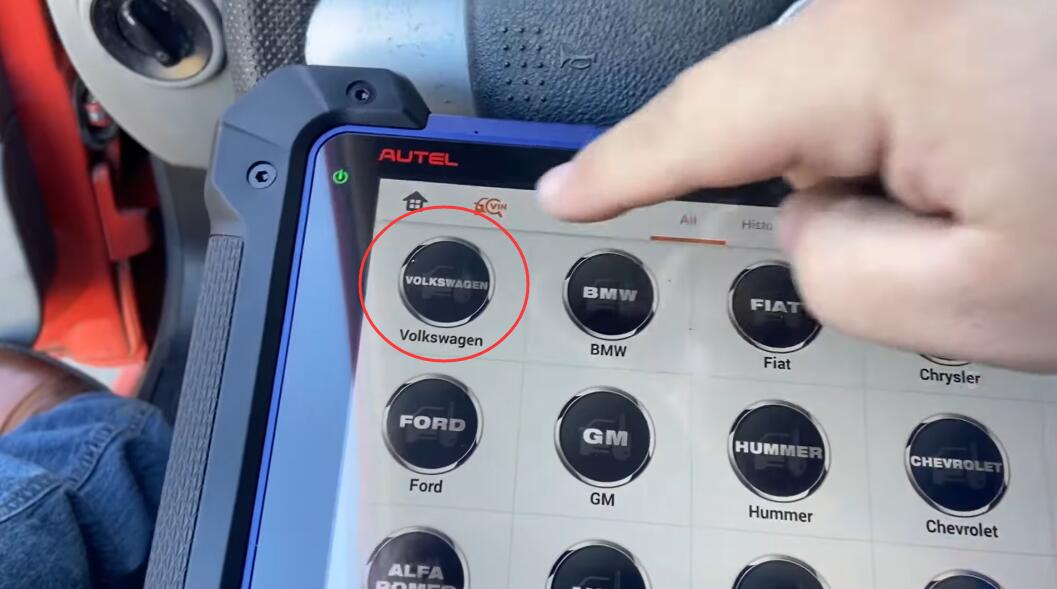

Tap “Volkswagen”.

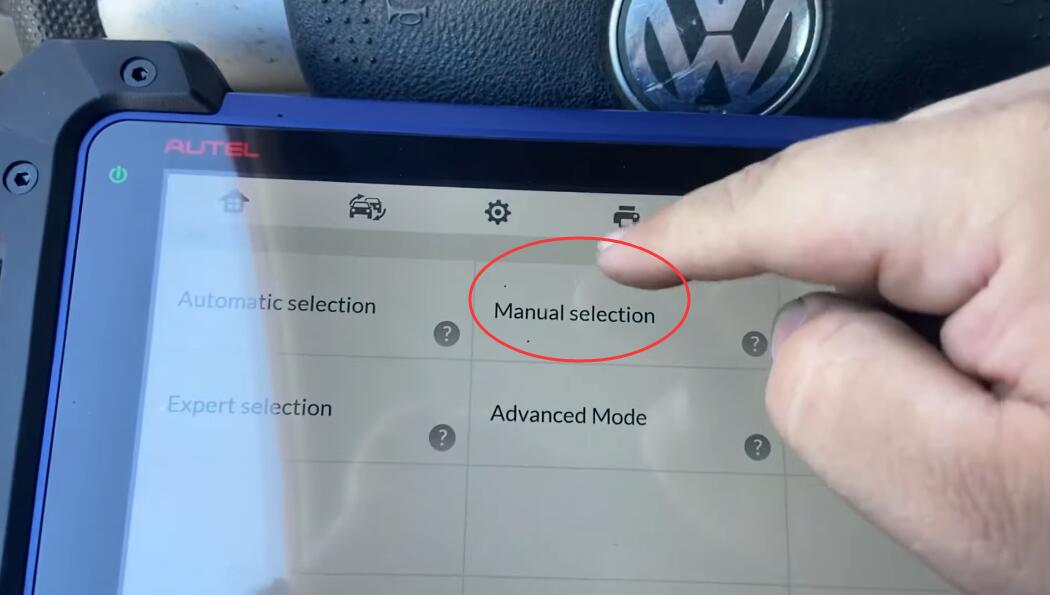

Tap “Manual selection”.

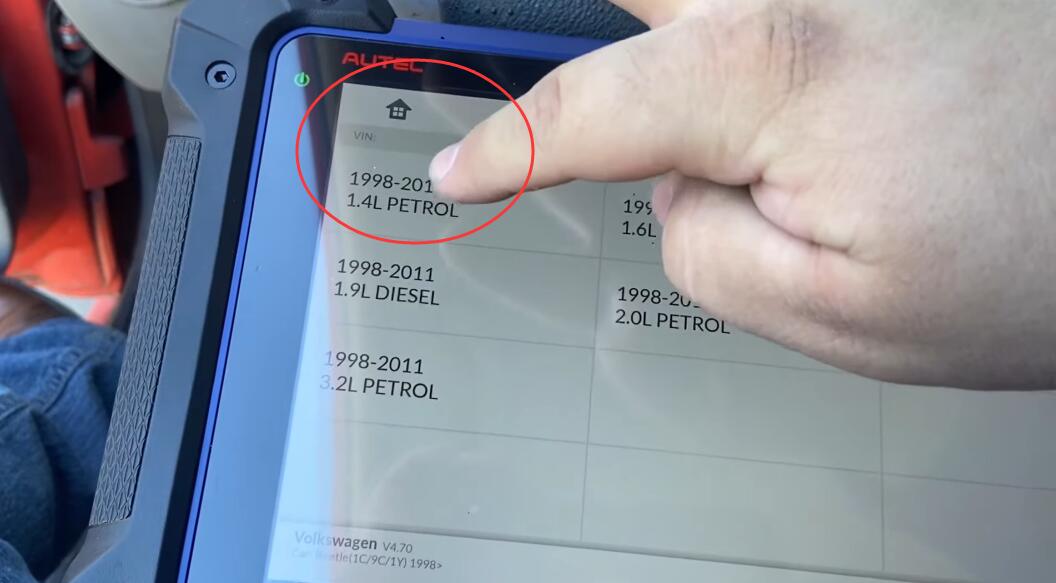

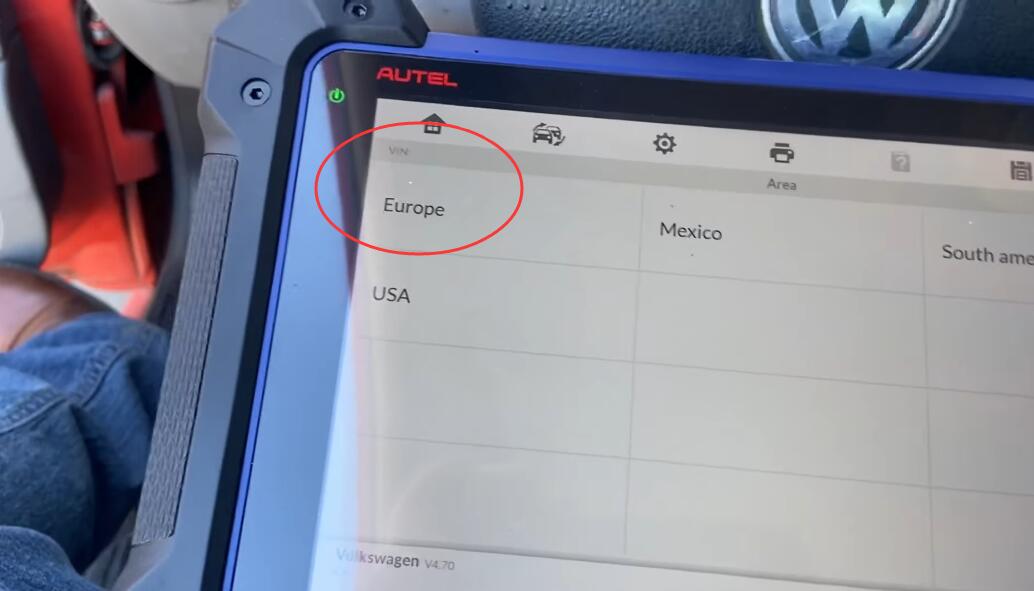

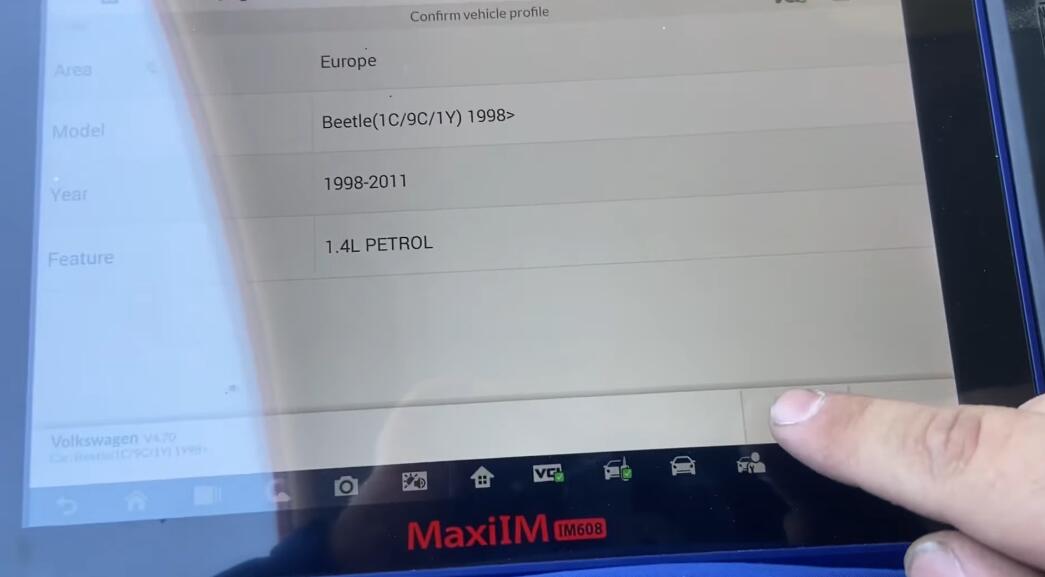

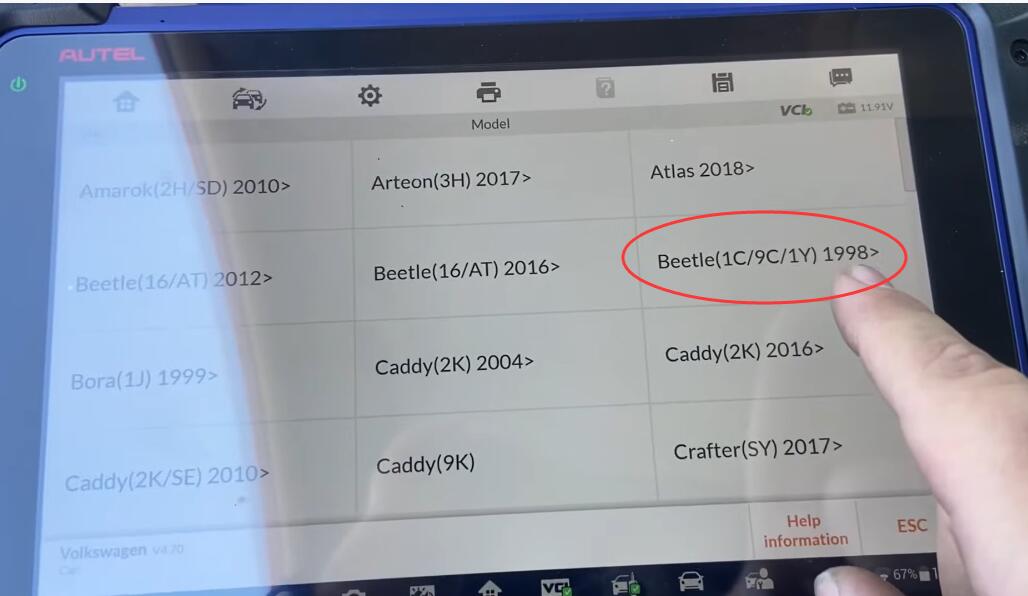

Tap “Europe” -> Beetle (1C/9C/1Y) 1998 -> 1998 -2011 1.4 Petrol -> Confirm vehicle profile.

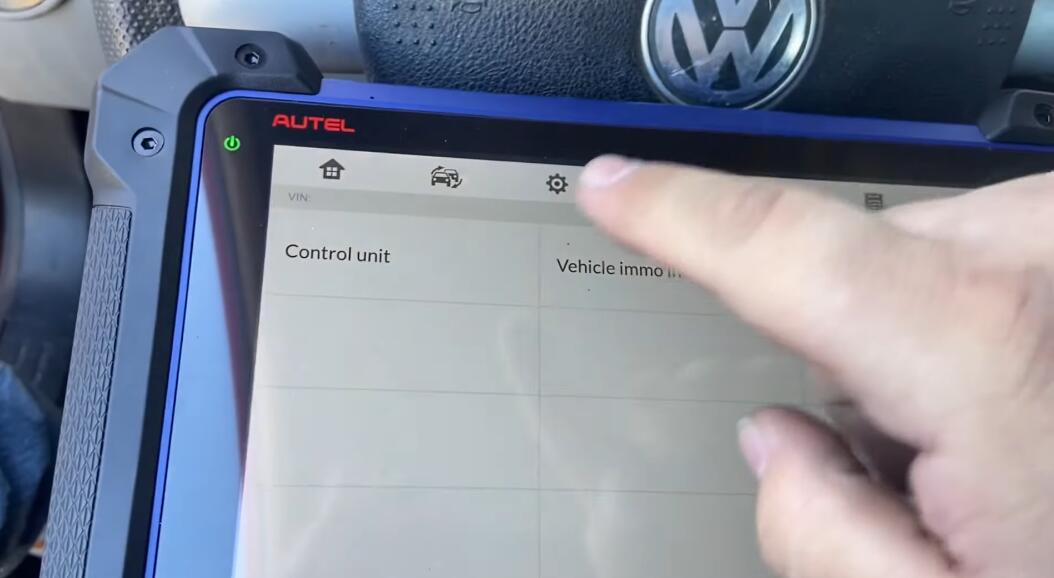

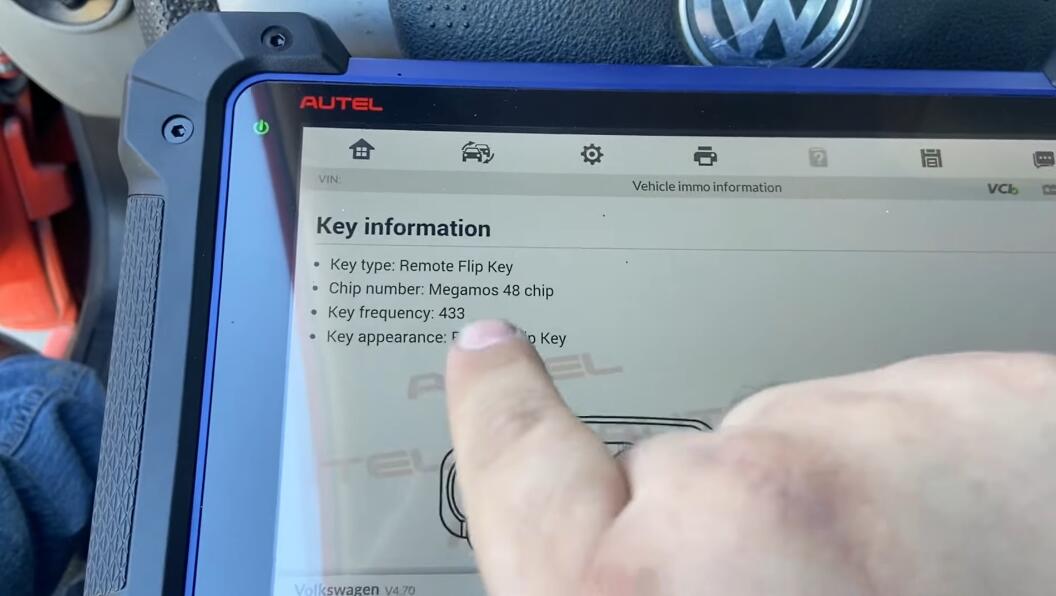

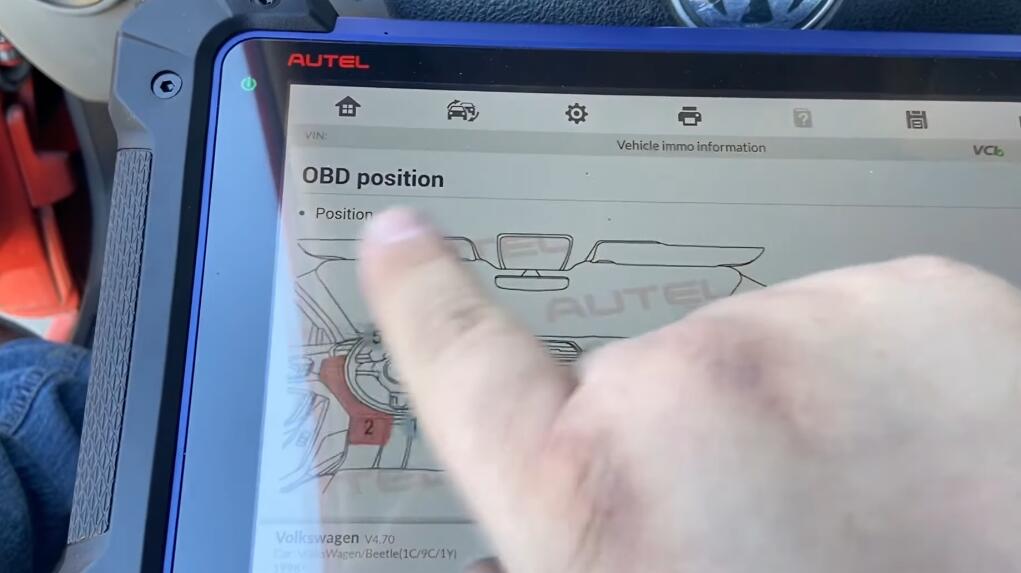

Okay, enter “Vehicle immo information” and have key information including key type, chip number, key frequency, key appearance etc and it’s nice it shows OBD position.

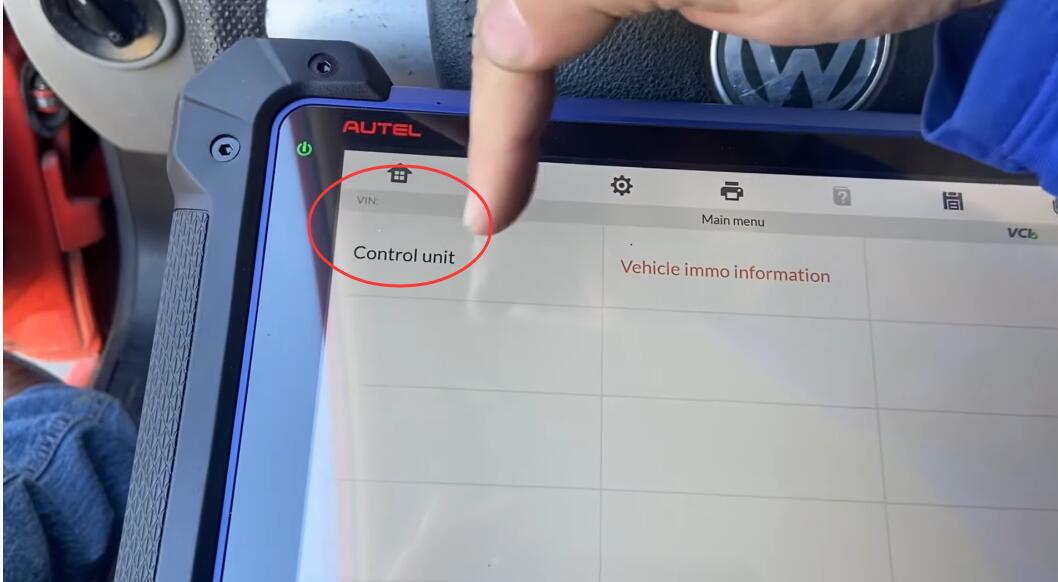

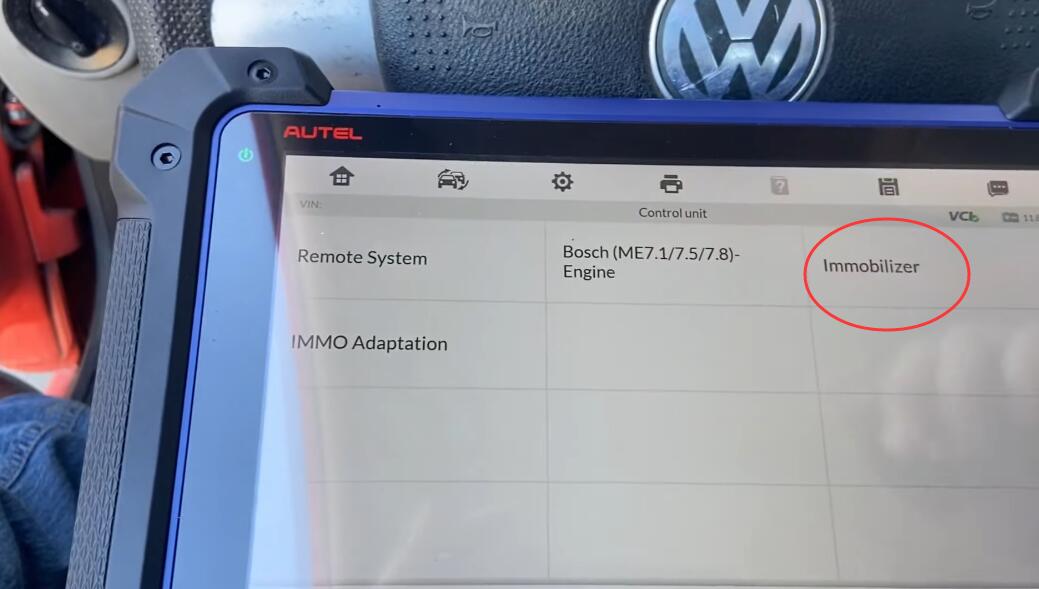

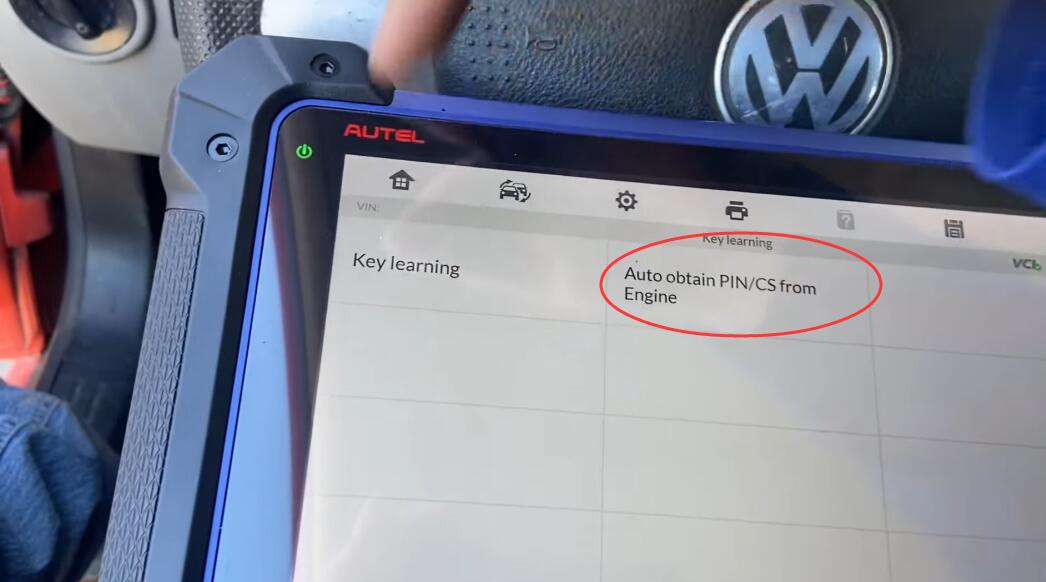

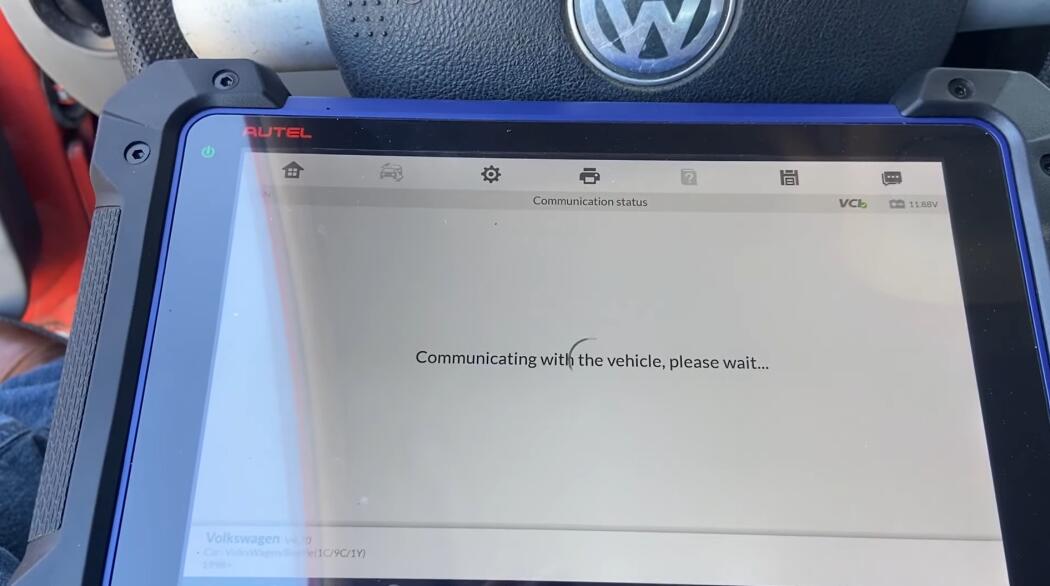

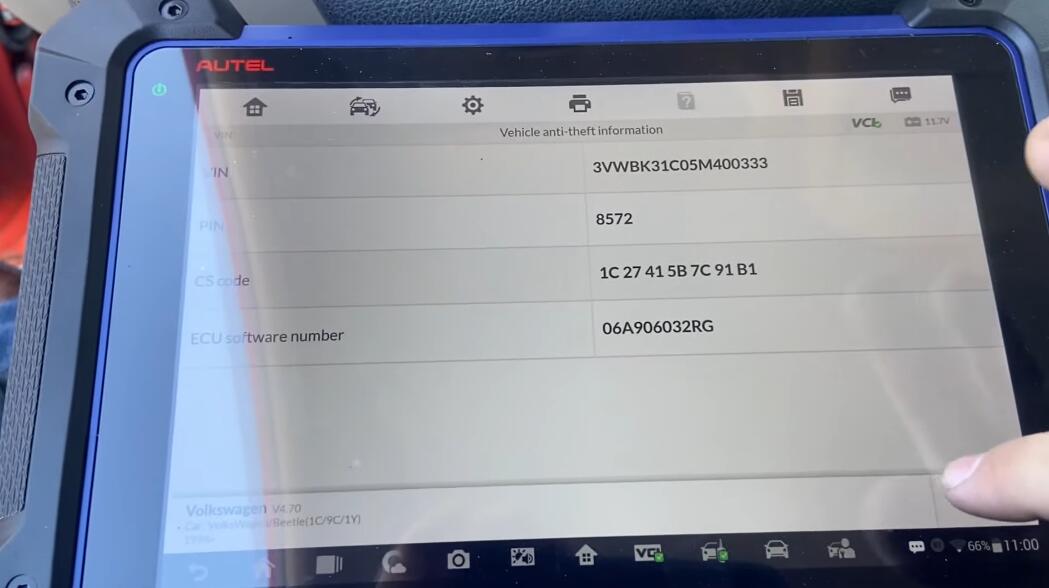

Ok, back to select “Control unit” -> Immobilizer-> Auto obtain PIN/CS from engine-> Establishing vehicle information -> Turn ignition off for 5s and then back to ON. Press [OK] within 2s -> Communicating with the vehicle, please wait… -> Pin is read out successfully.

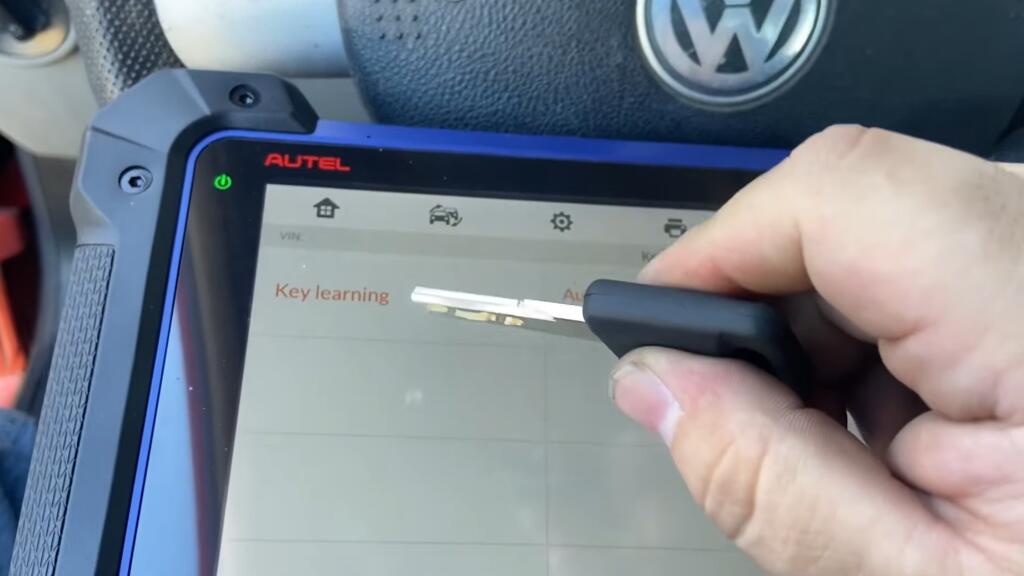

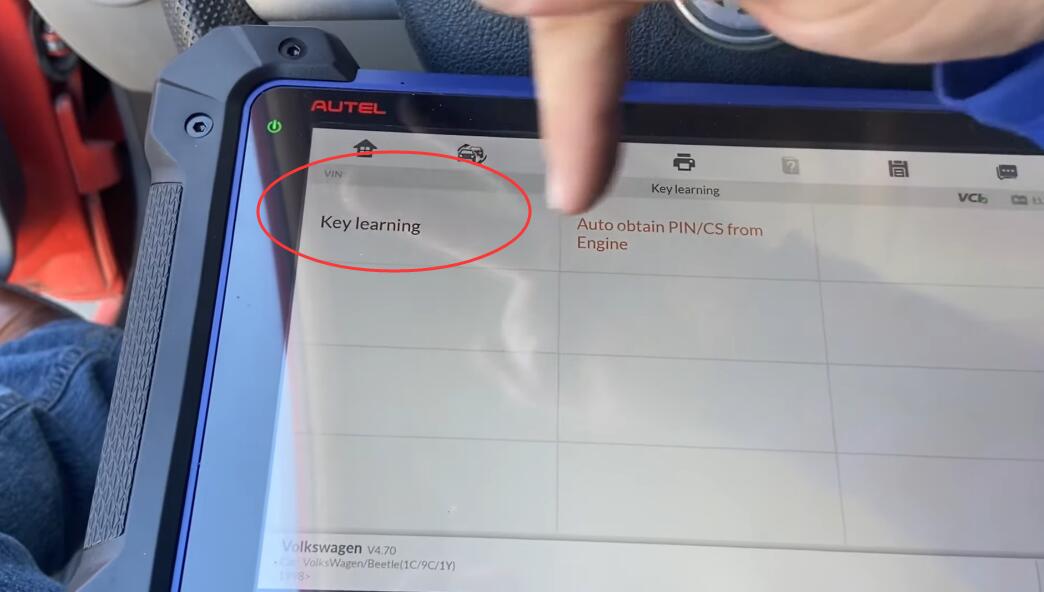

Back to select “Key Learning”.

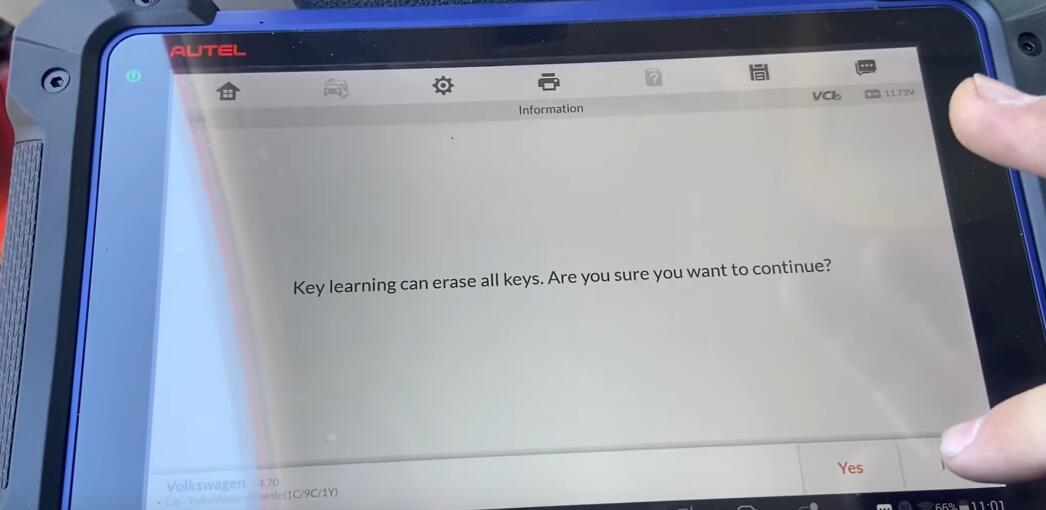

Tap “Yes” to ensure the key learning can erase all keys.

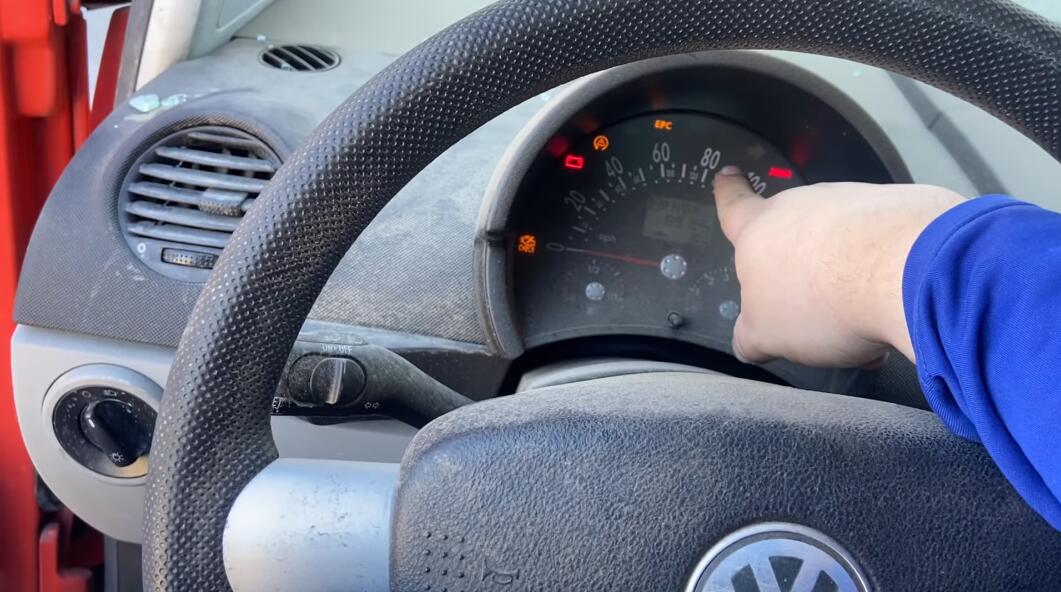

The dashboard will turn off for 5 seconds.
Done.
So, Key learning is not difficult, the difficult part is PIN code reading, but Autel IM608 Pro did it successfully.
