Launch X-431 HDIII (Launch X-431 HDIII) is an intelligent VCI for cars and trucks from 12V to 24V, supports USB, Bluetooth, and WiFi connection. It has 13 special functions, including DPF Regeneration, Injector Coding, Reset Service(MIL), Maintenance Confirmation, etc. More powerful functions to be discovered by working with X-431 scanners.

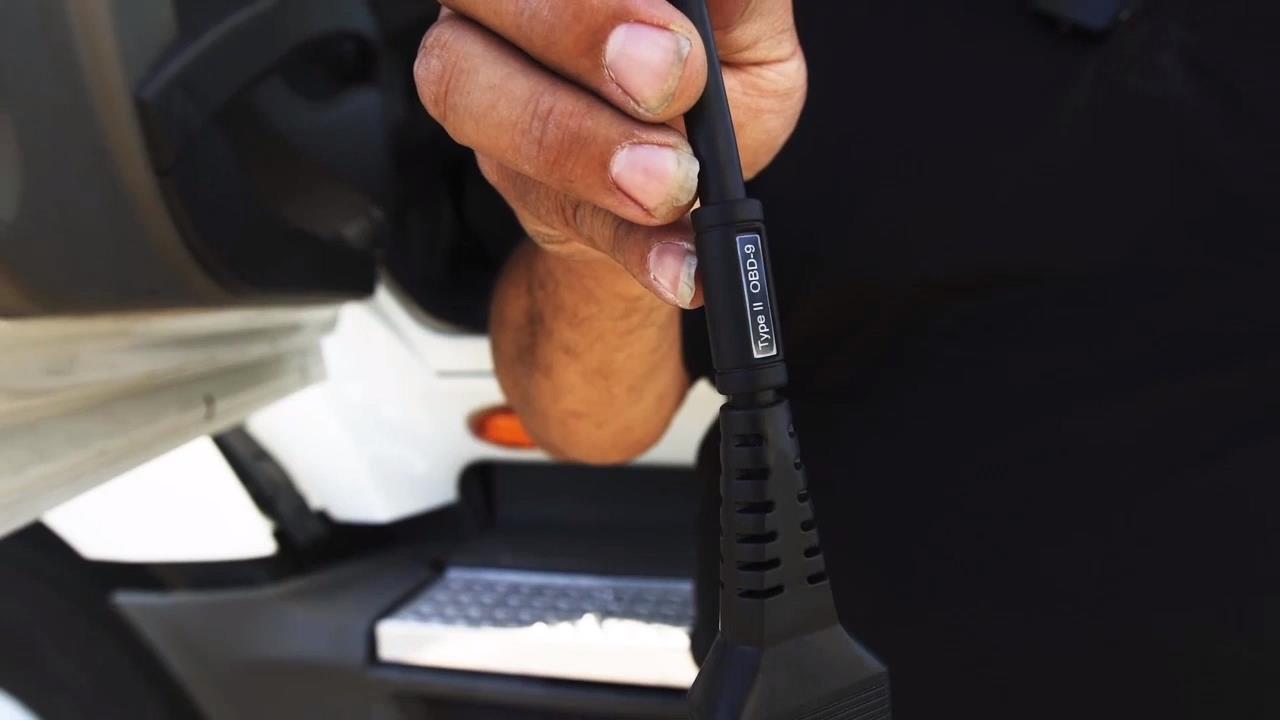

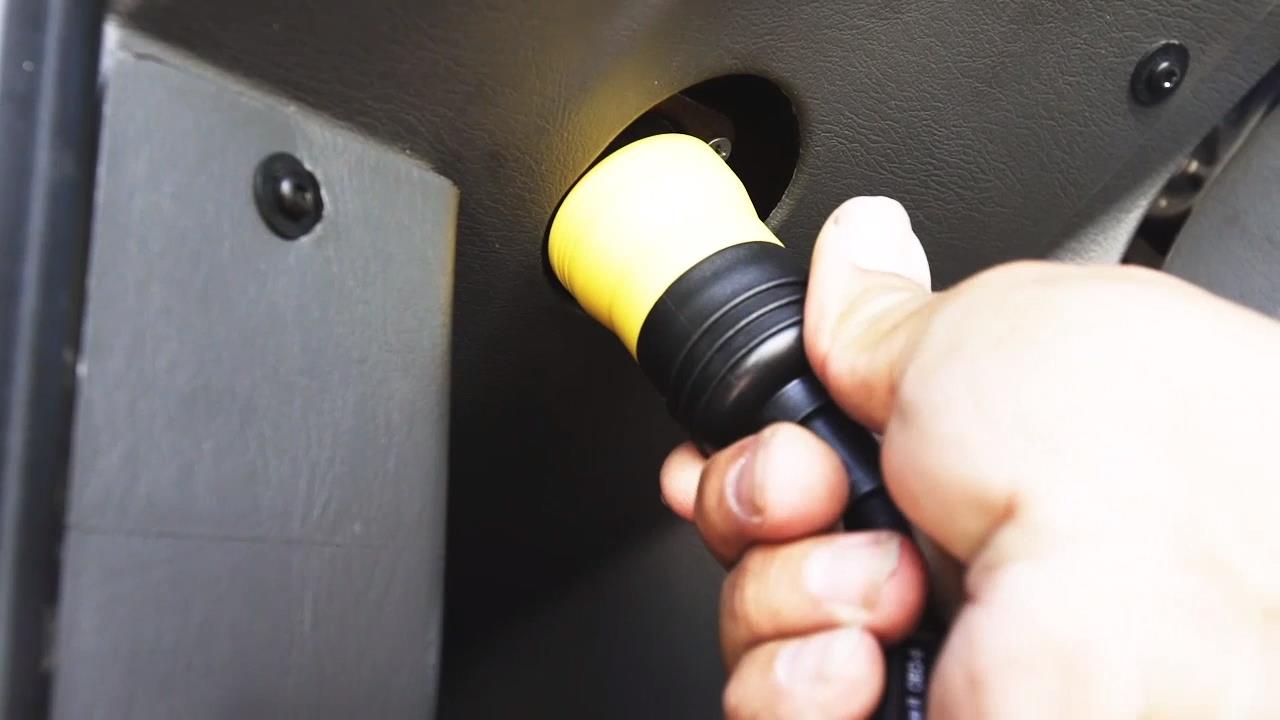

We’re using the type 29pin and then we’re going to connect it to a 4 foot cable and then we’re going to connect this to the vehicle (International /MaxxFORCE truck).
So today, we’re gonna show you how to change a speed parameter with your new heavy duty add-on module and we happen to be using a X431 Throttle pad today were to connect it to the vehicle.
We’re gonna be doing a short test.

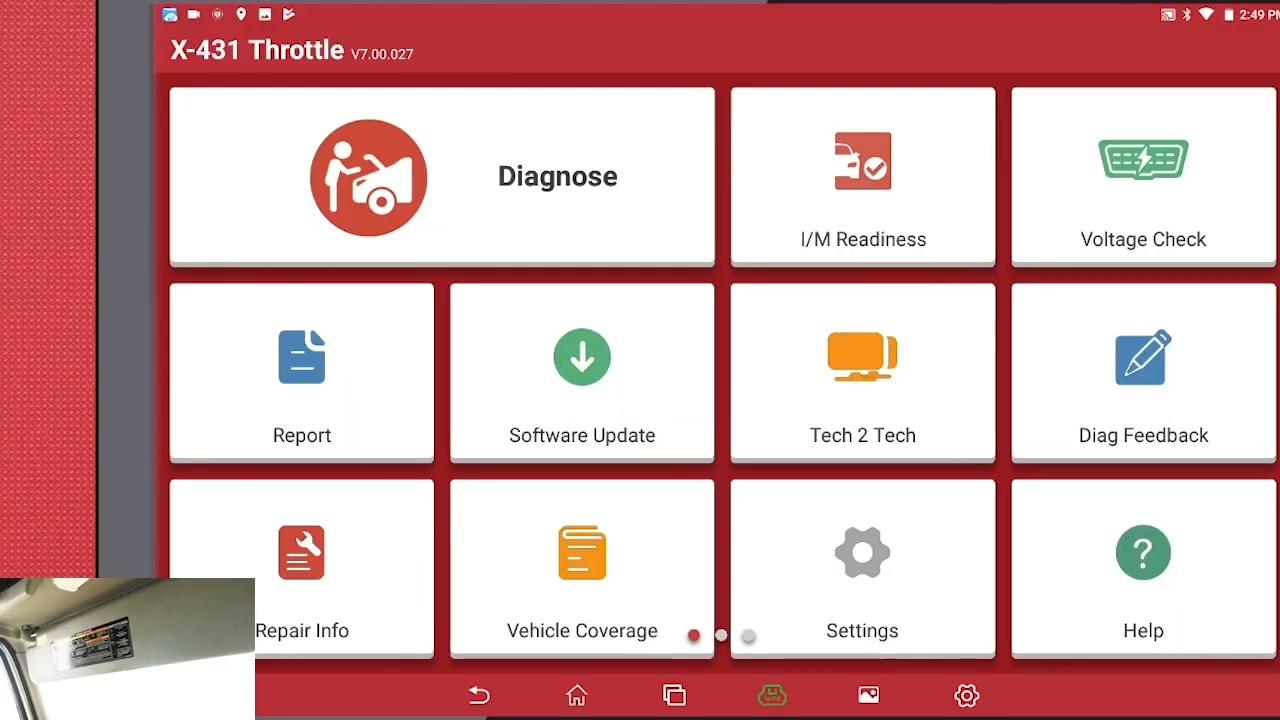

So hit “Diagnose”.

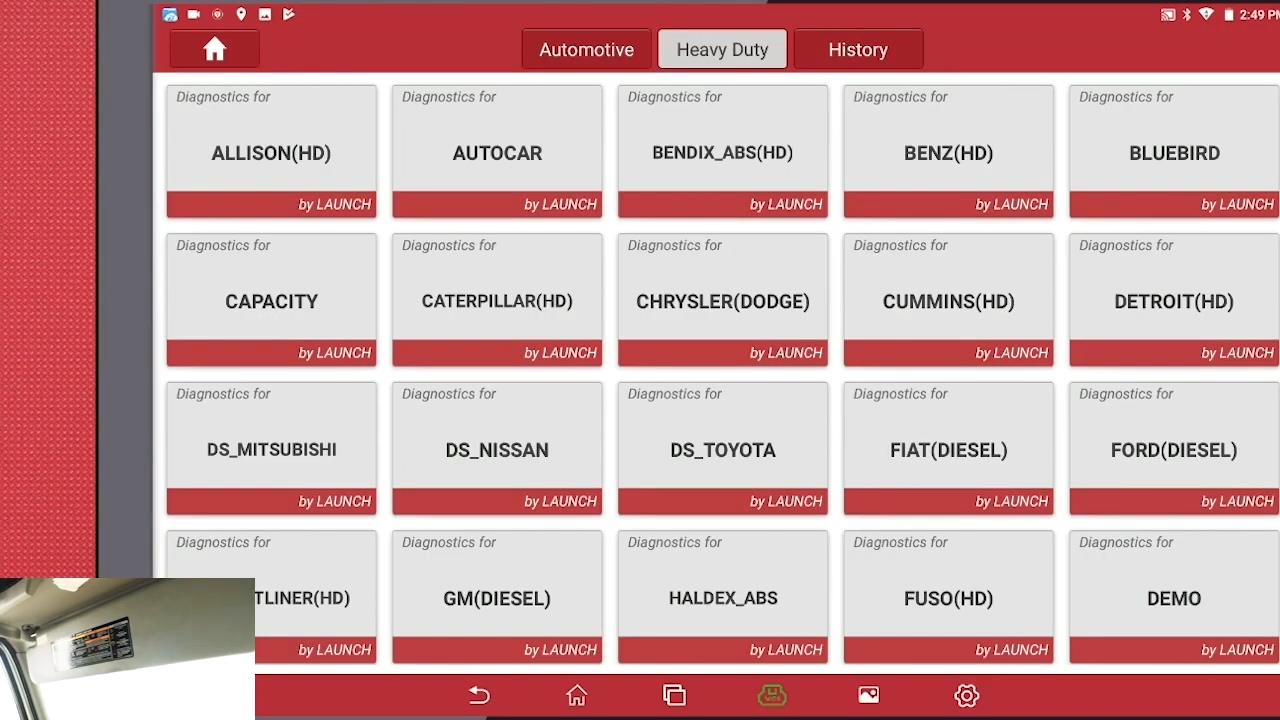

This happens to be an international.

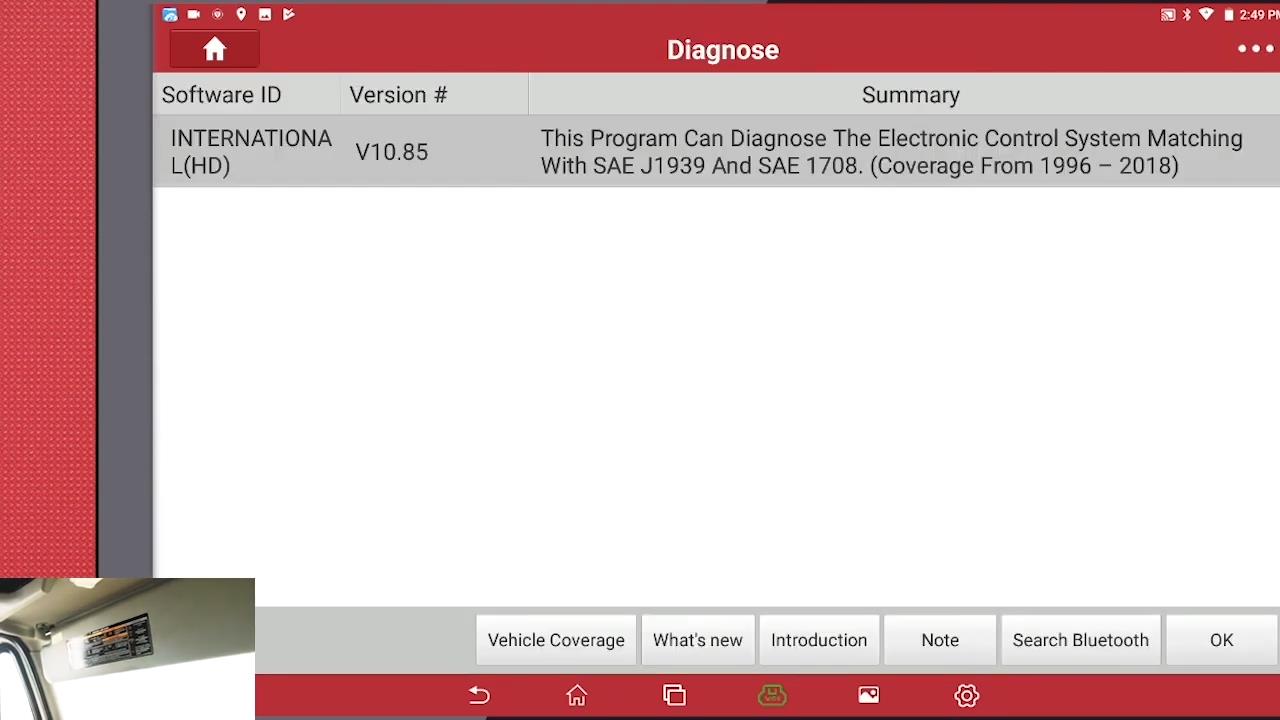

Then click OK.

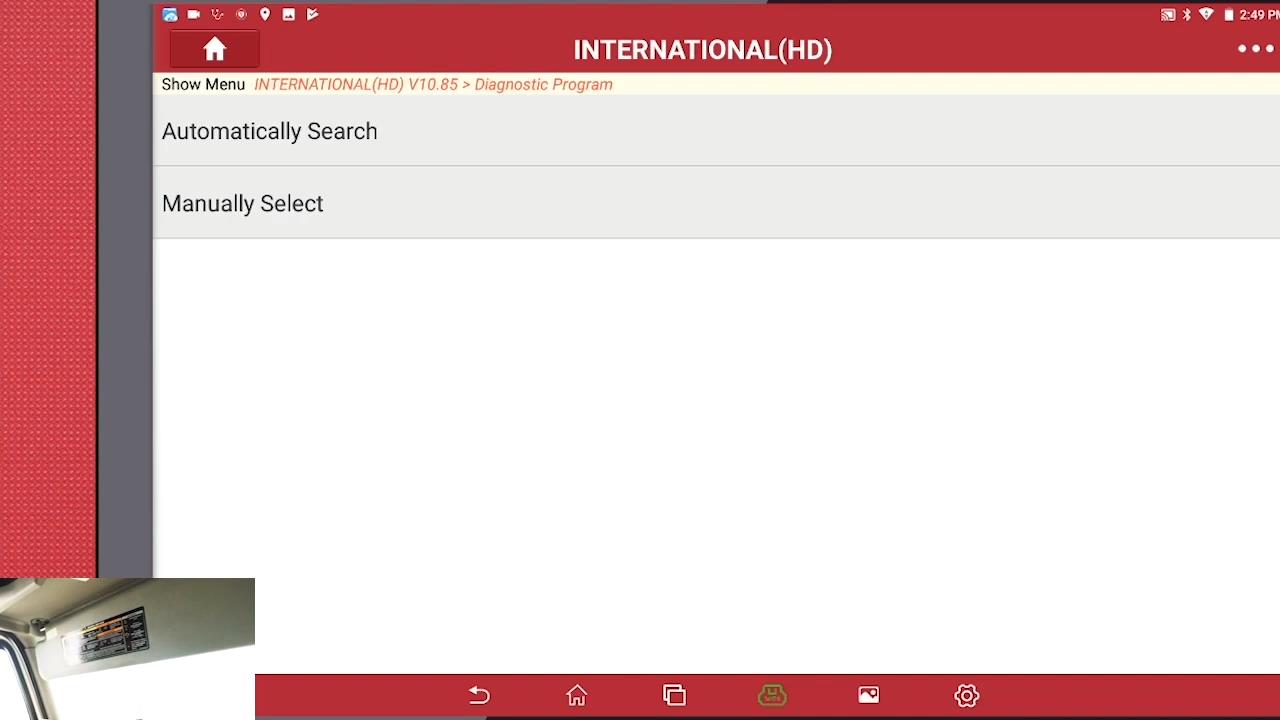

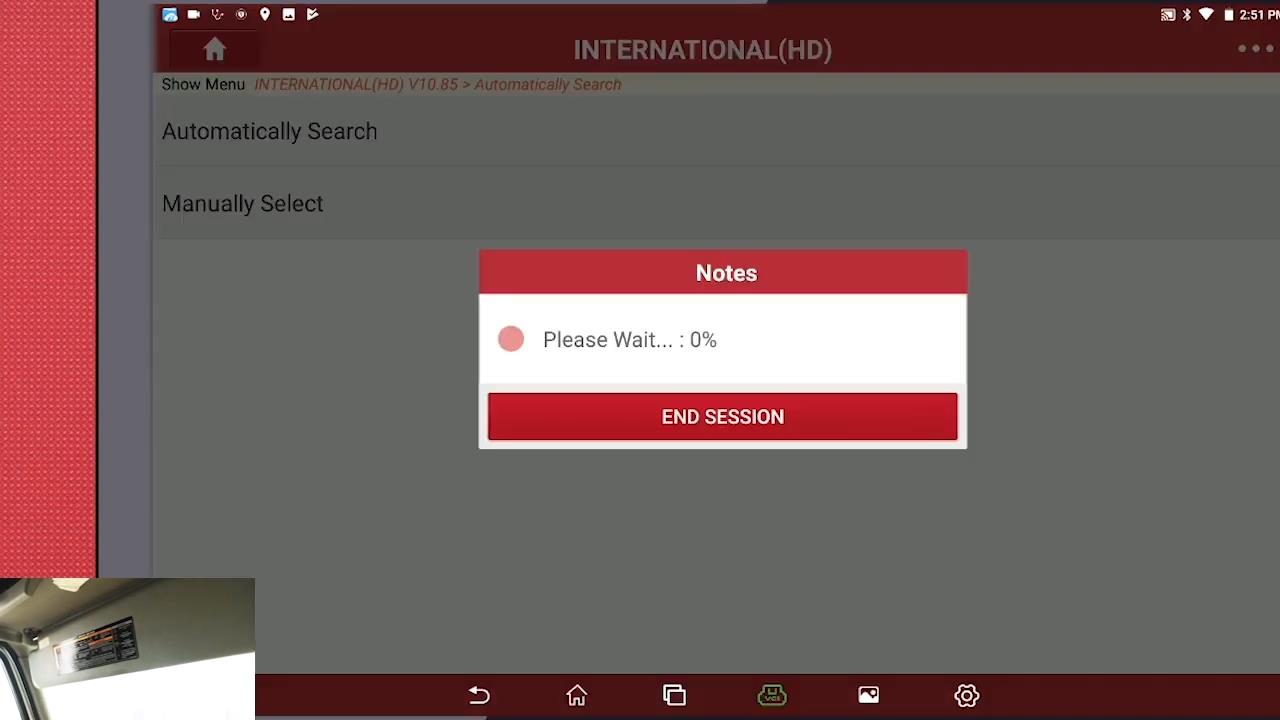

Hit “Automatic search”.

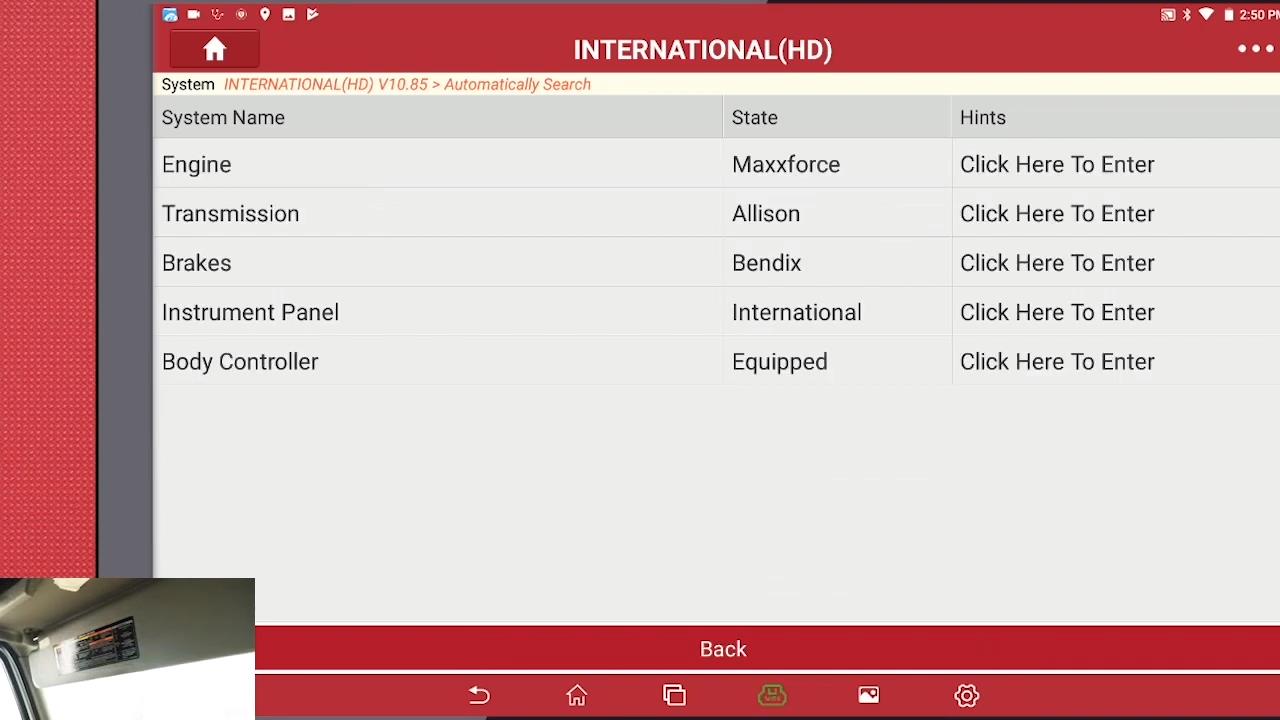

We have finished the vehicle test, these are the modules that it found.
Since we’re going to do a parameter change, we’re going to go into the engine.
Hit “Automatic search”.

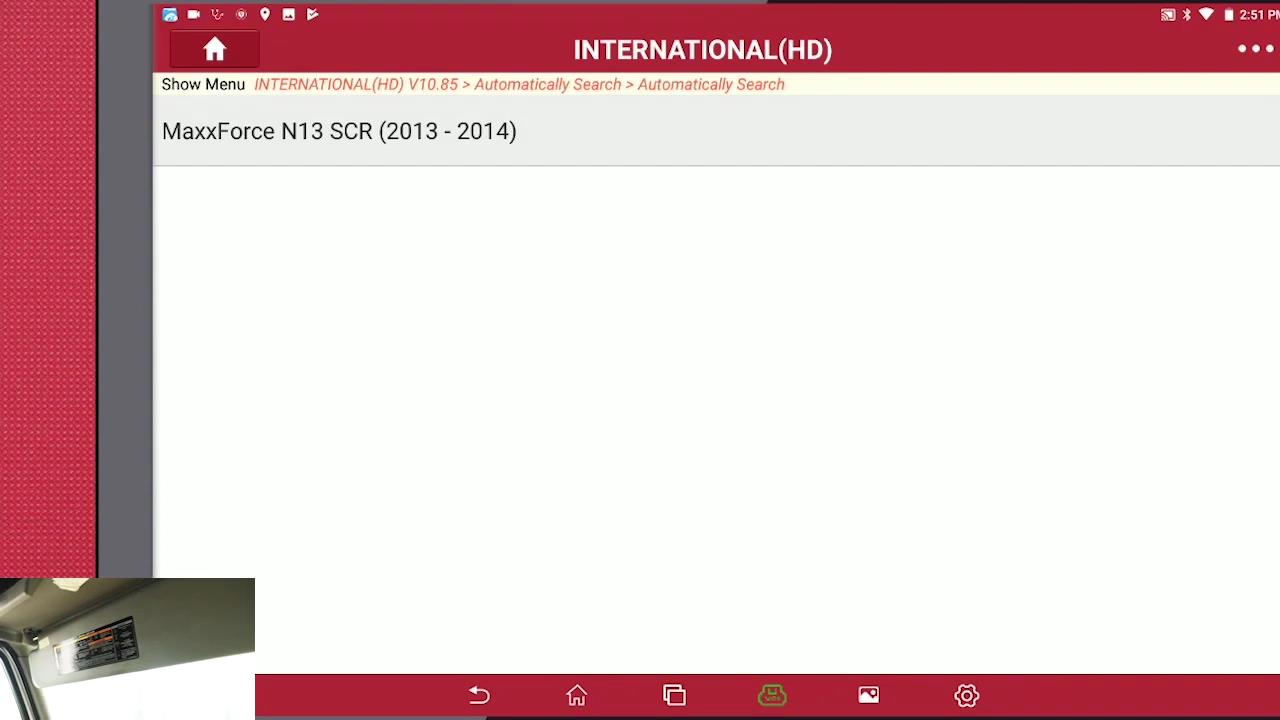

MaxxFORCE

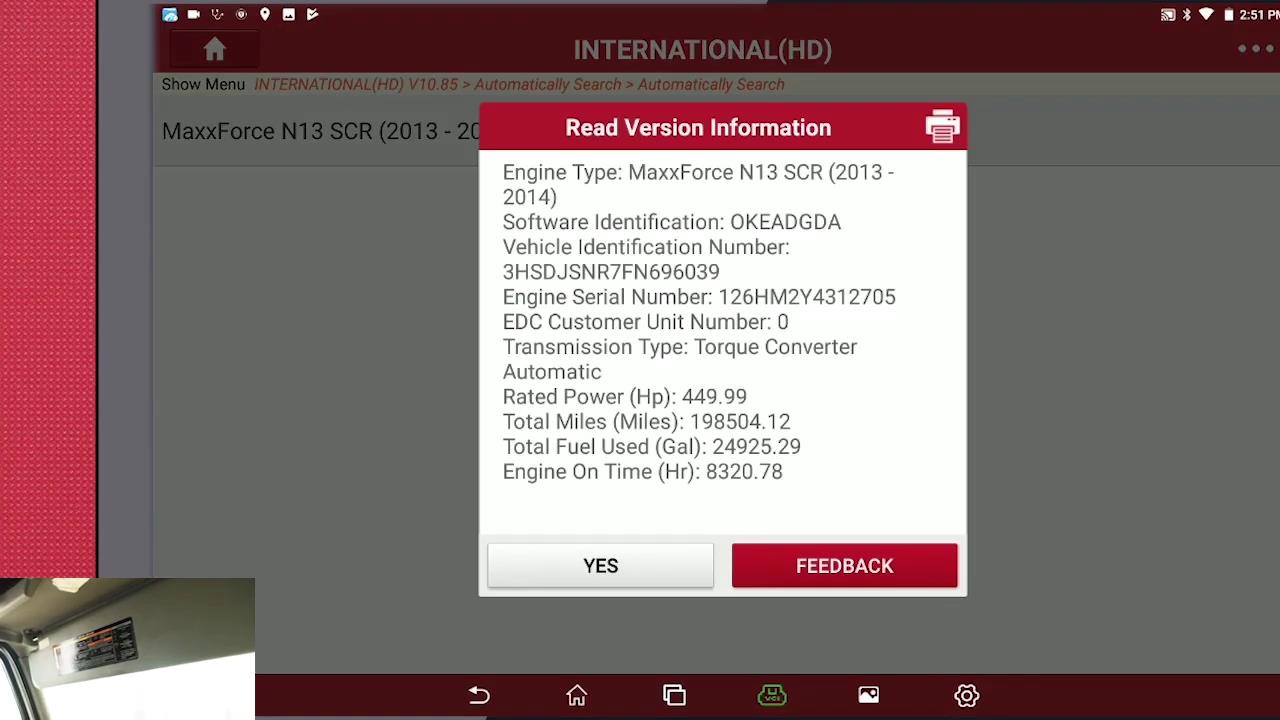

Acknowledge all the information that’s correct, yes.

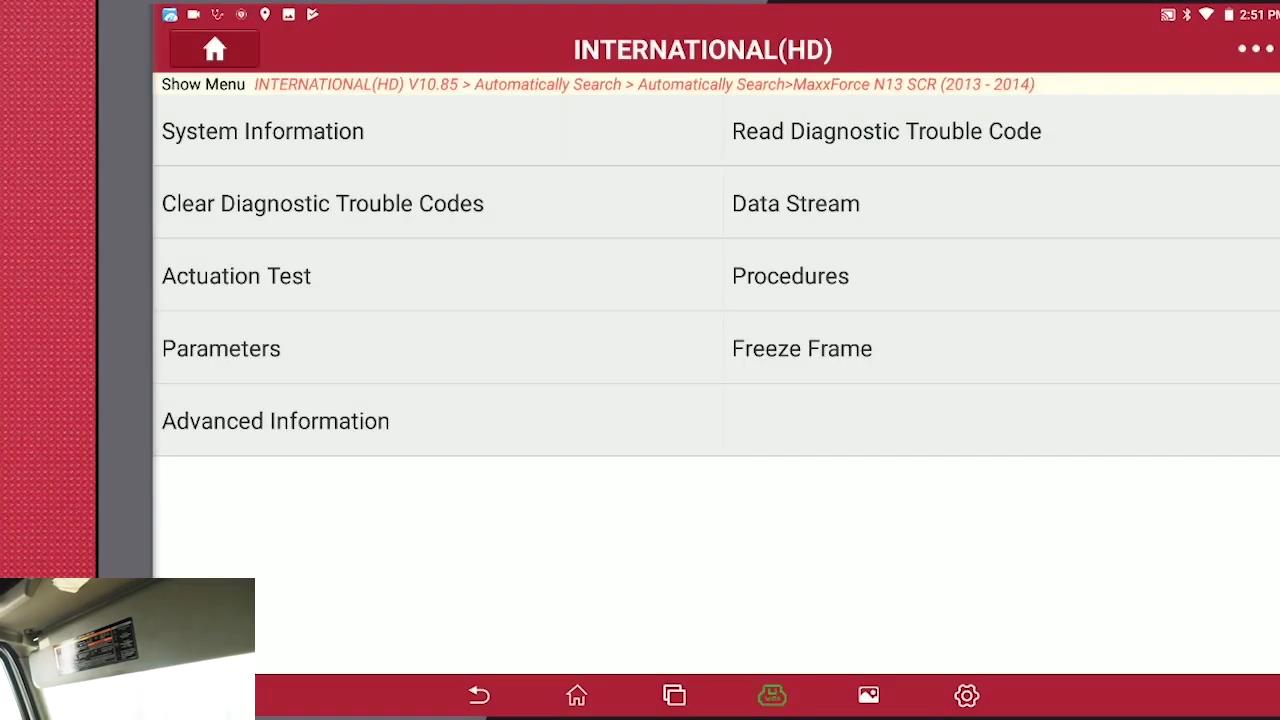

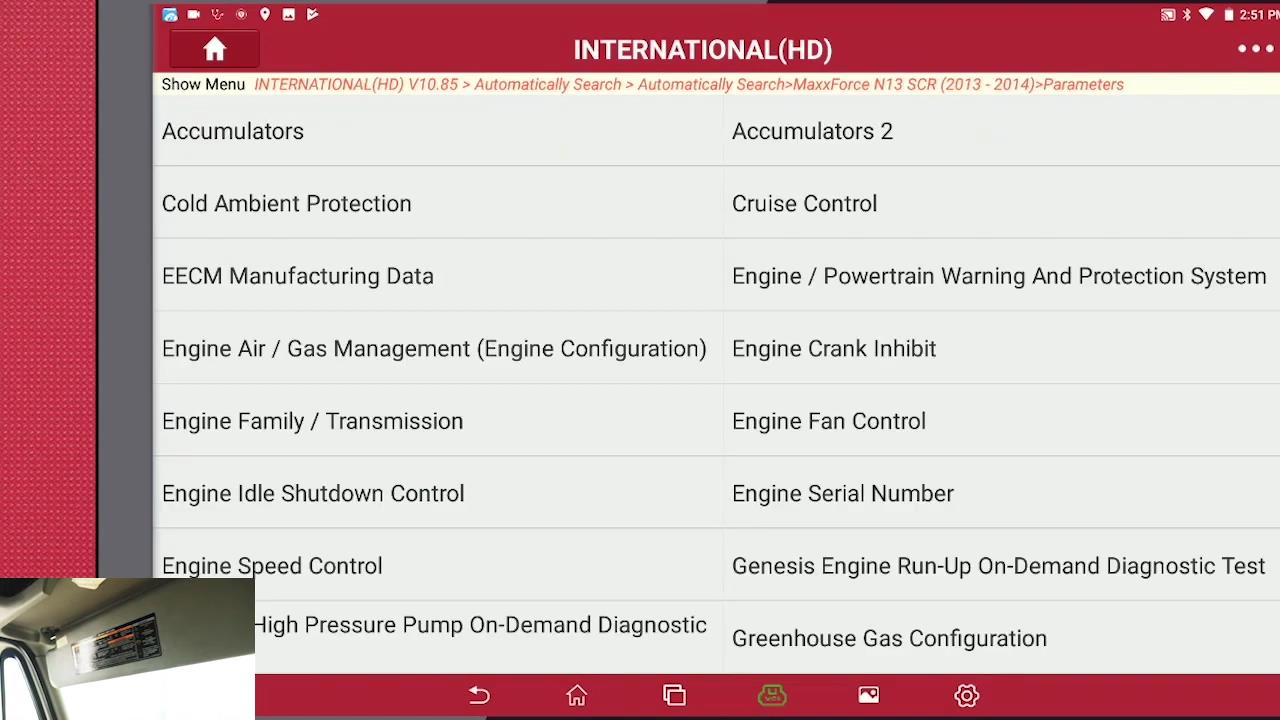

We’re going to click into parameters.
Follow the prompts make sure engines off keys on okay.
And we’re going to set the cruise control parameter.

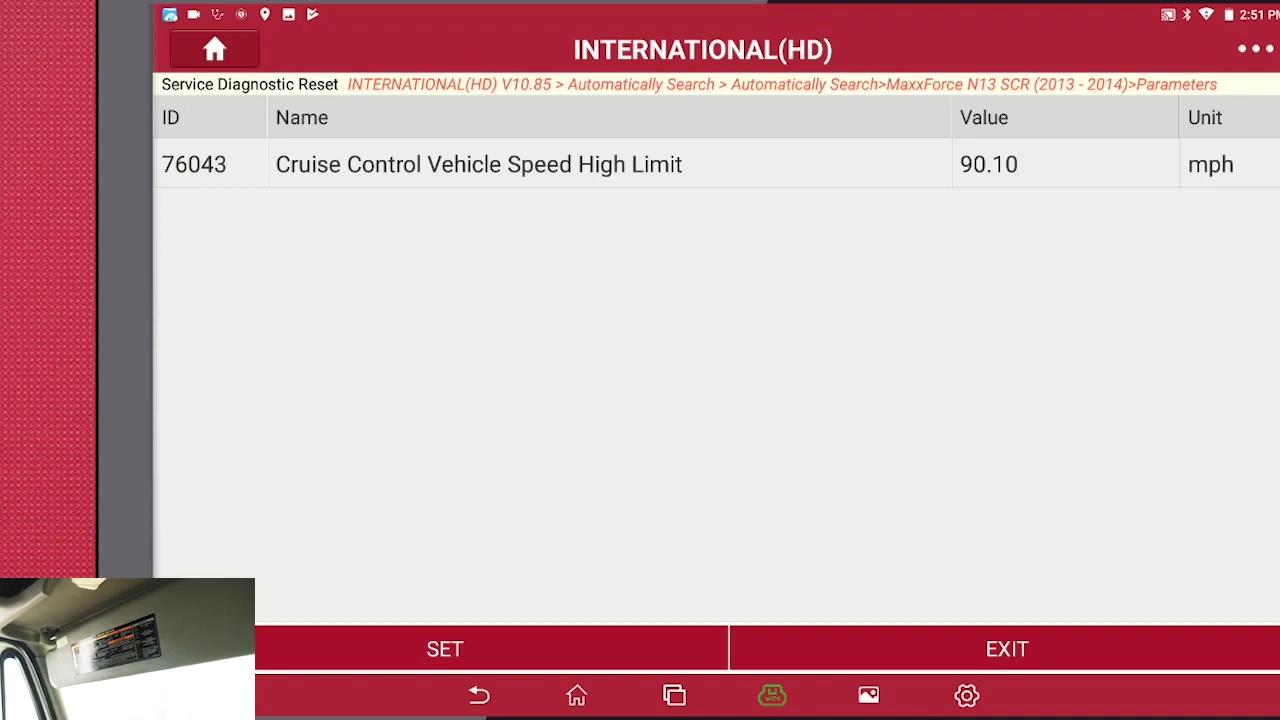

And vehicle high speed limit is we’re going to change.
It is currently set to 90.
We’re going to set it to 80.

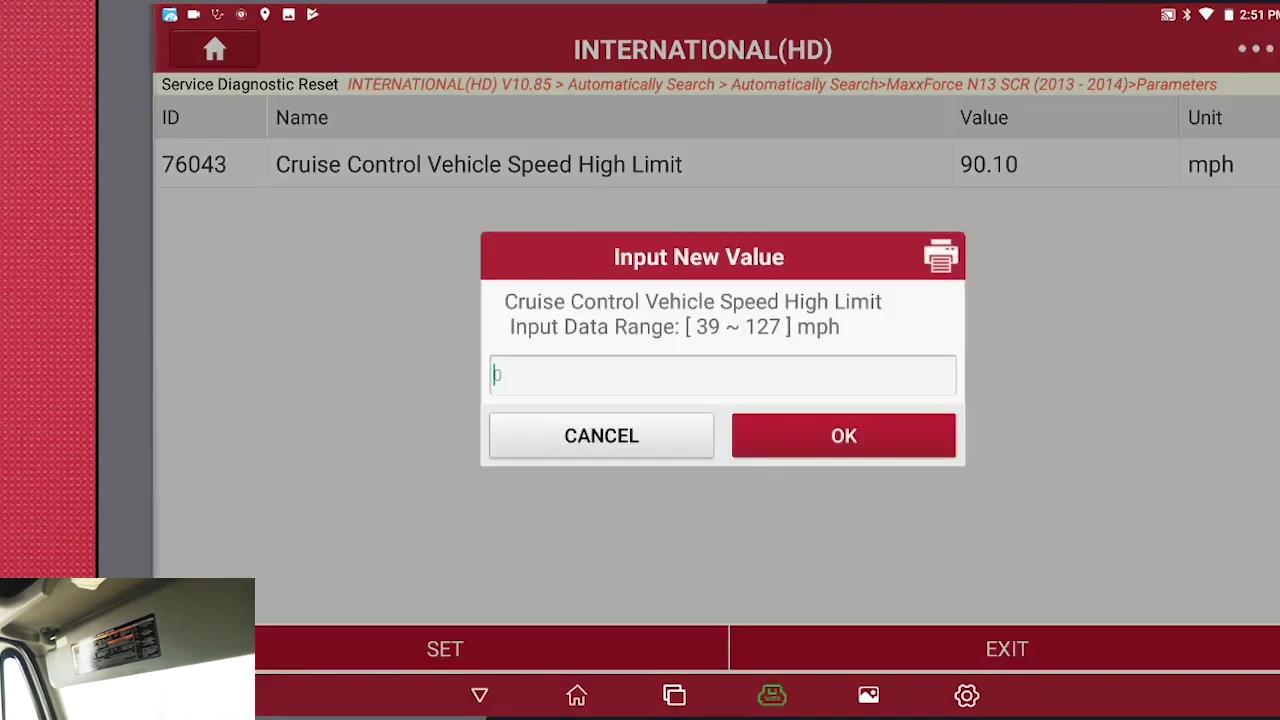

Type in 80 it okay.

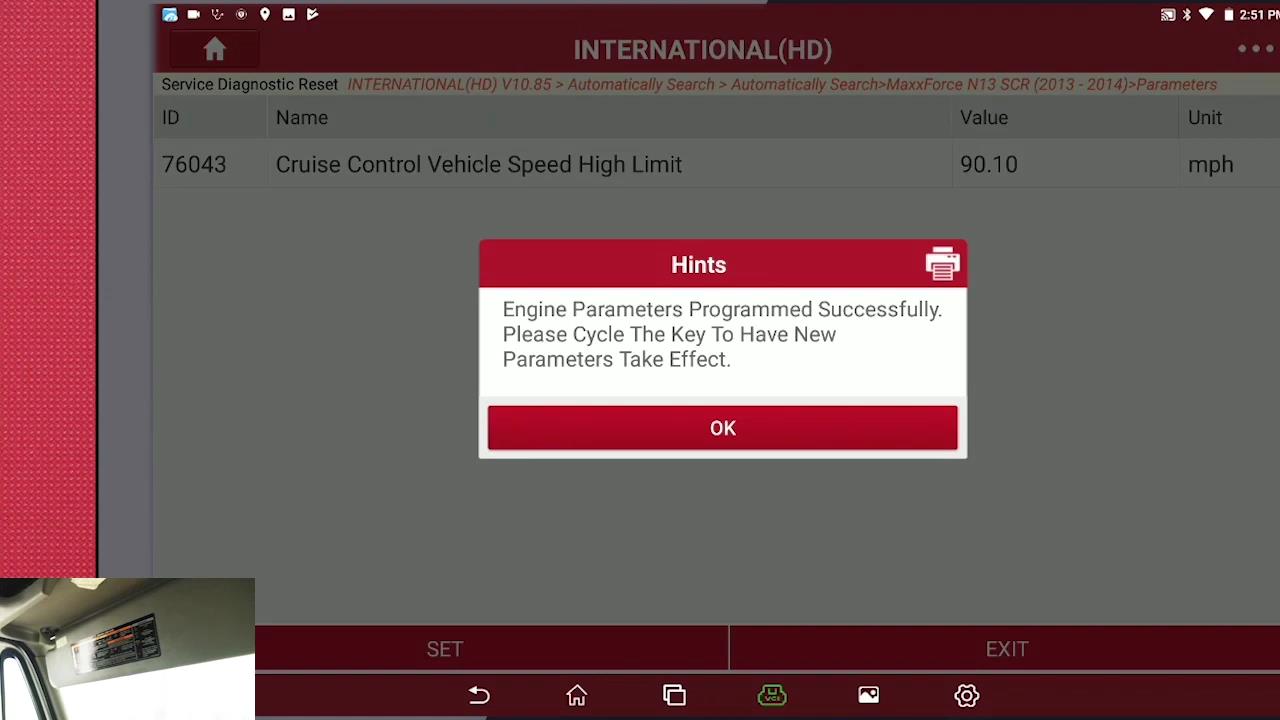

Acknowledged turn the key off.
And you can go into the speed limit.
Vehicle cruise control has been changed from 90 to 80.
