Have a Hyundai Santro Xing, need to program a new key with security code, and the job is done by Xtool X100 Pad3 (X100 Pad Elite X100 PAD3 SE) on bench.
The procedure:

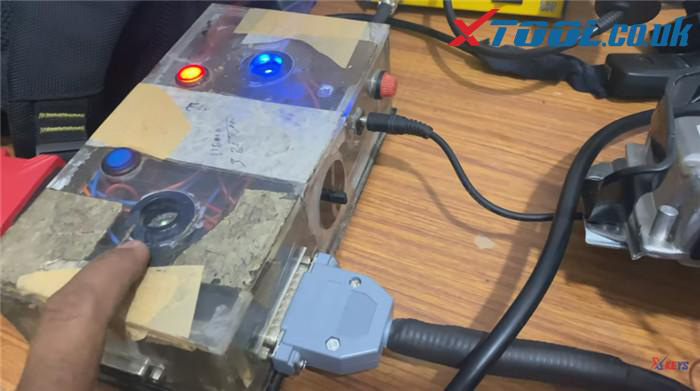

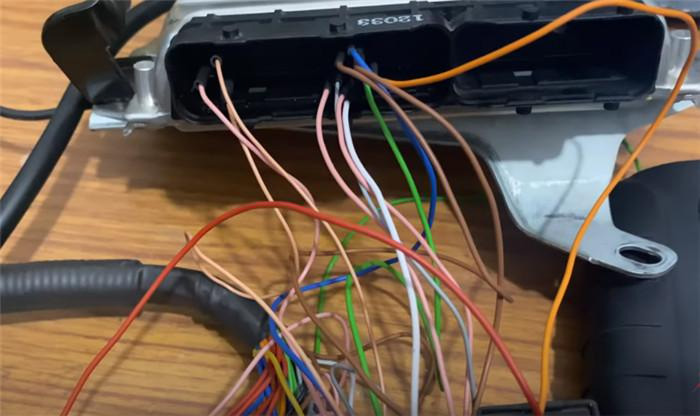

Connect X100 PAD3 with the ECU and test platform correctly
Start to operate on Xtool tablet

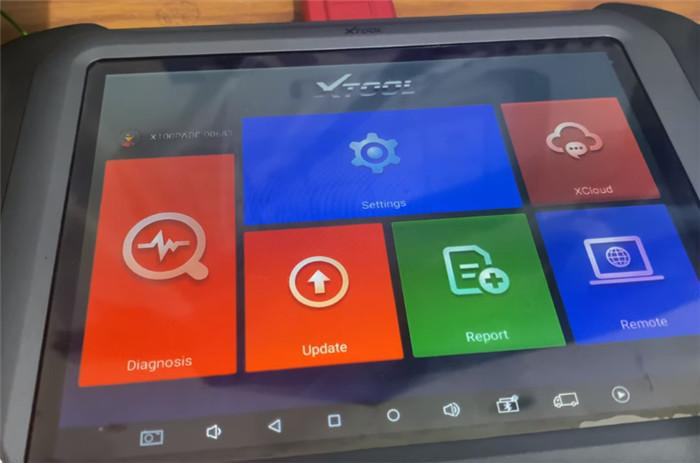

Go to “Diagnosis”-> “Immobilization”-> “HYUNDAI”-> Agree with the disclaimer->

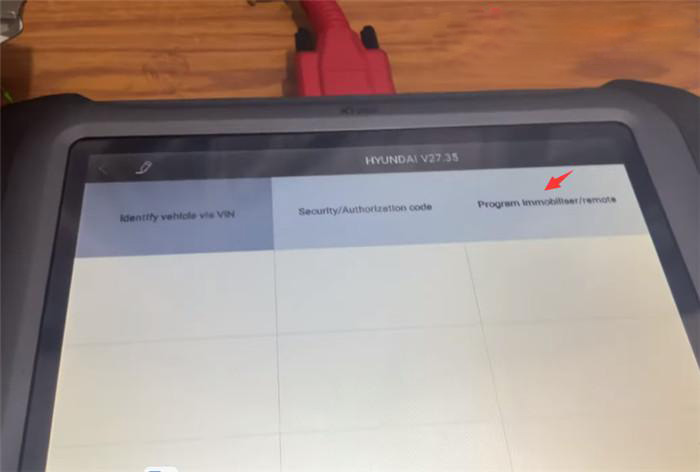

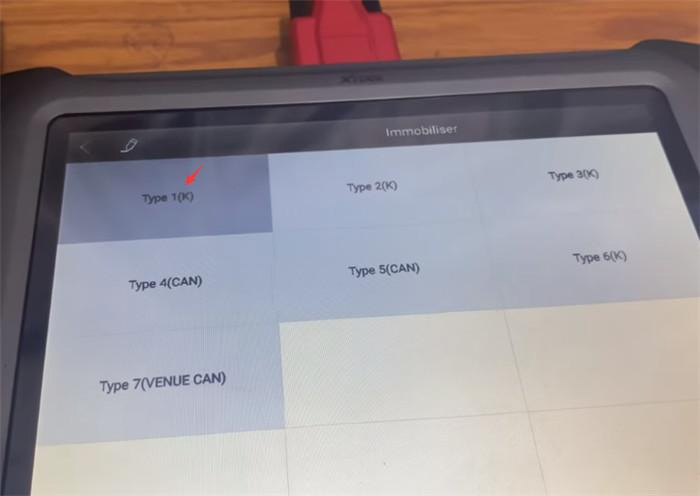

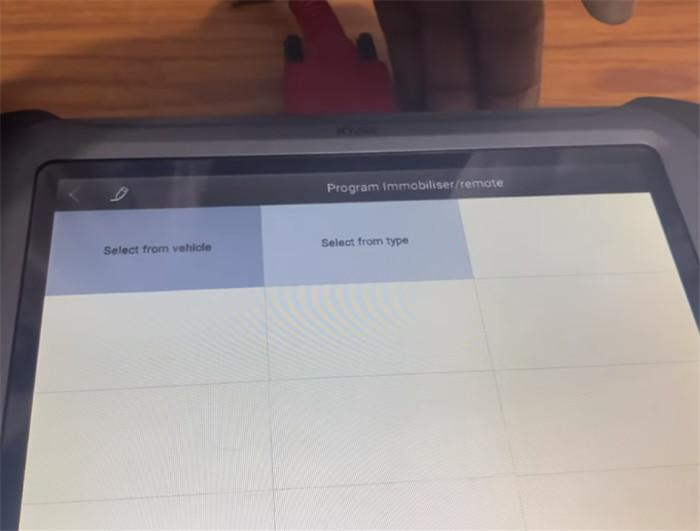

“Program Immobiliser/remote”-> “Select from type”-> “Immobiliser”-> “Type 1 (K)”-> “Program keys”

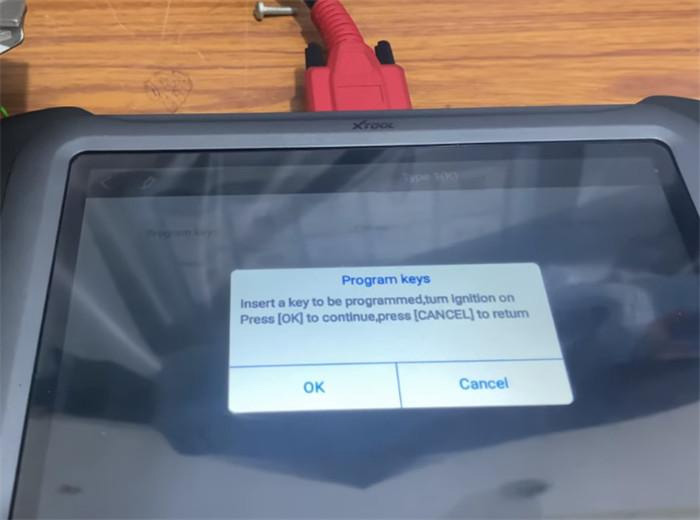

Insert a key to be programmed
Turn ignition on

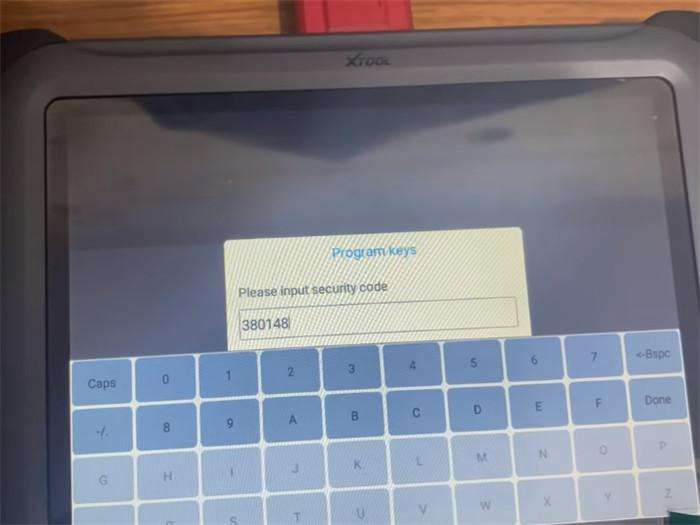

Input the security code
The key is programmed successfully.
FYI…
Here is the newest X100 PAD3 car list for Hyundai Immobiliser Type 1(K).
| Hyundai function list V27.36 | ||||||||
| Function | Area | System type | Contains models | Years | Function table | Password | The password is readable/
computable |
Password digits |
| Immobiliser/Remote system | China | Immobiliser Type 1(K) | Sonata (NF) | 2004-2010 | Live Data Program keys ECM neutral | yes | Read first, can’t read | 6 |
| Immobiliser/Remote system | China | Immobiliser Type 1 (K) | Tucson (JM) | 2005-2016 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Accent (LC) | 2000-2002 | Live Data Program keys ECM neutral | yes | Read first, can’t read | 6 |
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Accent (LC) | 2003-2007 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Atos (MXI)-PDF | 2003-2013 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Elantra (XD) | 2001-2006 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Getz (TB) | 2005-2011 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Getz (TB) | 2003-2005 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Grandeur/Azera (TG) | 2007-2011 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Grandeur/Azera (TG) | 2006 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Matrix (FC) | 2002-2011 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Sonata (EF) | 2005-2006 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Sonata (NF) | 2007-2010 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Sonata (NF) | 2005-2006 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Terracan | 2001-2006 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | TRAJET | 1999-2007 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | TucsonFFV (JM FFV) | 2012-2013 | ||||
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Tucson (JM) | 2005-2010 | Live Data Program keys ECM neutral | yes | Read first, can’t read | 6 |
| Immobiliser/Remote system | General | Immobiliser Type 1 (K) | Tucson (JM) | 2005-2010 | ||||
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Accent (LC) | 2003-2005 | Live Data Program keys ECM neutral | yes | Read first, can’t read | 6 |
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Accent (LC) | 2000-2002 | ||||
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Azera (TG) | 2007-2011 | ||||
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Azera (TG) | 2006 | ||||
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Elantra (XD) | 2001-2006 | ||||
| Immobiliser/Remote system | America | Immobiliser Type 1 (K) | Sonata (NF) | 2006-2010 | Live Data Program keys ECM neutral | yes | Read first, can’t read | 6 |
For more car models, please feel free to contact our customer service.
