The air intake and exhaust systems of a Caterpillar 325C excavator play a crucial role in ensuring efficient engine performance. Regular inspection of these systems is necessary to identify any issues and maintain optimal operation. In this article, we will guide you through the process of inspecting the air intake and exhaust system of a Caterpillar 325C excavator.
1. Inspection of Air Intake System
The air intake system is responsible for delivering clean air to the engine for combustion. Any restrictions or leaks in this system can affect engine performance. Follow these steps to inspect the air intake system:
a) Check the intake pipe and exhaust pipe of the engine air filter to ensure that they are not leaking. Leaks can allow contaminants to enter the system, affecting the engine’s performance.
b) Examine the engine air filter element. Ensure that it is clean and free from any debris. A clean filter is essential for efficient air intake.
c) Inspect the clean side of the engine air filter element for traces of dirt. If you notice dirt, it indicates that contaminants have entered the filter element or its seal. Clean or replace the filter element as necessary.

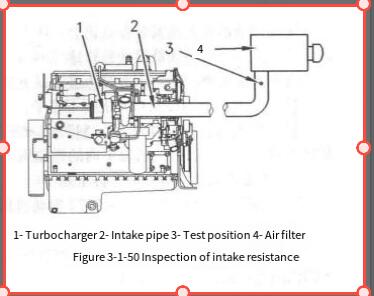

d) Use a differential pressure gauge in the 1U-5470 engine pressure test assembly to measure the intake resistance. Connect the gauge’s vacuum port to test position 3, which can be anywhere on the intake manifold behind the engine air filter and in front of the wheel booster.
e) Open the pressure port of the differential pressure gauge to allow it to communicate with the atmosphere.
f) Start the engine and run it at high idle speed with no load.
g) Record the pressure value shown on the gauge. Multiply this value by 1.8 compare it with the specified values. The resistance to airflow through old engine air filter or a clogged filter must not exceed 6.2kPa. For a new air filter element, the resistance must not exceed 3.7kPa.
2. Inspection of Exhaust System
The exhaust system is responsible for removing combustion gases from the engine. Any restrictions or excessive backpressure in this system can reduce engine performance. Follow these steps to inspect the exhaust system:

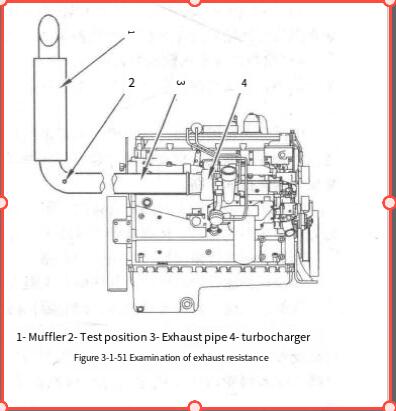

a) Use the 1U-5470 engine pressure test assembly and a differential pressure gauge to measure exhaust backpressure. Connect the gauge’s vacuum port to test position 2, which can be anywhere on the exhaust pipe behind the turbocharger and in front of the muffler.
b) Open the pressure port of the differential pressure gauge to allow it to communicate with the atmosphere.
c) Start the engine and run it at high idle speed with no load.
d) Record the pressure value shown on the gauge.
e) Multiply the recorded value by 1.8 and compare it with the specified value. The exhaust back pressure must not exceed 10.0kPa.
CAT Caterpillar ET 4 Diagnostic Adapter Truck Diagnostic Tool-high quality
Regularly inspecting the air intake and exhaust systems of your Caterpillar 325C excavator will help maintain its performance and prevent potential issues. By following the steps outlined in this article, you can ensure that the air intake and systems are functioning optimally, allowing for efficient engine operation.
