This Article is about How to using the brand new Autel MaxiDiag MD806 Pro OBD2 Scanner to do an electronic parking brakes for 2020 Honda Civic on the rear.
The MD806 Pro is a pretty inexpensive and useful tool that only cost €204. Following let me show how to use the scan tool to retract your rear electronic parking brake calipers. It actually works quickly than the factory scan tool.

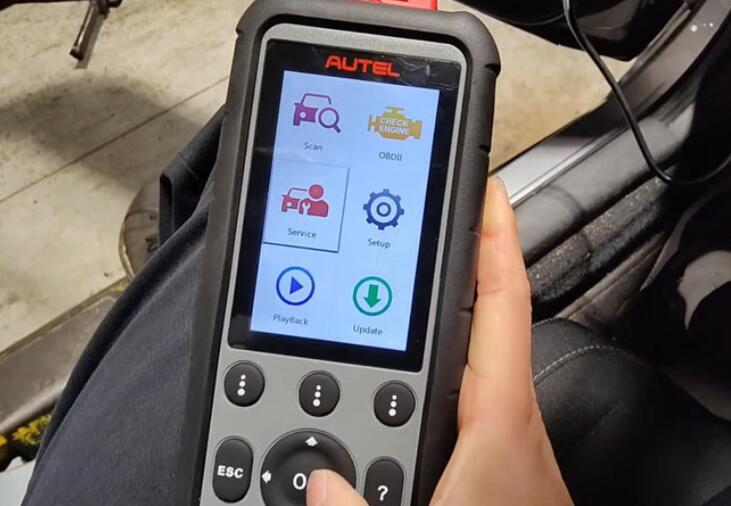

Connect Autel MD806 Pro into OBD.

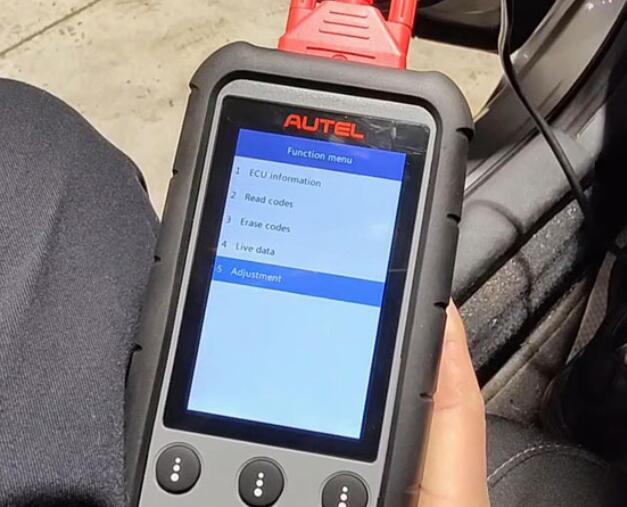

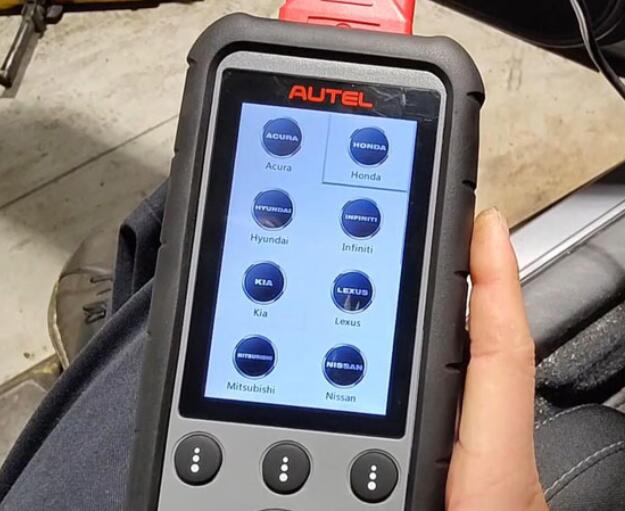

Service >> EPB >> Asian >> Honda >> Adjustment >> Brake pad maintenance mode
This function is used in rear brake pad maintenance.
Please select the mode to carry out.
1. Enter brake pad maintenance mode
2. Back to normal mode
Enter into the option1 – brake pad maintenance mode.

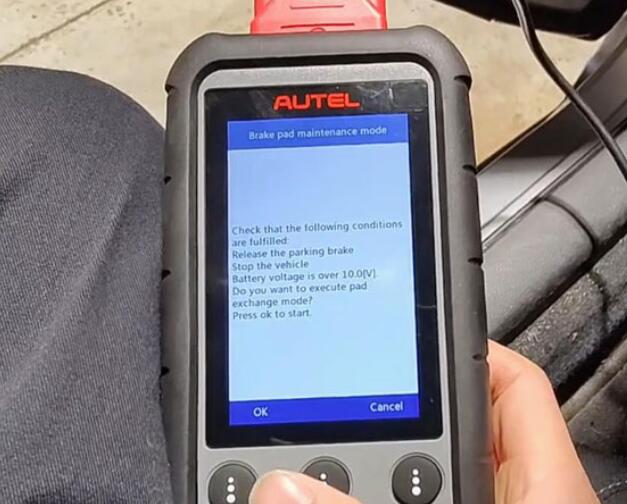

Check that the following conditions are fulfilled:
Release the parking brake.
Stop the vehicle.
Battery voltage is over 10.0[V].
Do you want to execute pad exchange mode? Press “OK” to start.

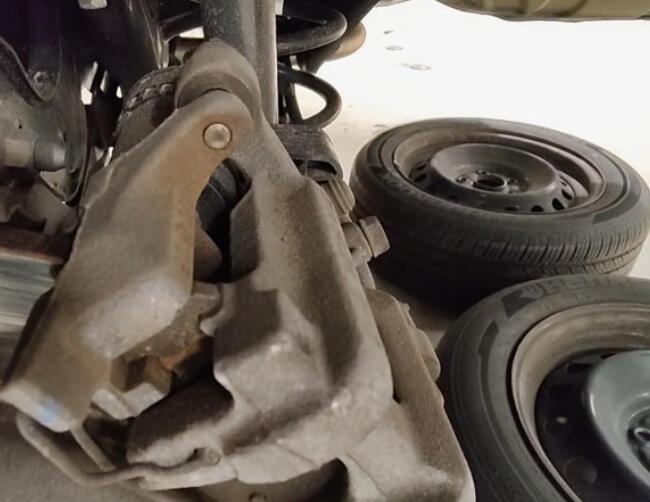

You can hear the electronic parking brake moving…
When you’re done, just re-do it the other way.
Go back to select option2 – back to normal mode.
Check that the following conditions are fulfilled:
Release the parking brake.
Stop the vehicle.
Battery voltage is over 10.0[V].
Do you want to return the pad to the normal state? Press “OK” to start.
The electronic parking brake goes back to normal.
That’s it!
