The Engine Injector Wiring Harness Assembly is a critical component of the C-15 Petroleum Engine. Over time, this wiring harness may become worn out or damaged, leading to issues with engine performance and efficiency. In order to maintain optimal engine function, it is important to replace the wiring harness assembly when necessary. In this article, we will guide you through the step-by-step process of removing and installing the Engine Injector Wiring Harness Assembly for the C-15 Petroleum Engine.
Before starting the replacement process, it is important to gather the necessary tools and equipment. You will need a set of allen head screwdrivers, a clip ladder, cable straps, and a new Harness wiring Engine/ECM assembly.
For CAT P/N 237-7595 and 242-7248:
1. Disconnect the negative battery terminal at the battery to ensure safety during the replacement process.
2. Loosen the allen head screw and disconnect the harness assembly from the ECM (J2/P2 and J1/P1 ECM connectors). This will allow you to remove the old wiring harness assembly.
3. Remove all clip ladders and strap cables that are attached to the wiring harness assembly.

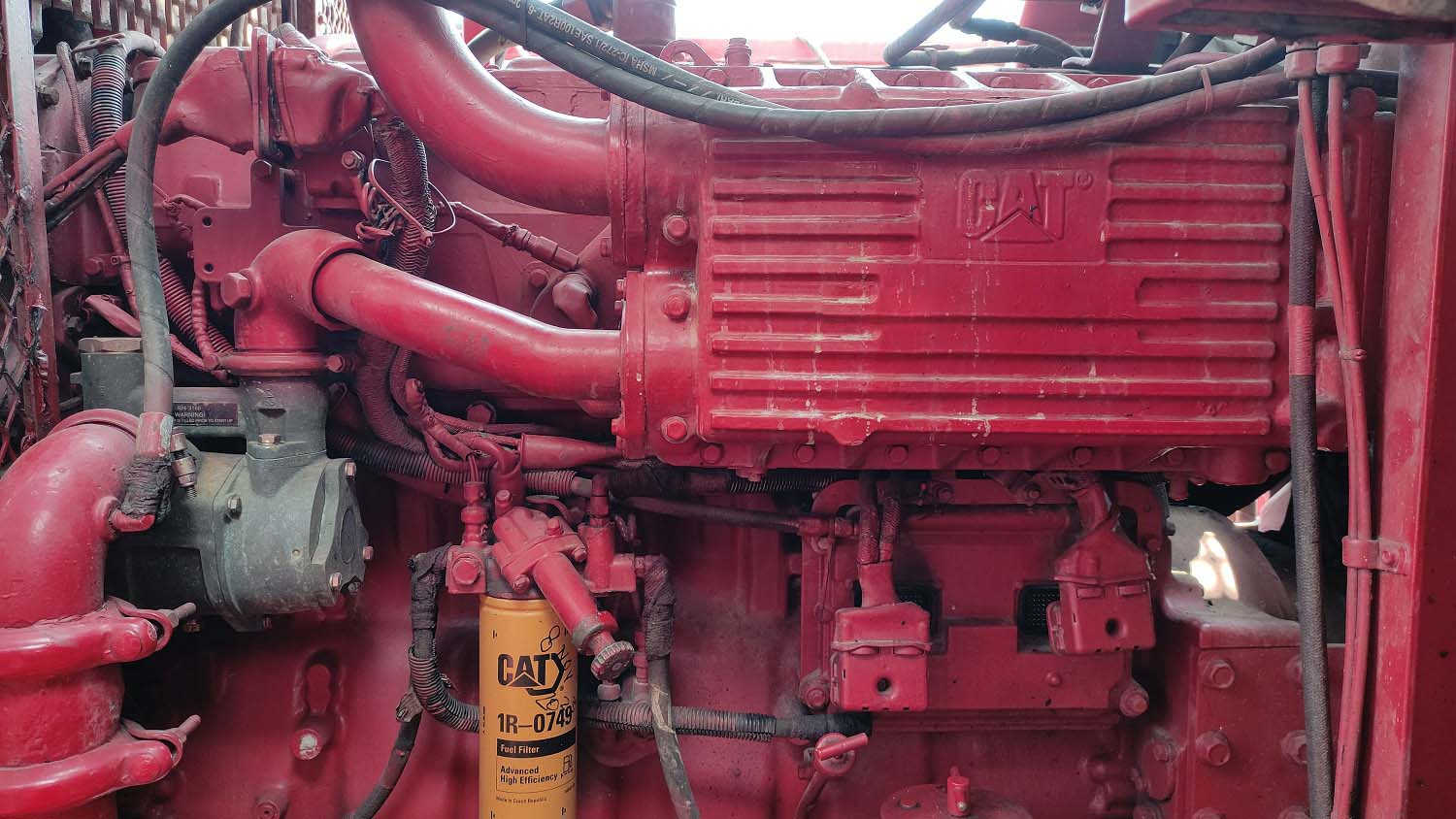

4. Carefully disconnect all engine sensor connectors, including the Oil Pressure Sensor, Atmospheric Pressure Sensor, Fuel Pressure Sensor, Fuel Temperature Sensor, Inlet Air Temperature Sensor, Inlet Manifold/Boost Pressure Sensor, Secondary Speed/Timing Sensor, Primary Speed/Timing Sensor, and Coolant Temperature Sensor.
5. Remove the P61 customer connector and P300 Unit Injector connector.
6. Install the new Harness wiring Engine/ECM assembly, ensuring all connectors are securely attached.
For CAT P/N 122-1486:

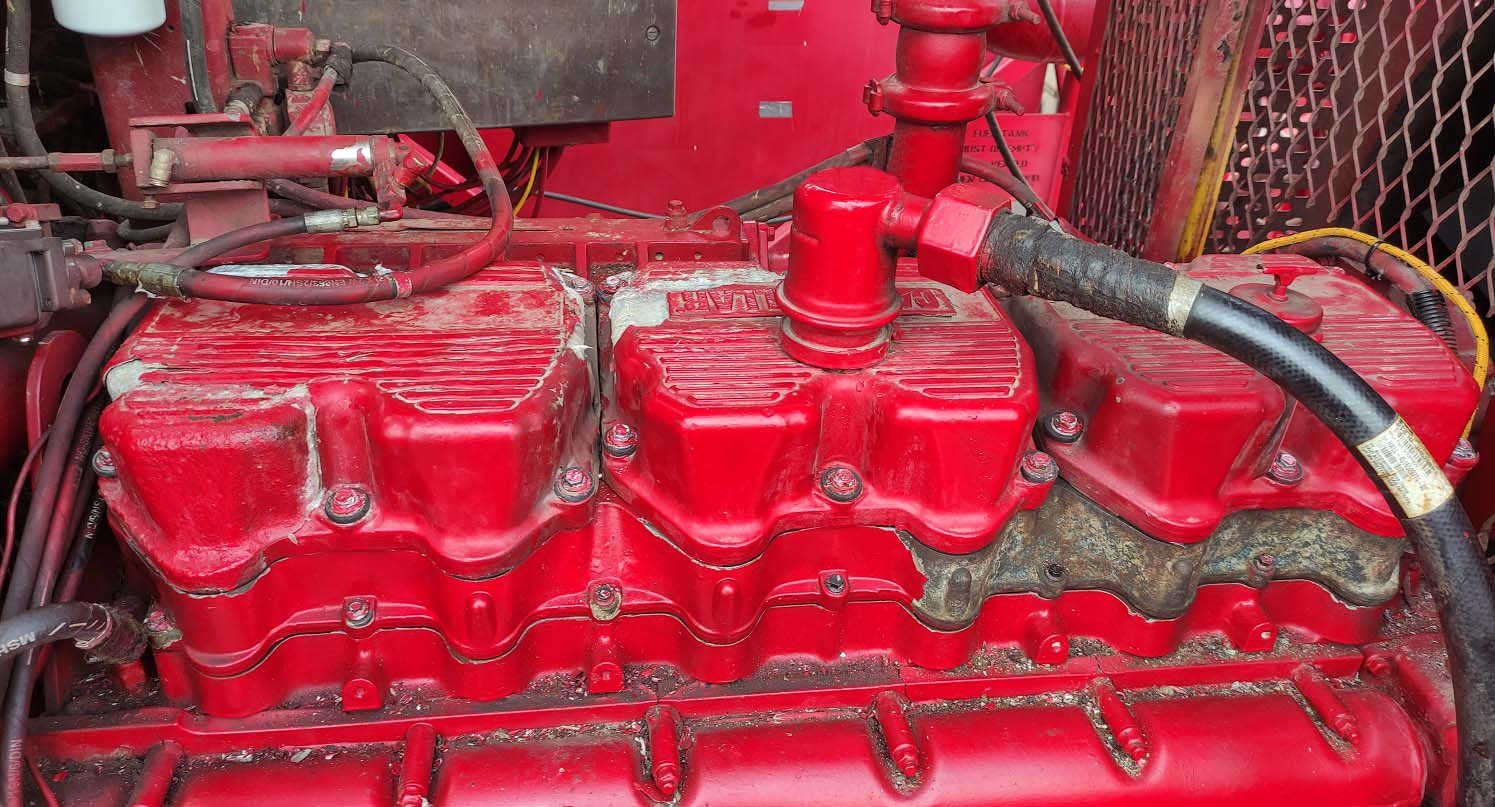

1. Remove the valve mechanism group cover by loosening all fastener bolts.

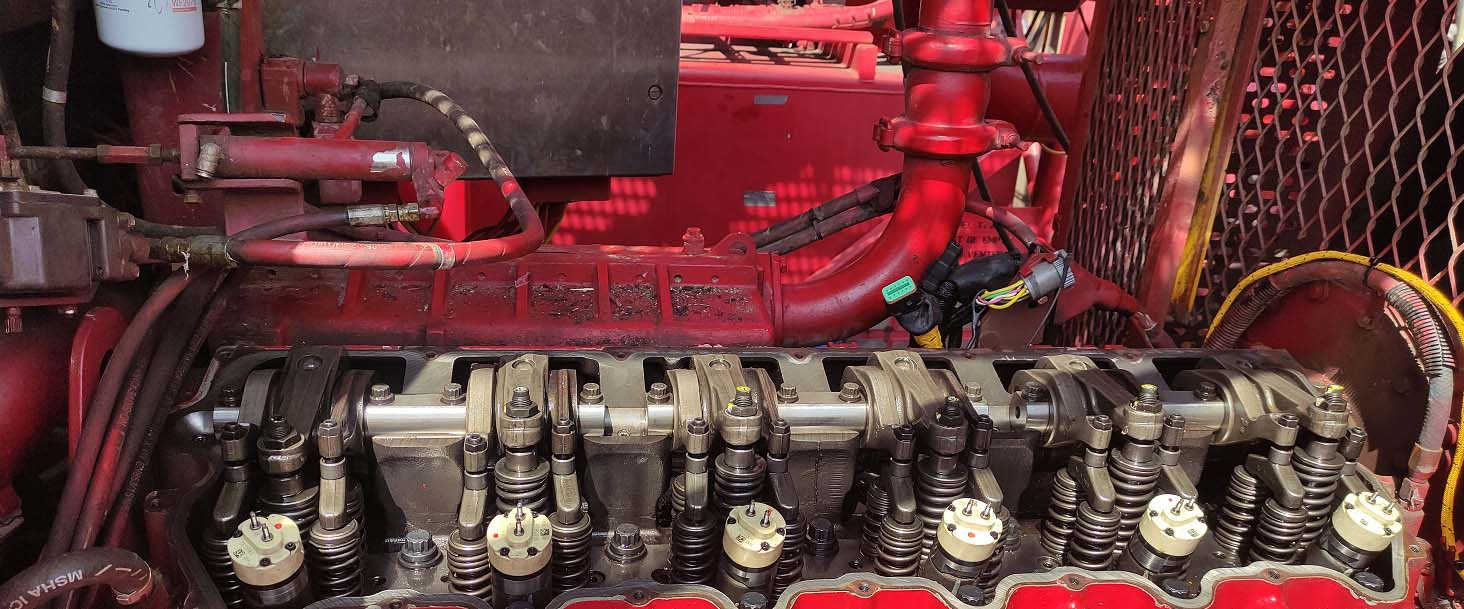

2. Remove the base-valve mechanism cover and Injector harness group by loosening all bolts. Also, remove all cap connectors (Unit Injector).
3. Remove all clips, mounting cable ties, and strap cables. This will allow you to remove the old harness wiring assembly for the electronic unit injector.
4. Install the new Injector harness assembly and the base-valve mechanism cover.

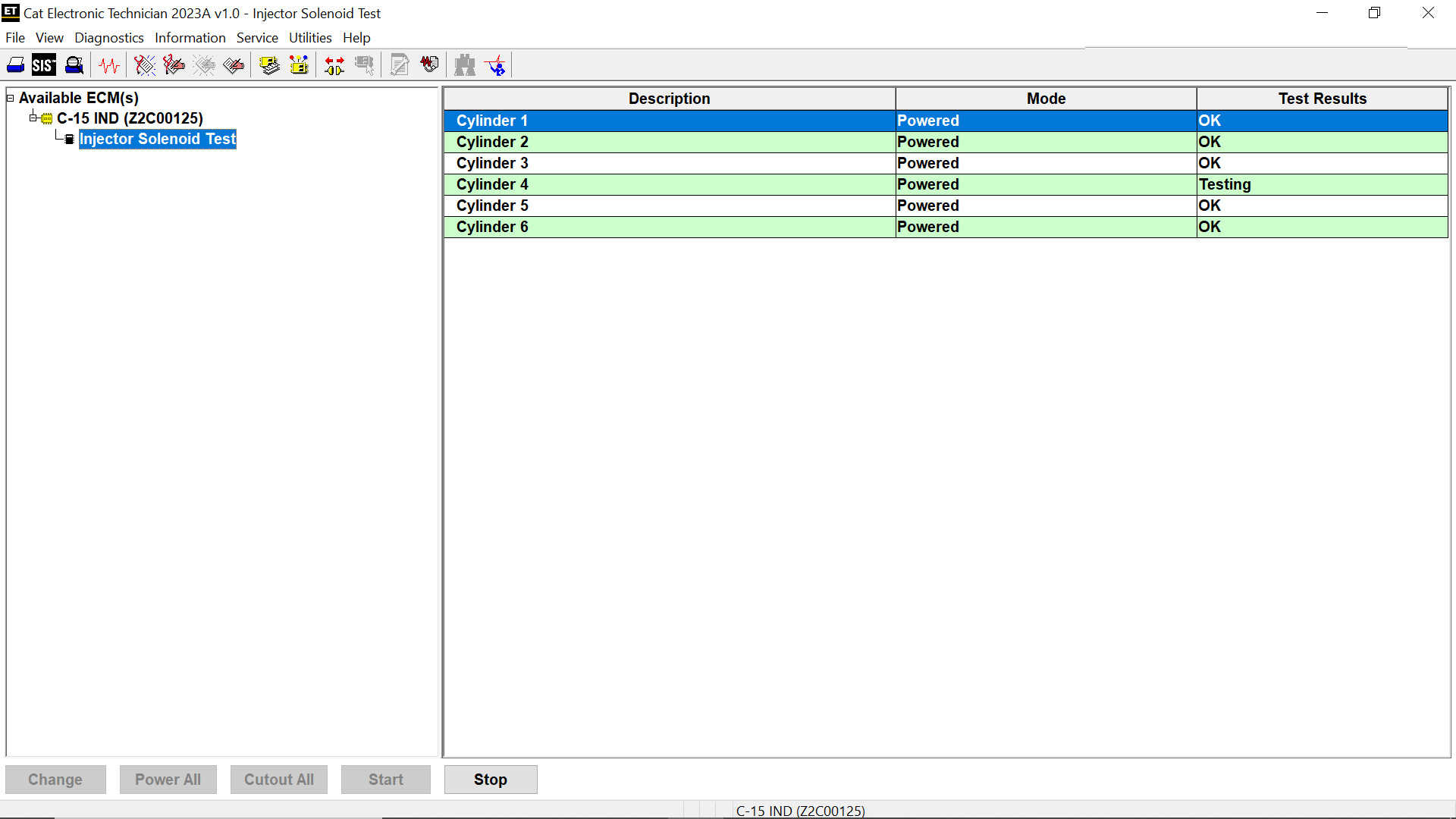

5. Reconnect the battery system and access the Injector Solenoid Test through CAT ET software. This test will help ensure that the new wiring harness assembly is functioning properly.
6. Install the valve mechanism cover.
7. Start the engine and monitor its performance to ensure that the replacement was successful.
By following these step-by-step instructions, you will be able to replace the Engine Injector Wiring Harness Assembly for the C-15 Petroleum Engine (CAT P/N 237-7595, 242-7248, and 122-1486) effectively. Regular replacement of this component will help maintain the performance and efficiency of your engine, ensuring smooth operation and longevity.
